TOPWISH Portable Propane Tankless Water Heater 8L

1. Introduktion og overview

The TOPWISH 8L Portable Propane Tankless Water Heater is designed to provide instant hot water for various outdoor applications. Weighing approximately 14 lbs and delivering a water flow of 2.11 GPM, this unit offers rapid heating within 5 seconds. It is suitable for camping, RVs, cabins, and other outdoor activities where hot water is needed.

Nøglefunktioner:

• Høj ydeevne: 54,500 BTU heating power with a water pressure range of 20–120 PSI.
• Six-in-One Safety Protection: Includes overheat protection, dry-burning prevention, flame fault detection, anti-blockage protection, low-flow water protection, and high-pressure protection.

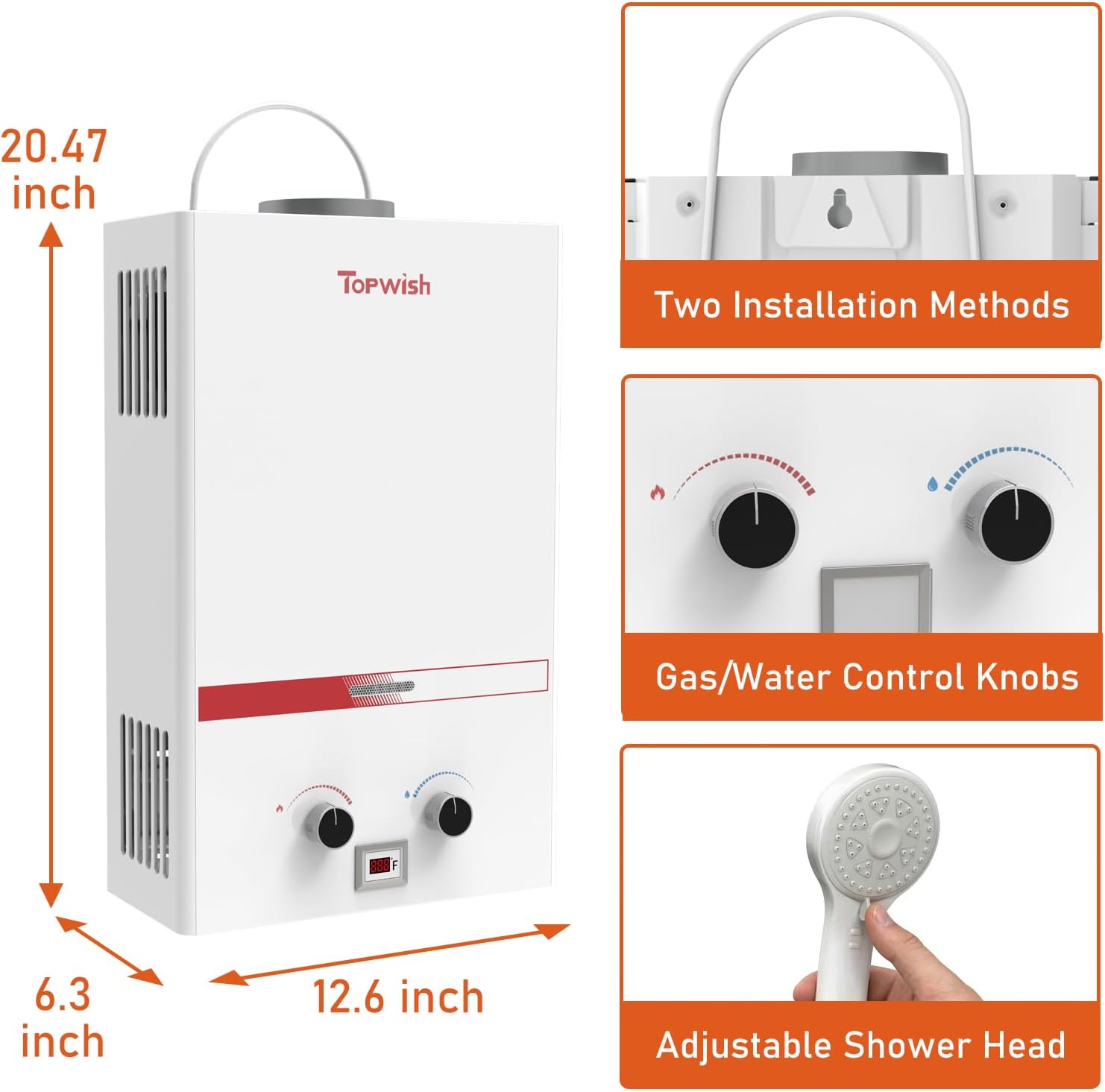

• Portability and Ease of Use: Compact dimensions (20.47" H × 12.6" L × 6.3" W) for easy storage and transport. Powered by two D-size batteries for ignition. Features an LED temperature display and intuitive controls.

2. Opsætningsvejledning

Follow these steps to set up your TOPWISH portable propane water heater. Ensure all connections are secure before operation.

2.1 Udpakning og komponentidentifikation

Carefully remove all components from the packaging. Verify that all parts listed in the 'What You Get' section are present.

2.2 Montering af enheden

The unit can be hung vertically using the integrated handle or mounted to a wall/caravan using appropriate hardware (included in installation kits).

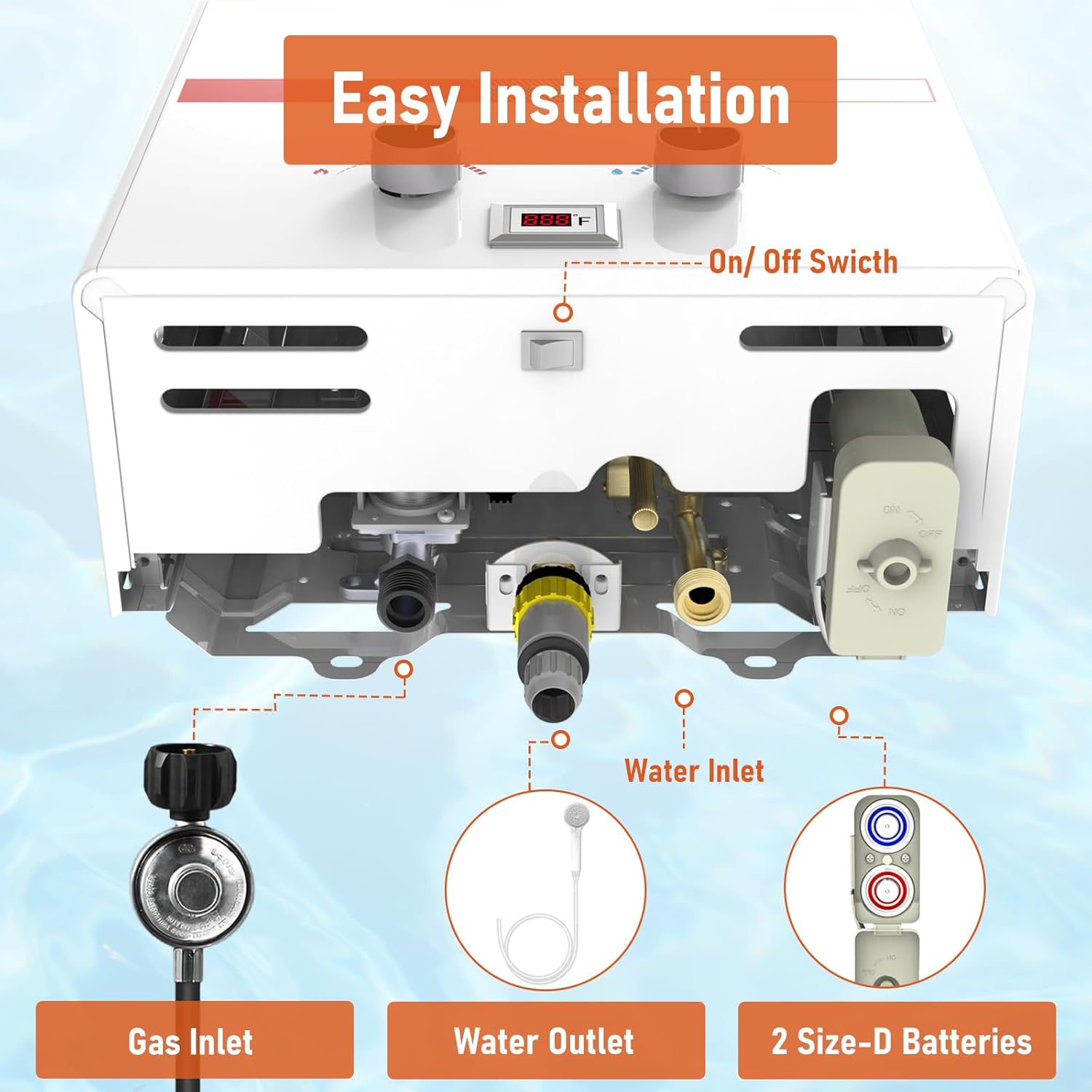

2.3 Tilslutning af vand og gas

1. Connect the cold water inlet hose to the designated port on the unit.
2. Connect the shower head hose to the hot water outlet port.
3. Attach the gas pressure regulator assembly to the gas inlet port on the unit, then connect the other end to a propane tank. Ensure all connections are tight to prevent leaks.

2.4 Batteriinstallation

Open the battery compartment and insert two D-size batteries, ensuring correct polarity. These batteries power the ignition system.

2.5 Opsætningsvideoguide

3. Betjeningsvejledning

Once the unit is properly set up, follow these steps to operate your water heater.

3.1 Tænd

Turn on the gas supply from your propane tank. Locate the ON/OFF switch on the unit and switch it to the 'ON' position. The digital display will illuminate, showing the current water temperature.

3.2 Adjusting Temperature and Water Flow

Use the two control knobs on the front panel to adjust the gas flow (heat) and water flow. The left knob controls the gas, and the right knob controls the water. Adjust these to achieve your desired water temperature. The digital display will show the real-time temperature.

3.3 Shower Head Modes

The included shower head features three spray options: Mist, Shower, and Jet. Use the switch on the shower head to select your preferred mode.

4. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din vandvarmer.

• Rensning: Tør jævnligt enhedens yderside af med enamp klæde. Brug ikke slibende rengøringsmidler.
• Slangeinspektion: Before each use, inspect all hoses and connections for any signs of wear, cracks, or leaks. Replace damaged components immediately.
• Udskiftning af batteri: Replace D-size batteries when the ignition becomes weak or fails.
• Opbevaring: When not in use for extended periods, drain all water from the unit and store it in a dry, protected area.

5. Fejlfinding

If you encounter issues with your water heater, refer to the following common troubleshooting tips:

• Intet varmt vand: Check propane tank level, ensure gas valve is open, verify batteries are correctly installed and charged, check water flow rate.
• Lavt vandtryk: Ensure water supply has adequate pressure (20-120 PSI), check for kinks in hoses, clean shower head if clogged.
• Enheden tændes ikke: Confirm batteries are new and correctly inserted, check gas supply, ensure water is flowing through the unit.
• Lækage: Tighten all water and gas connections. If leakage persists, discontinue use and contact customer support.

For persistent issues or complex problems, please refer to the detailed troubleshooting section in the full user manual or contact TOPWISH customer support.

6. Specifikationer

7. Garanti og support

The TOPWISH Portable Propane Tankless Water Heater comes with a 1-year warranty. For any assistance, product inquiries, or warranty claims, please contact TOPWISH customer service. We are committed to ensuring product quality and your satisfaction.

For further information or to register your product, please visit the official TOPWISH store: TOPWISH Store on Amazon.
