Indledning
This user manual provides detailed instructions for the operation, maintenance, and troubleshooting of your Hiicam Speed 50 Action Camera. Please read this manual thoroughly before using the camera to ensure proper functionality and to maximize your experience.
Hvad er der i æsken
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- Hiicam Speed 50 actionkamera
- Waterproof Case (for depths up to 131ft / 40m)
- Fjernbetjening
- 2 x 1550mAh genopladelige batterier
- Batterioplader
- USB opladningskabel
- Various Mounting Accessories (e.g., helmet mount, bicycle mount, adhesive mounts)
- Rengøringsklud
- Brugermanual
Image: Hiicam Speed 50 Action Camera with all standard accessories laid out.
Produkt overview
The Hiicam Speed 50 is a versatile action camera designed for capturing high-quality video and photos in various environments. It features 4K 60FPS video recording, 30MP photo resolution, a 2-inch touch screen, Electronic Image Stabilization (EIS), and 5X digital zoom.
Image: The Hiicam Speed 50 camera's 2-inch touchscreen displaying 4K video, highlighting 4K resolution, 50MP pixel count, and 5X zoom capabilities.
The camera is designed to be waterproof up to 33 feet (10 meters) without an additional case, and up to 131 feet (40 meters) with the included waterproof housing.
Opsætning
1. Batteriinstallation og opladning
The camera comes with two 1550mAh rechargeable batteries. Ensure batteries are fully charged before first use.
- Åbn batteridækslet i bunden af kameraet.
- Insert the battery with the contacts facing the correct direction, as indicated inside the compartment.
- Luk batterirummets dæksel forsvarligt.
- To charge, connect the camera to a USB power source using the provided USB cable, or use the external battery charger. The charging indicator light will show charging status.
Image: Two 1550mAh rechargeable batteries for the Hiicam Speed 50 camera.
Image: An illustration showing the Hiicam Speed 50 camera connected via USB for charging.
2. Installation af hukommelseskort
A MicroSD card (not included) is required for storing videos and photos. The camera supports up to 128GB MicroSD cards (U3 or higher recommended).
- Find MicroSD-kortstikket på siden af kameraet.
- Indsæt MicroSD-kortet med de gyldne kontakter vendt mod kameraets bagside, indtil det klikker på plads.
- For at fjerne det skal du forsigtigt skubbe kortet, indtil det springer ud.
3. Brug af vandtæt etui
For underwater activities beyond 33 feet (10 meters) or in harsh environments, use the included waterproof case.
- Ensure the camera is dry before placing it into the case.
- Close the case securely, ensuring the latch is fully engaged and the rubber seal is clean and free of debris.
- Always test the waterproof case without the camera in water before use to ensure it is sealed properly.
4. Parring med fjernbetjening
Fjernbetjeningen giver mulighed for bekvem betjening på afstand.
- Tænd for kameraet.
- Press and hold the Wi-Fi button on the camera until the Wi-Fi icon appears.
- On the remote control, press and hold the video button and photo button simultaneously until the remote indicator light flashes.
- The remote control should automatically pair with the camera.
5. App-forbindelse (Wi-Fi)
Connect your camera to a smartphone or tablet via Wi-Fi for live preview, fjernbetjening og file overførsel.
- Download the official Hiicam app from your device's app store.
- Power on the camera and enable Wi-Fi by pressing the Wi-Fi button. The Wi-Fi name (SSID) and password will display on the camera screen.
- On your smartphone/tablet, go to Wi-Fi settings and connect to the camera's Wi-Fi network.
- Open the Hiicam app. The camera feed should appear, allowing you to control the camera and access files.
Image: The Hiicam Speed 50 camera screen alongside a smartphone displaying the camera's companion app interface, showing options for photo, recording, download, and preview.
Image: An illustration demonstrating the wireless transfer of media files from the Hiicam Speed 50 camera to a smartphone application.
Betjeningsvejledning
1. Tænd/sluk
- To power on, press and hold the Power/Mode button until the screen turns on.
- For at slukke skal du trykke på tænd/sluk-/tilstandsknappen og holde den nede, indtil skærmen slukker.
2. Skift af tilstand
Tryk gentagne gange på tænd/sluk-/tilstandsknappen for at skifte mellem forskellige tilstande: Video, Foto, Afspilning og Indstillinger.
3. Video Recording (4K 60FPS)
- Ensure the camera is in Video mode.
- Press the Shutter/OK button to start recording. A red recording indicator will flash.
- Tryk på udløser/OK-knappen igen for at stoppe optagelsen.
Image: A screen capture from the Hiicam Speed 50 camera showing a 4K 60FPS video recording in progress.
4. Fotooptagelse (30MP)
- Switch the camera to Photo mode.
- Tryk på udløser/OK-knappen for at tage et billede.
5. Elektronisk billedstabilisering (EIS)
The 6-axis EIS feature helps to stabilize footage, reducing blur and shakiness, especially during motion activities.
- EIS can be enabled or disabled in the camera's settings menu.
- It is recommended to enable EIS for activities involving significant movement, such as cycling or motorcycling.
Image: The Hiicam Speed 50 camera mounted on bicycle and motorcycle handlebars, illustrating its use in motion with 6-axis stabilization.
Image: A side-by-side comparison of video footage, demonstrating the effect of Electronic Image Stabilization (EIS) when turned on versus off, showing reduced shakiness.
6. Zoomfunktion
The camera supports up to 5X digital zoom.
- In Video or Photo mode, use the Up/Down buttons (or touch screen controls) to adjust the zoom level.
Image: A visual comparison demonstrating the different zoom levels (1x, 3x, and 5x) achievable with the Hiicam Speed 50 camera.
7. Underwater Use
The Hiicam Speed 50 is designed for use in water, with different depth capabilities depending on whether the waterproof case is used.
- Bare Machine: Waterproof up to 33 feet (10 meters). Suitable for shallow water activities like snorkeling or light swimming.
- Med vandtæt etui: Waterproof up to 131 feet (40 meters). Essential for diving and deeper underwater exploration.
Image: A person using the Hiicam Speed 50 camera directly in water without its waterproof case, demonstrating its 33ft bare machine waterproof capability.
Image: The Hiicam Action Camera partially submerged in water, illustrating its waterproof capabilities: 20ft for the bare camera and 133ft with the waterproof case.
8. Afspilning og File Overførsel
- In Playback mode, use the Up/Down buttons or touch screen to navigate through your recorded videos and photos.
- Files can be transferred to a computer by connecting the camera via USB, or wirelessly to a smartphone/tablet using the Hiicam app (see Setup section).
Opretholdelse
1. Rengøring af kamera og objektiv
Regular cleaning ensures optimal performance and longevity.
- Brug den medfølgende rengøringsklud til forsigtigt at tørre linsen og skærmen af.
- For stubborn smudges, use a lens cleaning solution specifically designed for optical surfaces.
- The camera features a detachable wide-angle lens protector for added durability against dust and scratches.

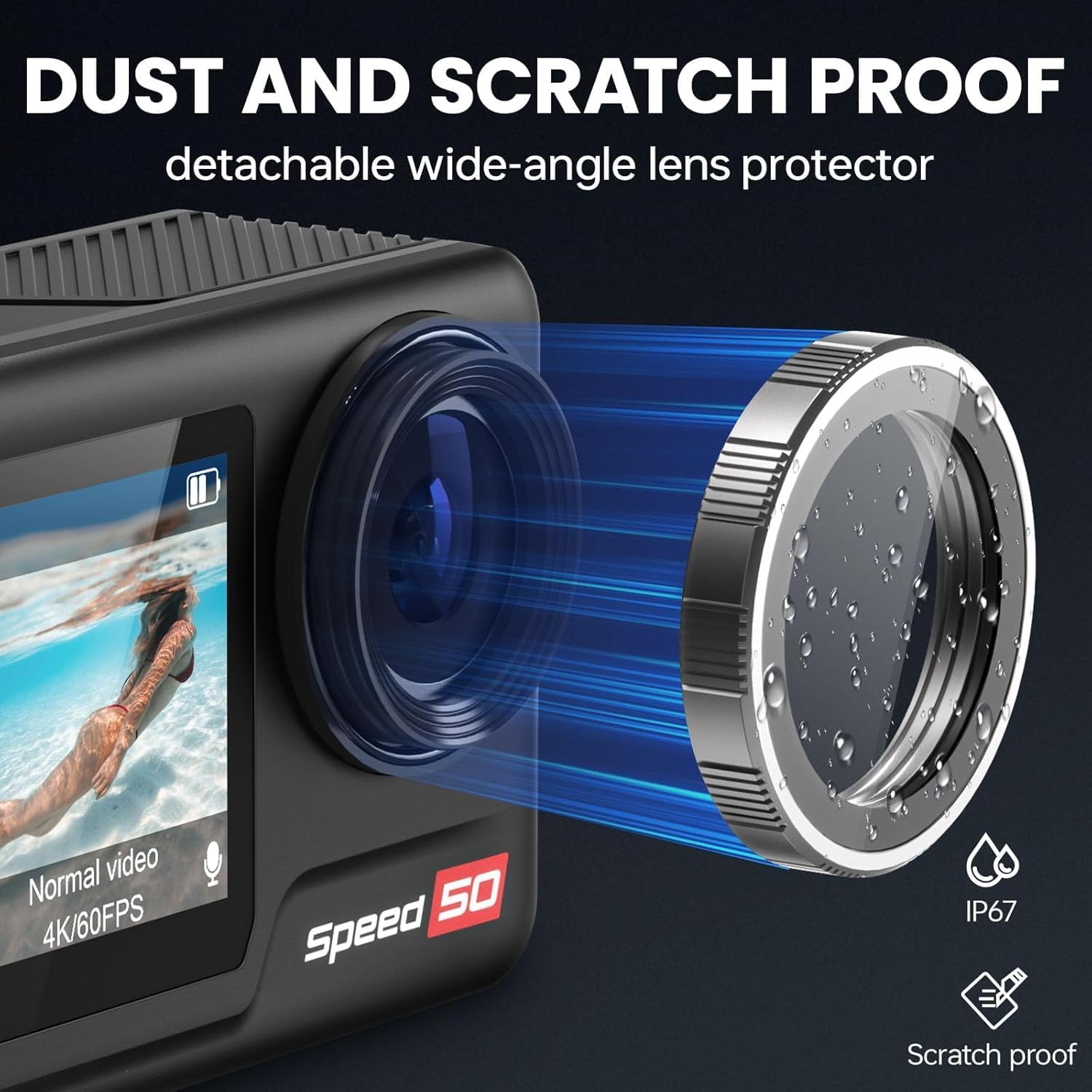

Image: The Hiicam Speed 50 camera highlighting its detachable wide-angle lens protector, which provides dust and scratch resistance.
Image: An illustration showing the detachable wide-angle lens protector being attached to the Hiicam Speed 50 camera.
2. Opbevaring
Opbevar kameraet et køligt og tørt sted, væk fra direkte sollys og ekstreme temperaturer. Fjern batterierne, hvis det opbevares i længere perioder.
3. Batteripleje
For at forlænge batterilevetiden:
- Avoid fully discharging batteries before recharging.
- Do not expose batteries to high temperatures.
- If storing for a long time, charge batteries to about 50% capacity.
Fejlfinding
If you encounter issues with your Hiicam Speed 50 camera, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kameraet tænder ikke. | Low or dead battery; improperly inserted battery. | Oplad batteriet; sørg for, at batteriet er isat korrekt. |
| Kan ikke optage video/tage billeder. | No MicroSD card; MicroSD card full or corrupted; card not supported. | Insert a MicroSD card; delete files or use a new card; format the card in camera; use a U3 or higher card. |
| Problemer med Wi-Fi-forbindelse. | Incorrect password; too far from camera; app issues. | Re-enter password; move closer to camera; restart camera and app. |
| Poor video quality (shaky). | EIS is off; extreme vibration. | Enable EIS in settings; use appropriate mounts to minimize vibration. |
| Kameraet fryser. | Software glitch; corrupted MicroSD card. | Remove and reinsert battery to reset; format MicroSD card. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | Hastighed 50 |
| Video opløsning | Op til 4K 60FPS |
| Foto opløsning | Op til 30 MP |
| Skærmstørrelse | 2-tommer berøringsskærm |
| Billedstabilisering | 6-Axis Electronic Image Stabilization (EIS) |
| Digital Zoom | 5X |
| Waterproof (Bare Machine) | Op til 33 fod (10 meter) |
| Waterproof (With Case) | Op til 131 fod (40 meter) |
| Batterikapacitet | 2 x 1550mAh |
| Batterilevetid | Approximately 90 minutes per battery (5 hours total with 2 batteries) |
| Opbevaring | MicroSD card, up to 128GB (U3 or higher recommended) |
| Forbindelse | Wi-Fi, USB |
| Dimensioner | 2.28 x 0.95 x 1.57 tommer |
| Vægt | 1.41 pund (0.64 kg) |
| Understøttet lydformat | AAC, MP3 |
Image: An illustration highlighting the 1/1.3-inch sensor size of the camera.
Garanti og support
Hiicam products are covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Hiicam webwebsted.
For technical support, troubleshooting assistance, or inquiries about replacement parts, please contact Hiicam customer service. You can often find support contact information on the brand's official Amazon store page or webwebsted.
Der blev ikke fundet nogen officielle sælgervideoer til indlejring i denne manual.
