RAINPOINT Vandingscomputer Brugermanual

1. Introduktion

Thank you for choosing the RAINPOINT Irrigation Computer. This device is designed to simplify your garden watering tasks with its advanced features and user-friendly interface. It allows for precise control over watering schedules across multiple zones, ensuring optimal hydration for your plants while conserving water.

Please read this manual thoroughly before operating the device to ensure proper installation, programming, and maintenance. Keep this manual for future reference.

2. Produktet er slutview

2.1 Komponenter

The RAINPOINT Irrigation Computer features a robust design with a large LCD display and intuitive controls. Key components include:

• Hovedenhed: Houses the control panel, LCD display, and battery compartment.
• Messingindløb: Durable connection point for your water source, compatible with 3/4 and 1-inch hoses/taps.
• Tre uafhængige forretninger: Allows for connection of up to three separate watering zones.
• Kontrolopkald: Used for navigating through settings and modes.
• Knapper: OK/Manual, Delay/+, Zone/-, used for specific functions and adjustments.

Figur 2.1: Forside view of the RAINPOINT Irrigation Computer, showing the large LCD display, control dial, and three outlets at the bottom.

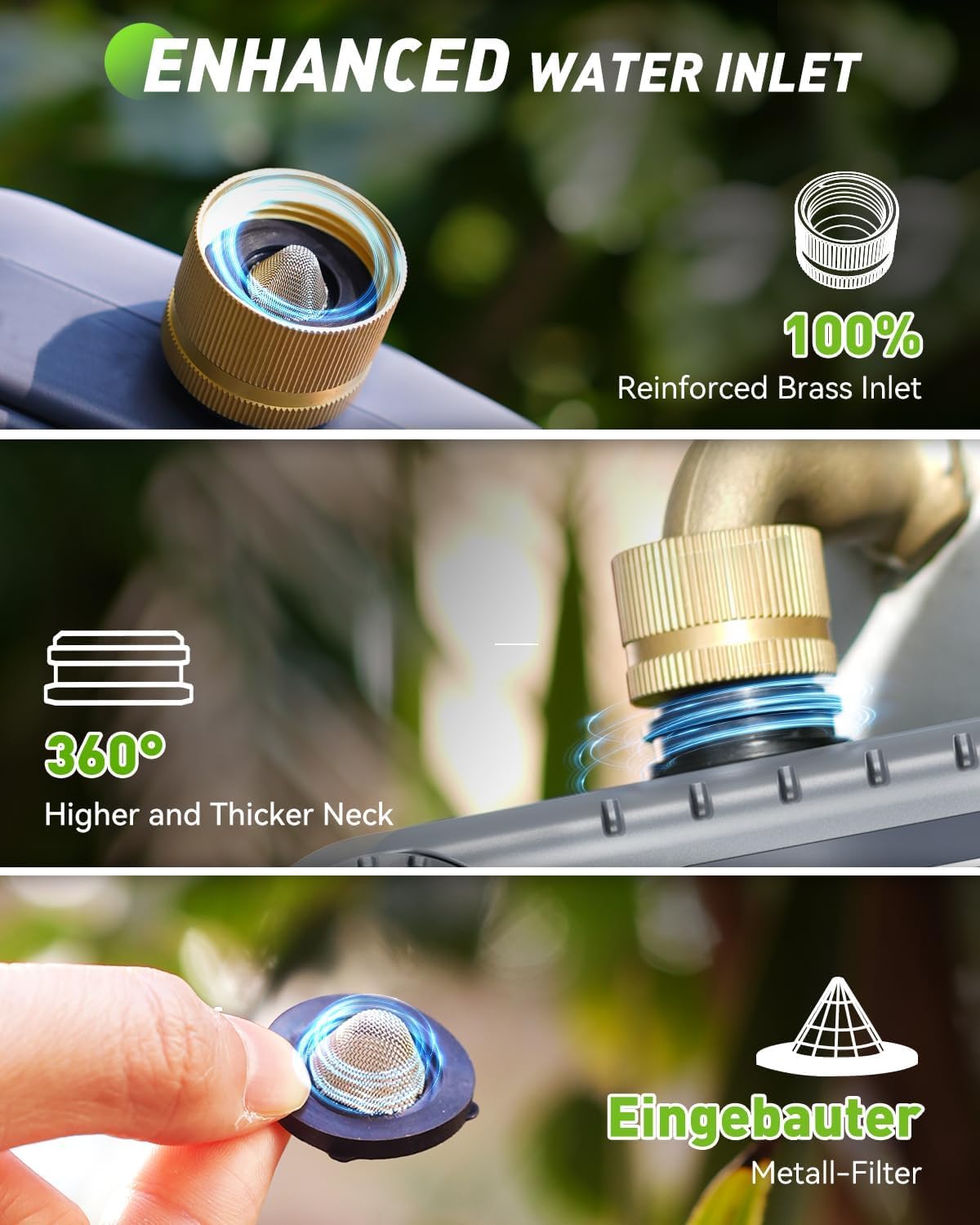

Figur 2.2: Detaljeret view of the enhanced water inlet, featuring a reinforced brass connection and an integrated metal filter for durability and clean water flow.

2.2 Nøglefunktioner

• 3 Independent Zones: Program distinct watering schedules for up to three different areas.
• Enhanced Timer Performance: Durable brass inlet and reinforced solenoid valve for stable water flow.
• Regnforsinkelsesfunktion: Pause watering for 24, 48, or 72 hours to prevent overwatering during rainfall.
• Manuel vandingstilstand: Initiate immediate watering without affecting programmed schedules.
• Stort LCD-display: Clear and easy-to-read screen for programming and monitoring.
• Lav batteribeskyttelse: Alerts for low battery and automatically shuts off the valve to prevent water waste.

3. Opsætning

3.1 Batteriinstallation

The irrigation computer requires 4 AA 1.5V batteries (not included). To install:

1. Find batterirummet på bagsiden af ​​enheden.
2. Gently pull up the two tabs on the back cover to open the compartment.
3. Indsæt 4 AA-batterier, og sørg for korrekt polaritet (+/-).
4. Close the battery compartment securely, pressing down until the tabs click into place.

Note: The LCD screen will activate upon successful battery installation.

3.2 Installation to Faucet

Before connecting, ensure your faucet is clean and free of debris.

1. Attach the brass inlet of the irrigation computer to your outdoor faucet. Ensure the included sealing washer is properly seated to prevent leaks.
2. Tighten the connection by hand until secure. Do not overtighten.
3. Connect your garden hoses to the three independent outlets at the bottom of the unit. Ensure each hose is securely fastened.

Figure 3.1: Installation of the irrigation computer to a standard outdoor faucet, highlighting the ergonomic design for easy handling.

4. Betjeningsvejledning

4.1 Indstilling af uret

1. Drej kontrolknappen til SÆT UR.
2. Brug +/- buttons to adjust the current hour. Press OK/MANUEL for at bekræfte.
3. Brug +/- buttons to adjust the current minute. Press OK/MANUEL for at bekræfte.
4. Uret er nu indstillet.

4.2 Programming Watering Schedules (Automatic Mode)

Each of the three zones can be programmed independently. The device will execute plans for one zone at a time to maintain water pressure.

Figure 4.1: The LCD display illustrating the customizable settings for watering schedules, including start time, duration, and frequency.

1. Drej kontrolknappen til STARTTID.
2. Tryk på ZONE +/- button to select the zone you wish to program (ZONE 1, 2, or 3).
3. Brug +/- buttons to set the desired start time for the selected zone. Press OK/MANUEL for at bekræfte.
4. Drej kontrolknappen til HVOR LÆNGE.
5. Ensure the correct zone is selected using ZONE +/-. Brug +/- buttons to set the watering duration (from 1 minute to 4 hours). Press OK/MANUEL for at bekræfte.
6. Drej kontrolknappen til HVOR OFTE.
7. Ensure the correct zone is selected using ZONE +/-. Brug +/- buttons to set the watering frequency (from 1-12 hours or 1-7 days). Press OK/MANUEL for at bekræfte.
8. Repeat steps for other zones as needed.
9. Drej kontrolknappen til ON to activate the programmed schedules.

Important Note: The device can only execute the plan for one zone at a time. If there is a conflict in activation plans for multiple zones, only one zone will operate, and the others will wait for the previous zone's execution to complete before starting. This ensures optimal water pressure for each zone.

4.3 Manuel vanding

To initiate immediate watering without affecting your programmed schedules:

Figure 4.2: A user demonstrating manual watering, with the display showing options to select and activate specific zones for immediate watering.

1. Drej kontrolknappen til ON.
2. Tryk på OK/MANUEL knappen. Displayet vil vise "MANUAL".
3. Brug ZONE +/- button to select the zone you wish to water manually.
4. Brug +/- buttons to set the desired manual watering duration (from 1 minute to 8 hours).
5. Trykke OK/MANUEL for at starte manuel vanding.
6. For at stoppe manuel vanding, tryk på OK/MANUEL igen eller drej drejeknappen til SLUKKET.

4.4 Regnforsinkelsesfunktion

The rain delay function allows you to temporarily suspend your watering schedule for a set period, preventing overwatering during rainy conditions.

Figure 4.3: The irrigation computer displaying the rain delay options, allowing users to pause watering for 24, 48, or 72 hours.

1. Drej kontrolknappen til ON.
2. Tryk på FORSINKELSE/+ button. The display will show "DELAY".
3. Brug +/- buttons to select the desired delay duration (24H, 48H, or 72H).
4. Trykke OK/MANUEL to activate the rain delay. The timer will automatically resume its schedule after the selected delay period.
5. For at annullere regnforsinkelsen skal du trykke på FORSINKELSE/+ again and select "0H" or turn the dial to SLUKKET og så tilbage til ON.

4.5 Slukning af enheden

For at stoppe al vanding og programmering skal du dreje kontrolknappen til SLUKKET. This will suspend all active schedules until the dial is turned back to ON.

5. Vedligeholdelse

• Udskiftning af batteri: Replace batteries when the low battery indicator appears on the LCD. The valve will automatically shut off when batteries are critically low to prevent water waste.


Figure 5.1: The display indicating a low battery reminder and the automatic shut-off feature to conserve water.

• Rensning: Periodically clean the brass inlet filter to prevent debris from entering the unit and affecting water flow. Remove the filter, rinse it under running water, and reinsert.
• Vinteropbevaring: During freezing temperatures, remove the irrigation computer from the faucet and store it indoors in a dry, frost-free location. Remove batteries before storage.
• Vedligeholdelse af ventiler: The improved coil valve design minimizes shock and ensures smoother water flow. No specific user maintenance is required for the internal valve beyond keeping the inlet filter clean.

Figure 5.2: Visual comparison highlighting the structural design improvements of the upgraded coil valve, leading to less water pressure loss compared to older valve types.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

RAINPOINT offers lifetime support for this product. If you require further assistance, have questions, or encounter any issues not covered in this manual, please contact RAINPOINT customer service.

For warranty information and to register your product for a 5-year guarantee, please refer to the contact details provided with your purchase or visit the official RAINPOINT webwebsted.
