RAINPOINT Sprinkler Timer Brugermanual

Indledning

Thank you for choosing the RAINPOINT Sprinkler Timer. This programmable hose controller is designed to simplify your garden watering, offering automatic, manual, and rain delay functions. Featuring a 100% metal water pipe construction, it ensures durability and efficient water flow for your lawn and garden irrigation needs.

Nøglefunktioner

• 100% Metal Water Pipes: Upgraded internal water pipes made entirely of metal, designed to withstand water pressure up to 140 PSI and offer a longer service life compared to plastic alternatives.
• Full-Flow Design: Utilizes a full-bore metal ball valve and larger water pipe diameter to provide a higher water flow (up to 10 Gal/min at 100 PSI) and minimize pressure loss.
• Automatic Watering Mode: Allows setting flexible watering frequencies (1-12 hours or 1-7 days) and durations (1 minute to 3 hours 59 minutes) for automated irrigation.
• Regnforsinkelse og manuel tilstand: Features a rain delay function (24H, 48H, or 72H) to pause scheduled watering during rainfall, and a manual mode for temporary watering needs (1 minute to 8 hours) without affecting the main schedule.
• Leak-Proof Brass Water Inlet & Outlet: Equipped with pure brass ¾" standard threaded connections for quick and secure attachment to garden hoses. Anti-twist lock thread design withstands 2000N tensile force, ensuring IP65 waterproof performance for outdoor use.
• 2.5" LCD-skærm: Large, easy-to-read display for clear programming and status monitoring.
• Lav strømbeskyttelse: Automatically turns off the valve to prevent continuous watering when battery is low.

Pakkens indhold

Sørg venligst for, at alle varer er til stede ved udpakning:

• 1 x RAINPOINT Sprinkler Timer (Model: RP-MIN)
• 1 x brugermanual
• (Batteries not included - Requires 2 AA batteries)

Opsætningsvejledning

1. Batteriinstallation

The timer requires 2 AA alkaline batteries (not included). Ensure correct polarity when inserting.

1. Find batterirummet på bagsiden af ​​timeren.
2. Skub batteridækslet åbent.
3. Insert 2 new AA alkaline batteries, observing the +/- markings.
4. Close the battery cover securely to ensure the IP65 waterproof seal is maintained.

Image showing the timer's features including IP65 waterproof rating and low power protection, which relates to battery life.

2. Connecting the Timer

Connect the timer to your outdoor faucet and garden hose.

1. Sørg for, at vandhanen er slukket.
2. Thread the brass inlet of the timer onto your outdoor faucet. Hand-tighten firmly. The ¾" standard GHT fitting ensures compatibility with most garden hoses.
3. Thread your garden hose onto the brass outlet of the timer. Hand-tighten firmly.
4. Slowly turn on your outdoor faucet. The timer is designed to withstand up to 140 PSI.

The main product image showing the timer connected to a hose and faucet, illustrating proper setup.

Detaljeret view of the durable brass inlet and outlet connections, highlighting the quality of the fittings.

3. Indstilling af uret

Before programming, set the current time.

1. Drej drejeknappen til "INDSTIL UR".
2. Use the "+" and "-" buttons to adjust the hour. Press "OK" to confirm.
3. Use the "+" and "-" buttons to adjust the minute. Press "OK" to confirm.
4. Turn the dial to "ON" to save the settings and return to normal operation.

Betjeningsvejledning

Automatisk vandingstilstand

Program your timer for automatic, scheduled watering.

1. Drej drejeknappen til "STARTTID". Brug "+" og "-" til at indstille det ønskede starttidspunkt for vanding. Tryk på "OK".
2. Turn the dial to "HOW LONG". Use "+" and "-" to set the watering duration (1 minute to 3 hours 59 minutes). Press "OK".
3. Turn the dial to "HOW OFTEN". Use "+" and "-" to set the watering frequency (every 1-12 hours or every 1-7 days). Press "OK".
4. Drej drejeknappen til "ON" for at aktivere den programmerede tidsplan.

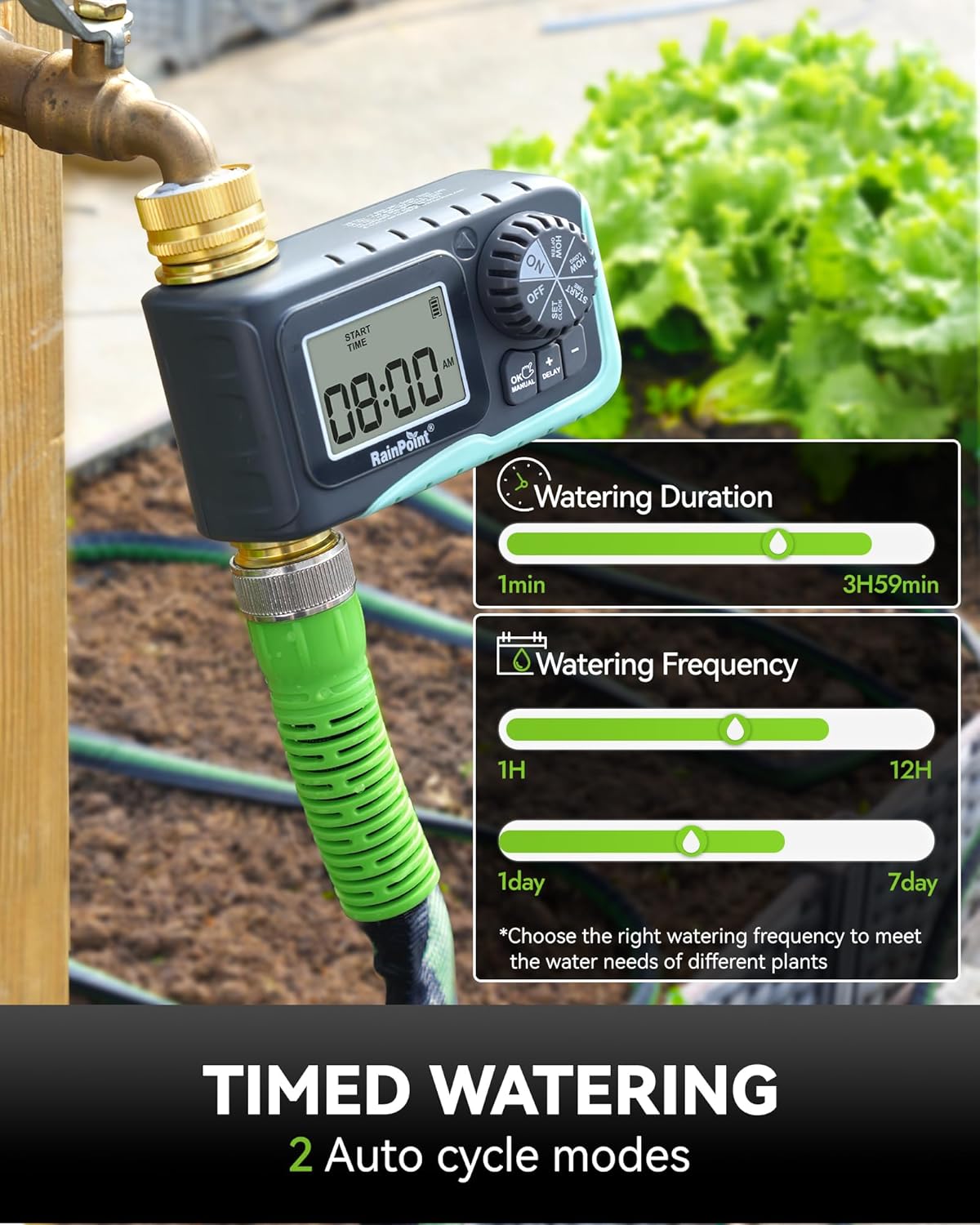

The timer's display showing options for setting watering duration and frequency for automatic cycles.

Regnforsinkelsestilstand

Temporarily pause your watering schedule due to rain.

1. With the dial set to "ON", press the "DELAY" button.
2. Each press of the "DELAY" button will cycle through delay options: 24H, 48H, 72H.
3. The timer will pause for the selected duration and automatically resume the programmed schedule afterward.

Visual representation of the rain delay function, allowing users to prevent overwatering during rainy periods.

Manuel vandingstilstand

Initiate immediate watering without affecting your programmed schedule.

1. With the dial set to "ON", press the "MANUAL" button.
2. Use the "+" and "-" buttons to set the desired manual watering duration (1 minute to 8 hours).
3. Press "OK" to start manual watering.
4. To stop manual watering early, press "MANUAL" again or turn the dial to "OFF" and then back to "ON".

An image demonstrating the manual watering feature, showing a user watering plants directly.

Turning Off the Timer

To stop all watering functions, turn the dial to "OFF". The display will show "OFF".

Opretholdelse

• Udskiftning af batteri: Replace batteries when the low power indicator appears on the display to ensure continuous operation and prevent unexpected watering.
• Rensning: Periodically clean the filter washer located at the inlet to prevent debris from entering the timer and affecting water flow.
• Vinterisering: Før den første frost skal timeren frakobles vandhanen og slangen. Tøm eventuelt resterende vand fra timeren, og opbevar den indendørs på et tørt og beskyttet sted for at forhindre frostskader.
• Forebyggelse af lækage: Ensure all connections are hand-tightened securely. The anti-leak seal ring and robust brass fittings are designed to prevent leaks, but proper installation is crucial.

An illustration highlighting the durable 100% metal water pipe construction, emphasizing its resistance to high pressure and long lifespan.

Fejlfinding

Specifikationer

Garanti og support

For warranty information, technical support, or any inquiries regarding your RAINPOINT Sprinkler Timer, please refer to the official RAINPOINT webwebstedet eller kontakt deres kundeservice direkte. Kontaktoplysninger findes typisk på produktemballagen eller producentens officielle onlinekanaler.

Du kan også besøge RAINPOINT-butik på Amazon for yderligere produktinformation og supportressourcer.
