1. Introduktion
This manual provides comprehensive instructions for the assembly, usage, and maintenance of your Yaheetech Queen Upholstered Platform Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Figure 1.1: Fully assembled Yaheetech Queen Upholstered Platform Bed Frame.
2. Sikkerhedsoplysninger
ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i personskade eller beskadigelse af produktet.
- Overskrid ikke den maksimale vægtgrænse på 794 lbs (360 kg).
- Do not use harsh cleaning methods or abrasive chemicals on the upholstery or frame.
- Always follow the assembly instructions precisely. Incorrect assembly can compromise stability.
- Hold små dele væk fra små børn for at undgå kvælningsfare.
- Sørg for, at alle bolte og skruer er forsvarligt spændt før brug. Kontroller med jævne mellemrum og efterspænd efter behov.
- Stå eller hop ikke på sengerammen.
3. Pakkens indhold
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Yaheetech customer support.
- Sengegavl (1)
- Sideskinner (2)
- Fodplade (1)
- Trælameller (12 stk.)
- Centerstøttebjælke (1)
- Support Legs (various, including center leg)
- Hardwarepakke (skruer, bolte, skiver, unbrakonøgle)
- Brugervejledning (dette dokument)
Figur 3.1: Overview af sengestellets dimensioner og nøglekomponenter.
4. Opsætning og montering
Assembly typically requires two adults. Clear a spacious area for assembly. Do not fully tighten all bolts until instructed.
4.1. Trin-for-trin samling
- Udpak og identificer dele: Carefully remove all components from the packaging. Lay them out on a soft, clean surface to prevent scratches. Refer to the parts list to ensure all items are present.
- Fastgør sideskinner til hovedgærde: Fastgør sideskinnerne til hovedgærdet med de medfølgende bolte og skiver. Spænd kun med hånden på dette tidspunkt.tage.
- Fastgør sideskinner til fodbræt: Connect the other end of the side rails to the footboard. Again, hand-tighten the bolts.
- Installer centerstøttebjælke: Place the center support beam along the length of the frame. Attach any required support legs to the center beam and secure the beam to the headboard and footboard.
- Placering af trælameller: Lay the wooden slats across the frame, ensuring they are evenly spaced. Secure the slats to the side rails using the designated fasteners. The slats are designed for optimal support and breathability.
Figure 4.1: Detail of the supportive and durable wooden slat structure.
- Endelig stramning: Når alle komponenter er på plads og justeret, skal alle bolte og skruer strammes helt med den medfølgende unbrakonøgle. Spænd ikke for hårdt.
- Fastgør beskyttende fodpuder: Ensure all support legs have protective footpads attached to prevent floor scratches and reduce noise.

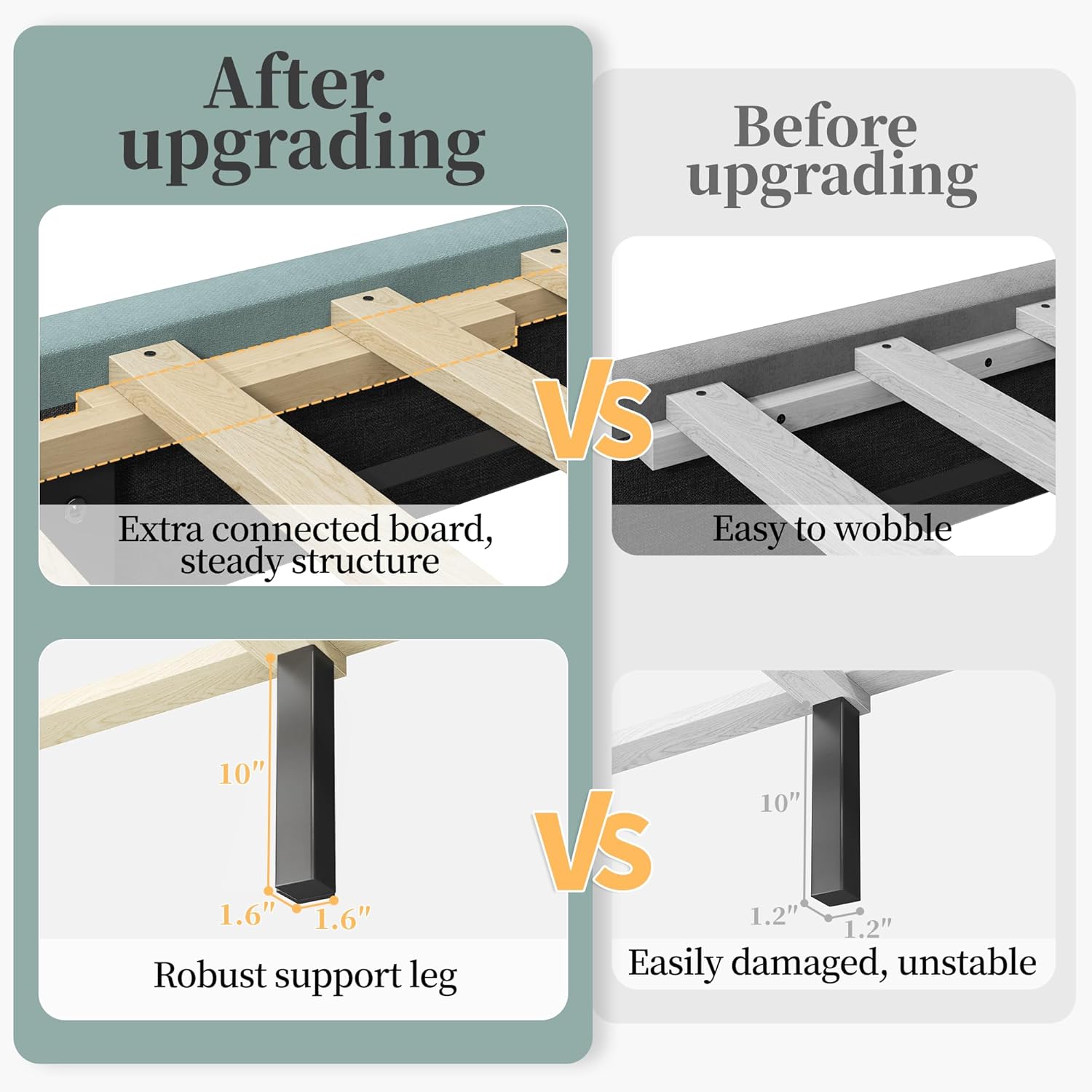

Figure 4.2: Enhanced structural design for improved stability and durability.
5. Brug
5.1. Madrasplacering
This platform bed frame is designed to be used without a box spring. Simply place your queen-sized mattress directly onto the wooden slats. The robust slat system provides ample støtte til din madras.
Figure 5.1: Mattress placement without a box spring.
6. Vedligeholdelse
6.1. Rengøringsvejledning
- Polstring: The velvet upholstery fabric should be dry cleaned only. For minor spills, gently blot with a clean, dry cloth. Avoid rubbing.
- Ramme: Tør rammen af med en blød kludamp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler.
- Under-bed Space: Den 6 cm frihøjde under sengen muliggør nem rengøring, inklusive adgang til robotstøvsugere.
Figure 6.1: Easy cleaning access under the bed frame.
6.2. Almen pleje
- Kontrollér regelmæssigt alle bolte og skruer for at sikre, at de forbliver stramme. Spænd efter behov for at opretholde stabiliteten.
- Undgå langvarig udsættelse for direkte sollys for at forhindre falmning af polstringen.
7. Fejlfinding
- Knirkende lyde: If the bed frame produces squeaking noises, check all connections and ensure all bolts are securely tightened. Loose connections are a common cause of squeaking. Ensure the mattress is properly seated on the slats.
- Ustabilitet/Vinklen: If the frame feels unstable, verify that all components are correctly assembled and all fasteners are fully tightened. Ensure the bed is on a level surface.
- Manglende dele: If you discover any missing parts during assembly, refer to the 'Package Contents' section and contact Yaheetech customer support for assistance.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Yaheetech |
| Modelnummer | YT-00143653 |
| Størrelse | Dronning |
| Farve | Blue Lake |
| Produktmål (L x B x H) | 84 cm L x 64 cm B x 41 cm H |
| Møbelstoftype | Fløjl |
| Materiale for hovedgærde | Træ |
| Vægtgrænse | 794 lbs (360 kg) |
| Varens vægt | 73.85 lbs (33.5 kg) |
| Frihøjde | 6 tommer |
| Montering påkrævet | Ja |
| Boksmadre kræves | Ingen |
9. Garanti og support
9.1. Returpolitik
This product is eligible for a 30-day return policy for refund or replacement, as per the seller's terms.
9.2. Kundesupport
For any questions, missing parts, or assistance with assembly, please contact Yaheetech customer support. You can typically find contact information on the packaging or through the retailer where the product was purchased.
