REDTIGER lysadaptiv display golfafstandsmåler brugermanual

1. Introduktion

This manual provides comprehensive instructions for the safe and effective use of your REDTIGER Light-Adaptive Display Golf Rangefinder. Please read this manual thoroughly before operating the device and retain it for future reference. The rangefinder is designed to provide accurate distance measurements for golf, featuring a light-adaptive display and slope compensation.

2. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• REDTIGER Light-Adaptive Display Golf Rangefinder
• USB-C ladekabel
• Rengøringsklud
• Bæretaske
• Magnetic Golf Ball Marker Set
• Brugermanual

Image: REDTIGER Light-Adaptive Display Golf Rangefinder and accompanying magnetic golf ball markers.

Image: Assortment of REDTIGER magnetic golf ball markers with various golf-themed designs.

3. Produktet er slutview

The REDTIGER Light-Adaptive Display Golf Rangefinder is a precision optical instrument designed for golf. It features a 7X magnification lens, a light-adaptive display for optimal visibility in varying light conditions, and a magnetic strip for convenient attachment to golf carts or clubs.

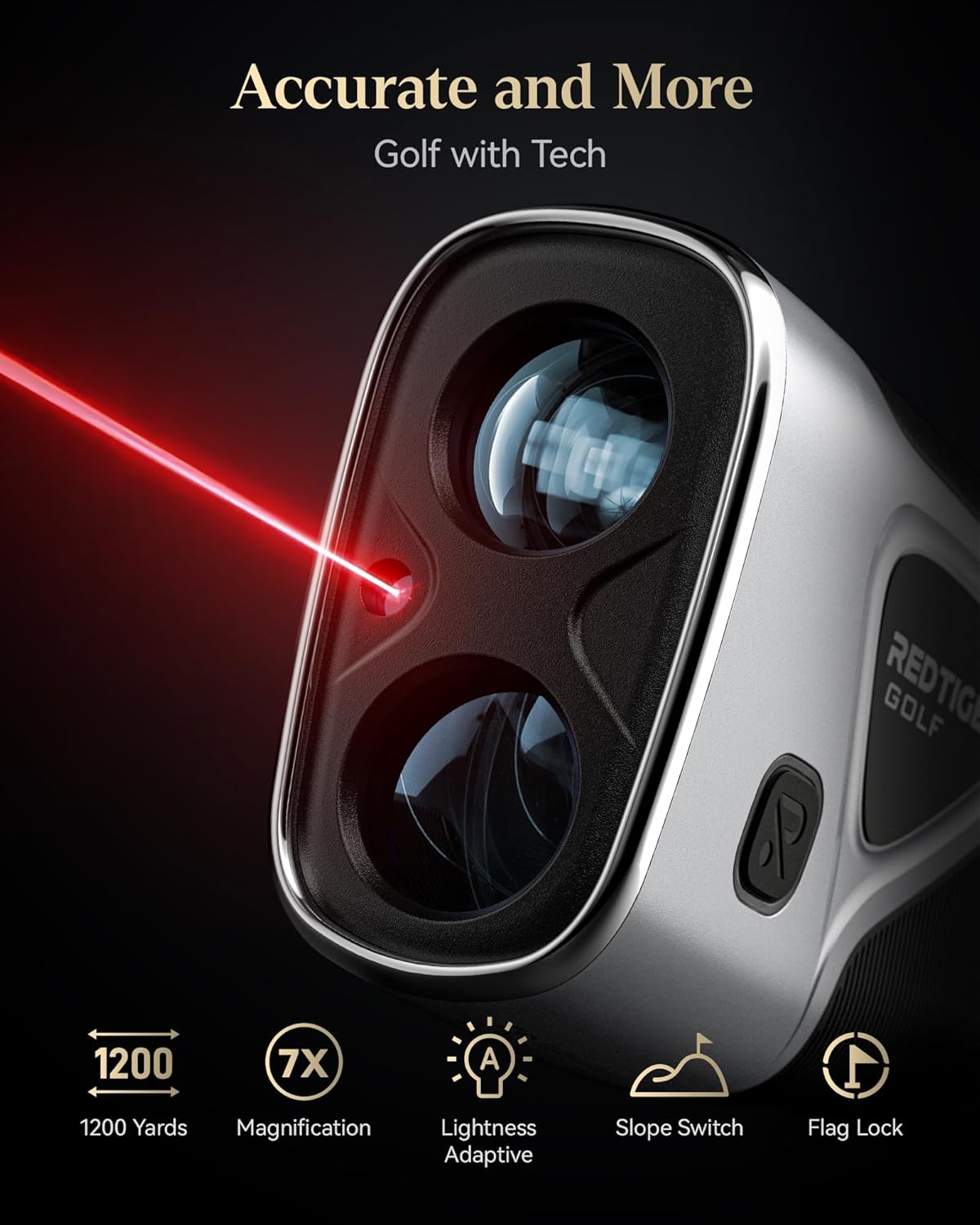

Image: REDTIGER Golf Rangefinder highlighting key features: 1200 yards range, 7X magnification, lightness adaptive display, slope switch, and flag lock.

4. Opsætning

4.1 Opladning af batteriet

The rangefinder is equipped with a 1000mAh USB-C rechargeable battery. Before first use, fully charge the device.

• Tilslut det medfølgende USB-C-kabel til opladningsporten på afstandsmåleren.
• Tilslut den anden ende af kablet til en standard USB-strømadapter (medfølger ikke) eller en computers USB-port.
• Opladningsindikatorlampen lyser under opladning og skifter farve eller slukker, når den er fuldt opladet.
• En fuld opladning giver cirka 10 timers kontinuerlig brug.

4.2 Tænd/sluk

• To power on, press the Power button (usually located on the top or side).
• Enheden slukker automatisk efter en periode med inaktivitet for at spare på batteriet.

4.3 Attaching the Magnetic Ball Marker

The rangefinder features a powerful magnetic strip for convenient attachment to metal surfaces, such as a golf cart frame or club. The included magnetic golf ball markers can be stored on this strip or attached to a hat clip.

Image: Dimensions of the REDTIGER magnetic golf ball marker and hat clip, highlighting vivid color, high magnetic strength, lightweight design, and hat clip functionality.

5. Betjeningsvejledning

5.1 Basic Ranging

• Kig gennem okularet og ret sigtet mod det ønskede mål.
• Press the Measurement button (often the same as the Power button) to activate the laser and obtain a distance reading.
• The rangefinder has a measuring range of 5 to 1200 yards with an accuracy of ±0.5 yards.

Billede: View through the REDTIGER golf rangefinder's eyepiece, displaying a target at 105.0 yards with 7X magnification and high accuracy.

5.2 Light-Adaptive Display

The rangefinder features a light-adaptive display that automatically adjusts brightness and reticle color based on ambient light conditions. In low light, the display will switch from a black reticle to a red reticle for improved visibility.

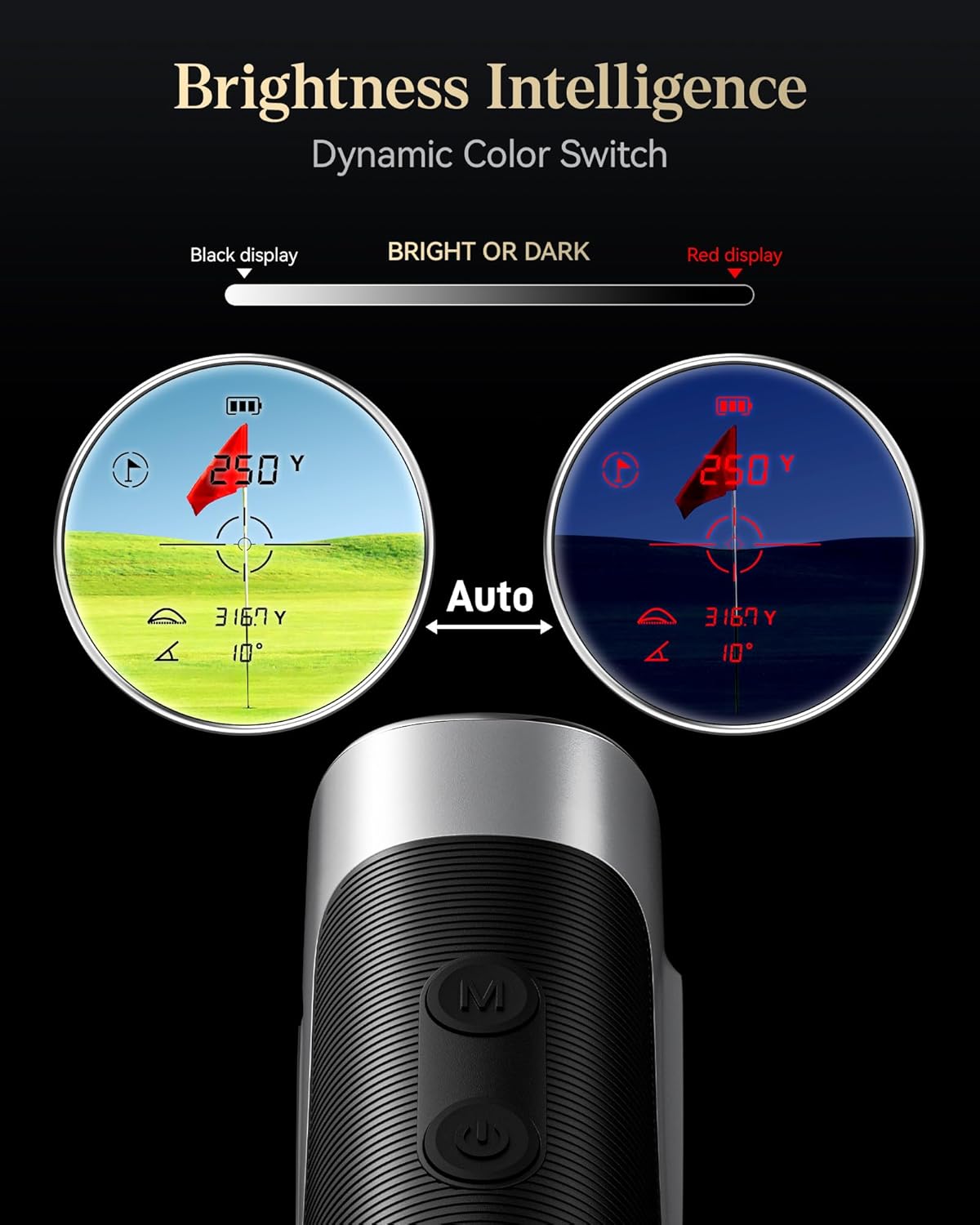

Image: Illustration of the REDTIGER rangefinder's dynamic color switch, showing how the display automatically changes between black and red reticles based on ambient light conditions.

5.3 Slope Compensation

The device includes a slope compensation feature that calculates the adjusted distance based on elevation changes. This feature can be toggled ON or OFF for tournament play compliance.

• Locate the Slope ON/OFF button (refer to product diagrams for exact location).
• Press the button to activate or deactivate the slope function.
• When active, the display will show both the actual distance and the slope-adjusted distance.

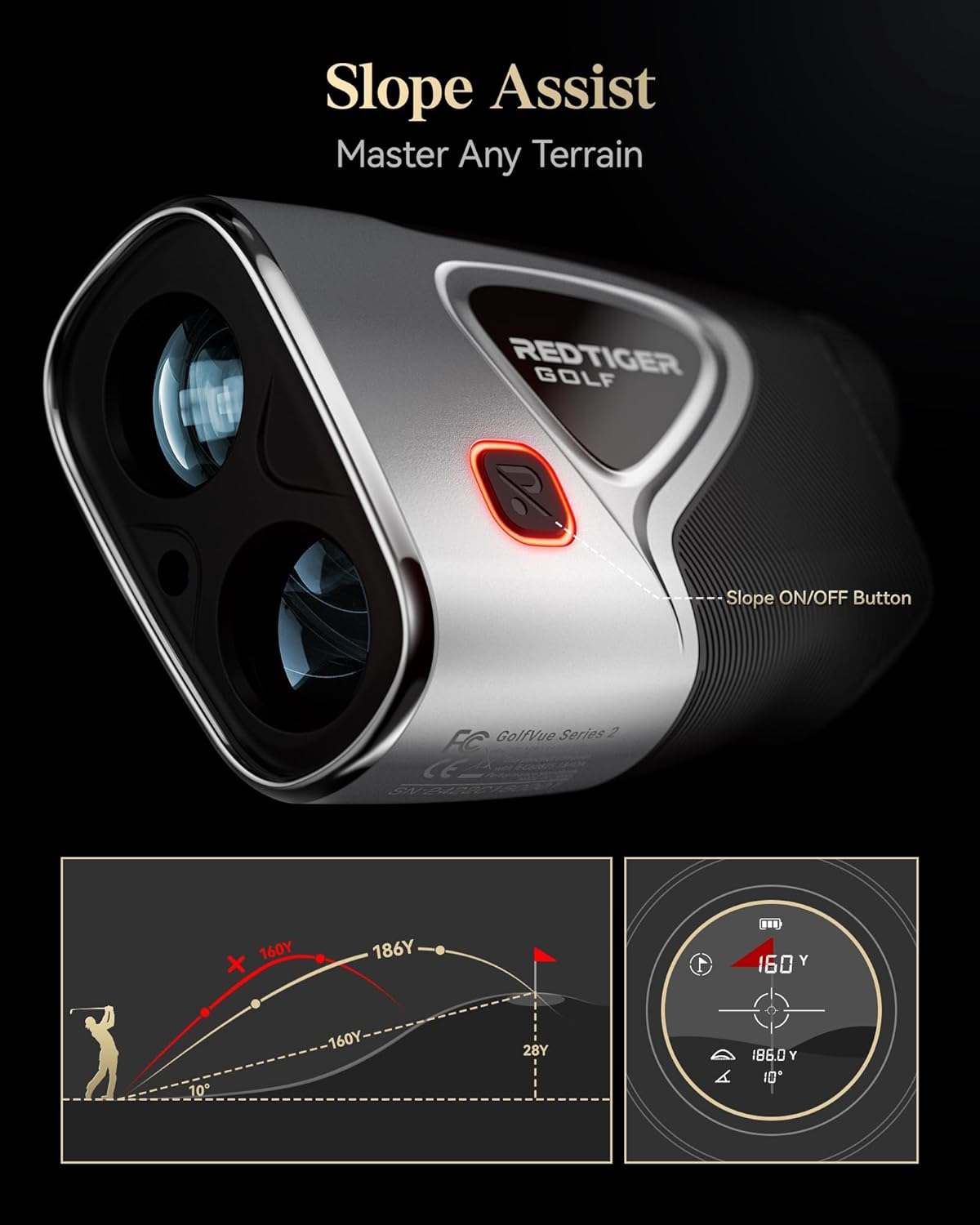

Image: REDTIGER rangefinder demonstrating slope assist feature with a diagram showing adjusted distance for uphill and downhill shots, and the physical slope ON/OFF button.

5.4 Flag Lock and Speed Measurement

The rangefinder supports flag lock technology to accurately target the flagstick and can also perform speed measurements. Refer to the on-screen prompts or additional mode buttons for specific activation of these functions.

5.5 Unit Switching (Yards/Meters)

The device allows switching between yards and meters for distance measurement. Consult the device's menu or mode button instructions for changing units.

6. Vedligeholdelse

6.1 Rengøring

• Use the provided cleaning cloth to gently wipe the lenses and exterior surfaces.
• Do not use abrasive materials or chemical cleaners, as they may damage the optics or finish.

6.2 Opbevaring

• Store the rangefinder in its carrying case when not in use to protect it from dust and impact.
• Undgå opbevaring i ekstreme temperaturer eller høj luftfugtighed.

6.3 Vandtæthed

The rangefinder has an IP54 water resistance rating, meaning it is protected from dust and splashing water from any direction. It is not designed for submersion.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

REDTIGER provides a 2-year unconditional assurance for this product. Additionally, lifetime technical support and 24/7 customer service are available to assist you with any inquiries or issues.

For support, please refer to the contact information provided with your product packaging or visit the official REDTIGER webwebsted.
