1. Introduktion
This manual provides essential information for the safe and efficient operation of your BougeRV 55 Quart Rocky V2.0 Portable Refrigerator. Please read it thoroughly before use and retain it for future reference.

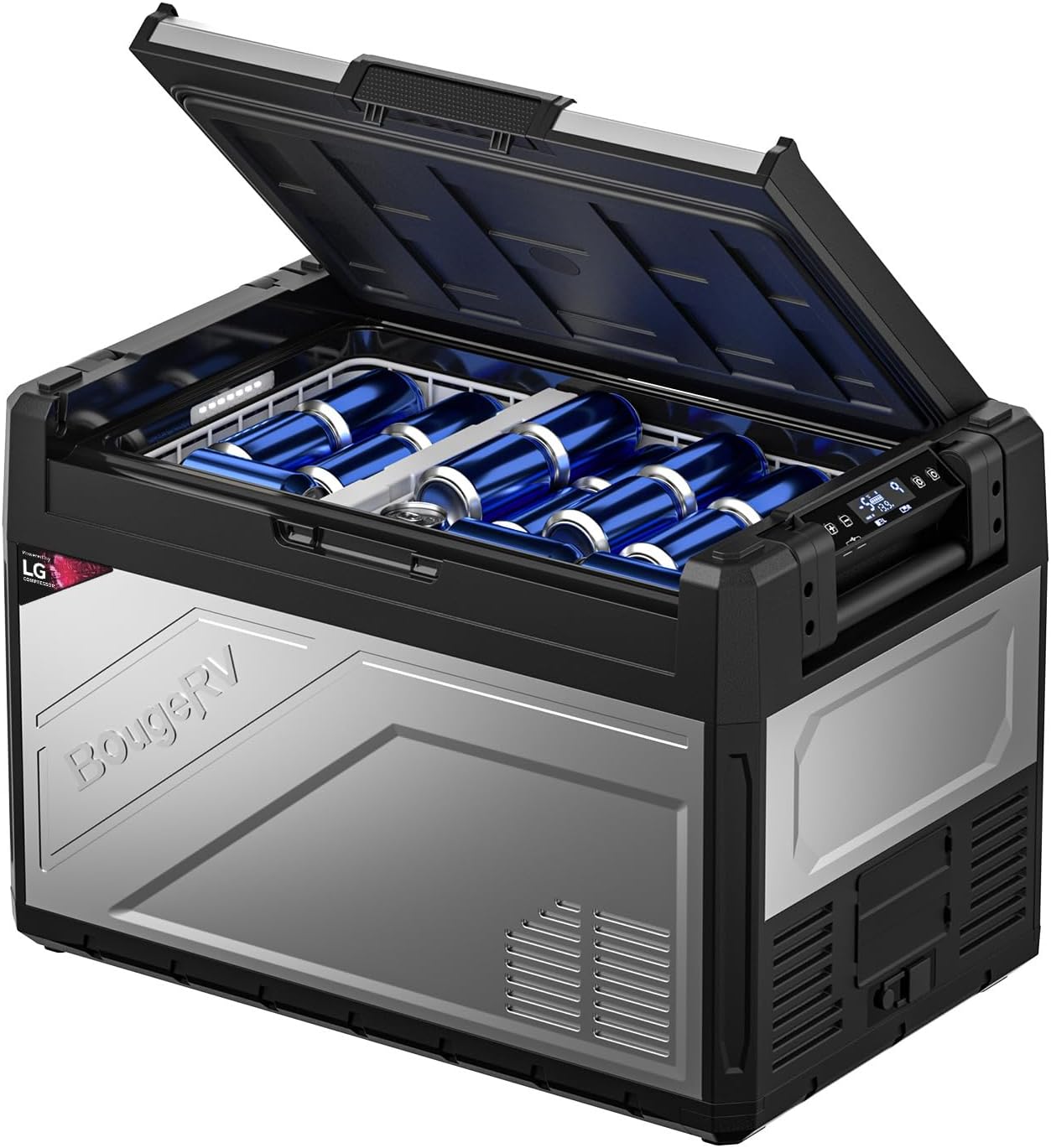

Image 1.1: BougeRV 55 Quart Rocky V2.0 Portable Refrigerator. This image displays the portable refrigerator with its lid open, revealing several blue beverage cans inside.
2. Sikkerhedsoplysninger
To ensure safe operation and reduce the risk of injury or damage, observe the following precautions:
- Brug ikke apparatet, hvis det er synligt beskadiget.
- Sørg for tilstrækkelig ventilation omkring enheden. Bloker ikke ventilationsåbningerne.
- Use only the provided power cords and adapters.
- Undgå at placere enheden i direkte sollys eller i nærheden af varmekilder.
- Hold apparatet væk fra vand og fugt.
- Forsøg ikke selv at reparere eller modificere enheden. Kontakt kvalificeret servicepersonale.
- Ensure the unit is stable and level before operation.
3. Produktet er slutview
3.1 Komponenter
The BougeRV Rocky V2.0 Portable Refrigerator includes the following main components:
- Main Refrigerator Unit
- Aftagelig skillevæg
- Two Removable Baskets
- DC Power Cord (10.82 ft)
- AC Power Adapter (6.56 ft)
- Brugermanual
Image 3.1: Contents of the BougeRV Portable Refrigerator package. This image shows the main refrigerator unit, AC adapter, DC cord, two baskets, and the user manual.
3.2 Nøglefunktioner
- Dual Zone Capability: Use as a single temperature zone or split into two zones (refrigeration and freezing) with the removable divider.
- Hurtig afkøling: Achieves 32°F from 77°F in approximately 15 minutes (empty, Max mode).
- Bredt temperaturområde: Cools from -4°F to 68°F (-20°C to 20°C).
- APP kontrol: Monitor and adjust settings via the BougeRV App (Bluetooth range up to 32ft).
- Efficient Compressor: Equipped with a 5.7cc compressor for reliable performance.
- Støjsvag drift: Fungerer med mindre end 45 dB.
- Strømindstillinger: Compatible with 12/24V DC and 110-240V AC power sources.
- Integrated Battery Solution: Supports optional BougeRV 173Wh Detachable Battery and 100W Solar Panel (sold separately).
- Bekvemmeligheder: Built-in lights, folding handles, bottle opener, and drain plug.
Image 3.2: Dual Zone Configuration. This diagram illustrates the three customizable options for the refrigerator: Fridge/Freezer, Freezer/Freezer, and Fridge/Fridge, enabled by a removable divider.
Image 3.3: Cooling Performance. The refrigerator is shown cooling to -4°F in a 109°F ambient temperature, demonstrating its powerful cooling capability.
4. Opsætning
4.1 Udpakning og placering
- Tag forsigtigt køleskabet ud af emballagen.
- Inspect the unit for any shipping damage. Report any damage to the retailer immediately.
- Place the refrigerator on a flat, stable surface. Ensure adequate ventilation around the unit (at least 6 inches on all sides).
- Allow the unit to stand upright for at least 12 hours before connecting to power. This allows the compressor lubricants to settle.
4.2 Strømtilslutning
The refrigerator can be powered by 12/24V DC or 110-240V AC.
- DC Power (12/24V): Connect the DC power cord to the DC input port on the refrigerator and then to your vehicle's 12V/24V outlet or a portable power station.
- Vekselstrøm (110-240V): Connect the AC adapter to the AC input port on the refrigerator, then plug the adapter into a standard wall outlet.
Batteribeskyttelse: Enheden har en 3-stage battery protection system to prevent your vehicle battery from draining. This can be adjusted via the control panel or APP.
4.3 Dual Zone Configuration
The removable divider allows you to configure the interior as a single large zone or two separate zones.
- To create two zones, insert the divider into the designated slot.
- To use as a single zone, remove the divider.
- Note: When in dual-zone mode, the temperature of the left zone cannot be set lower than the right zone.
Image 4.1: Dual Zone Setup. This image visually explains how to configure the refrigerator for single or dual-zone use with the removable divider.
5. Betjeningsvejledning
5.1 Betjening af kontrolpanelet
The control panel is located on the front of the unit. It typically includes a power button, temperature adjustment buttons, and a display.
- Tænd/sluk: Tryk og hold tænd/sluk-knappen nede for at tænde eller slukke for enheden.
- Temperaturjustering: Use the '+' and '-' buttons to set the desired temperature for each zone (if applicable).
- Valg af tilstand: Cycle through cooling modes (e.g., Max, Eco) using the mode button. Max mode provides faster cooling, while Eco mode conserves energy.
5.2 APP kontrol
The BougeRV App allows for convenient remote control of your refrigerator via Bluetooth.
- Download the BougeRV App from your smartphone's app store.
- Sørg for, at Bluetooth er aktiveret på din smartphone.
- Open the App and follow the instructions to pair with your refrigerator.
- Once connected, you can adjust temperature settings, switch modes, and turn the unit on/off from your device within a 32ft range.
Image 5.1: Smartphone App Control. This image shows a smartphone displaying the BougeRV app interface, used to control the refrigerator's settings remotely.
6. Vedligeholdelse
6.1 Rengøring
- Afbryd altid strømmen før rengøring.
- Rengør indvendigt og udvendigt med adamp klud og mildt rengøringsmiddel. Undgå slibende rengøringsmidler.
- Sørg for, at alle overflader er tørre, før du tilslutter strømmen igen.
- Regularly clean the ventilation grilles to prevent dust buildup.
Image 6.1: Drain Plug. This image highlights the drain plug feature, which facilitates easy cleaning and water removal from the unit.
6.2 Optøning
The refrigerator features manual defrost. Frost buildup can reduce cooling efficiency.
- When frost layer exceeds 0.2 inches (5mm), turn off the unit and disconnect power.
- Fjern alt indhold.
- Allow the frost to melt naturally. Do not use sharp objects to remove ice.
- Wipe away melted water with a cloth. Use the drain plug for larger amounts of water.
- Sørg for, at indersiden er helt tør, før du genstarter enheden.
6.3 Opbevaring
Hvis køleskabet opbevares i en længere periode:
- Rengør og tør enheden grundigt.
- Lad låget stå på klem for at forhindre lugtgener og skimmelvækst.
- Opbevares tørt og godt ventileret, væk fra direkte sollys og ekstreme temperaturer.
7. Fejlfinding
Se følgende tabel for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Ingen strømforsyning; løs forbindelse; sprunget sikring. | Check power cord connection; verify power source; inspect vehicle fuse or adapter fuse. |
| Utilstrækkelig køling | Blocked ventilation; excessive ambient temperature; door not sealed properly; too much content. | Ensure clear ventilation; move to cooler area; check door seal; reduce contents for better airflow. |
| Temperature display inaccurate | Sensor issue; external factors. | This can sometimes occur; adjust set temperature lower if needed to achieve desired internal temperature. If persistent, contact support. |
| Appen forbinder ikke | Bluetooth off; unit not powered; out of range. | Ensure Bluetooth is on; power on the unit; move closer to the unit (within 32ft). |
| Enheden laver usædvanlige lyde | Enheden er ikke i vater; problem med interne komponenter. | Ensure unit is on a flat surface. If noise persists and is abnormal, discontinue use and contact support. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | BougeRV |
| Modelnummer | CR05201 (RB016-SLUSEF) |
| Kapacitet | 55 Quarts (27.5 Quarts Refrigerator Fresh Food Capacity) |
| Varens vægt | 49.9 pund |
| Produktmål (D x B x H) | 17.72 x 28.03 x 18.74 tommer |
| Voltage | 12 volt (jævnstrøm), 110-240 volt (vekselstrøm) |
| Køletemperaturområde | -4°F til 68°F (-20°C til 20°C) |
| Kompressor type | 5.7cc Compressor |
| Optøningssystem | Manuel |
| Særlige funktioner | Portable, Dual Zone, APP Control, Low Noise |
| Farve | Sølv & Sort |
9. Garanti og support
9.1 Garantioplysninger
Your BougeRV 55 Quart Rocky V2.0 Portable Refrigerator comes with a 2-Year Tech SupportGem venligst din købsbevis i tilfælde af garantikrav.
For detailed warranty terms and conditions, please refer to the official BougeRV webwebsted eller kontakt kundeservice.
9.2 Kundesupport
If you encounter any issues or have questions regarding your product, please reach out to BougeRV customer support. They provide one-on-one friendly technical support.
Contact information can typically be found on the official BougeRV webwebstedet eller på din købsdokumentation.
