1. Introduktion
Tak for købetasing the UYIKOO L7 Mini Body Camera. This compact and versatile device is designed for various recording needs, offering 1080P video resolution, a 180° rotating lens, night vision capabilities, and audio recording. Please read this manual carefully to ensure proper use and optimal performance of your camera.
The UYIKOO L7 is ideal for recording meetings, lectures, interviews, or as a portable security camera for indoor and outdoor use. Its lightweight and clip-on design make it convenient to carry and discreetly place.
2. Pakkens indhold
- UYIKOO L7 Mini Body Camera
- USB opladningskabel
- Brugervejledning (dette dokument)
- Note: MicroSD card and OTG adapter are not included.
3. Produktet er slutview
The UYIKOO L7 features a compact design with a rotatable lens and intuitive slide switches for easy operation.
Figure 3.1: UYIKOO L7 Mini Body Camera. This image shows the compact black camera with a clip, highlighting its small size and the lens at the top, with a blue light indicating its operational status.
Figure 3.2: Camera dimensions and clip. The image illustrates the camera's small size (80x26x12mm) and lightweight design (27g), featuring a 15mm back clip for secure attachment to clothing or objects.
Figure 3.3: 180° Rotating Lens. This image highlights the camera's lens, which can rotate 180 degrees, allowing for flexible adjustment of the recording angle to suit various situations.
4. Opsætning
4.1. Opladning af kameraet
Before first use, fully charge the camera. Connect the camera to a USB power source (e.g., computer, wall adapter) using the provided USB cable. The charging indicator light will show the charging status.

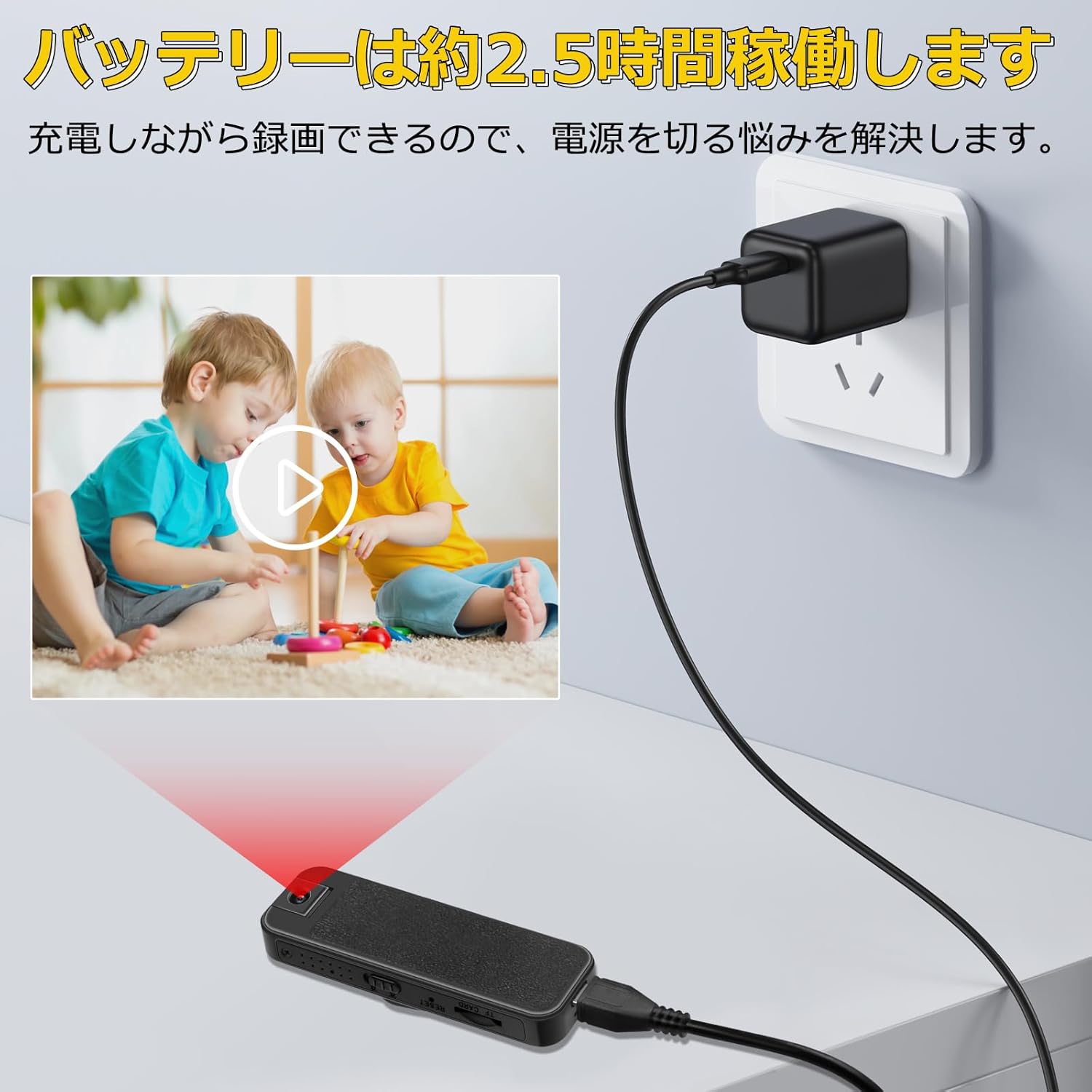

Figure 4.1: Charging the camera. The image shows the camera connected to a wall charger via a USB cable, demonstrating that it can record while charging, which helps resolve concerns about power interruption.
4.2. Indsættelse af et MicroSD-kort
The camera supports MicroSD cards up to 256GB (not included). Insert the MicroSD card into the designated slot until it clicks into place. Ensure the camera is powered off before inserting or removing the card.
4.3. Indstilling af dato og klokkeslæt
The camera supports a timestamp function, displaying the date and time on recorded footage. Refer to the detailed instructions in the included paper manual for setting the date and time, which typically involves creating a configuration file på MicroSD-kortet.
5. Betjeningsvejledning
The UYIKOO L7 features convenient slide switches for various functions.
Figure 5.1: Convenient Slide Switches. This image displays the camera's side profile, highlighting three distinct slide switches for power, recording, and night vision, designed for simple and quick operation.
5.1. Tænd/sluk
- Tænd: Slide the Power switch to the ON position. The indicator light will illuminate.
- Sluk: Slide the Power switch to the OFF position. The indicator light will turn off.
5.2. Videooptagelse
The camera records video at 1920x1080P resolution at 30 frames per second, ensuring smooth footage. The 180° rotating lens allows for flexible angle adjustments.
- Start optagelse: Slide the Record switch to the video recording position. The indicator light will flash, indicating recording is in progress.
- Stop optagelse: Slide the Record switch back to the neutral position. The indicator light will stop flashing, and the video file vil blive gemt.
Figure 5.2: 1080P High-Resolution Video. This image demonstrates the camera's 1920x1080P video quality, showing a clear recording of a business meeting with a visible date and time stamp.
5.3. Lydoptagelse
The camera features a high-performance microphone for clear audio recording and can be used as a standalone voice recorder.
- Start Audio Recording: Slide the Record switch to the audio recording position. The indicator light will flash, indicating audio recording is in progress.
- Stop Audio Recording: Slide the Record switch back to the neutral position. The indicator light will stop flashing, and the audio file vil blive gemt.
Figure 5.3: Standalone Audio Recording Function. This image illustrates the camera's ability to record clear audio, showing a microphone icon and sound waves, suitable for recording meetings or conversations.
5.4. Nattesynstilstand
The camera is equipped with 6 invisible infrared LEDs for night vision, allowing recording in low-light conditions up to approximately 3 meters.
- Activate Night Vision: Slide the Night Vision switch to the ON position. The camera will automatically switch to night vision mode when light conditions are low.
- Deactivate Night Vision: Slide the Night Vision switch to the OFF position.

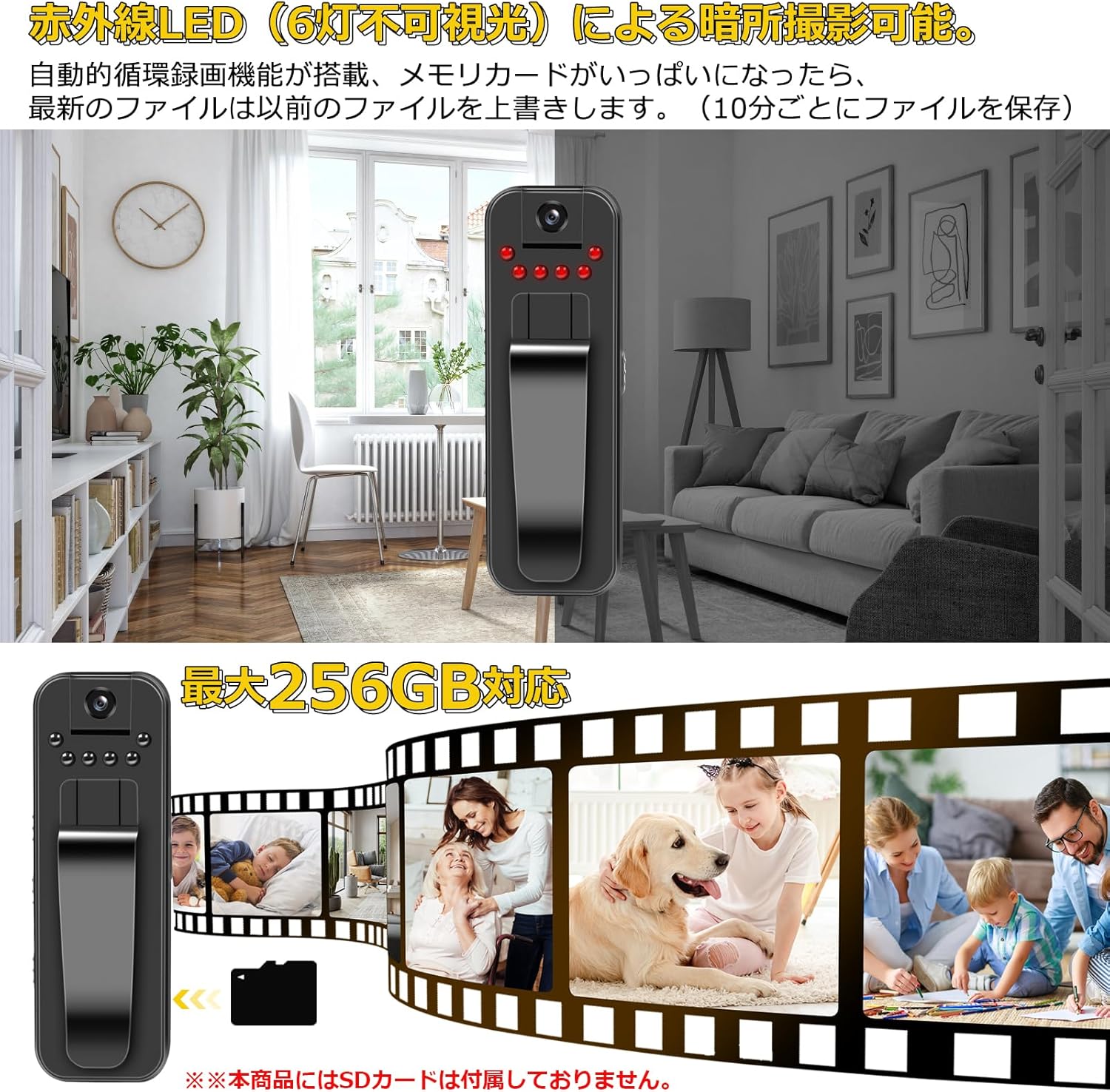

Figure 5.4: Night Vision Recording. This image depicts the camera's night vision capability using infrared LEDs in a dimly lit room, alongside a filmstrip graphic indicating support for up to 256GB MicroSD cards.
5.5. Loop Recording (Automatic Overwrite)
When the MicroSD card's storage capacity is full, the camera will automatically overwrite the oldest files with new recordings. This ensures continuous recording without manual deletion.
5.6. OTG Functionality (Android Only)
The camera supports OTG (On-The-Go) functionality, allowing you to connect it directly to an Android smartphone to view optaget fileuden at have brug for en computer. Note: An OTG adapter is required and not included. This feature is not compatible with iOS devices.
Figure 5.5: OTG Functionality. This image demonstrates connecting the camera to an Android smartphone via a USB cable and an OTG adapter, allowing direct viewing of video files på telefonen.
6. Viewing og administration Files
Til view or manage your recorded files:
- Via computer: Connect the camera to your computer using the USB cable. The camera will appear as a removable disk, allowing you to access the MicroSD card's contents.
- Via OTG (Android): Use an OTG adapter to connect the camera directly to a compatible Android smartphone. You can then browse and play files bruger en file administrator-app.
- Direct MicroSD Card: Remove the MicroSD card from the camera and insert it into a card reader connected to a computer or compatible device.
7. Vedligeholdelse
- Hold kameraet rent ved at tørre det af med en blød, tør klud. Undgå at bruge skrappe kemikalier eller slibende materialer.
- Opbevar kameraet et køligt og tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- Sikkerhedskopier regelmæssigt vigtige optagelser for at forhindre tab af data.
- Format the MicroSD card periodically (e.g., once a month) to maintain optimal performance and prevent file korruption.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kameraet tænder ikke. | Lavt batteri; Tænd/sluk-knappen er slukket. | Charge the camera fully; Ensure the Power switch is in the ON position. |
| Kan ikke optage video/lyd. | No MicroSD card; MicroSD card full or corrupted; Incorrect switch position. | Insert a MicroSD card; Format or replace the MicroSD card; Ensure the Record switch is in the correct position. |
| Dårlig videokvalitet. | Lens is dirty; Insufficient lighting (if night vision is off). | Clean the lens with a soft cloth; Activate night vision or ensure adequate lighting. |
| Short battery life during night vision. | Night vision consumes more power. | This is normal. For extended night vision recording, connect to a power bank or power source. |
| OTG function not working. | Incorrect adapter; Incompatible phone (iOS); Phone does not support OTG. | Ensure you are using a compatible OTG adapter and an Android phone that supports OTG. |
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | UYIKOO |
| Modelnummer | L7 |
| Video opløsning | 1920 x 1080P |
| Billedhastighed | 30 fps |
| Linse rotation | 180° |
| Nattesyn | 6 invisible IR LEDs (approx. 3m range) |
| Lydoptagelse | Supported (standalone voice recorder function) |
| Opbevaring | MicroSD-kort op til 256 GB (medfølger ikke) |
| Loop-optagelse | Supported (automatic overwrite) |
| OTG funktion | Supported for Android devices (OTG adapter not included) |
| Batteritype | Lithium-ion |
| Optagelsestid | Up to 150 minutes (approx. 2.5 hours) |
| Dimensioner | 80 x 26 x 12 mm |
| Vægt | 27 g |
10. Garanti og support
UYIKOO is committed to providing high-quality products and customer satisfaction. If you encounter any issues with your product, please do not hesitate to contact us.
- Indledende defekter: In case of initial defects, we offer a free exchange without conditions.
- Kontakt support: You can contact us through your Amazon account by navigating to "Account Service" > "Order History" > "Purchased Product" > "Seller" > "Ask a Question".
We strive to respond to customer requests with sincerity.
