Hanwha Vision ARN-810S 8-kanals PoE NVR brugermanual

1. Introduktion

The Hanwha ARN-810S Series 8-Channel PoE NVR is designed to provide seamless surveillance solutions for small to medium-scale security systems. This network video recorder supports up to 8 PoE cameras, simplifying installation and reducing the need for additional power supplies. It is equipped with a 2TB HDD, offering ample storage for high-definition video recordings. This NVR supports a variety of video codecs, including H.265, ensuring efficient compression and storage optimization without compromising video quality. With its user-friendly interface, the ARN-810S provides convenient access to live video feeds and playback from anywhere via a PC or mobile device. Whether for residential or commercial use, the Hanwha ARN-810S delivers reliable, high-performance surveillance, helping you monitor your property with confidence.

2. Produktet er slutview

2.1 Nøglefunktioner

• 8-Channel PoE Support: Simplifies installation by powering up to 8 PoE cameras, eliminating the need for additional power sources.
• 2TB harddisklagring: Provides substantial storage capacity for video recordings, ensuring reliable data retention.
• Efficient Video Compression: Supports H.265, offering reduced file sizes and optimized storage while maintaining high video quality.
• Fjernadgang: Enables remote monitoring and playback via PC or mobile app, offering convenience and flexibility.
• Brugervenlig grænseflade: Easy-to-use interface for seamless operation and management of your surveillance system.
• Kompakt og pålidelig: Designed for small to medium-scale security systems, ensuring robust performance in various environments.

2.2 Pakkens indhold

• Videooptager

2.3 Produktdiagram

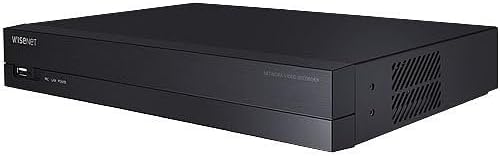

Figur 1: Forside view of the Hanwha Vision ARN-810S NVR, showing the compact black design with a USB port and indicator lights on the left, and ventilation on the right side.

3. Opsætning

3.1 Indledende opsætning

1. Pak NVR'en ud: Carefully remove the NVR and all accessories from the packaging. Inspect for any signs of damage.
2. Tilslut strøm: Connect the provided power adapter to the NVR's power input port and then plug it into a suitable power outlet. The NVR will power on automatically.
3. Connect Monitor (Optional): For local setup and viewing, connect a monitor to the NVR's HDMI or VGA output port.
4. Tilslut kameraer: Connect your PoE IP cameras to the NVR's PoE ports. The NVR will automatically detect and power the cameras.
5. Opret forbindelse til netværk: Connect the NVR's LAN port to your network router or switch using an Ethernet cable. This is required for remote access and network features.
6. First-Time Configuration: Follow the on-screen prompts (if a monitor is connected) or use the Hanwha Vision setup tool on a connected PC to complete the initial network and system settings, including setting up an administrator password.

4. Betjening

4.1 Live View

Once the NVR and cameras are set up, you can view live video feeds. Access the live view through a connected monitor, a web browser on a PC, or the dedicated mobile application. Select the desired camera channels to display their live streams.

4.2 Afspilning

Til review optaget footage, navigate to the playback section of the NVR interface. Select the date and time range, and the specific camera channel you wish to view. Use the timeline and control buttons (play, pause, fast forward, rewind) to navigate through the recordings.

4.3 Fjernadgang

The Hanwha ARN-810S supports remote access, allowing you to monitor your property from anywhere. Download the official Hanwha Vision mobile app or access the NVR via a web browser on your PC. Ensure your NVR is connected to the internet and properly configured for remote access (e.g., port forwarding or P2P cloud service enabled).

5. Vedligeholdelse

• Regelmæssig rengøring: Keep the NVR free from dust and debris. Use a soft, dry cloth to clean the exterior. Ensure ventilation openings are not blocked.
• Firmwareopdateringer: Tjek regelmæssigt den officielle Hanwha Vision-medarbejder webwebsted for firmwareopdateringer. At holde firmwaren opdateret sikrer optimal ydeevne, sikkerhed og adgang til nye funktioner.
• Data backup: Sikkerhedskopier regelmæssigt vigtige videofilertage to an external storage device (e.g., USB drive) to prevent data loss.
• Harddiskens tilstand: Monitor the health of the internal hard drive through the NVR's system settings. Replace the HDD if any issues are detected.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

For warranty information and technical support, please refer to the documentation included with your product or visit the official Hanwha Vision website. You can typically find FAQs, driver downloads, and contact information for customer service there. Keep your purchase receipt as proof of purchase for warranty claims.
