Indledning
This manual provides essential information for the proper installation, operation, and maintenance of your Deaf Bonce Apocalypse AP-M61SE NEO 6.5-inch Mid-Range Speakers. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety. Retain this manual for future reference.
Produkt overview
The Deaf Bonce Apocalypse AP-M61SE NEO speakers are high-performance 6.5-inch mid-range speakers designed to deliver superior sound clarity and dynamic audio output in car audio systems. Featuring Neodymium magnets, these speakers offer exceptional efficiency and power handling.
Nøglefunktioner:
- Ydeevne med høj effekt: 180W RMS and 360W max power handling for consistent and dynamic audio output.
- Superior Mid-Range Clarity: Optimized for frequencies between 100 Hz – 15,500 Hz, delivering crisp vocals and instruments.
- Neodymium Magnet Design: Lightweight yet powerful, providing exceptional efficiency and sound quality.
- Forbedret følsomhed: SPL of 104.50 dB ensures loud, distortion-free audio.
- 4-ohm impedans: Compatible with a wide range of car audio systems for seamless integration.
Image 1: A pair of Deaf Bonce Apocalypse AP-M61SE NEO 6.5-inch mid-range speakers, showcasinderes design og størrelse.
Specifikationer
| Feature | Specifikation |
|---|---|
| Model | AP-M61SE NEO |
| Type | Mellemtone |
| Størrelse | 6.5 tommer |
| Frekvensrespons | 100 Hz – 15,500 Hz |
| Pakkemængde | Pair (2 speakers) |
| Stemmespole størrelse | 1.25 tommer |
| Kegelmateriale | Papir |
| Magnet type | Neodym |
| Stemmespole ledning | CCAW |
| RMS Power Handling | 180 W |
| Max effekthåndtering | 360 W |
| Rammemateriale | Stål |
| Impedans | 4 Ohm |
| Følsomhed (SPL) | 104.50 dB |
| Resonansfrekvens (Fs) | 102.00 Hz |
| Antal | 0.29 |
| Vas | 8.76 L |
| Monteringsdybde | 70.1 mm / 2.76 tommer |
| Udskæringsdimension | 154.26 mm / 6.07 tommer |
| Varens vægt | 5.7 pund (par) |
| Pakkedimensioner | 15.59 x 8.27 x 3.7 tommer |
Sikkerhedsoplysninger
- Always disconnect the vehicle's battery before starting any electrical work to prevent short circuits and electrical shock.
- Sørg for, at alle ledninger er korrekt isoleret og fastgjort for at forhindre skader fra vibrationer eller slid.
- Do not operate speakers beyond their rated power handling (RMS) to avoid damage.
- High sound pressure levels can cause permanent hearing damage. Use caution when adjusting volume.
- Kontakt en professionel installatør af bilstereo, hvis du er usikker på installationstrinnene.
Installation og opsætning
Proper installation is crucial for optimal performance and longevity of your speakers. It is highly recommended that installation be performed by a qualified professional car audio technician.
Nødvendigt værktøj og materialer:
- Trådstrippere/pressere
- Skruetrækker sæt
- Drill (with appropriate bit for mounting holes, if needed)
- Højttalerkabel (passende tykkelse til dit system)
- Connectors (spade, ring terminals, etc.)
- Mounting hardware (screws, clips - typically included)
- Multimeter (for checking impedance and continuity)
Installationstrin:
- Afbryd batteriet: Før start skal du frakoble den negative pol på dit køretøjs batteri.
- Fjern eksisterende højttalere: Fjern forsigtigt de originale højttalere fra deres monteringssteder.
- Forbered monteringssted: Ensure the mounting surface is clean and free of obstructions. Verify that the cut-out dimension (154.26 mm / 6.07 inches) and mounting depth (70.1 mm / 2.76 inches) are suitable for the AP-M61SE NEO speakers.
- Ledningsføring: Connect the speaker wires to the terminals on the AP-M61SE NEO speakers. Ensure correct polarity (+ to + and - to -) from the amplifier or head unit. Incorrect polarity will result in poor sound quality and reduced bass response.
- Monter højttalere: Securely mount the speakers into their designated locations using the provided mounting hardware. Do not overtighten screws.
- Gentilslut batteri: Once all speakers are installed and wired, reconnect the vehicle's battery.
- Test system: Turn on your car audio system and test the speakers at a low volume. Gradually increase the volume to ensure proper operation and sound quality.

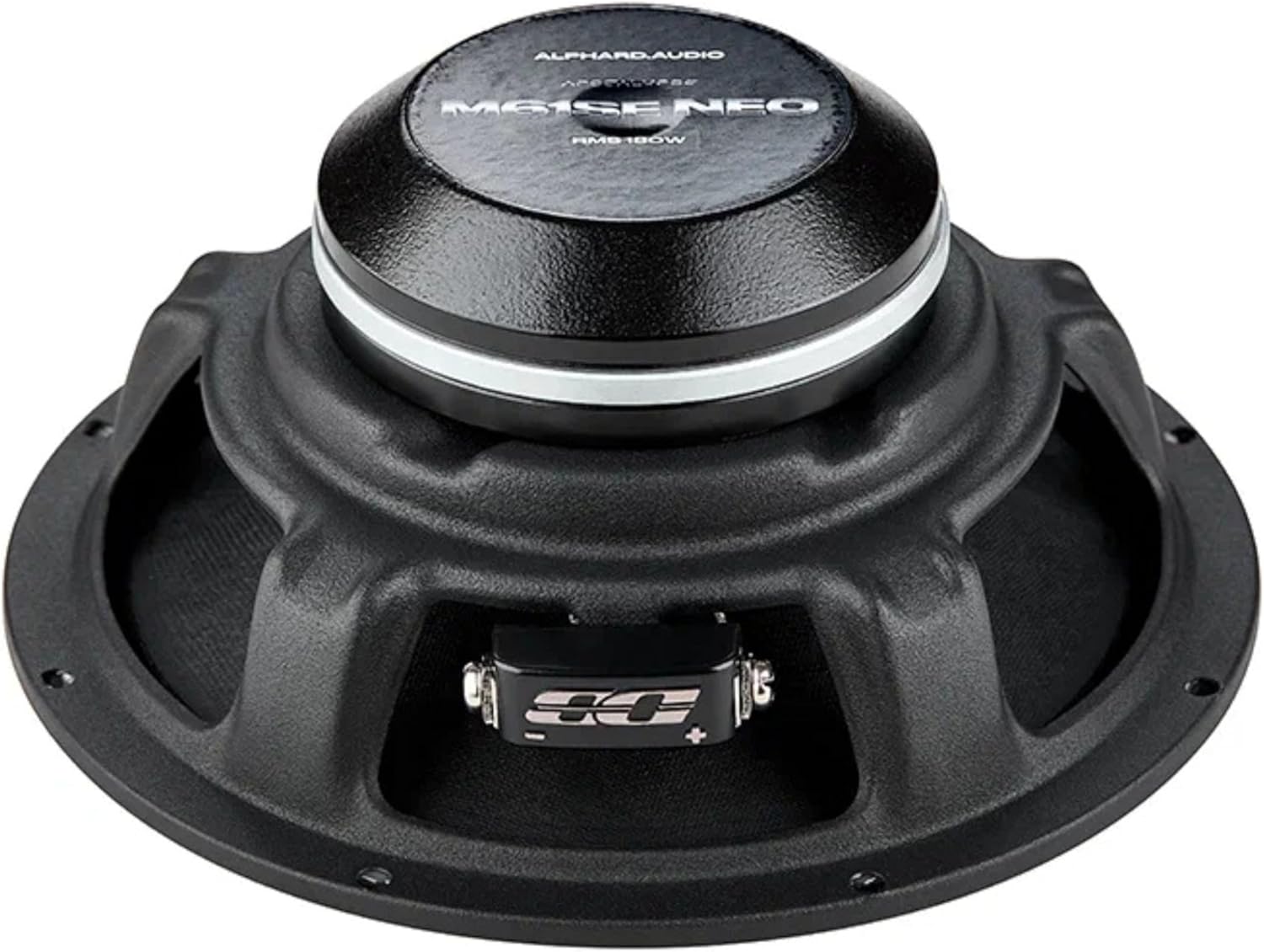

Billede 2: Bagside view of the AP-M61SE NEO speaker, highlighting the Neodymium magnet and wiring terminals.
Overvejelser vedrørende ledningsføring:
The AP-M61SE NEO speakers have a 4-Ohm impedance. Ensure your amplifier is stable at this impedance. When wiring multiple speakers, calculate the total impedance to match your amplifier's capabilities. For parallel wiring, the total impedance will decrease; for series wiring, it will increase.
Image 3: Contents of the speaker package, including the two speakers, mounting rings, and wiring accessories.
Betjeningsvejledning
Once installed, your Deaf Bonce Apocalypse AP-M61SE NEO speakers are ready for use. Follow these guidelines for optimal performance:
- Første afspilning: Begin playback at a low volume level.
- Indbrudsperiode: Allow a break-in period of approximately 10-20 hours of normal listening before operating the speakers at high volumes. This allows the speaker's suspension components to loosen and perform optimally.
- Lydstyrkekontrol: Avoid excessive volume levels that cause audible distortion. Distortion indicates that the amplifier or speakers are being overdriven, which can lead to damage.
- Crossover-indstillinger: Hvis du bruger en ekstern amplifier with crossover settings, ensure they are properly configured to protect the mid-range speakers from frequencies outside their optimal range (100 Hz – 15,500 Hz). A high-pass filter (HPF) set around 100-120 Hz is generally recommended.
Opretholdelse
The Deaf Bonce Apocalypse AP-M61SE NEO speakers require minimal maintenance to ensure long-lasting performance.
- Rensning: Gently wipe the speaker cones and surrounds with a soft, dry cloth to remove dust. Avoid using harsh chemicals or excessive moisture.
- Inspektion: Periodically inspect the speaker surrounds and cone for any signs of damage or wear. Check wiring connections for tightness and corrosion.
- Miljøfaktorer: Protect speakers from extreme temperatures, direct sunlight, and excessive moisture, which can degrade materials over time.
Fejlfinding
Hvis du oplever problemer med dine højttalere, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd fra højttaleren | Loose or disconnected wiring; incorrect polarity; amplifier not powered; damaged speaker. | Check all wiring connections for tightness and correct polarity. Ensure amplifier is on and receiving power. Test speaker with a known good source or replace if damaged. |
| Forvrænget lyd | Lydstyrken er for høj; amplifier clipping; incorrect crossover settings; damaged speaker. | Skru ned for lydstyrken. Tjek. amplifier gain settings to prevent clipping. Verify crossover settings are appropriate for mid-range speakers. Inspect speaker for physical damage. |
| Svag eller ingen bas | Incorrect polarity; phase issues; high-pass filter set too high. | Check speaker wiring for correct polarity. Ensure all speakers are in phase. Adjust high-pass filter (HPF) to a lower frequency if necessary, or disable if full-range signal is desired (though not recommended for mid-range). |
| Intermitterende lyd | Loose connections; faulty wiring; amplifier protection mode. | Inspect all wiring for loose connections or frayed wires. Check amplifier status indicators for protection mode. |
Garanti og support
Deaf Bonce products are manufactured to high-quality standards and are covered by a limited warranty. Please refer to the warranty card included with your purchase or visit the official Deaf Bonce webhjemmeside for detaljerede garantivilkår.
For technical support, installation assistance, or warranty claims, please contact your authorized Deaf Bonce dealer or the manufacturer's customer service department. Keep your purchase receipt as proof of purchase.
Fabrikant: Døve Bonce
Model: AP-M61SE NEO
ASIN: B0DQLSJHT8
