Pxwaxpy HX100M4 Magnetisk Bærbar Oplader Brugermanual

1. Introduktion

Thank you for choosing the Pxwaxpy HX100M4 Magnetic Portable Charger. This device is designed to provide convenient and versatile charging for your mobile devices, including iPhones, Apple Watches, and other USB-powered gadgets. Please read this manual carefully before use to ensure optimal performance and safety.

Pakkeindhold:

• 1 x Pxwaxpy 10800mAh Wireless Magnetic Portable Charger
• 1 x USB-C opladningskabel
• 1 x brugermanual

2. Sikkerhedsoplysninger

To ensure safe operation and prolong the lifespan of your device, please observe the following precautions:

• Always use original or certified high-quality chargers and cables for charging the power bank and your devices.
• Afbryd powerbanken fra opladeren, når den er fuldt opladet.
• Keep the power bank away from direct sunlight, heaters, or hot environments like a car interior.
• Prevent drops, punctures, or strong impacts to the device.
• Enheden må ikke skilles ad, repareres eller modificeres.
• Opbevares utilgængeligt for børn.

The power bank features a smart chip with a multi-protect safety system to guard against overcharging, over-current, and short circuits.

3. Produktet er slutview

The Pxwaxpy HX100M4 is a versatile 4-in-1 portable charger designed for convenience and efficiency. It combines magnetic wireless charging, dedicated Apple Watch charging, and wired charging via USB-A and USB-C ports.

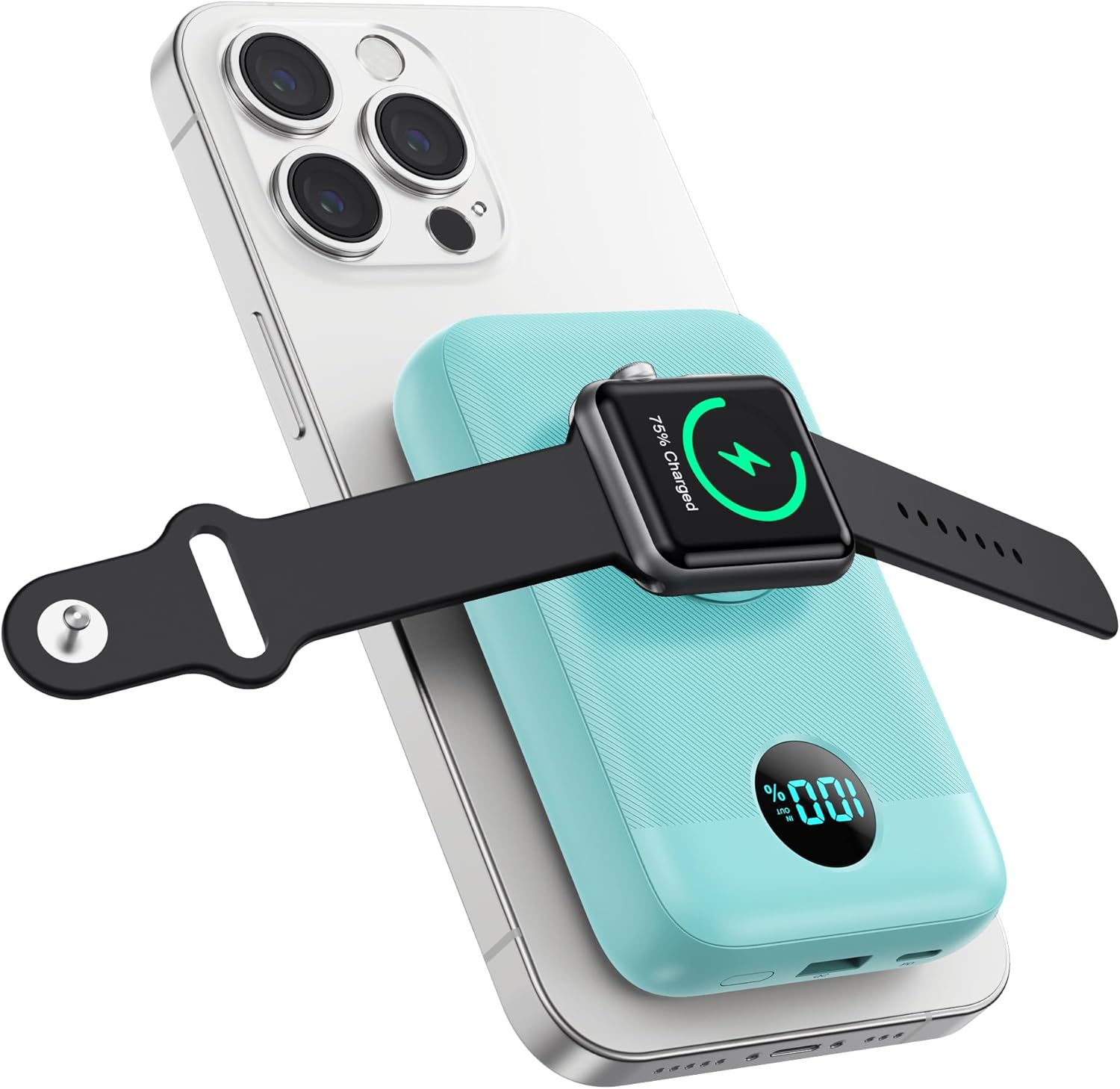

Figure 1: Pxwaxpy HX100M4 Magnetic Portable Charger with an iPhone and Apple Watch attached for charging.

Nøglefunktioner:

• 10800mAh kapacitet: Provides approximately 2 charges for an iPhone 16/15/14/13/12, up to 25 charges for an iWatch, and 1.2 charges for an iPad.
• 4-i-1 opladning: Supports MagSafe wireless charging (up to 7.5W for iPhone), iWatch wireless charging (up to 3W), QC4.0 USB-A output (up to 18W), and PD USB-C output (up to 20W).
• LCD digital skærm: Viser tydeligt den resterende effektprocenttage.
• Stærk magnetisk forbindelse: Ensures secure attachment for wireless charging.
• Kompakt og let design: Easy to carry for travel.

4. Opsætning

Opladning af Power Bank:

1. Tilslut det medfølgende USB-C-opladerkabel til USB-C-indgangsporten på powerbanken.
2. Connect the other end of the USB-C cable to a compatible USB wall adapter (not included). The power bank supports up to 18W USB-C input.
3. LCD-displayet viser opladningsstatus. Powerbanken er fuldt opladet, når displayet viser 100%.

Figure 2: The power bank can be recharged via its USB-C port. The image also illustrates internal safety features.

5. Betjeningsvejledning

Wireless Charging (MagSafe for iPhone, iWatch, AirPods):

1. For iPhone (MagSafe compatible models): Align the back of your MagSafe-compatible iPhone (iPhone 12 series and newer) or MagSafe case with the magnetic charging area on the power bank. The strong magnetic attraction will snap it into place, and charging will begin automatically. Ensure your iPhone is either without a case or uses a MagSafe-compatible case for wireless charging.
2. Til Apple Watch: Place your Apple Watch (Series 2-9, SE, Ultra 1/2) on the dedicated iWatch charging pad on the power bank. Charging will commence automatically.
3. For AirPods: Place your AirPods (2/3/Pro/Pro2) charging case on the magnetic charging area. Ensure proper alignment for charging to initiate.

Figure 3: The power bank features a strong magnetic connection for secure MagSafe wireless charging.

Wired Charging (USB-A and USB-C):

The power bank is equipped with a QC4.0 USB-A output port and a 20W PD USB-C output port for wired fast charging of various devices, including iPhone 11/XR/X/8/7/6 Series, Samsung Galaxy, Google Pixel, Moto, LG, and more Android devices.

1. Connect your device to the USB-A or USB-C output port on the power bank using a compatible charging cable.
2. Opladningen begynder automatisk.

Opladning af flere enheder samtidigt:

The Pxwaxpy HX100M4 can charge up to four devices concurrently using a combination of its wireless and wired outputs.

Figure 4: The power bank can charge up to four devices at once, including wireless and wired connections.

6. LCD-skærm

The intuitive LCD digital display screen provides clear visibility of the remaining power percentage, allowing for easy power management. When the power bank is in use or being charged, the display will illuminate to show the current battery level.

7. Specifikationer

8. Vedligeholdelse

Proper maintenance ensures the longevity and performance of your Pxwaxpy HX100M4:

• Clean the device regularly with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Store the power bank in a cool, dry place away from extreme temperatures and humidity.
• If the device will not be used for an extended period, charge it to approximately 50-75% every three months to maintain battery health.
• Undgå at tabe eller udsætte enheden for kraftige stød.

9. Fejlfinding

Almindelige problemer og løsninger:

• Enheden oplader ikke:
  • Ensure the power bank is sufficiently charged. Check the LCD display.
  • Verify that the charging cable is securely connected to both the power bank and the device.
  • Prøv et andet opladningskabel eller en anden vægadapter.
  • For wireless charging, ensure proper alignment of the device on the charging area. For iPhones, ensure a MagSafe-compatible case or no case is used.
• Langsom opladning:
  • Sørg for at bruge et hurtigopladningskompatibelt kabel og en adapter til kablet opladning.
  • Check if the device being charged supports fast charging.
  • Multiple devices charging simultaneously may reduce individual charging speeds.
• Magnetisk forbindelse er svag:
  • Ensure your iPhone is MagSafe compatible (iPhone 12 series or newer).
  • If using a case, ensure it is a MagSafe-compatible case. Standard cases may interfere with magnetic strength.

10. Garanti og support

The Pxwaxpy HX100M4 Magnetic Portable Charger comes with a 24 måneders garanti. For any product inquiries, technical support, or warranty claims, please contact Pxwaxpy customer service. Our friendly customer service team is available to assist you.

Gem venligst din købskvittering som købsbevis af garantiårsager.
