1. Introduktion
This manual provides detailed instructions for the BOBLOV M7 and B4K6 Body Cameras. Please read this manual thoroughly before using your device to ensure proper operation and to maximize its capabilities. Keep this manual for future reference.
The BOBLOV M7 features a 180° rotatable lens and a 4000mAh battery, while the BOBLOV B4K6 offers 4K resolution and comes with two 3000mAh batteries and a charging dock. Both models include GPS functionality for location tracking.
2. Pakkens indhold
Verify that all items are present in your package. If any items are missing or damaged, contact customer support.
- BOBLOV M7 Body Camera (or B4K6 Body Camera)
- USB opladningskabel
- Strømadapter
- Brugermanual
- Monteringsklemme
- For B4K6: Two 3000mAh Batteries and Charging Dock
- For M7: Built-in 4000mAh Battery

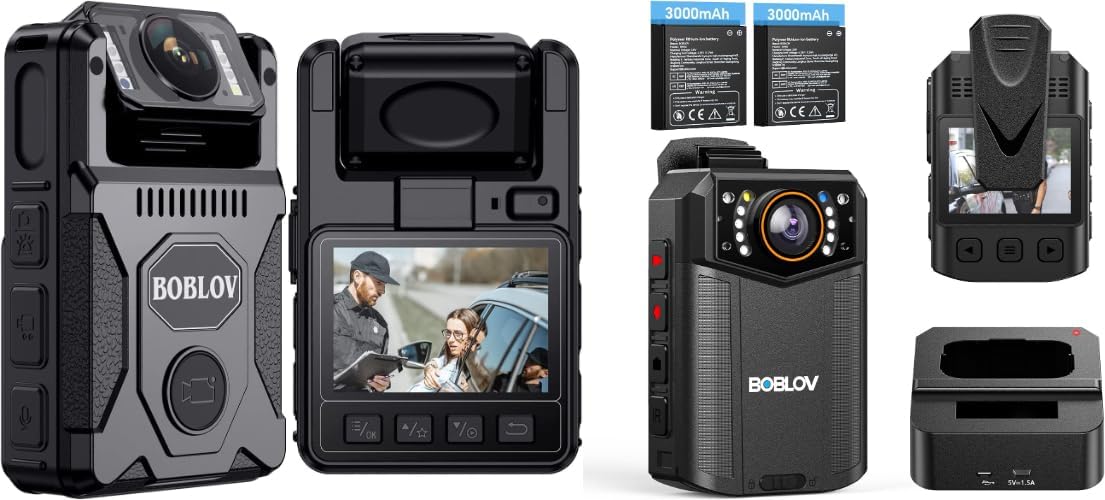

Billede: Overview of BOBLOV M7 and B4K6 body cameras, showing the devices, additional batteries (for B4K6), and a charging dock (for B4K6).
3. Produktet er slutview
3.1 BOBLOV M7 Key Features
- 180° roterbar linse: Allows flexible recording angles.
- 4000mAh batteri: Provides extended recording time.
- Indbygget GPS: For præcis positionssporing.
- 1080P HD Video Recording: Optager klare fodtage.
Image: The BOBLOV M7 body camera demonstrating its 180-degree rotatable lens, showing positions at 90 degrees, 0 degrees, and 180 degrees.

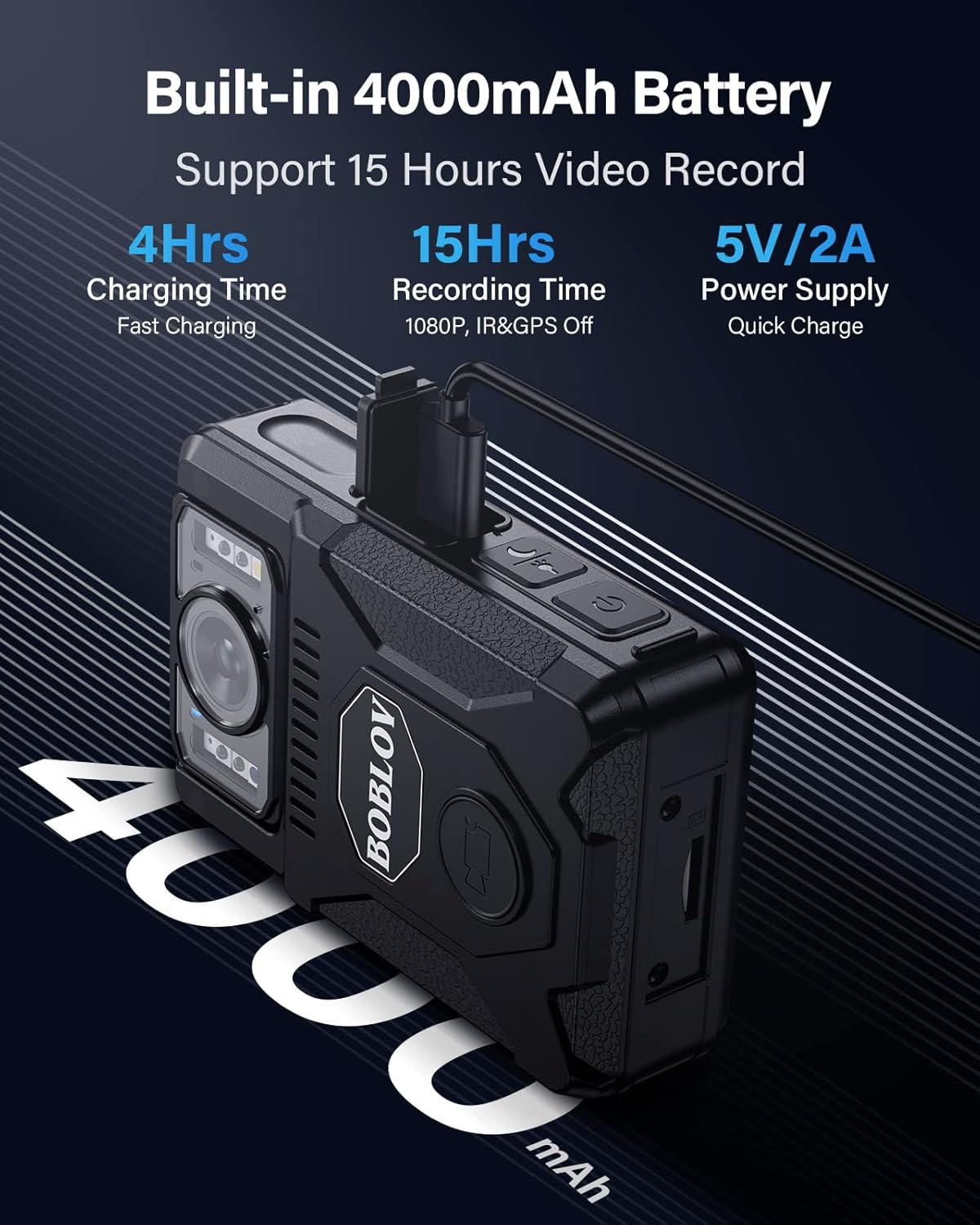

Image: The BOBLOV M7 body camera connected to a charging cable, highlighting its built-in 4000mAh battery, 4-hour charging time, 15-hour recording time, and 5V/2A power supply.
3.2 BOBLOV B4K6 Key Features
- 4K videokvalitet: High-resolution video recording.
- Dobbelte 3000mAh batterier: Extended recording with swappable batteries.
- Opladningsdock: Convenient charging solution.
- Indbygget GPS: For præcis positionssporing.
Image: A police officer wearing the BOBLOV B4K6 body camera, emphasizing its 4K resolution, 54MP photo capability, and 30fps recording.
Image: The BOBLOV B4K6 body camera with its charging dock and two 3000mAh batteries, illustrating extended recording times of 8 hours at 4K and 16 hours at 1080P with two batteries.
Image: A comparison showing the convenience of the BOBLOV B4K6 charging dock versus direct cable connection, highlighting hassle-free charging.
4. Opsætning
4.1 Indledende opladning
Before first use, fully charge your body camera. Connect the camera to the power adapter using the provided USB cable. The charging indicator light will typically show red while charging and turn green when fully charged.
- M7: Built-in 4000mAh battery. Charging time is approximately 4 hours.
- B4K6: Use the charging dock for convenient charging of the camera and spare battery. Ensure batteries are correctly inserted into the dock.
4.2 Inserting/Replacing Batteries (B4K6 Only)
For the B4K6 model, ensure the camera is powered off. Open the battery compartment cover, insert a charged 3000mAh battery with the correct orientation, and close the cover securely.
4.3 Tænd/sluk
Press and hold the Power button for a few seconds to turn the camera on or off. The camera will typically vibrate or display a startup/shutdown screen.
4.4 Attaching the Mounting Clip
Attach the provided mounting clip to the back of the camera. Ensure it is securely fastened before attaching the camera to your uniform or clothing.
5. Betjeningsvejledning
5.1 Videooptagelse
From standby mode, press the Video Record button to start recording. Press it again to stop. The camera will typically indicate recording status with a red light or on-screen icon.
- M7: Supports 1080P HD video.
- B4K6: Understøtter 4K videooptagelse.
5.2 Fotooptagelse
From standby mode, press the Photo button to take a still image. The camera may briefly flash or make a shutter sound.
5.3 Using the 180° Rotatable Lens (M7 Only)
The M7 model features a lens that can be manually rotated 180 degrees. Adjust the lens to capture footage from various angles, including forward-facing, upward, or backward, as needed for your recording situation.
5.4 GPS-funktionalitet
Both M7 and B4K6 models include built-in GPS. This feature automatically embeds location data into your video recordings. To view GPS data, you will need to download and use the dedicated GPS player software provided by BOBLOV on your computer.
Image: The BOBLOV M7 body camera connected to a laptop, displaying the GPS player software which shows the recorded route on a map alongside the video playback.
Image: The BOBLOV B4K6 body camera placed on a laptop, with the screen showing a map interface indicating GPS tracking of movements and locations.
5.5 Menunavigation
Use the navigation buttons (e.g., Menu, Up, Down, OK) to access and adjust camera settings such as resolution, loop recording, date/time stamp, and other preferences. Refer to the on-screen prompts for specific menu options.
5.6 Using as a Dash Camera (M7)
The M7 model can be adapted for use as a dash camera. A dash cam mount set is not included and must be purchased separately. When mounted, the camera can record with a Field of View (FOV) of 127 degrees.
Image: The BOBLOV M7 body camera mounted on a car windshield with a suction cup mount, illustrating its expanded use as a dash camera with a 127-degree field of view.
6. Vedligeholdelse
6.1 Rengøring
Wipe the camera body with a soft, dry cloth. For the lens, use a specialized lens cleaning cloth and solution to avoid scratches. Do not use harsh chemicals or abrasive materials.
6.2 Opbevaring
Opbevar kameraet et køligt og tørt sted væk fra direkte sollys og ekstreme temperaturer. Hvis det opbevares i længere perioder, skal du sørge for, at batteriet er delvist opladet (ca. 50%) for at forlænge dets levetid.
6.3 firmwareopdateringer
Periodically check the BOBLOV official website for any available firmware updates. Updating firmware can improve performance, add new features, or fix bugs.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kameraet tænder ikke. | Low battery; faulty battery (B4K6); power button issue. | Charge the camera fully. For B4K6, try a different battery. Ensure power button is pressed correctly. |
| Kan ikke optage video/tage billeder. | Insufficient storage; camera in wrong mode; battery low. | Check available storage. Ensure camera is in video/photo mode. Charge the battery. |
| GPS data not showing. | Poor GPS signal; incorrect software used. | Sørg for, at kameraet har klarhed view of sky. Use the official BOBLOV GPS player software. |
| Kort batterilevetid. | High resolution recording; continuous GPS; aging battery. | Reduce video resolution. Disable GPS if not needed. Consider replacing batteries (B4K6) or contacting support (M7). |
8. Specifikationer
BOBLOV M7
- Videoopløsning: Up to 1080P HD
- Linse: 180° drejelig
- Batteri: Indbygget 4000mAh
- Optagelsestid: Up to 12-15 hours (1080P, IR&GPS Off)
- Opladningstid: Approx. 4 hours (5V/2A)
- GPS: Indbygget til lokationssporing
- Opbevaring: 128GB (internal, as per product title)
- Felt af View (Dash Cam Mode): 127 grader
BOBLOV B4K6
- Videoopløsning: Op til 4K
- Billedopløsning: 54MP (as per image)
- Batteri: 2 x 3000mAh rechargeable batteries
- Optagelsestid: Up to 8 hours (4K, 2 batteries), 16 hours (1080P, 2 batteries)
- Opladning: Via charging dock
- GPS: Indbygget til lokationssporing
- Opbevaring: 128GB (internal, as per product title)
9. Garanti og support
BOBLOV products typically come with a manufacturer's warranty. For specific warranty details, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official BOBLOV webwebsted. Du kan også kontakte sælgeren direkte for at få hjælp.
