HAIBOXING 1:18 fjernstyret bil med metaltandhjul, drivhjul og differentialesæt (model 18859A, 18859, 18858, 18868, M1901-M1902) brugsanvisning

Indledning

This document provides comprehensive instructions for the installation, operation, and maintenance of the HAIBOXING 1:18 RC Car Metal Spur Gear, Drive Pinions, and Differential Set. These spare parts are designed for compatibility with HAIBOXING RC car models 18859A, 18859, 18858, and 18868, specifically part numbers M1901 and M1902. Proper installation and maintenance are crucial for optimal performance and longevity of your RC vehicle.

Hvad er der i æsken

The HAIBOXING Metal Spur Gear, Drive Pinions, and Differential Set includes the following components:

• Metal Spur Gear
• Diff Complete (2 units)
• Drive Pinions (2 units)

Produkt overview

Below are images illustrating the components included in this set and their general placement within an RC car chassis.

Figur 1: Overview of the HAIBOXING Metal Spur Gear, Drive Pinions, and Differential Set. This image displays all components included in the package: one large spur gear, two smaller drive pinions, and two complete differential units.

Figur 2: Nærbillede view of two differential units and two drive pinions. These components are essential for power transmission and differential action in the RC car.

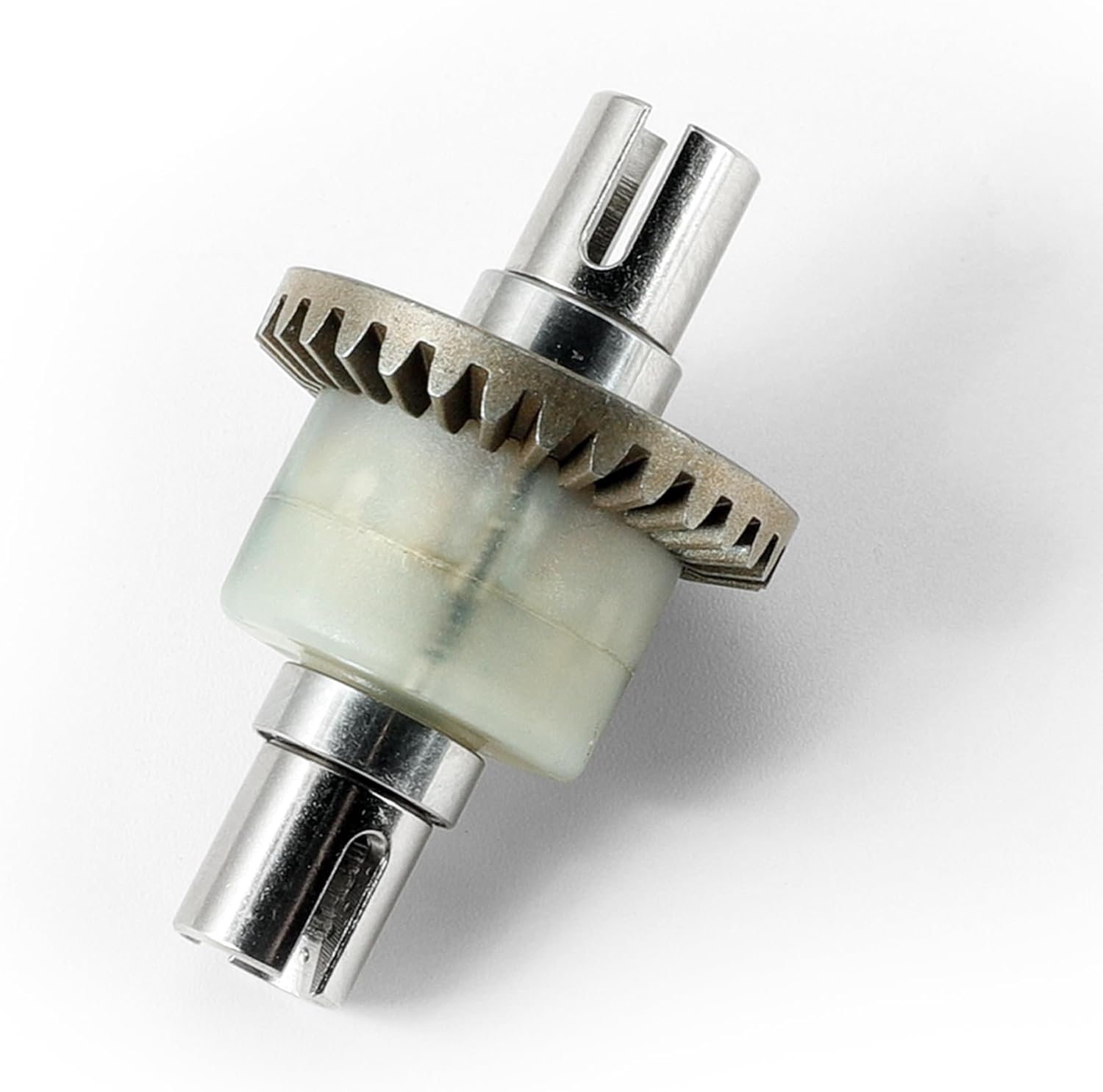

Figur 3: Detaljeret view of a single differential unit. This unit allows the wheels to rotate at different speeds, improving handling during turns.

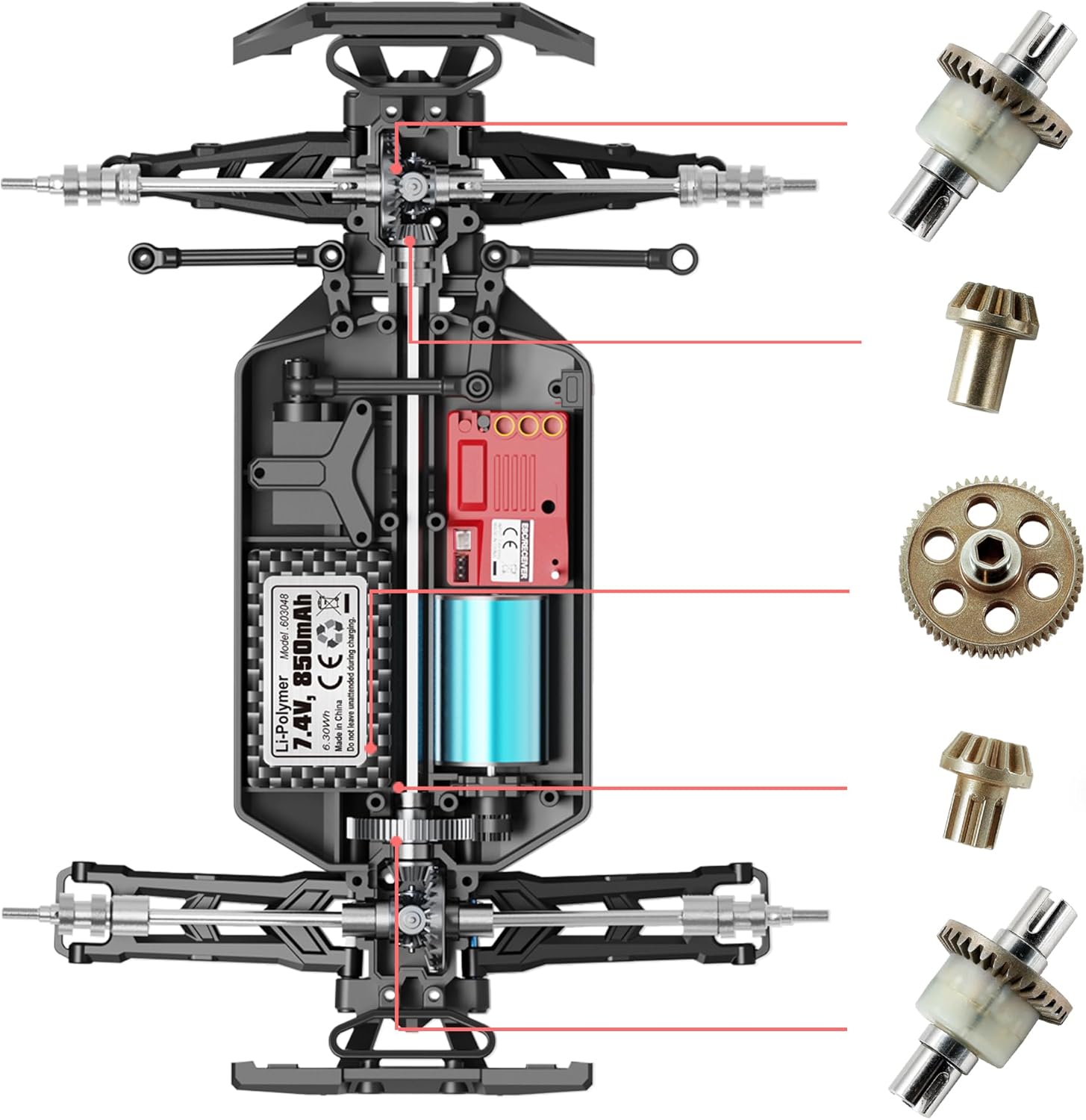

Figur 4: An exploded diagram of an RC car chassis, highlighting the locations where the spur gear, drive pinions, and differential units are installed. This provides a visual guide for component placement.

Figur 5: Technical drawing showing the dimensions of the spur gear, drive pinions, and differential units. Key measurements include the number of teeth, module, and gear diameter for compatibility verification.

Figur 6: Close-up of the metal spur gear and two drive pinions. The spur gear has 57 teeth and a diameter of 28.5mm, while the pinions have a module of 0.5.

Opsætning og installation

The installation of these metal spare parts requires careful attention to detail. It is recommended to consult your RC car's original manual for specific disassembly and reassembly procedures.

Generelle installationstrin:

1. Demontering: Carefully disassemble the relevant sections of your RC car to access the existing spur gear, drive pinions, and differential units. This typically involves removing the chassis cover, motor mount, and gearbox housing.
2. Fjernelse af komponenter: Remove the old or damaged plastic spur gear, drive pinions, and differential units. Note their orientation and placement for correct reinstallation.
3. Installation of New Parts: Install the new metal spur gear, drive pinions, and differential units into their respective positions. Ensure all bearings are properly seated and gears mesh smoothly.
4. Smøring: Apply a suitable RC-specific grease to the gears and differential components to ensure smooth operation and reduce wear.
5. Genmontering: Reassemble the RC car by reversing the disassembly steps. Ensure all screws are tightened securely but do not overtighten.
6. Funktionstjek: Before operating the RC car, manually rotate the wheels and check for any binding or unusual noises. Verify that the drivetrain operates smoothly.

Driftsmæssige overvejelser

After installing the metal gears and differentials, your RC car's drivetrain will be more robust. However, it is important to consider the following:

• Indbrudsperiode: Allow for a short break-in period where the RC car is operated at moderate speeds to allow the new gears to seat properly.
• Øget holdbarhed: Metal gears offer significantly improved durability compared to plastic components, especially under high-stress conditions or with upgraded motors.
• Støjniveau: Metal gears may produce a slightly different sound during operation compared to plastic gears. This is normal.
• Kompatibilitet: These parts are specifically designed for HAIBOXING 1:18 scale models 18859A, 18859, 18858, and 18868. Ensure your model is compatible to avoid fitment issues.

Opretholdelse

Regular maintenance of your RC car's drivetrain components will extend their lifespan and ensure consistent performance.

• Inspektion: Periodically inspect the spur gear, drive pinions, and differential units for signs of wear, damage, or debris.
• Rensning: Clean any accumulated dirt, dust, or small stones from around the gears and within the gearbox housing. A soft brush or compressed air can be used.
• Smøring: Reapply RC-specific grease to the gears and differential internals as needed, especially after cleaning or heavy use.
• Lejekontrol: Ensure all bearings associated with the gears and differentials are clean and spin freely. Replace any worn or seized bearings.

Fejlfinding

If you encounter issues after installing the metal gear set, consider the following troubleshooting steps:

• Binding or Stiff Drivetrain:
  • Check for proper gear mesh between the spur gear and motor pinion. Adjust motor position if necessary.
  • Ensure all bearings are correctly installed and not damaged.
  • Verify that no debris is lodged within the gears or differential housing.
  • Confirm that the differential units are assembled correctly and not overtightened.
• Usædvanlige lyde (gnisten, kliklyde):
  • Inspect gears for chipped teeth or excessive wear.
  • Recheck gear mesh. Incorrect mesh can cause grinding.
  • Ensure all components are securely fastened and not loose.
• Loss of Power or Intermittent Drive:
  • Check if the drive pinions are securely attached to the motor shaft.
  • Inspect the differential outdrives for damage or stripped connections to the drive shafts.
• Problemer med tilpasning:
  • While these parts are listed as compatible with models like 18858, always double-check the dimensions (refer to Figure 5) and compare with your existing parts if you encounter fitment problems. Slight variations can occur, or specific sub-versions of models might have minor differences.

Specifikationer

Garanti og support

For specific warranty information regarding this HAIBOXING product, please refer to the documentation provided with your original RC car purchase or contact HAIBOXING customer support directly. For technical assistance or further inquiries, please visit the official HAIBOXING webwebsted eller kontakt deres kundeserviceafdeling.

HAIBOXING Store: Visit the HAIBOXING Store on Amazon
