KoolMore KM-MDR-3FGD Commercial Merchandiser Refrigerator User Manual

Vigtige sikkerhedsoplysninger

Read all instructions before using this appliance to prevent injury or damage. Keep this manual for future reference.

• Elektrisk sikkerhed: Ensure the unit is connected to a properly grounded 115V, 60Hz electrical outlet. Do not use extension cords or adapters.
• Placering: Position the refrigerator on a level, stable surface capable of supporting its weight (approximately 411 lbs when empty, more when loaded). Allow adequate ventilation space around the unit.
• Håndtering: Due to its weight and size, always use appropriate lifting equipment and personnel when moving the unit. Use the integrated casters for repositioning.
• Brandfarligt kølemiddel: This appliance uses R290 (Propane) as a refrigerant. Handle with care and ensure proper ventilation during installation and servicing. Do not damage the refrigerant circuit.
• Rensning: Afbryd strømmen før rengøring. Brug ikke-slibende rengøringsmidler.
• Børn: Hold børn væk fra apparatet. Lad dem ikke lege med eller inde i enheden.

Produkt overview

The KoolMore KM-MDR-3FGD is a 71-inch commercial three-door glass merchandiser refrigerator designed for displaying and cooling various products. It features a spacious 46.1 cubic feet capacity, adjustable shelving, and precise digital temperature control.

Nøglefunktioner

• Kapacitet: 46.1 cubic feet of storage.
• Reoler: Eight adjustable PVC shelves, each supporting up to 99 lbs.
• Temperaturkontrol: Digital system maintains 36°F to 50°F (2°C to 10°C).
• Sigtbarhed: Three double-tempered glass swing doors with integrated locks.
• Belysning: Bright 1520-lumen LED lights recessed in the walls.
• Afrimning: Automatisk afrimningsfunktion.
• Konstruktion: Durable painted iron exterior (black) and interior (white).
• Mobilitet: Equipped with 6 casters for easy movement.

Komponenter

Produktpakken indeholder:

• KoolMore KM-MDR-3FGD Commercial Merchandiser Refrigerator Unit
• 8 PVC Shelves
• Keys for door locks

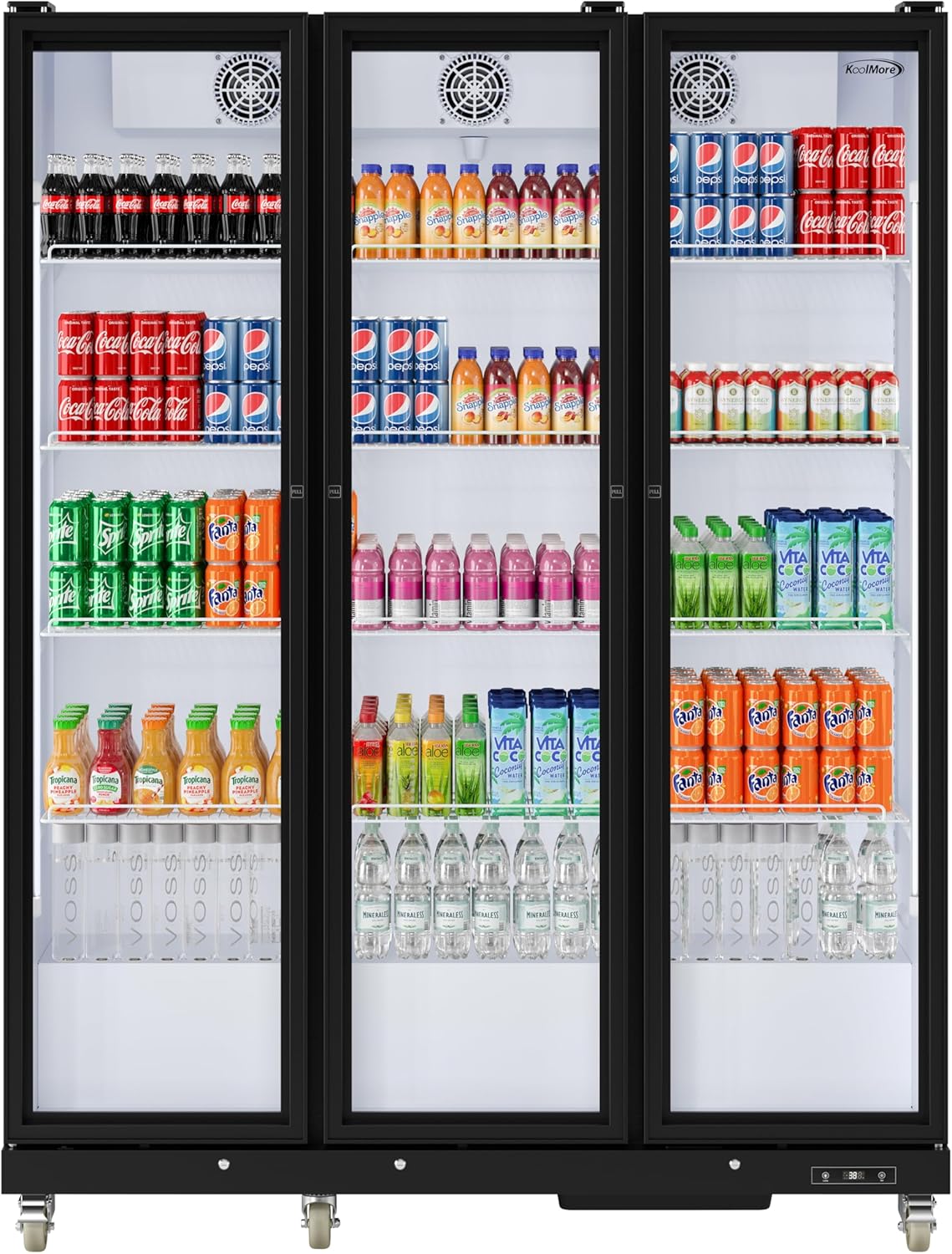

Figur 1: Forside view of the KoolMore KM-MDR-3FGD refrigerator, showcasing its three glass doors and interior contents.

Figur 2: Side view of the refrigerator with indicated dimensions (71"W x 22.63"D x 78.34"H).

Figur 3: Interiør view of one section, showing adjustable shelves and LED lighting.

Figure 4: Close-up of the digital temperature control panel.

Figure 5: Close-up of the integrated door lock mechanism.

Opsætningsinstruktioner

1. Udpakning

• Fjern forsigtigt alle emballagematerialer, inklusive tape og beskyttelsesfilm.
• Undersøg enheden for eventuelle transportskader. Rapporter eventuelle skader til transportfirmaet med det samme.

2. Placering

• Choose a location with a strong, level floor capable of supporting the refrigerator's weight.
• Ensure adequate clearance around the unit for proper ventilation (at least 4 inches from walls and other appliances).
• Avoid direct sunlight or heat sources, as this can affect cooling efficiency.

3. Nivellering

• The unit is equipped with casters for mobility. Once in its final position, engage the brakes on the two front casters to prevent movement.
• Use a level to ensure the refrigerator is perfectly level. Adjust the casters if necessary to achieve stability.

4. Elektrisk tilslutning

• Before plugging in, allow the unit to stand upright for at least 2 hours to allow compressor oils to settle.
• Connect the power cord to a dedicated, grounded 115V, 60Hz electrical outlet. Do not use multi-outlet adapters or extension cords.

5. Hyldeinstallation

• Insert the shelf clips into the desired slots on the interior pilasters.
• Place the PVC shelves onto the clips, ensuring they are securely seated and level.
• Adjust shelf height as needed to accommodate different product sizes.

Betjeningsvejledning

1. Tænd/sluk

• Once plugged in, the unit will automatically power on and begin cooling.
• To turn off, disconnect the power cord from the outlet.

2. Temperaturkontrol

• The digital control panel (Figure 4) displays the current internal temperature.
• Press the 'Set' button to view den indstillede temperatur.
• While the set temperature is displayed, use the up/down arrows to adjust the desired temperature within the range of 36°F to 50°F (2°C to 10°C).
• Press 'Set' again or wait a few seconds for the display to return to the current temperature.

3. Indvendig belysning

• The unit features internal LED lighting.
• Tryk på 'L'etamp' button on the digital control panel (Figure 4) to turn the interior lights on or off.

4. Loading the Refrigerator

• Allow the unit to reach the desired temperature before loading products.
• Distribute products evenly on the shelves. Do not overload shelves beyond their 99 lb capacity.
• Avoid blocking the internal air vents to ensure proper air circulation and consistent cooling.
• Ensure doors are closed completely after each use to maintain temperature. Use the integrated locks for security when needed.

Opretholdelse

1. Rensning

• Ydre: Tør de udvendige overflader af med en blød klud og et mildt rengøringsmiddel. Undgå slibende rengøringsmidler.
• Indre: Remove shelves and clean the interior with a solution of mild soap and water. Rinse thoroughly and dry before replacing shelves and products.
• Glasdøre: Use a glass cleaner for streak-free results.
• Kondensatorspole: Periodically clean the condenser coil (located at the rear/bottom of the unit) with a brush or vacuum cleaner to ensure efficient operation. Disconnect power before cleaning.

2. Automatisk afrimning

• This unit is equipped with an automatic defrost system, which minimizes ice buildup.
• During defrost cycles, the internal temperature may temporarily rise slightly. This is normal.
• Ensure the drain pan is clear and not overflowing.

3. Gasket Care

• Regularly inspect door gaskets for cracks or damage.
• Clean gaskets with mild soap and water to maintain their sealing effectiveness.

Fejlfinding

Før du kontakter service,view følgende almindelige problemer og løsninger:

Specifikationer

Garanti og support

For warranty information or technical support, please contact KoolMore customer service directly. Refer to your purchase documentation for specific warranty terms and conditions.

KoolMore Customer Service: Please visit the official KoolMore website or refer to the contact information provided with your purchase for assistance.
