1. Introduktion
Thank you for choosing the Tomofree K7 Pro 3-Wheel Mobility Scooter. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your scooter. Please read this manual thoroughly before operating the scooter and retain it for future reference.
2. Sikkerhedsoplysninger
Your safety is paramount. Adhere to the following guidelines to prevent injury or damage.
- Always wear a helmet and appropriate safety gear, including knee and elbow pads, when operating the scooter.
- Familiarize yourself with and obey all local traffic laws and regulations regarding mobility scooter use.
- Do not operate the scooter under the influence of alcohol, drugs, or any medication that may impair your judgment or reaction time.
- Hold en sikker hastighed og afstand til fodgængere og andre køretøjer.
- Perform a pre-ride inspection before each use, checking brakes, tires, and all fasteners.
- Avoid riding in adverse weather conditions such as heavy rain, snow, or icy roads.
- Overskrid ikke den maksimale lastekapacitet på 100 kg.
- Keep both hands on the handlebars during operation.
3. Produktet er slutview
The Tomofree K7 Pro is a lightweight, foldable 3-wheel mobility scooter designed for convenient travel. It features a 400W brushless motor, a 36V 7.5AH lithium battery, and a 3-step folding system.
Image: The Tomofree K7 Pro 3-Wheel Mobility Scooter in its operational state, showcasing its compact design and three wheels.
Nøglekomponenter
- styr: Equipped with controls for speed, throttle, and display.
- LCD-skærm: Shows speed, mileage, and battery level.
- Sæde: Padded for comfort during rides.
- Foldemekanisme: Allows for quick and easy storage.
- Batterirum: Houses the 36V 7.5AH lithium battery.
- Motor: 400W brushless motor for efficient power.
- Dæk: 10-inch wear-resistant tires for various road surfaces.
- Bremsesystem: Front and rear drum brakes.
Image: Illustration of the 36V 7.5AH lithium battery integrated within the scooter's frame, highlighting its capacity and charging time.
Image: A close-up of the scooter's handlebar, showing the easy-to-use control panel, speed display, mileage display, and the switch for reverse or forward motion.
Billede: View of the scooter's 10-inch wear-resistant vacuum tires, designed for strong grip and stability on various road surfaces.
Image: Diagram illustrating the scooter's 5-fold shock absorption system, including damping seat, spring shock absorption, and shock-absorbing tires for a comfortable ride.
4. Opsætning
4.1 Unboxing
Carefully remove the scooter and all accessories from the packaging. Inspect for any damage that may have occurred during shipping. Retain packaging materials for future transport or storage.
4.2 Udfoldning af scooteren
The K7 Pro features a 3-step folding system for quick deployment and storage.
- Placer scooteren på en flad, stabil overflade.
- Release the main folding latch (refer to the diagram below).
- Extend the main frame and handlebars until they click securely into place. Ensure all locking mechanisms are engaged before use.

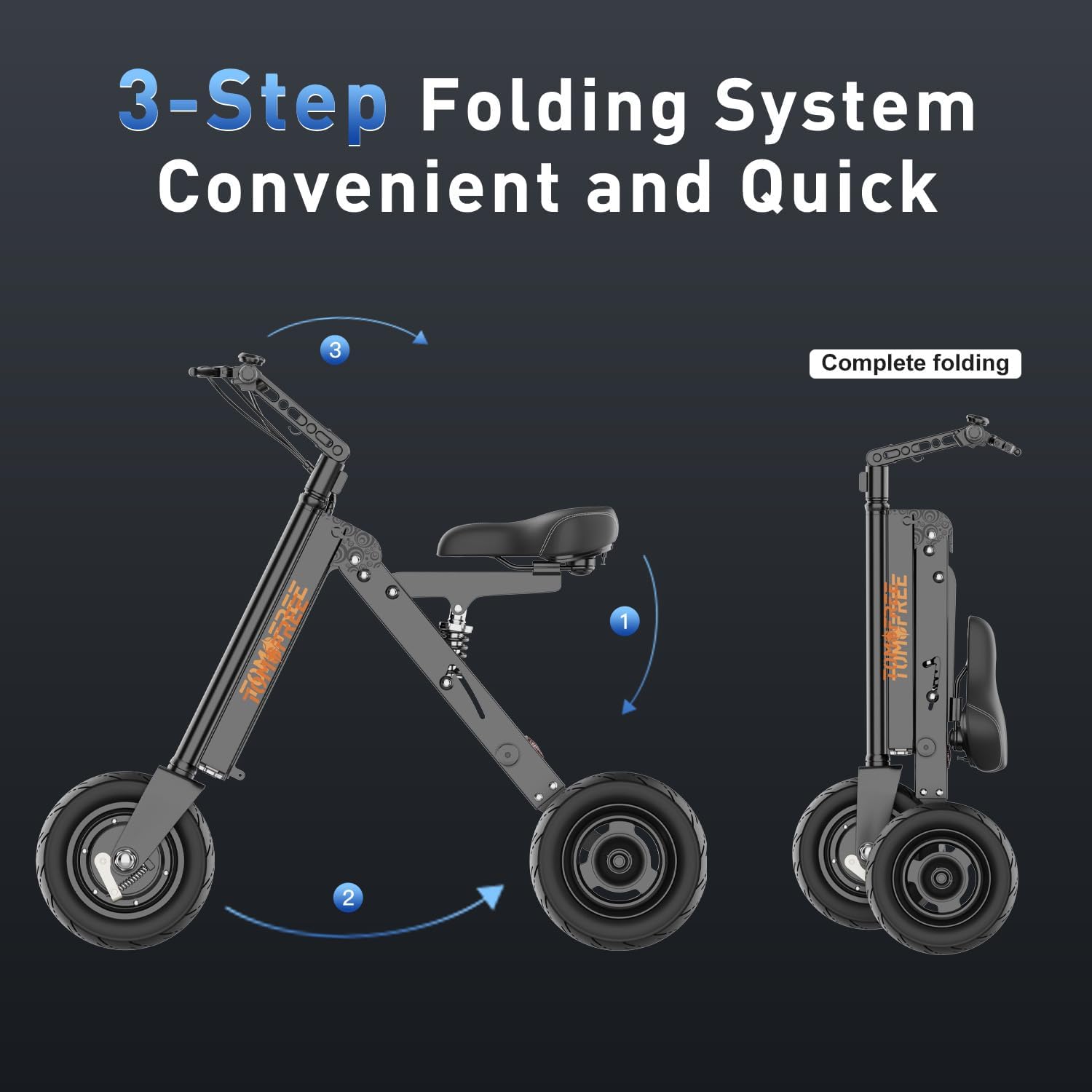

Image: Visual guide demonstrating the 3-step process to unfold the Tomofree K7 Pro scooter from its compact, folded state to its operational configuration.
4.3 Første batteriopladning
Before the first ride, fully charge the scooter's battery. Connect the charger to the scooter's charging port and then to a power outlet. The charging indicator will show the charging status. A full charge typically takes 3-4 hours.
5. Betjeningsvejledning
5.1 Tænd/sluk
Insert the key into the ignition and turn it to the 'ON' position to power on the scooter. The LCD display will illuminate. To power off, turn the key to the 'OFF' position and remove it.
5.2 Hastighedsjustering
The K7 Pro offers three adjustable speed modes. Use the speed selector switch on the left handlebar to choose your desired speed:
- Mode I (Low Speed): Approximately 6 MPH (10 km/h), suitable for turning and crowded areas.
- Mode II (Medium Speed): Approximately 12 MPH (20 km/h), ideal for daily driving.
- Mode III (High Speed): Approximately 15 MPH (25 km/h), for open areas, exercise caution.
5.3 Acceleration and Reverse
To accelerate, gently twist the throttle on the right handlebar. To engage the reverse function, press the dedicated reverse button switch. Always check your surroundings before moving in reverse.
5.4 Bremsning
The scooter is equipped with front and rear drum brakes. Squeeze the brake levers on the handlebars to slow down or stop. Apply brakes smoothly to avoid sudden stops.
5.5 LCD-skærm
LCD-displayet giver information i realtid:
- Batteriniveau: Angiver resterende batteriopladning.
- Hastighed: Viser den aktuelle kørehastighed.
- Kilometertal: Displays trip distance and total mileage.
6. Vedligeholdelse
Regular maintenance ensures the longevity and safe operation of your Tomofree K7 Pro scooter.
6.1 Rengøring
Wipe down the scooter with a soft, damp cloth after each use. Avoid using high-pressure water jets or harsh chemicals, which can damage electrical components.
6.2 Pleje af batterier
- Oplad batteriet regelmæssigt, selvom scooteren ikke bruges ofte, for at opretholde batteriets tilstand.
- Undgå at aflade batteriet helt før genopladning.
- Opbevar scooteren og batteriet et køligt og tørt sted, væk fra direkte sollys og ekstreme temperaturer.
6.3 Dækinspektion
Periodically check the tire pressure and inspect for any signs of wear, punctures, or damage. Maintain recommended tire pressure for optimal performance and safety.
6.4 Kontrol af bremsesystem
Regularly test the responsiveness of the front and rear drum brakes. If the brakes feel loose or ineffective, have them inspected and adjusted by a qualified technician.
6.5 Kontrol af fastgørelseselementer
Ensure all bolts, screws, and quick-release mechanisms are tight and secure before each ride. Loose fasteners can affect stability and safety.
7. Fejlfinding
This section addresses common issues you might encounter with your K7 Pro scooter.
- Scooteren tænder ikke:
- Kontroller, om batteriet er opladet.
- Sørg for, at nøglen er sat helt i og drejet til 'ON'-positionen.
- Kontroller, at alle elektriske forbindelser er sikre.
- Reduceret rækkevidde eller effekt:
- Sørg for, at batteriet er fuldt opladet før hver tur.
- Kontroller dæktrykket; for lavt oppustede dæk kan reducere effektiviteten.
- Avoid excessive loads or riding on steep inclines for extended periods.
- Usædvanlige lyde under drift:
- Inspect for any loose components or debris caught in the wheels or motor.
- Hvis støjen fortsætter, skal du kontakte kundesupport.
- Bremserne virker ikke:
- Check brake lever tension and cable condition.
- Inspect brake pads for wear. Adjust or replace as necessary.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Tomofree |
| Modelnavn | K7 Pro |
| Varemodelnummer | Tomofree - K7 Pro |
| Varens vægt | 41.84 pund (18.98 kg) |
| Materiale | Aluminium |
| Farve | Sølv |
| Motor | 400W børsteløs |
| Batteri | 36V 7.5AH Lithium (UN38.3 certified) |
| Max rækkevidde | Op til 15 miles |
| Max hastighed | Op til 24 km/t |
| Opladningstid | 3-4 timer |
| Dæk | 10-inch Wear-Resistant Vacuum Tires |
| Max belastningskapacitet | 220.5 lbs (100 kg) |
| Anbefalet højde | 5' - 6'3" |
| Foldede dimensioner | 16.5 x 18.7 x 34.6 tommer (ca.) |
| Fabrikant | DongGuan Xuansizhen Bicycle Co,. Ltd |
9. Garanti og support
Tomofree is committed to providing quality products and customer satisfaction.
9.1 Garantioplysninger
Your Tomofree K7 Pro Mobility Scooter comes with a 12 måneders garanti from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
9.2 Kundesupport
For any questions, technical assistance, or warranty inquiries, please contact our dedicated support team:
- E-mail: hjælp@tomofree.com
- Telefon (kun tekst): +1-518-614-6355
Image: Tomofree customer support details, including email and text-only phone number, and a 12-month warranty badge.
