1. Introduktion
This manual provides detailed instructions for the proper use and installation of ROUPWKWO CE-1 Wire Terminal Closed End Cap Connectors. These connectors are designed to provide a secure and insulated splice for electrical wires, ensuring reliable connections in various applications, including automotive and general electrical wiring. Please read this manual thoroughly before use to ensure safe and effective operation.
2. Sikkerhedsoplysninger
Always adhere to the following safety guidelines when working with electrical components:
- Afbryd strømmen: Always ensure that power to the circuit is disconnected before installing or removing connectors.
- Brug passende værktøjer: Utilize proper crimping tools designed for electrical terminals to ensure a secure connection.
- Brug beskyttelsesudstyr: Wear appropriate personal protective equipment, such as safety glasses and insulated gloves, when handling electrical wires.
- Inspicer ledninger: Ensure wires are free from damage, corrosion, or frayed strands before making connections.
- Korrekt trådtykkelse: Verify that the wire gauge matches the specifications of the CE-1 connector to achieve a safe and reliable splice. Refer to the product packaging for specific wire gauge compatibility.
- Avoid Over-Crimping: Over-crimping can damage the wire or connector, leading to a weak connection.
- Hold tør: These connectors are not designed for wet or submerged environments unless additional waterproofing measures are applied.
3. Produktet er slutview og komponenter
The ROUPWKWO CE-1 is a closed-end cap connector designed for splicing multiple wires together. It features a durable, insulating housing that provides protection and strain relief for the spliced connection. The internal metal insert ensures a strong electrical contact when crimped.
Figur 3.1: Nærbillede view of two ROUPWKWO CE-1 closed end cap wire connectors, highlighting their translucent design and internal structure.
These connectors are typically made from high-quality nylon or polypropylene, offering excellent insulation properties and resistance to environmental factors. The design allows for quick and efficient wire termination, creating a compact and secure splice.

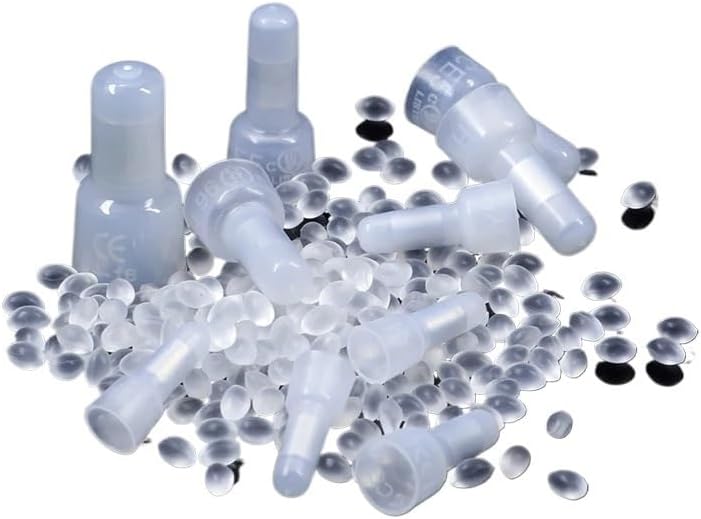

Figure 3.2: A collection of ROUPWKWO CE-1 connectors, illustrating their material composition and typical appearance in bulk.
4. Installationsvejledning
Follow these steps to properly install the ROUPWKWO CE-1 Wire Terminal Closed End Cap Connector:
- Forbered ledninger: Strip approximately 1/2 to 3/4 inch (12-19 mm) of insulation from the ends of the wires to be spliced. Ensure the stripped wire ends are clean and free of frayed strands.
- Gather Wires: Twist the stripped ends of the wires together firmly. This helps ensure all strands are captured by the connector.
- Insert into Connector: Insert the twisted wire ends completely into the open end of the CE-1 connector. Ensure that no bare wire is exposed outside the connector's insulating body.
- Crimp the Connector: Using a suitable crimping tool, position the connector in the crimping jaws. Apply firm, even pressure to crimp the connector securely onto the wires. The crimp should be tight enough to hold the wires firmly without damaging the connector or insulation.
- Bekræft forbindelsen: Gently pull on the wires to ensure they are securely held within the connector. A properly crimped connection will not allow the wires to pull out.
- Isoler (hvis nødvendigt): While the connector provides insulation, consider additional insulation (e.g., electrical tape or heat shrink tubing) if the connection will be exposed to harsh environments or requires extra protection.
5. Driftsprincipper
Once properly installed, the ROUPWKWO CE-1 connector functions by creating a mechanically and electrically sound splice. The internal metal sleeve compresses around the twisted wire ends when crimped, establishing a low-resistance electrical path. The outer insulating cap protects this connection from short circuits and environmental factors, ensuring the integrity of the electrical circuit.
6. Vedligeholdelse
ROUPWKWO CE-1 connectors are designed for a permanent, maintenance-free connection once properly installed. Regular maintenance is generally not required. However, periodic inspection of electrical connections in critical applications is recommended to ensure continued integrity. Look for signs of physical damage, discoloration, or loose connections. If any issues are observed, disconnect power and replace the connector.
7. Fejlfinding
If an electrical connection fails or performs poorly after using a CE-1 connector, consider the following:
- Løs forbindelse: The most common issue is an insufficient crimp. Ensure the crimping tool was properly used and sufficient pressure was applied. Re-crimp or replace the connector if necessary.
- Incorrect Wire Gauge: Using wires that are too thin or too thick for the connector can lead to a poor connection or damage. Verify wire gauge compatibility.
- Exposed Wires: If bare wire is exposed outside the connector, it can lead to short circuits. Ensure wires are fully inserted and insulated.
- Damaged Connector: Inspect the connector for any cracks or damage before installation. Do not use damaged connectors.
- Korrosion: Ensure wire ends are clean and free of corrosion before splicing. Corrosion can impede electrical conductivity.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Model | CE-1 |
| Mærke | ROUPWKWO |
| Type | Closed End Cap Wire Terminal |
| Farve | Translucent (Ce-1) |
| Materiale | Insulating Plastic (e.g., Nylon/Polypropylene) |
| Kompatibilitet med trådmåler | Refer to product packaging for specific AWG/mm² ratings. |
| Fabrikant | ROUPWKWO |
Shipping Specifications (for 2000pcs Ce-1 package)
| Feature | Specifikation |
|---|---|
| Pakkedimensioner | 1.18 x 0.79 x 0.39 tommer |
| Varens vægt | 1.76 ounce |
9. Garanti og support
For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact your retailer. For direct inquiries, you may also reach out to the manufacturer, ROUPWKWO, through their official support channels.
