Dune HD Pro 8K Plus Medieafspiller Brugermanual

1. Introduktion

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Dune HD Pro 8K Plus Media Player. The Dune HD Pro 8K Plus is an advanced media player designed for high-quality audio and video playback, supporting 8K resolution, Dolb Visio, and a powerful S928X media processor. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

2. Produktet er slutview

2.1 Nøglefunktioner

• Advanced S928X Media Processor: Features a high-end S928X media processor with Dolb Visio VS10 engine for superior image quality and performance.
• Full 8K Support: Supports true 8Kp60 HDR video decoding and output, with capabilities to downscale 8K content and upscale any content to 8K. Includes YouTube 8K HDR support.
• AV1 Video Codec: Integrates the new AV1 video codec for improved video quality and efficiency.
• Høj ydeevne: Equipped with a powerful CPU (four 2.0 GHz ARM A55 cores, one 1.9 GHz ARM A76 core) and Mali G57 GPU, LPDDR4X RAM, and eMMC for lightning-fast system performance.
• Dolb Visio VS10 Engine: Ensures maximum image quality across various content types (SDR, HDR, Dolb Visio) and output signals, enhancing conversion quality.
• Comprehensive Dolb Visio Support: Supports all common Dolb Visio profiles and a wide range of Dolb Visio file format variations.
• HD Audio Passthrough: Capable of outputting all HD audio formats (up to Dolb TruHD and DTS X) in end-to-end bitstream mode via HDMI. Supports high-quality music playback via HDMI and S/PDIF.
• Effektiv køling: Utilizes the entire metal casing as a heat sink for effective passive cooling of the S928X processor.
• Forbindelse: Includes HDMI 2.1a, BT5, WiFi6, 1Gbit Ethernet, USB 3.0, Optical S/PDIF.
• Hukommelse: 8GB RAM / 64GB internal storage.

2.2 Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• Dune HD Pro 8K Plus Media Player x1
• Bluetooth fjernbetjening x1
• AAA Batteries x2 (for remote control)
• Power Supply (12V 2A) x1
• HDMI Cable (8K Ultra High Speed) x1

Image: Contents of the Dune HD Pro 8K Plus retail box, showing the media player, remote, power adapter, and cables.

2.3 Produkt Views and Connectors

Billede: Forside view of the Dune HD Pro 8K Plus media player, displaying the front panel with a digital clock and status indicator.

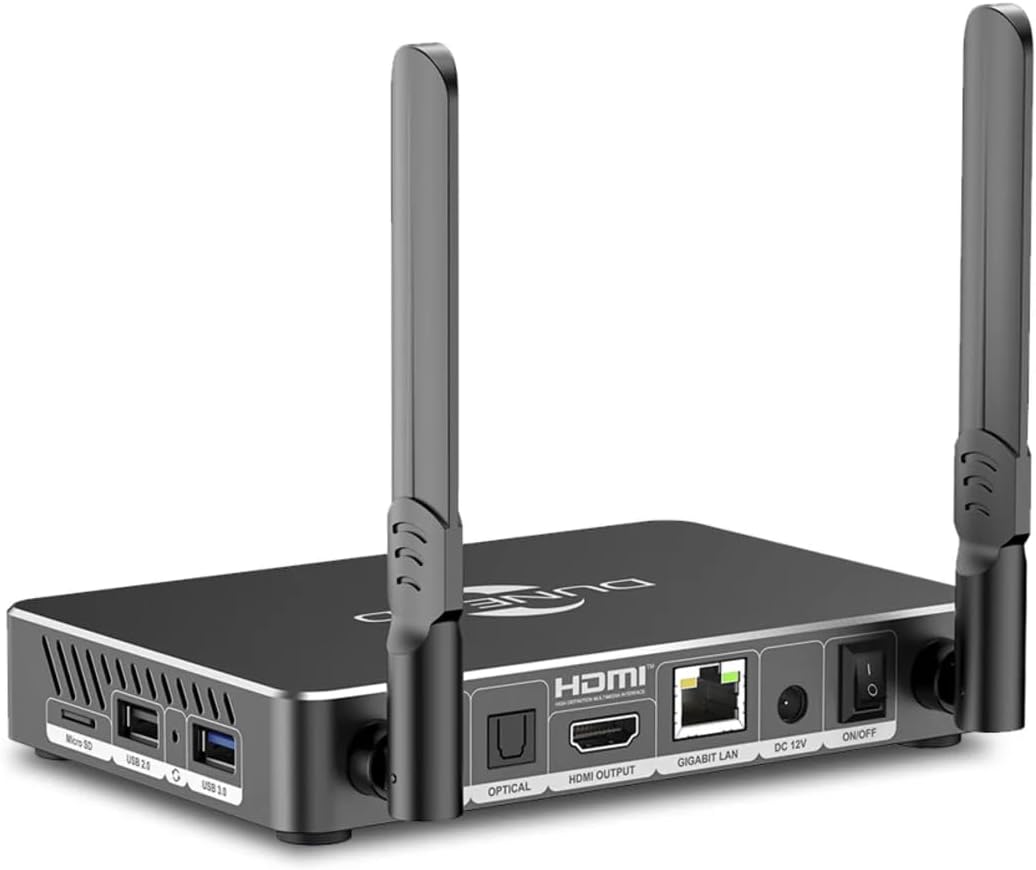

Billede: Bagside view of the Dune HD Pro 8K Plus, highlighting the various connectivity ports including Optical S/PDIF, HDMI Output, Gigabit LAN, DC 12V power input, and power ON/OFF switch.

Billede: Side view of the Dune HD Pro 8K Plus, showing the MicroSD card slot, USB 2.0 ports, and a USB 3.0 port.

Image: The Bluetooth remote control for the Dune HD Pro 8K Plus, featuring buttons for power, navigation, media playback, voice search, and IR learning.

For a detailed diagram of the connectors, refer to the image below:

Image: Diagram illustrating the numbered connectors on the Dune HD Pro 8K Plus: 1. MicroSD card slot, 2. USB 2.0 host, 3. Recovery button, 4. USB 3.0 host, 5. 3.5mm analog audio output (stereo), 6. Optical S/PDIF output, 7. HDMI output, 8. Ethernet 10/100/1000 Mbit/s, 9. DC input 12V, 10. Power ON/OFF switch.

3. Opsætning

3.1 Tilslutning af medieafspilleren

1. Tilslut til tv: Use the provided 8K Ultra High Speed HDMI cable to connect the HDMI OUTPUT port on the media player to an HDMI input port on your TV or display.
2. Tilslut til strøm: Connect the power supply to the DC 12V input port on the media player, then plug the power adapter into a wall outlet.
3. Netværksforbindelse (valgfrit):
   • wired: For a stable connection, connect an Ethernet cable from your router to the GIGABIT LAN port on the media player.
   • Trådløs: The device supports WiFi6. You can configure Wi-Fi settings after initial boot-up.
4. Lydforbindelse (valgfrit): If using an external audio system, connect an optical S/PDIF cable from the OPTICAL port on the media player to your audio receiver, or use the 3.5mm analog audio output.

3.2 Opsætning af fjernbetjening

1. Åbn batterirummet på bagsiden af ​​Bluetooth-fjernbetjeningen.
2. Isæt de to AAA-batterier, og sørg for at polerne vender korrekt (+/-).
3. Close the battery compartment. The remote control is pre-paired with the media player. If pairing is required, follow the on-screen instructions during the first boot or refer to the troubleshooting section.

3.3 Første opstart og indledende konfiguration

1. Sørg for, at alle forbindelser er sikre.
2. Turn on the media player using the power ON/OFF switch on the rear panel.
3. Skift dit tv's inputkilde til den tilsvarende HDMI-port.
4. Follow the on-screen prompts to complete the initial setup, which may include language selection, network configuration, and system updates.

4. Betjening

4.1 Grundlæggende navigation

Use the directional pad (up, down, left, right) and the "ENTER" button on the remote control to navigate through the user interface. The "BACK" button returns to the previous screen, and the "HOME" button takes you to the main menu.

4.2 Medieafspilning

• Lokal opbevaring: Connect USB drives or MicroSD cards to the respective ports. The media player will detect the storage, and you can browse files ved hjælp af den indbyggede file leder.
• Netværkslagring: Få adgang til medier files from network-attached storage (NAS) or shared folders on your computer via SMB/NFS protocols. Configure network shares in the settings menu.
• Streamingtjenester: Utilize pre-installed applications or download new ones from the app store (e.g., YouTube 8K HDR) to access online streaming content.

4.3 Avancerede funktioner

• Stemmesøgning: Press the microphone button on the remote control to activate voice search for content or system commands.
• IR læring: The remote control supports IR learning, allowing you to program certain buttons to control your TV (e.g., power, volume). Refer to the remote control's specific instructions for this feature.
• App kontrol: Download the Dune HD control application on your smartphone or tablet for an alternative control method.

5. Vedligeholdelse

5.1 Rengøring

To clean the media player, use a soft, dry cloth. Do not use liquid cleaners, aerosols, or abrasive materials, as these can damage the device. Ensure the device is powered off and unplugged before cleaning.

5.2 Softwareopdateringer

Regularly check for and install software updates to ensure optimal performance, security, and access to new features. Updates can typically be found in the system settings menu under "About" or "System Update." Ensure a stable internet connection during updates.

6. Fejlfinding

6.1 Fabriksindstilling

If you encounter persistent issues, a factory reset may resolve them. This will restore the device to its original factory settings and erase all user data, installed applications, and configurations.

1. Naviger til Indstillinger > System > Nulstil muligheder.
2. Vælge Slet alle data (gendan fabriksindstillinger).
3. Confirm your choice. The device will restart and begin the reset process.

7. Specifikationer

8. Garanti og support

8.1 Garantioplysninger

This product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Dune HD customer support. Protection plans may also be available for extended coverage.

• Returpolitik: Typically 30 days for refund/replacement from the date of purchase.
• Valgfrie beskyttelsesplaner:
  • 2-årig beskyttelsesplan
  • 3-årig beskyttelsesplan
  • Komplet beskyttelse (månedligt abonnement)

8.2 Kundesupport

For technical assistance, troubleshooting, or general inquiries, please contact Dune HD customer support.

• Officiel Webwebsted: www.dune-hd.com
• Supportside: support.dune-hd.com
• Importer Support Email: support@atdbaltics.com
• Dune HD Amazon Store: Visit the Dune HD Store on Amazon
