Scheppach PCS56 Benzinmotorsav Brugermanual

1. Introduktion

The Scheppach PCS56 Gasoline Chainsaw is a powerful and versatile tool designed for various forestry tasks, including cutting firewood, trimming shrubs, and delimbing. Its robust 3.1 hp (2.3 kW) 2-stroke engine and 51 cm ProCut blade ensure efficient and fast cutting at 22 m/s. This manual provides essential information for safe and effective operation, setup, maintenance, and troubleshooting.

2. Sikkerhedsinstruktioner

Always prioritize safety when operating the chainsaw. Read and understand all safety warnings before use. Failure to follow these instructions may result in serious injury.

• Bær passende personlige værnemidler (PPE), herunder sikkerhedsbriller, høreværn, handsker og beskyttelsesfodtøj.
• Sørg for, at arbejdsområdet er frit for tilskuere, kæledyr og forhindringer.
• Handle fuel with extreme care. Mix gasoline and 2-stroke oil at a ratio of 1:40 (gasoline:oil) in a well-ventilated area, away from ignition sources.
• The chainsaw is equipped with an Anti-Kickback chain brake that stops the chain within milliseconds in case of kickback. Always ensure this safety feature is functional.
• De håndbeskyttelse provides additional safety. Do not operate the chainsaw if the hand protection is damaged.
• Maintain a firm grip on the chainsaw with both hands during operation. The all-round handle is designed for ergonomic and versatile use.
• Brug ikke motorsaven, når du er træt eller påvirket af narkotika eller alkohol.
• Regularly inspect the chainsaw for damage, loose parts, or wear. Do not use a damaged chainsaw.

3. Produktet er slutview

Familiarize yourself with the main components of your Scheppach PCS56 Chainsaw.

Figur 3.1: Samlet set view of the Scheppach PCS56 Gasoline Chainsaw, showcasing its red and black housing, ProCut System bar, and chain.

Figure 3.2: Illustration of the all-round handle for ergonomic use and the automatic lubrication system, which ensures continuous chain oiling during operation.

Figur 3.3: Eksamples of suitable applications for the chainsaw, including cutting firewood, general forestry work, and delimbing trees.

Figure 3.4: Close-up of the robust metal claw stop, designed to protect the cutting material and prevent it from slipping during operation.

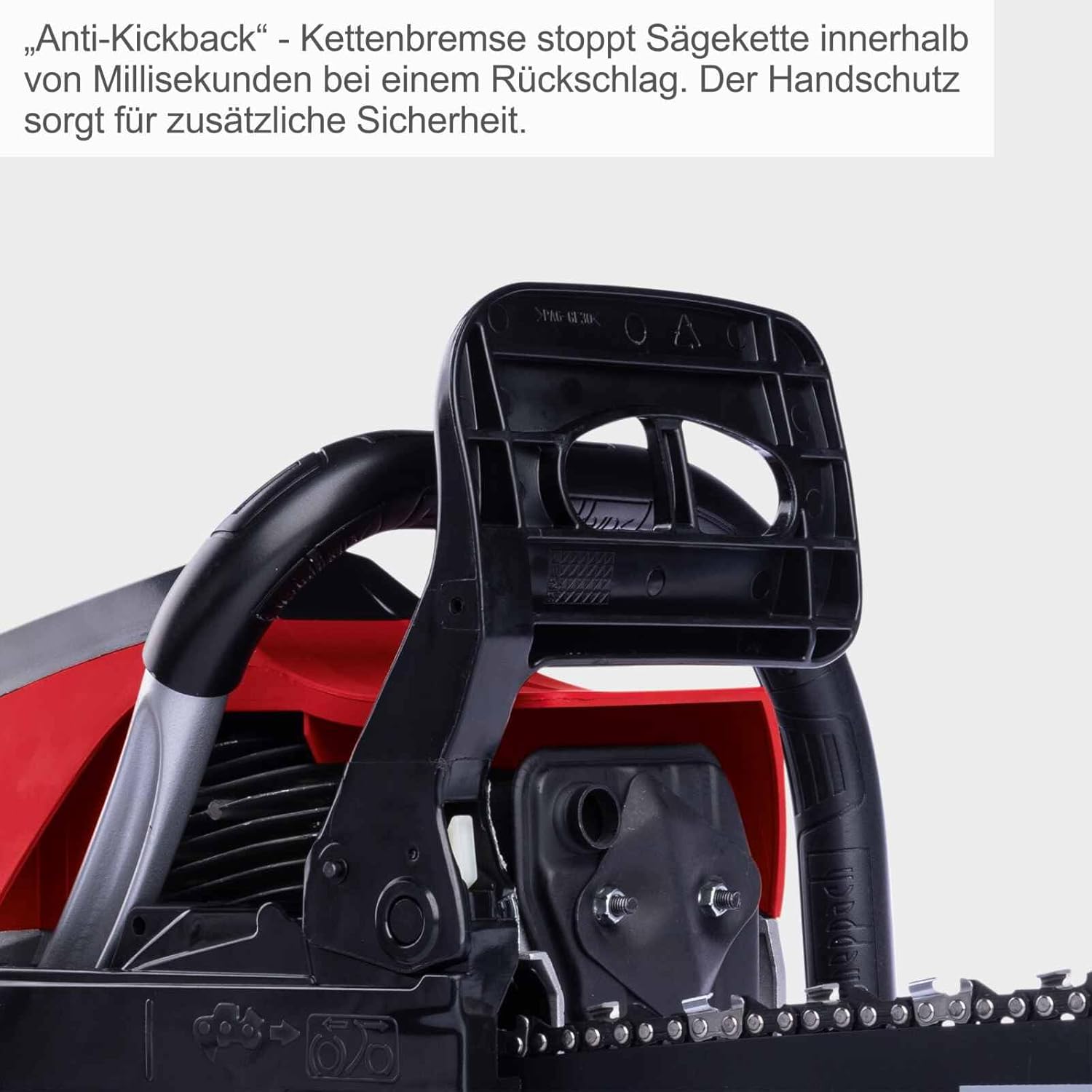

Figur 3.5: View of the anti-kickback chain brake and the hand protection, critical safety features that stop the chain instantly upon kickback and shield the operator's hand.

Figure 3.6: Detail of the pull starter mechanism, featuring the Easy Start system for simplified and less strenuous starting of the chainsaw.

Figure 3.7: The "Easy Start" logo, indicating the chainsaw's simplified starting mechanism.

Figure 3.8: Visual representation of the required fuel mixture ratio: 1 part 2-stroke oil to 40 parts gasoline.

4. Opsætning

4.1 Montering

The chainsaw may require minor assembly upon unboxing. Refer to the included assembly guide for detailed steps on attaching the guide bar and saw chain. Ensure all components are securely fastened before proceeding.

4.2 Tankning

The PCS56 operates on a gasoline-oil mixture. It is crucial to use the correct ratio of 1:40 (gasoline:2-stroke oil). Use high-quality unleaded gasoline and a suitable 2-stroke engine oil. Mix the fuel in a separate, approved container before pouring it into the chainsaw's fuel tank. Do not mix fuel directly in the chainsaw's tank.

4.3 Chain Oil

Fill the chain oil reservoir with appropriate chain lubricant. The automatic chain lubrication system requires a sufficient supply of oil for proper operation and to extend the life of the chain and guide bar.

5. Betjening

5.1 Start af motorsaven

1. Placer motorsaven på en fast, flad overflade.
2. Aktiver kædebremsen.
3. Set the choke (if applicable) and throttle according to the starting procedure outlined in the full manual.
4. Brug Easy Start pull starter to initiate the engine. Pull the starter cord smoothly until resistance is felt, then pull firmly.
5. Once the engine starts, disengage the choke and allow the engine to warm up briefly before use.

5.2 Skæreteknikker

Always maintain a stable stance and firm grip. Use the robust metal claw stop to brace the chainsaw against the wood for controlled cutting. The anti-vibration system is designed for longer and less fatiguing work sessions.

6. Vedligeholdelse

Regelmæssig vedligeholdelse er afgørende for din motorsavs levetid og sikre drift.

• Efter hver brug, thoroughly clean the chainsaw, removing sawdust, debris, and resin from the guide bar, chain, and engine housing.
• Check the chain tension regularly. A properly tensioned chain should be snug but still allow you to pull it around the guide bar by hand.
• Inspect the chain for sharpness and damage. Sharpen or replace the chain as needed.
• Verify the automatic chain lubrication system is functioning correctly by observing oil flow during operation.
• Periodically check and clean the air filter and spark plug.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For information om garantidækning, teknisk support eller reservedele henvises til den officielle Scheppach-side. webwebstedet eller kontakt din autoriserede forhandler. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
