WYBOT Osprey WY1102Max (Osprey 200) Trådløs Robot Poolrenser Brugermanual

Indledning

The WYBOT Osprey WY1102Max (Osprey 200) is a cordless robotic pool cleaner designed for efficient and automatic cleaning of flat-bottomed pools. This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your device.

Figure 1: WYBOT Osprey WY1102Max Cordless Robotic Pool Cleaner.

Opsætning

1. Første opladning

Before first use, fully charge the robotic pool cleaner. The device features an 11-Volt Lithium-Ion battery with 9.62 Watt Hours energy content, providing up to 100 minutes of runtime on a full charge.

2. Samling (hvis nødvendigt)

The WYBOT Osprey WY1102Max typically requires no assembly. Ensure all components are securely in place before operation.

3. Første brug

Place the cleaner into the pool. Ensure it is powered on. The device will automatically begin its cleaning cycle.

Figure 2: The lightweight design allows for easy placement and retrieval.

Betjeningsvejledning

1. Starting the Cleaner

Submerge the cleaner in the pool. Once submerged and powered on, the device will automatically initiate its cleaning program. It is designed to effectively scrub away dirt and debris from the pool floor.

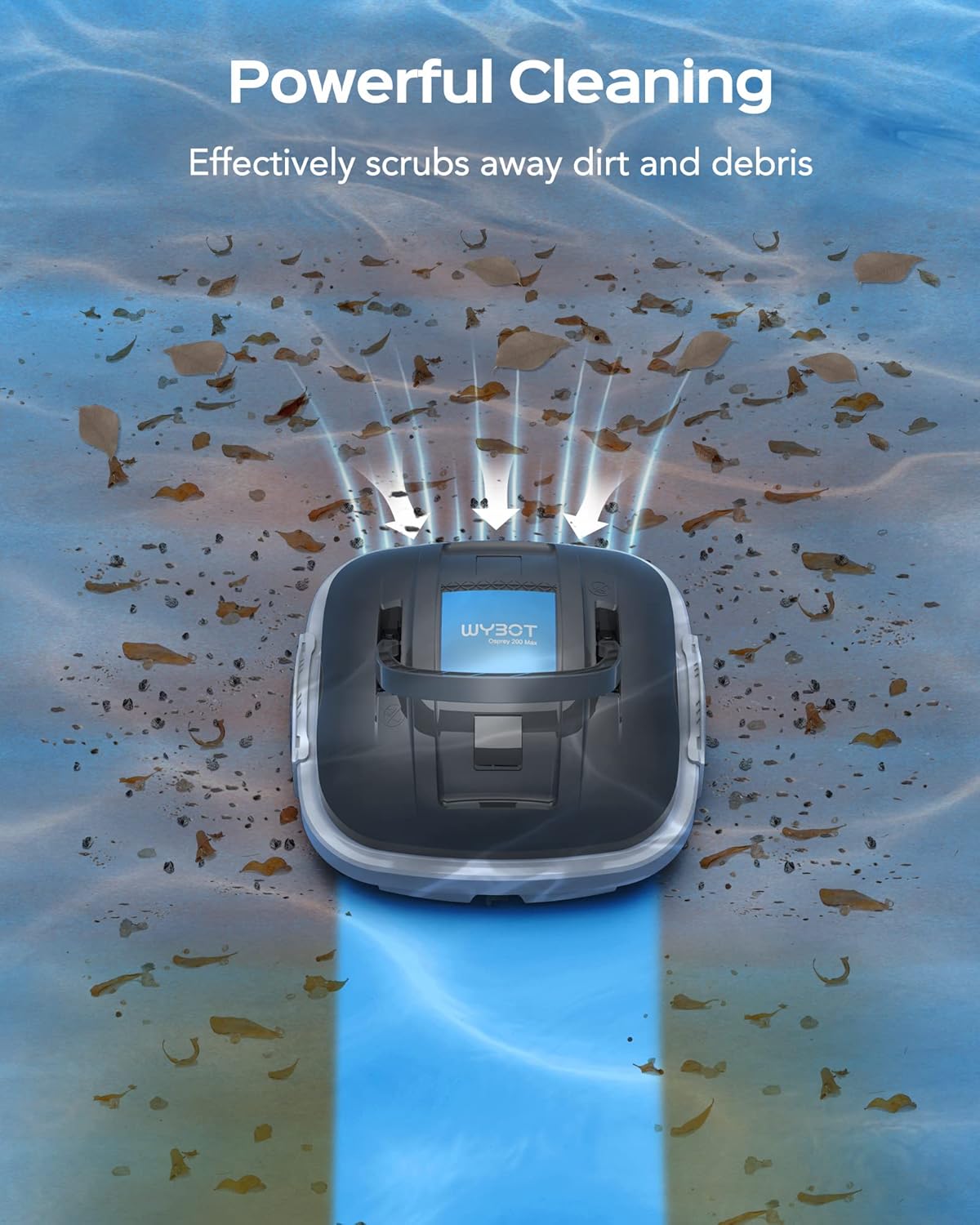

Figure 3: The cleaner effectively scrubs away dirt and debris.

2. Rengøringscyklus

The cleaner operates autonomously, navigating the pool floor to collect particles. It features strong dual-motors and high filtration efficiency to capture hidden dirt. The updated battery provides up to 100 minutes of runtime, covering an area of approximately 861 sq. ft.

Figure 4: Up to 100 minutes runtime and 861 sq. ft. cleaning area.

3. Automatic Parking

Upon completion of its cleaning cycle or when the battery is low, the cleaner will automatically park itself near the pool edge for easy retrieval.

4. Suitable Pool Types

This robotic cleaner is ideal for above-ground, flat-bottomed pools, as well as in-ground pools with regular or irregular shapes.

Figure 5: The cleaner is suitable for multiple pool scenarios.

Opretholdelse

1. Filterrensning

After each cleaning cycle, it is recommended to clean the 180µm fine filter. Open the main compartment and rinse the filter thoroughly with a hose to remove collected debris. Do not allow debris to dry on the filter.

Figur 6: Eksploderet view illustrating the filter system and cleaning coverage.

2. Opladning

Ensure the charging port is dry before connecting the charger. Charge the device fully after each use to maintain battery health and optimal performance.

3. Opbevaring

Opbevar rengøringsmidlet et køligt, tørt sted væk fra direkte sollys, når det ikke er i brug.

Fejlfinding

Cleaner does not start:

Ensure the battery is fully charged. Verify the power button is pressed correctly. The cleaner is designed to start only when submerged in water.

Reduceret rengøringsevne:

Check and clean the filter basket. Ensure there are no obstructions in the suction inlets or around the wheels. Verify the battery is fully charged for optimal suction power.

Cleaner gets stuck:

While designed for efficient navigation, ensure there are no large obstacles in the pool that could impede movement. The device's design allows it to adjust its course when encountering walls.

Water in charging port:

Always ensure the charging port is completely dry before charging. If water is present, allow it to air dry thoroughly to prevent damage to electrical components.

Specifikationer

Officielle produktvideoer

Garanti og support

The WYBOT Osprey WY1102Max comes with a limited warranty. For specific warranty details, claims, or technical support, please refer to the documentation included with your product or contact WYBOT customer service directly.
