MiBOXER PW5 5-i-1 LED-controller brugermanual

Indledning

The MiBOXER PW5 5-in-1 LED Controller is designed for precise and convenient management of various LED lighting systems. It supports multiple LED types and offers dual wireless connectivity for seamless integration and control.

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your PW5 LED Controller.

Nøglefunktioner

• 5-i-1-kompatibilitet: Supports Single Color, Dual White (CCT), RGB, RGBW, and RGB+CCT LED setups.
• Dobbelt trådløs forbindelse: Features WiFi and 2.4GHz technology for stable operation and smart app integration.
• High Output Capacity: Handles up to 20A output, suitable for high-power LED installations.
• Smart kontrol: Compatible with "Tuya Smart" app and third-party voice control systems like Alexa and Google Assistant.
• Color and Dimming Control: Offers 16 million colors, adjustable color temperature, brightness, and saturation.
• PUSH Dimming Support: Allows for flexible dimming control.
• Hukommelsesfunktion: Retains the last-used settings.
• Wide Voltage Område: Operates on DC12-24V.

Pakkens indhold

• MiBOXER PW5 5-in-1 LED Controller
• Brugermanual

Image: The MiBOXER PW5 LED Controller shown alongside its retail packaging and a small instruction manual.

Opsætning og installation

Sikkerhedsforanstaltninger

• Sørg for, at strømmen er afbrudt før installation.
• Install in a dry environment, away from moisture and extreme temperatures.
• Bekræft korrekt voltage (DC12-24V) and current ratings for your LED strips and power supply.
• Overskrid ikke den maksimale udgangsstrøm på 20 A.

Ledningsdiagram

Connect your LED strips and power supply to the controller as shown in the diagram below. Ensure correct polarity for all connections.

Image: Detailed wiring diagram of the MiBOXER PW5 controller. It shows the V+ and V- input terminals, GND and PUSH dimming terminals, and output terminals labeled V+, W, WW, CW, R, G, B for various LED strip types. An indicator output mode table is also visible, showing White for Single Color, Yellow for Dual White, Red for RGB, Green for RGBW, and Blue for RGB+CCT.

1. Connect the DC12-24V power supply to the INPUT V+ og V- terminaler.
2. Connect your LED strip(s) to the corresponding PRODUKTION terminals based on your LED type:
   • Enkelt farve: Connect to V+ and W (White)
   • Dual White (CCT): Connect to V+, WW (Warm White), and CW (Cool White)
   • RGB: Connect to V+, R (Red), G (Green), and B (Blue)
   • RGBW: Connect to V+, R, G, B, and W (White)
   • RGB+CCT: Connect to V+, R, G, B, WW, and CW
3. For PUSH dimming functionality, connect a compatible PUSH switch to the GND og SKUBBE terminaler.

Montering

The controller is designed for tabletop mounting. Ensure it is placed on a stable, flat surface with adequate ventilation.

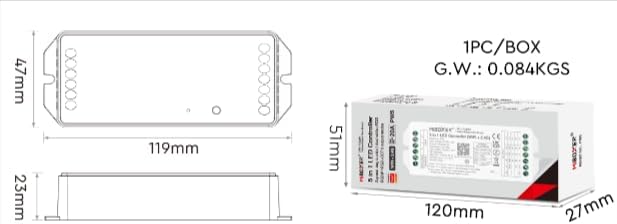

Image: Two diagrams illustrating the physical dimensions of the MiBOXER PW5 controller. The first shows a top-down view with a length of 119mm and width of 47mm. The second shows a side view with a height of 23mm, and also includes package dimensions of 120mm x 51mm x 27mm.

Operation

Switching Output Modes

The PW5 controller supports 5 different output modes. To switch between these modes:

• Tryk på "SÆT" button once to cycle through the output modes.
• The indicator light on the controller will change color to reflect the current mode:
  • White: Single Color
  • Yellow: Dual White
  • Red: RGB
  • Green: RGBW
  • Blue: RGB+CCT

2.4G RF fjernbetjening

The controller can be linked to a compatible 2.4G RF remote control (sold separately).

• To link: Power on the controller. Within 3 seconds, press the "ON" button on the remote control 3 times. The LED strip will flash to confirm successful linking.
• To unlink: Power on the controller. Within 3 seconds, press the "ON" button on the remote control 5 times. The LED strip will flash to confirm unlinking.

WiFi and App Control (Tuya Smart)

The PW5 controller integrates with the "Tuya Smart" app for advanced control via WiFi.

1. Download the "Tuya Smart" app from your device's app store.
2. Registrer dig eller log ind på din Tuya Smart-konto.
3. To activate WiFi pairing mode: Long press the "SÆT" button for 3 seconds until the indicator flashes quickly.
4. In the Tuya Smart app, follow the instructions to add a new device. Select the appropriate lighting device type.
5. Once connected, you can control brightness, color, color temperature, saturation, and set up group/multi-zone control.
6. The app also supports music rhythm functions.

Voice Control (Alexa, Google Assistant)

After successful integration with the Tuya Smart app, you can link your account to voice assistants like Amazon Alexa or Google Assistant for hands-free control.

1. Åbn Alexa- eller Google Home-appen.
2. Navigate to the "Skills" or "Works with Google" section.
3. Søg efter and enable the "Tuya Smart" skill/service.
4. Link your Tuya Smart account when prompted.
5. Discover devices. Your MiBOXER PW5 controller should appear.
6. You can now use voice commands such as:
   • "Alexa, tænd lyset i stuen."
   • "Hey Google, set the kitchen lights to blue."
   • "Alexa, dim the bedroom lights to 50%."

Opretholdelse

• Keep the controller clean and free from dust. Use a soft, dry cloth for cleaning.
• Brug ikke hårde kemikalier eller slibende rengøringsmidler.
• Sørg for korrekt ventilation omkring enheden for at forhindre overophedning.
• Regularly check wiring connections for security and integrity.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the official MiBOXER website or contact your retailer. Keep your purchase receipt for warranty claims.

For yderligere hjælp kan du besøge MiBOXER Store on Amazon.
