1. Introduktion
Tak for købetasing the GLOBE Electric 65000108 Rechargeable LED Wall Sconce. This modern, minimalist wall light features integrated LED technology, a 3-step dimmer touch switch, and a rechargeable battery for versatile lighting. This manual provides detailed instructions for safe installation, operation, and maintenance of your new wall sconce.
Image 1.1: The GLOBE Electric 65000108 Rechargeable LED Wall Sconce with its white fabric shade and matte black finish, shown with the included USB-C charging cable.
2. Vigtige sikkerhedsoplysninger
Læs venligst alle instruktioner omhyggeligt inden installation og brug. Gem denne manual til senere brug.
- Kun indendørs brug: Dette produkt er designet til indendørs brug på tørre steder. Må ikke udsættes for vand eller fugt.
- Strømkilde: Use only the provided USB-C cable for charging. Do not use damaged cables or chargers.
- Batteripleje: The sconce contains a Lithium Ion battery. Do not attempt to replace the battery yourself. Do not expose the battery to extreme temperatures or direct sunlight.
- Rensning: Disconnect from power before cleaning. Use a soft, dry cloth. Do not use abrasive cleaners.
- Installation: Ensure the mounting surface is suitable and can support the weight of the fixture.
- Børn: Holde utilgængeligt for børn. Dette er ikke et legetøj.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- GLOBE Electric 65000108 Wall Sconce (with integrated LED and battery)
- Hvid stofskærm
- Mounting Hardware (screws, anchors, mounting bracket)
- USB-C-opladningskabel (5 fod)
- Instruktionsmanual
4. Opsætning og installation
Follow these steps to properly install your wall sconce:
- Forbered monteringsstedet: Choose a suitable indoor wall location. Ensure there are no electrical wires or pipes behind the wall where you plan to drill.
- Monter monteringsbeslaget:
Image 4.1: A hand using a screwdriver to secure the mounting bracket to the wall.
Position the mounting bracket on the wall and mark the drill holes. Drill pilot holes if necessary, then secure the mounting bracket to the wall using the provided screws and anchors.
- Vedhæft lampetten: Align the sconce with the installed mounting bracket. Gently slide the sconce onto the bracket until it is securely in place.
- Attach the Fabric Shade: Carefully place the white fabric shade onto the sconce. Ensure it is seated properly and securely.
5. Betjeningsvejledning
Your wall sconce features a touch-sensitive switch for power and brightness control.
Billede 5.1: Nærbillede view of the sconce's base showing the dimmable touch switch and the USB-C charging port.
5.1. Power and Brightness Control
The sconce has a 3-step dimmer function controlled by the touch switch:
- Første berøring: Turns the light on at 10% brightness.
- Anden berøring: Brightens the light to 50% brightness.
- Tredje berøring: Brightens the light to 100% brightness.
- Fjerde berøring: Slukker lyset.

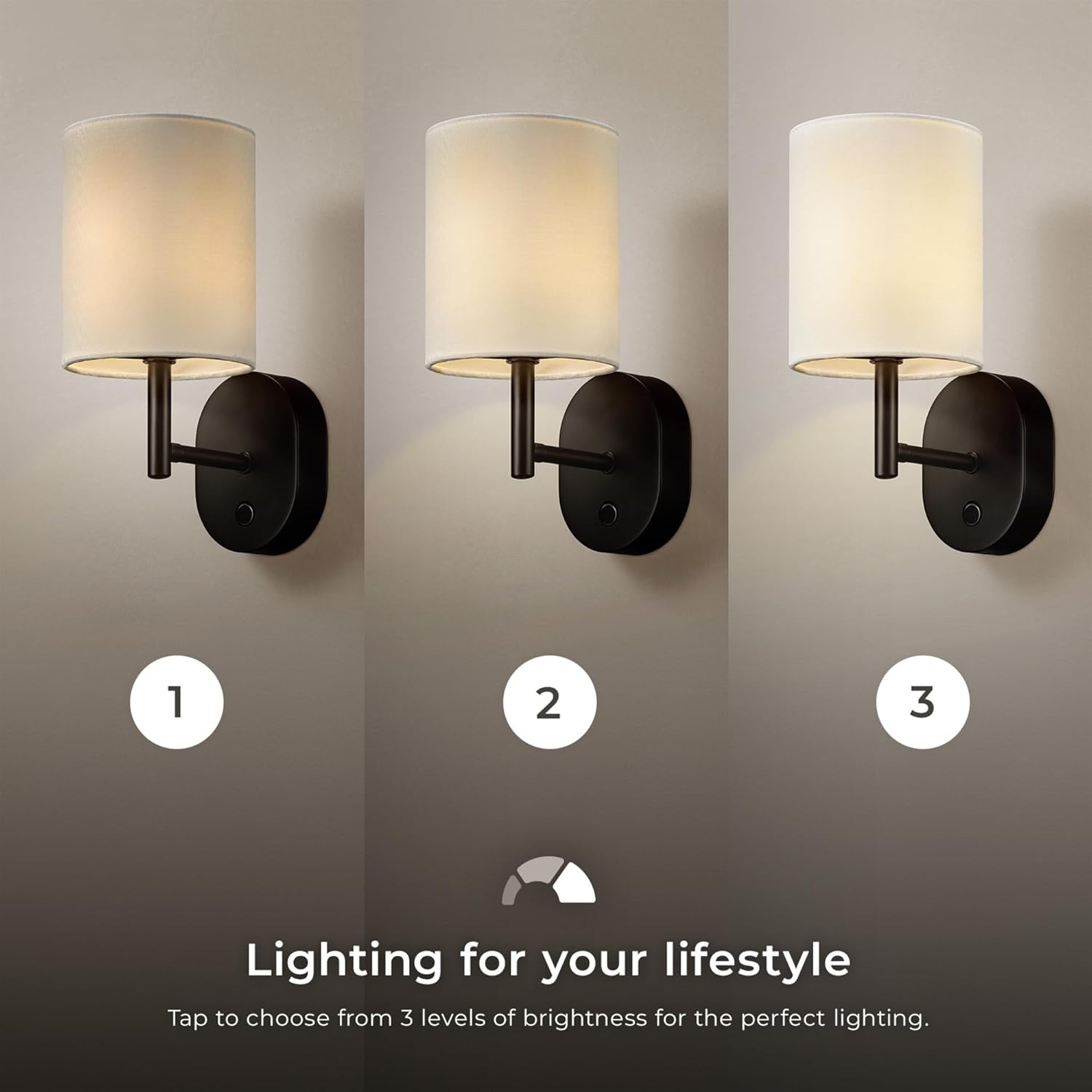

Image 5.2: The wall sconce displaying its three brightness levels: 10%, 50%, and 100% illumination.
5.2. One-Hour Timer Function
To activate the one-hour timer:
- While the light is on, press and hold the on/off touch button for 3 seconds.
- A blue indicator light will illuminate, confirming that the timer is active.
- The wall sconce will automatically turn off after one hour.
6. Opladningsinstruktioner
The sconce is powered by a rechargeable battery. When the battery is low, the light output may diminish or turn off.
- Tilslut USB-C-kablet: Locate the USB-C charging port on the base of the sconce (refer to Image 5.1). Insert the provided USB-C cable into the port.
- Tilslut til strøm: Plug the other end of the USB-C cable into a compatible USB power adapter (not included) or a powered USB port.
- Opladningsindikator: The indicator light on the sconce will show the charging status (e.g., red for charging, green for fully charged).
- Opladningstid: En fuld opladning tager cirka 6 timer.
- Batterilevetid:
- Up to 10 hours at 100% brightness.
- Up to 20 hours at 50% brightness.
- Up to 100 hours at 10% brightness.
Image 6.1: An icon indicating a long-lasting charge, with text stating "Rechargeable battery can last over 10 hours depending on brightness."
7. Vedligeholdelse
Proper care will ensure the longevity of your wall sconce.
- Rensning: Ensure the sconce is turned off and disconnected from any charging cable before cleaning. Wipe the metal parts with a soft, dry cloth. For the fabric shade, use a lint roller or a soft brush to remove dust. Do not use liquid cleaners or sprays directly on the fixture.
- Opbevaring: If storing the sconce for an extended period, ensure it is fully charged and store it in a cool, dry place. Recharge every 3-6 months to maintain battery health.
- lysdioder: The LED light source is integrated and not user-replaceable. Do not attempt to open the fixture to access the LEDs.
8. Fejlfinding
If you encounter issues with your wall sconce, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Batteriet er afladet. | Charge the sconce using the provided USB-C cable. |
| Lyset er svagt eller flimrer. | Lavt batteri. | Recharge the sconce. |
| Touch switch is unresponsive. | Sconce is not charged or a temporary glitch. | Ensure the sconce is charged. Try a soft reset by letting the battery fully deplete and then recharging. |
| Timer function does not activate. | Knap ikke holdt længe nok. | Ensure you press and hold the touch button for a full 3 seconds until the blue indicator light appears. |
If the problem persists, please contact customer support (refer to Section 10).
9. Produktspecifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 65000108 |
| Mærke | GLOBE Elektrisk |
| Lyskilde | Integreret LED |
| Wattage | 1.5 watt |
| Lumen output | 150 lumen |
| Farvetemperatur | 3000 Kelvin (varm hvid) |
| Color Rendering Index (CRI) | 90 CRI |
| Lysstyrkeniveauer | 3-step dimmer (10%, 50%, 100%) |
| Kontrolmetode | Tryk på Switch |
| Strømkilde | Genopladeligt lithium-ion-batteri |
| Opladningsport | USB-C |
| Fuld opladningstid | Ca. 6 timer |
| Battery Life (100% brightness) | Op til 10 timer |
| Timer funktion | 1-timers auto-sluk |
| Materiale | Metal (lampe), Stof (skærm) |
| Slutte | Matte Black (fixture), White (shade) |
| Produktdimensioner | 17.78 cm L x 22.86 cm B x 26.67 cm H (7 cm L x 9 cm B x 10.5 cm H) |
| Varens vægt | 1.03 pund (0.47 kg) |
| Indendørs/Udendørs brug | Kun indendørs |
Image 9.1: Diagram showing the dimensions of the wall sconce: 10.5" (26.67 cm) height, 7" (17.78 cm) length, and 4.88" (12.3 cm) width from the wall.
10. Garanti og kundesupport
10.1. Producentens garanti
This GLOBE Electric 65000108 Rechargeable LED Wall Sconce is covered by a 1 års begrænset producentgaranti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair.
Gem venligst dit købsbevis for garantikrav.
10.2. Kundesupport
For technical assistance, warranty inquiries, or to report missing/damaged parts, please contact GLOBE Electric customer support:
- Webwebsted: Visit the official GLOBE Electric webwebsted for supportressourcer og kontaktoplysninger.
- Telefon: Refer to the contact details provided on the product packaging or the official webwebsted.
- Online butik: Du kan også besøge GLOBE Electric Store på Amazon for produktinformation og support.
