ACEZUK M02-V01 Bærbar Jumpstarter Brugermanual

1. Produktet er slutview

The ACEZUK M02-V01 is a powerful and versatile portable jump starter designed to provide emergency starting power for vehicles. It also features a built-in LED light and can function as a power bank for electronic devices.

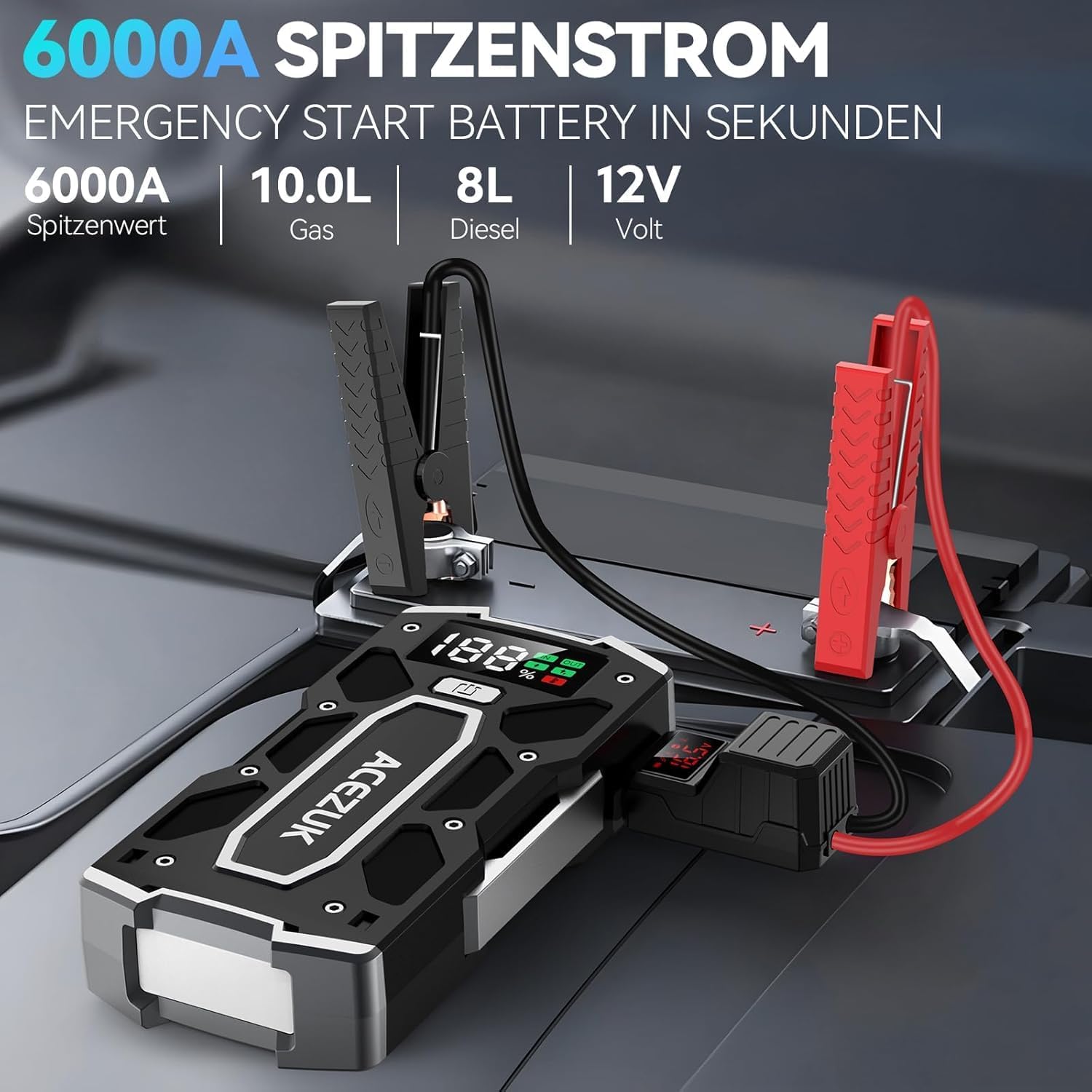

Image 1.1: ACEZUK M02-V01 Portable Jump Starter with smart clamps and USB-C charging cable.

• Høj spidsstrøm: Delivers up to 6000A peak current for reliable starting.
• Bred kompatibilitet: Suitable for 12V vehicles, supporting up to 10.0L gasoline and 8.0L diesel engines.
• Multi-functional LED Light: Features Brightness, SOS, Strobe, and Warning Light modes.
• 2 tommer LCD-skærm: Provides clear information on battery status, input/output, temperature, and charging status.
• Extreme Weather Operation: Designed to operate in temperatures ranging from -20°C (-4°F) to 60°C (140°F).

2. Sikkerhedsinstruktioner

Please read and understand all safety information before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Læs manualen: Always read the entire user manual before operating the jump starter.
• Korrekt forbindelse: Ensure correct polarity when connecting the clamps to the vehicle battery (red to positive, black to negative).
• Undgå kortslutninger: Tillad ikke den røde og sorte clamps to touch each other or the same metal object.
• Ventilation: Anvendes i et godt ventileret område.
• Hold dig væk fra børn: Denne enhed er ikke legetøj. Opbevar den utilgængeligt for børn.
• Må ikke skilles ad: Do not attempt to disassemble, modify, or repair the unit yourself. Contact qualified service personnel.
• Driftstemperatur: Do not expose the device to temperatures outside its specified operating range (-20°C to 60°C).
• Opladning: Use only the provided charging cable and a compatible USB power adapter.
• Remove Immediately: Disconnect the jump starter from the vehicle battery immediately after the engine starts.

3. Opsætning og opladning

3.1 Indledende opladning

Before first use, fully charge the ACEZUK M02-V01 jump starter. Connect the provided USB-C charging cable to the jump starter's input port and the other end to a USB power adapter (not included). The LCD display will show the charging progress. A full charge is indicated by 100% on the display.

3.2 Kontrol af batteriniveau

Press the power button once to activate the LCD display and check the current battery percentage. Ensure the jump starter has sufficient charge (above 50% is recommended) before attempting to jump start a vehicle.

Image 3.1: The 2-inch LCD display provides real-time status information.

4. Betjeningsvejledning

4.1 Jumpstart af et køretøj

Følg disse trin for at starte dit køretøj sikkert med startkabler:

1. Phase 1: Insert the Connection Cable. Ensure the jump starter is turned off. Insert the smart clamp connector firmly into the jump starter's output port.
2. Phase 2: Connect Clamps to the Car Battery. Tilslut den røde (+) clamp to the positive (+) terminal of the vehicle battery. Connect the black (-) clamp to the negative (-) terminal of the vehicle battery. Ensure a secure connection. The smart clamps will indicate if the connection is correct.
3. Phase 3: Start the Car Engine. Når clamps are correctly connected and the jump starter is ready (indicated by the smart clamps or LCD), start your vehicle's engine.
4. Phase 4: Remove Clamps. Immediately after the vehicle engine starts, disconnect the black (-) clamp først, derefter den røde (+) clamp from the vehicle battery. Finally, disconnect the smart clamp connector from the jump starter.

Vigtig bemærkning: Fjern clamps immediately after the vehicle starts to prevent damage to the jump starter or vehicle electronics.

Image 4.1: Step-by-step guide for jump starting a vehicle.

4.2 Brug af LED-lyset

The ACEZUK M02-V01 features a powerful 400 Lumen LED light with multiple modes:

• Lysstyrketilstand: Press and hold the light button to turn on the flashlight. Press again to cycle through brightness levels (if applicable).
• SOS-tilstand: Press the light button twice quickly to activate the SOS signal.
• Strobetilstand: Press the light button three times quickly to activate the strobe light.
• Advarselslystilstand: Some models may feature a red/blue warning light. Refer to the device for specific activation.

Image 4.2: The 400 Lumen LED light offers various modes for emergency situations.

4.3 Powerbankens funktionalitet

The jump starter can also be used to charge electronic devices via its USB output port. Connect your device's charging cable to the jump starter's USB output port. The LCD display will indicate 'OUT' when charging a device.

5. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your ACEZUK M02-V01 jump starter.

• Genoplad regelmæssigt: To maintain battery health, recharge the jump starter at least once every 3-6 months, even if not in use.
• Opbevaring: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. The operating temperature range is -20°C (-4°F) to 60°C (140°F).


Image 5.1: The jump starter is designed for operation in a wide range of temperatures.

• Rensning: Tør enheden af ​​med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Efterse kabler: Periodically check the smart clamps and cables for any signs of damage or wear.

6. Fejlfinding

If you encounter issues with your ACEZUK M02-V01 jump starter, refer to the following common problems and solutions:

7. Specifikationer

Key technical specifications for the ACEZUK M02-V01 Portable Jump Starter:

• Mærke: ACEZUK
• Modelnummer: M02-V01
• Varens vægt: 1.03 kilo
• Dimensioner: 25.6 x 13.9 x 10.1 cm
• Battericellesammensætning: Lithium Polymer (implied from 'Polimero di litio pile necessarie' and common jump starter tech)
• Voltage: 12 volt
• Amperage (Peak): 6000 Ampere
• Køretøjsservicetype: Automobil
• Motorkompatibilitet: Op til 10.0 l benzin, 8.0 l diesel
• LED lys: 400 lumen
• Driftstemperatur: -20°C (-4°F) til 60°C (140°F)

Image 7.1: Key performance specifications of the jump starter.

8. Garanti og support

For warranty information or technical support, please refer to the documentation included with your purchase or contact ACEZUK customer service directly. Contact details can typically be found on the product packaging or the official ACEZUK webwebsted.
