Produkt overview
The Nightstick NSP-4640B Forge™ is a helmet-mounted multi-function flashlight designed for professional use, offering versatile lighting modes and robust construction. It is engineered to provide reliable illumination in demanding environments.

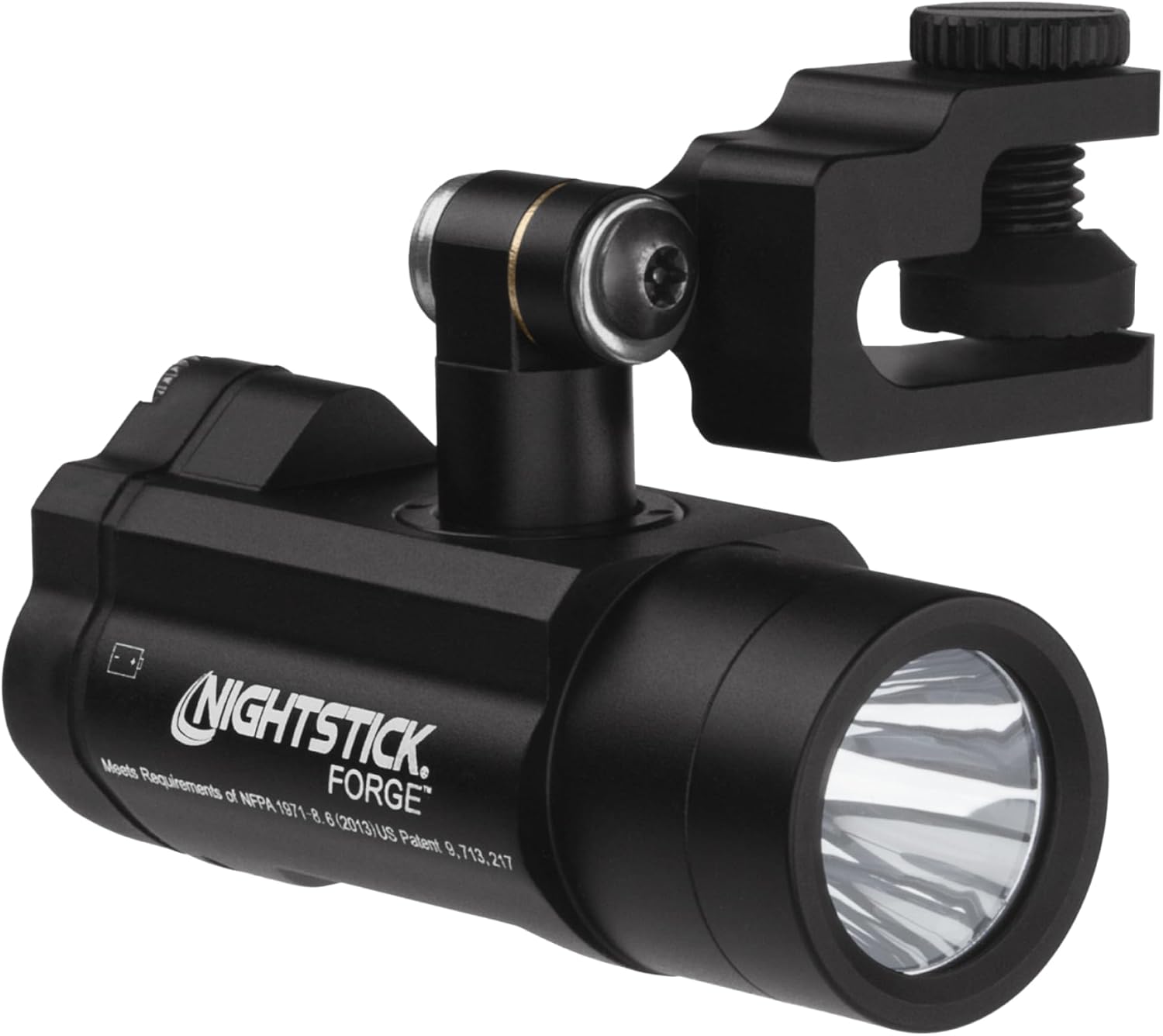

Image: The Nightstick NSP-4640B Forge™ Helmet-Mounted Multi-Function Flashlight in black, showcasing its compact design and helmet mount.
Opsætning og installation
1. Batteriinstallation
Your Nightstick NSP-4640B Forge™ flashlight requires two (2) CR123A Lithium batteries for operation. These batteries are included with the product. Use the provided Allen key to open the battery compartment, insert the batteries with correct polarity, and securely close the compartment.
Image: The Nightstick NSP-4640B flashlight, two CR123 batteries, and an Allen wrench, illustrating the components included for setup.
2. Helmet Mounting
The flashlight features a 360-degree multi-angle mount for optimal light placement on a helmet. The helmet clamp includes a rubber foot for secure, mar-free attachment. Position the flashlight above or below the brim of fire helmets or hard hats as needed. The design allows for easy manipulation even with thick gloves.
Image: The NSP-4640B flashlight mounted on a red helmet, demonstrating its helmet-mounted multi-function capability.
Image: A diagram illustrating the optimized placement and 360-degree multi-directional mount of the Nightstick Forge flashlight.
Betjeningsvejledning
Lystilstande
The Nightstick NSP-4640B features a single push-button switch to cycle through its lighting modes:
- Høj tilstand: 360 lumens for maximum illumination.
- Lav tilstand: 180 lumens for reduced brightness and extended runtime.
- Survival Mode: 30 lumens for prolonged use in emergency situations.
Additionally, a rear-facing green safety LED is integrated for enhanced visibility and team coordination in low-light conditions.
Image: The Nightstick Forge flashlight showcasing its hands-free lighting capabilities with different lumen outputs.
Image: The rear green "Follow Me" light of the Nightstick Forge flashlight, designed to enhance team coordination.
Opretholdelse
Rensning
To maintain optimal performance, regularly clean the exterior of the flashlight with a soft, damp klud. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen eller de indvendige komponenter.
Udskiftning af batteri
Replace batteries when the light output diminishes significantly. Refer to the "Battery Installation" section for detailed instructions on how to safely replace the CR123A Lithium batteries.
Vand- og støvmodstand
The NSP-4640B is IP-X7 water and dust proof, meaning it can withstand immersion in water up to 1 meter for 30 minutes. Ensure all seals and the battery compartment are properly closed before exposing the flashlight to water or dusty environments.
Fejlfinding
If your Nightstick NSP-4640B Forge™ flashlight is not functioning as expected, consider the following:
- Ingen lysoutput: Check if the batteries are inserted correctly with the proper polarity. Ensure the batteries are not depleted and replace them if necessary.
- Dæmpet lysudgang: This typically indicates low battery power. Replace both CR123A batteries.
- Intermitterende drift: Ensure the battery compartment is securely closed and the contacts are clean.
For persistent issues, please refer to the support information provided in the "Support and Warranty" section.
Specifikationer
Image: A visual representation of the key specifications for the Nightstick NSP-4640B.
| Feature | Detalje |
|---|---|
| Modelnummer | NSP-4640B |
| Lyskildetype | LED |
| Høje lumen | 360 lumen |
| Lave lumen | 180 lumen |
| Survival Lumens | 30 lumen |
| Fjernlys afstand | 218 meter |
| Runtime | 30 hours (Survival Mode) |
| Materiale | 6061-T6 aluminium |
| Vandmodstandsniveau | IP-X7 vandtæt |
| Monteringstype | Hjelmmontering |
| Strømkilde | Battery Powered (2 CR123A included) |
| Produktdimensioner | 3.33" D x 1.44" B x 3.58" H |
| Varens vægt | 204 gram (7.2 ounce) |
Image: A diagram detailing the dimensions of the Nightstick NSP-4640B flashlight.
Support og garanti
Garantioplysninger
The Nightstick NSP-4640B Forge™ Helmet-Mounted Multi-Function Flashlight comes with a Begrænset livstidsgaranti. For specific terms and conditions, please refer to the official Nightstick webwebsted eller kontakt kundesupport.
Kundesupport
For further assistance, technical support, or warranty claims, please visit the official Nightstick store or contact their customer service department.
Official Nightstick Store: Nightstick Store on Amazon
