1. Introduktion
This manual provides essential instructions for the assembly, operation, and maintenance of your Amazon Basics 14-Inch Queen Non-Foldable Metal Platform Bed Frame. Please read all instructions carefully before assembly and retain this manual for future reference.
2. Vigtige sikkerhedsoplysninger
ADVARSEL: Failure to follow these instructions could result in injury or product damage.
- Do not overload the bed frame beyond its intended capacity.
- Vær forsigtig med skarpe kanter under montering og brug.
- Sørg for, at alle bolte og forbindelser er forsvarligt fastspændt før brug. Kontroller regelmæssigt og efterspænd efter behov.
- Hold børn væk fra samleområdet. Små dele kan udgøre en kvælningsfare.
- Do not use power tools for assembly unless specifically instructed, as overtightening may damage the frame.
3. Produktspecifikationer
- Størrelse: Dronning
- Produktmål (LxBxH): 80 cm x 60 cm x 14 cm
- Farve: Sort
- Udfør type: Pulverlakeret
- Speciel funktion: Ingen boksmadras nødvendig
- Formfaktor: Rectangular, Non-Foldable Platform Bed
- Opbevaringsmuligheder: Under-bed storage (approximately 12 inches of clearance)
- Varens vægt: Cirka 40.7 pund
- Supportsystem: Durable steel construction with 11 sturdy support legs.
Figur 1: Produktmål
Figur 2: Nøglefunktioner
4. Pakkens indhold
Kontroller, at alle komponenter er til stede, før monteringen påbegyndes. Hvis der mangler eller er beskadigede dele, må monteringen ikke fortsættes. Kontakt kundesupport for at få hjælp.
- Metal Bed Frame Sections (2 for Queen size)
- Support Legs (pre-attached)
- Connecting Bolts and Nuts (for joining frame sections)
- Hex Key / Wrench (for tightening bolts)
- Installationsvejledning (dette dokument)
5. Monteringsvejledning
Assembly is designed to be straightforward and requires no additional tools beyond what is provided. It is recommended to assemble the frame in the room where it will be used.
- Udpak komponenter: Carefully remove all parts from the packaging and lay them out on a clean, soft surface (like a rug) to prevent scratching.
- Unfold Frame Sections: The bed frame comes in two main sections for the Queen size. Carefully unfold each section, ensuring the support legs extend outwards and lock into place. You may hear a click when the legs are fully extended and locked.
- Forbind rammesektioner: Align the two unfolded frame sections side-by-side. Use the provided connecting bolts and nuts to secure the two sections together in the middle. Tighten these bolts firmly with the included hex key/wrench.
- Endelig kontrol: Ensure all support legs are fully extended and locked, and all connecting bolts are securely tightened. The frame should be stable and level.
Figure 3: Fully Assembled Bed Frame
Video 1: Assembly Demonstration (Easiest assembly you will ever find)
6. Betjeningsvejledning
Your Amazon Basics Metal Platform Bed Frame is designed for optimal mattress support and convenience.
- Madrasplacering: Place your Queen size mattress directly onto the metal support grid. A box spring is not required.
- Opbevaring under sengen: Utilize the 14-inch clearance beneath the frame for storing items. This space is ideal for storage bins, seasonal clothing, or other belongings to help keep your room organized.
- Headboard/Footboard Compatibility: The frame is compatible with most standard headboards and footboards (sold separately). Attachment points are provided on the frame.

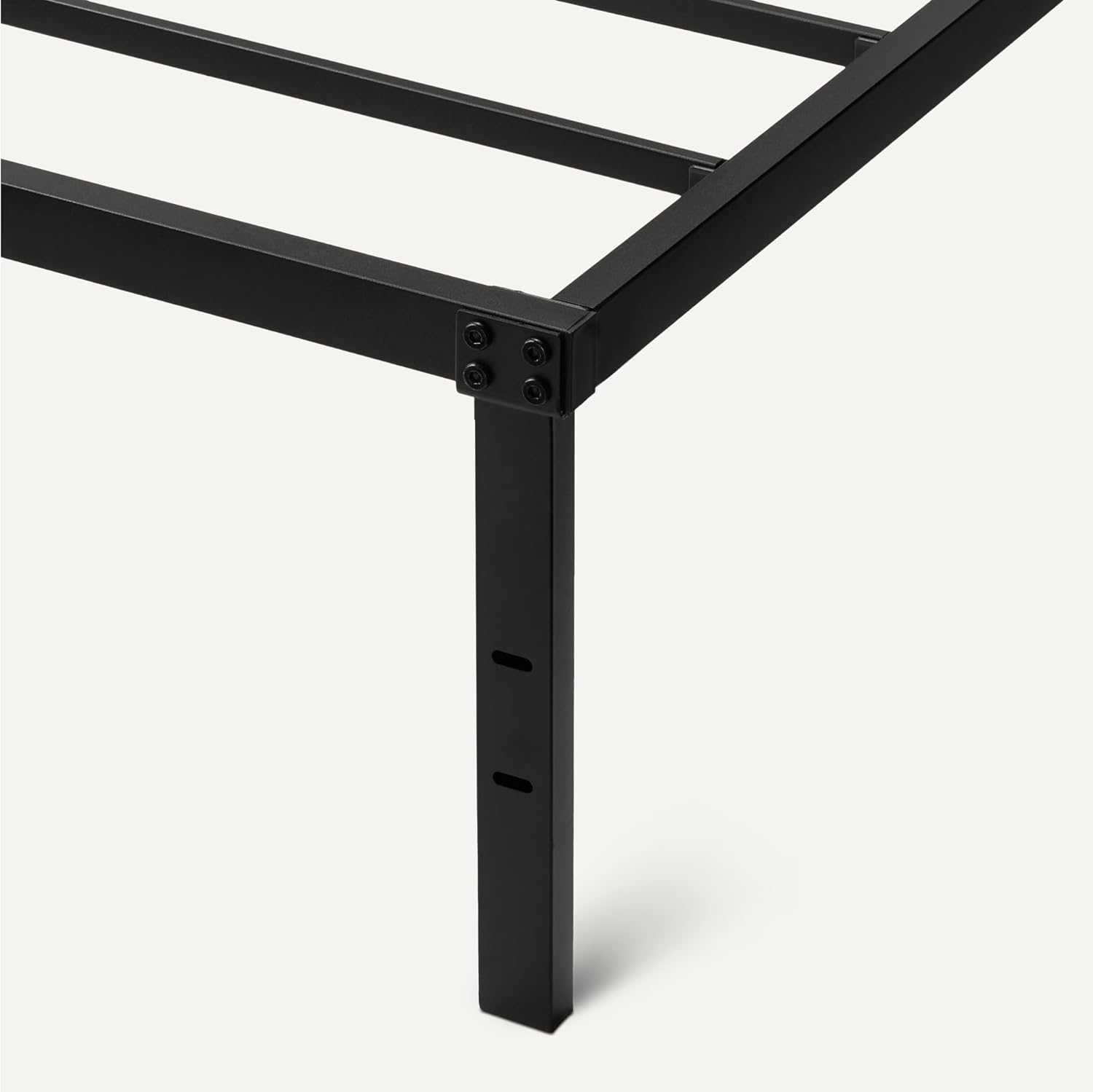

Figure 4: Frame Corner Detail
7. Pleje og vedligeholdelse
- Rensning: Tør metalrammen af med reklameamp klud og mildt rengøringsmiddel. Undgå slibende rengøringsmidler eller barske kemikalier, der kan beskadige overfladen.
- Regelmæssig inspektion: Periodically inspect all bolts, nuts, and connections to ensure they remain tight. Re-tighten as needed to maintain stability and prevent squeaking.
- Beskyttende puder: The frame includes protective floor pads. Ensure these are intact to prevent scratching your flooring. Replace if worn.
8. Fejlfinding
- Knirken eller slingren: If the frame squeaks or wobbles, check all assembly points. Ensure all bolts are tightened securely. The design is engineered to be noise-free when properly assembled.
- Ujævn overflade: If the bed frame appears uneven, ensure it is placed on a flat, level surface. Adjust the position if necessary.
9. Garanti og support
For garantioplysninger eller kundesupport henvises til den officielle Amazon Basics-side. webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering til garantikrav.
