FOTING Sandfilterpumpe Brugermanual

1. Introduktion

The FOTING 2025 Upgraded Sand Filter Pump is engineered to provide superior filtration for above ground pools up to 8000 gallons. Featuring a robust 1/2 HP motor, a 6-way valve for versatile operation, and intelligent timing settings, this pump ensures efficient water circulation and crystal-clear results. This manual provides essential information for safe installation, operation, and maintenance of your sand filter pump.

Figure 1.1: FOTING Sand Filter Pump Overview

2. Vigtige sikkerhedsoplysninger

Please read and understand all instructions before installing and using this product. Failure to follow these instructions could result in serious injury or death.

• Elektrisk sikkerhed: To reduce the risk of electric shock, install only on a circuit protected by a Ground Fault Circuit Interrupter (GFCI). Do not operate the pump while standing on a wet or damp surface. Ensure all electrical connections are properly grounded.
• Vandsikkerhed: Never operate the pump dry. Ensure the pump is filled with water before starting.
• Børn: Hold børn væk fra pumpen og de elektriske forbindelser.
• Opretholdelse: Afbryd altid strømmen, før du udfører vedligeholdelse eller rengøring.
• Kemikalier: Håndter poolkemikalier forsigtigt, og følg producentens anvisninger.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• 1 x brugermanual
• 1 x garantikort
• 1 x trykmåler
• 1 x Drain Piece
• 1 x Pair of Flange Clamps
• 1 x O-ring
• 1 x unbrakonøgle
• 1 x NPT 1-1/2 Female Connectors
• 1 x forseglingstape
• 1 x Slange Clamps
• 1 x Sand Cover
• 1 x Sylphon Bellows
• 1 x Filter Assembly
• 1 x base
• 1 x Valve Head Assembly
• 1 x cylinder
• 1 x Screws & Nuts

Figure 3.1: Product Components and Dimensions

4. Produktspecifikationer

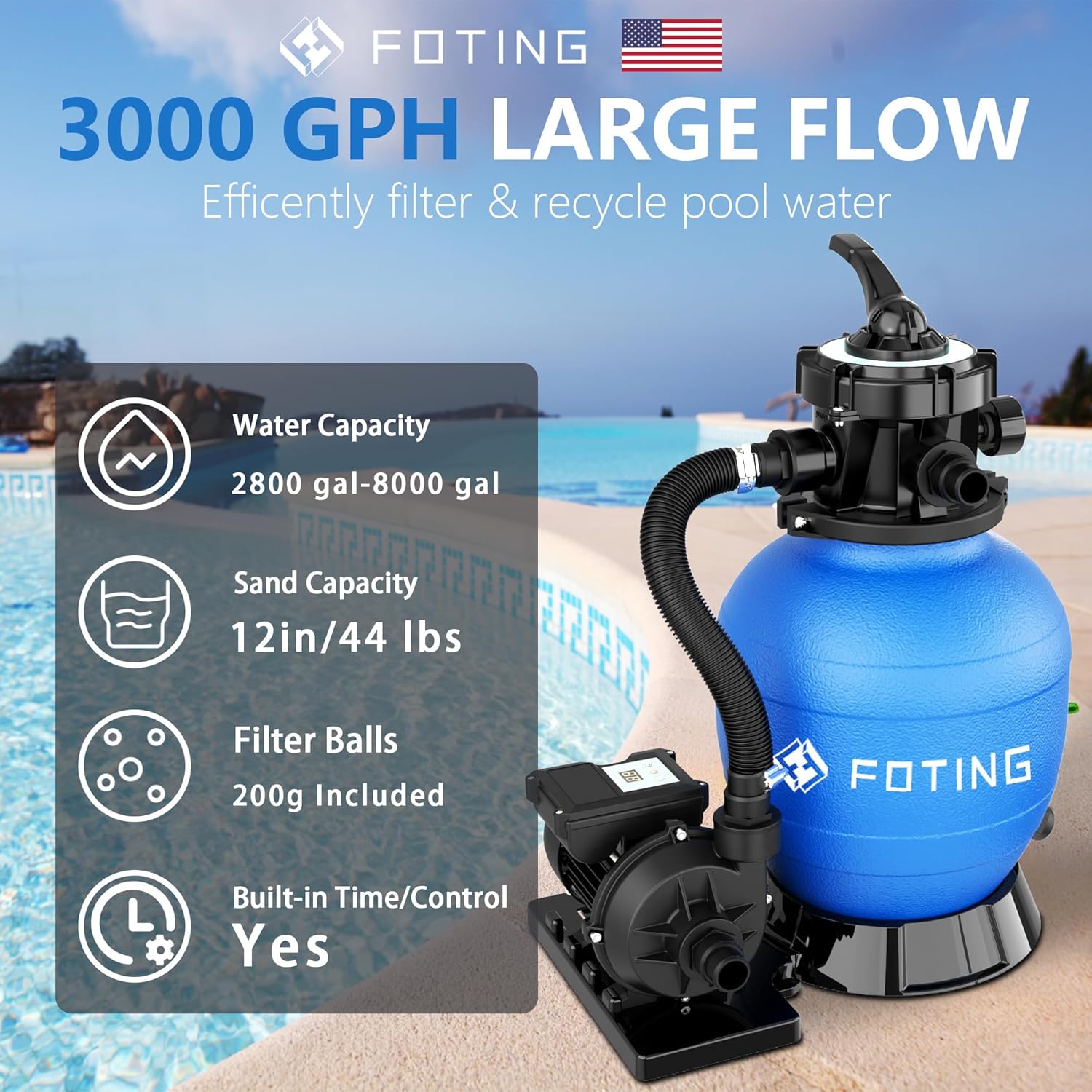

Figur 4.1: Vigtigste produktfunktioner

5. Opsætning og installation

Follow these steps to properly set up your FOTING Sand Filter Pump. For a visual guide, please refer to the installation video below.

5.1 Monteringstrin

1. Klargør tanken: Ensure the filter tank (cylinder) is clean and free of debris.
2. Installer afløbsstykke: Attach the drain piece to the bottom of the tank, ensuring the O-ring is properly seated for a watertight seal. Secure it with the cap.
3. Placering på basen: Position the filter tank securely onto the provided base.
4. Indsæt interne komponenter: Carefully insert the filter assembly (laterals) into the tank. Ensure the standpipe is centered.
5. Tilføj filtermedie: Slowly add the recommended amount of filter sand (44 lbs) or filter balls into the tank. Ensure the standpipe remains centered and covered to prevent media from entering it.
6. Clean Tank Rim: Wipe the rim of the tank clean to ensure a good seal with the valve head.
7. Attach Valve Head: Carefully place the 6-way valve head onto the tank, aligning the standpipe with the opening in the valve. Ensure the large O-ring is in place between the tank and the valve.
8. Secure Valve Head: Use the flange clamps, screws, and nuts to securely fasten the valve head to the tank. Tighten evenly.
9. Installer trykmåler: Apply sealing tape to the threads of the pressure gauge and screw it into the designated port on the valve head.
10. Connect Pump to Filter: Place the pump onto the base next to the filter tank. Connect the pump's outlet to the filter's inlet using the provided hose and hose clamps. Ensure all connections are tight.
11. Connect to Pool: Connect the pool's skimmer line to the pump's inlet and the pool's return line to the filter's outlet. Use appropriate connectors and hose clamps.

Figur 5.2: Detaljer om kontrolpanelet

Figure 5.3: Pressure Gauge

Figure 5.4: 6-Way Valve Head

6. Betjeningsvejledning

Your FOTING Sand Filter Pump features a versatile 6-way valve and an intelligent timing system for optimal pool maintenance.

6.1 Funktioner af 6-vejs ventiler

The multi-port valve allows you to perform various operations by simply rotating the handle to the desired position. Always turn off the pump before changing valve positions.

• FILTER: Normal filtering mode. Water flows through the sand media, trapping debris, and returns to the pool.
• TILBAGESKYLNING: Cleans the filter by reversing the water flow, flushing trapped debris out through the waste port. Perform when pressure gauge reads 8-10 PSI above starting pressure.
• SKYLLE: Used after backwashing to flush out any remaining dirty water from the filter before returning to FILTER mode.
• SPILD: Bypasses the filter and sends water directly out the waste port. Useful for vacuuming heavy debris or lowering pool water level.
• LUKKET: Afbryder al flow til filteret og pumpen. Betjen aldrig pumpen med ventilen i LUKKET position.
• RECIRKULER: Circulates pool water without filtering it through the sand. Useful for mixing chemicals.

Figure 6.1: 6-Way Valve Functions

Figure 6.2: In-depth Explanation of Valve Positions

6.2 Intelligent Timing System

The pump features a 24-hour dual-mode intelligent timing system, allowing you to customize filtration cycles.

• Tidsindstillinger: Choose from 10 preset time settings (1, 2, 3, 4, 5, 6, 8, 10, 12, 16, 20 hours) for efficient operation.
• Enkeltcyklustilstand: The pump runs for the set duration and then turns off.
• Kontinuerlig cyklustilstand: The pump runs continuously until manually turned off.

Figure 6.3: Intelligent Timing System

Figure 6.4: Timing Mode Selection

7. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your sand filter pump.

7.1 Backwashing and Rinsing

Backwash and rinse the filter when the pressure gauge reads 8-10 PSI above its clean starting pressure, or when pool water appears cloudy.

1. Sluk for pumpen.
2. Set the 6-way valve to BACKWASH.
3. Turn on the pump and backwash until the water flowing from the waste port is clear (typically 2-3 minutes).
4. Sluk for pumpen.
5. Set the 6-way valve to RINSE.
6. Tænd pumpen og skyl i 30-60 sekunder.
7. Sluk for pumpen.
8. Set the 6-way valve to FILTER for normal operation.

7.2 Sand Replacement

Filter sand typically needs to be replaced every 3-5 years, depending on usage and water quality. Refer to the setup section for instructions on adding filter media.

Figure 7.1: Filter Media (Filter Balls shown, sand also applicable)

7.3 Vinterisering

Before freezing temperatures, drain all water from the pump and filter. Disconnect hoses and store the pump and filter in a dry, protected area to prevent freeze damage.

8. Fejlfinding

This section addresses common issues you might encounter with your sand filter pump.

Figure 8.1: Filtration Effectiveness

9. Garanti og kundesupport

FOTING stands behind the quality of its products. This sand filter pump is backed by a tre års garanti fra købsdatoen.

If you experience any issues with your product or have questions regarding its operation, please contact FOTING customer service. Have your model number and purchase date ready when contacting support.

For further assistance, please visit the official FOTING store or contact their support team through the platform where you purchased the product.
