1. Introduktion
This user manual provides detailed instructions for the installation, operation, and maintenance of your FOTING Sand Filter Pump. Designed for above-ground pools, this system ensures efficient filtration and circulation, contributing to crystal-clear pool water. Please read this manual thoroughly before installation and operation to ensure safe and effective use of the product.
2. Sikkerhedsoplysninger
Always follow basic safety precautions to reduce the risk of injury, fire, or electric shock.
- Disconnect power before servicing or performing any maintenance.
- Ensure the pump is installed on a solid, level surface.
- Brug ikke pumpen, hvis netledningen eller stikket er beskadiget.
- Hold børn og kæledyr væk fra pumpen under drift.
- This appliance is for pool water filtration only. Do not use for other liquids.
- Sørg for, at alle elektriske forbindelser overholder lokale forskrifter og bestemmelser.
- Never run the pump dry. Ensure it is primed with water before starting.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede ved udpakning.
The image displays the complete set of items included with your FOTING Sand Filter Pump, illustrating the main unit along with all accessories and parts necessary for assembly and operation. This visual guide helps confirm you have received all components.
- Brugermanual
- Garantikort
- Trykmåler
- Afløbsstykke
- Par flange Clamps
- O-ring
- Unbrakonøgle
- NPT 1-1/2 hun-stik
- Forseglingstape
- Slange Clamps
- Sanddæksel
- Sylfonbælge
- Filtersamling
- Grundlag
- Ventilhovedsamling
- Cylinder
- Skruer & møtrikker
4. Produktet er slutview
The FOTING Sand Filter Pump is a robust filtration system designed for optimal pool water clarity. It features a powerful pump and a durable filter tank with a multi-port valve for various operational modes.
This image shows the complete FOTING Sand Filter Pump unit, including the blue filter tank, black pump motor, connecting hose, and additional accessories like filter balls and hose clamps. It provides a clear visual of the product's main components.
The diagram illustrates key performance specifications of the pump, including its 3800 GPH flow rate, suitability for pools up to 13000 gallons, 13-inch tank diameter with 66 lbs sand capacity, inclusion of 200g filter balls, and the presence of a built-in timer for convenient control.
Nøglefunktioner:
- 6-funktions kontrolventil: Allows for Filter, Backwash, Rinse, Recirculate, Waste, and Close operations.
- Høj flowhastighed: Up to 3800 GPH, suitable for pools up to 13000 gallons.
- Holdbar konstruktion: UV-resistant tank and corrosion-resistant components.
- Energieffektiv: 1 HP motor with 110-120V operation.
- Indbygget timer: Customizable filtration cycles.
5. Opsætning og installation
Follow these steps for proper installation of your sand filter pump:
- Vælg placering: Select a firm, level surface as close to the pool as possible. Ensure adequate drainage and protection from direct weather exposure.
- Saml base og tank: Securely attach the filter tank to the pump base using the provided hardware.
- Tilføj filtermedie: Carefully add the recommended amount of filter sand (or filter balls) into the tank. Ensure the standpipe is centered during this process.
- Install Valve Head: Place the 6-way valve head onto the tank, ensuring the O-ring is properly seated. Secure it with the flange clamp.
- Tilslut slanger: Connect the pump's inlet to the pool's skimmer/main drain and the pump's outlet to the pool's return line. Use hose clamps for at sikre alle forbindelser.
- Connect Pressure Gauge: Install the pressure gauge into the designated port on the valve head.
- Forbered pumpen: Before starting, ensure the pump is filled with water to prevent dry running.
- Elektrisk tilslutning: Connect the pump to a grounded electrical outlet. Ensure the power supply matches the pump's voltage krav (110-120V).
6. Betjeningsvejledning
The FOTING Sand Filter Pump features a 6-way valve and a built-in timer for versatile operation.
6.1. 6-Way Valve Functions
The multi-port valve allows you to select different modes of operation. Always turn off the pump before changing valve positions.

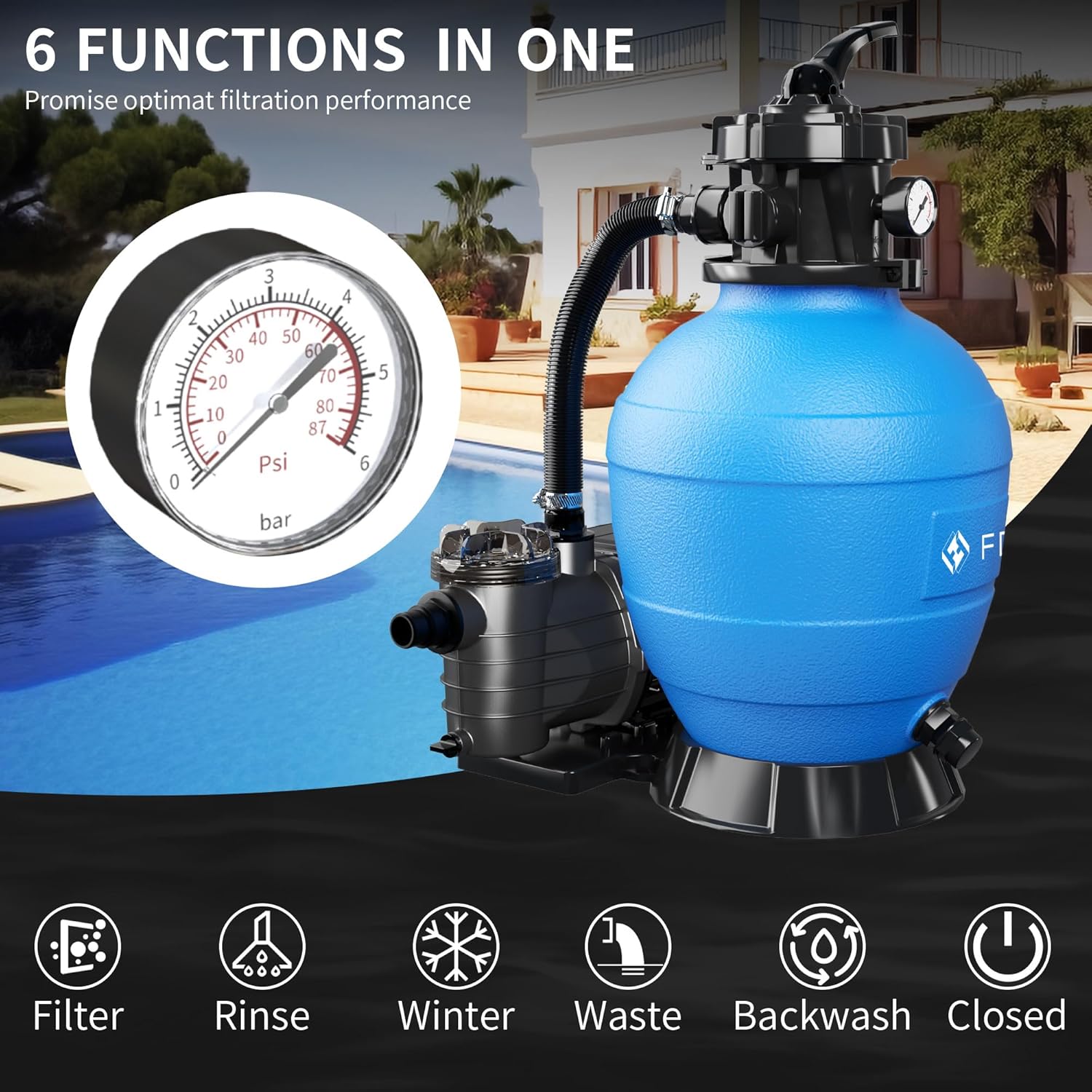

This image visually represents the six operational modes of the multi-port valve, along with a pressure gauge. Each mode is clearly labeled, indicating its specific function for pool maintenance.
- FILTER: Normal filtering mode. Water flows through the sand bed, trapping debris.
- TILBAGESKYLNING: Reverses water flow to clean the sand bed and flush trapped debris out through the waste port.
- SKYLLE: Used after backwashing to settle the sand bed and flush out any remaining dirty water from the valve.
- SPILD: Bypasses the filter and sends water directly out the waste port, useful for vacuuming heavy debris or lowering pool water level.
- RECIRKULER: Bypasses the filter and circulates water directly back to the pool, useful for mixing chemicals without filtering.
- LUKKET: Shuts off all flow to the filter and pump. Use for servicing the pump or filter.
6.2. Timerindstillinger
The built-in timer allows for automated filtration cycles.
This image displays the digital timer interface, showing options for setting filtration duration from 1 to 20 hours, and selecting between single or continuous cycle modes. It highlights the ease of programming for automated operation.
- Indstillingstid: Use the control panel to select desired operating hours (1, 2, 3, 4, 5, 6, 8, 10, 12, 16, 20 hours).
- Cyklustilstande: Choose between Single Cycle Mode (runs once for the set duration) or Continuous Cycle Mode (runs continuously until manually stopped).
- Refer to the timer section in the full user manual for detailed programming steps.
6.3. Filtration Performance
The visual comparison clearly demonstrates the effectiveness of the FOTING Sand Filter Pump, showing a pool transforming from a cloudy, green state to a sparkling, clear blue after filtration. This highlights the pump's powerful ability to clean and clarify pool water.
The FOTING Sand Filter Pump is designed to remove particles down to 20 microns, ensuring your pool water remains clean and inviting. Regular operation, combined with proper chemical balance, will maintain optimal water quality.
7. Vedligeholdelse
Regular maintenance ensures the longevity and efficiency of your FOTING Sand Filter Pump.
This image highlights the user-friendly design of the pump for maintenance, showcasing the accessible control panel for timing, the easily removable filter basket for debris cleaning, the intuitive 6-function valve for operational changes, and the clear cover for visual inspection of internal components.
- Tilbageskylning: Perform backwashing when the pressure gauge reads 8-10 PSI above its clean operating pressure, or when water flow significantly decreases.
- Skylning: Always rinse for 30-60 seconds after backwashing to prevent dirty water from returning to the pool.
- Rengøring af filterkurv: Regularly check and clean the pump's pre-filter basket to remove large debris. Turn off the pump and release pressure before opening.
- Vinterisering: Before freezing temperatures, drain all water from the pump, filter, and hoses. Store the pump in a dry, protected area.
- Sandudskiftning: Filter sand typically needs replacement every 3-5 years, depending on usage.
8. Fejlfinding
Se dette afsnit for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pumpen starter ikke | Ingen strøm; udløst afbryder; motorproblem | Check power connection, reset breaker; consult professional if motor is faulty. |
| Lav vandgennemstrømning | Clogged skimmer/pump basket; dirty filter sand; air leak in suction line | Clean baskets; backwash/rinse filter; check all connections for leaks. |
| Vandet klarner ikke | Insufficient filtration time; improper chemical balance; dirty filter | Increase run time; test and adjust pool chemicals; backwash/rinse filter. |
| Air in pump/filter | Loose connections; low pool water level; cracked housing | Tighten all fittings; ensure adequate pool water level; inspect for damage. |
| Loud noise from pump | Cavitation (air in pump); worn bearings; debris in impeller | Check for air leaks; inspect impeller for obstructions; professional service may be required. |
If the problem persists after attempting these solutions, please contact FOTING customer support.
9. Specifikationer
Detailed technical specifications for the FOTING Sand Filter Pump (Model FT-CLP5503).
The image provides a visual representation of the pump's dimensions and lists various components included in the package, serving as a quick reference for physical attributes and parts.
| Feature | Detalje |
|---|---|
| Modelnummer | FT-CLP5503 |
| Mærke | FOTING |
| Strømkilde | AC |
| Voltage | 110-120V / 60Hz |
| Pumpestyrke | 1 HK |
| Max flowhastighed | 3800 GPH |
| Max hoved | 44 fod |
| Tank diameter | 13 tommer |
| Sand Kapacitet | 66 lbs |
| Suitable Pool Capacity | Op til 13000 gallons |
| Kontrolventil | 6-vejs flerportsventil |
| Timer | Built-in, 10 time settings (1-20 hours) |
| Materiale | Stainless Steel (pump components), UV-resistant plastic (tank) |
| Varens vægt | 29.7 pund |
| Pakkedimensioner | 23.7 x 19.6 x 15.2 tommer |
10. Garanti og support
Your FOTING Sand Filter Pump is backed by a tre års garanti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
Hvad dækker garantien:
- Manufacturing defects.
- Malfunctions occurring during normal operation within the warranty period.
What the Warranty Does NOT Cover:
- Damage caused by improper installation, misuse, abuse, or neglect.
- Skader fra uautoriserede reparationer eller ændringer.
- Almindelig slitage.
- Damage due to freezing or improper winterization.
Kundesupport:
For technical assistance, warranty claims, or any questions regarding your FOTING Sand Filter Pump, please contact our customer service team. Refer to the warranty card included in your package for specific contact details or visit the official FOTING webwebsted.
Please have your model number (FT-CLP5503) and purchase date ready when contacting support.
11. Videoressourcer
Currently, no official product videos from the seller are available for embedding in this manual. Please refer to the written instructions and diagrams for guidance.
