1. Introduktion
The Pecron E1000LFP is a versatile and powerful portable power station designed to provide reliable energy for various applications, including emergencies, camping, RV trips, and home use. Featuring a 1024Wh LiFePO4 battery and an impressive 1800W AC output, it offers a safe and long-lasting power supply. This manual provides essential information for the safe and efficient operation and maintenance of your E1000LFP power station.
2. Produktet er slutview
The Pecron E1000LFP is engineered for portability and durability, featuring a robust design with multiple output options to power a wide range of devices. Its intuitive interface ensures ease of use, while advanced battery technology provides reliable performance.
Figur 2.1: Forside view of the Pecron E1000LFP Portable Power Station, showcasing dens skærm og forskellige outputporte.
2.1 Nøglefunktioner
- 1024Wh LiFePO4-batteri: Ensures a safe and long-lasting power supply with over 3500 complete charge cycles.
- 1800W AC Output: Capable of powering high-wattage apparater.
- Udvidbar kapacitet: Can be expanded up to 4096Wh by connecting an external Pecron EP3000-48V battery.
- Hurtig opladning: Recharges in approximately 1.3 hours via AC input.
- Flere udgangsporte: Includes 5x AC Outlets, 2x USB-C (100W), 2x USB-A (18W), 1x XT60 Output, 1x Cigar Port, and 1x DC 5525 Output.
- Smart App Control: Monitor and control the power station remotely via a dedicated mobile application.
- Battery Heating: Activates automatically when charging in cold temperatures (-20°C to 0°C) to ensure optimal performance.
- UPS funktion: Provides uninterrupted power supply with 8-20ms fast switching.
2.2 Porte og kontroller
Familiarize yourself with the various ports and controls on your Pecron E1000LFP unit:
- DC-indgang: For solar panel or car charging (11-60V, 600W Max). Features an 8/20A adjustable switch.
- AC-udgang: Five standard AC outlets (1800W max).
- USB-C porte: Two 100W USB-C ports for fast charging compatible devices.
- USB-A porte: Two 18W USB-A ports for standard USB charging.
- Cigarport: One 12V/10A cigar lighter port.
- DC 5525-udgang: One 12V/10A DC 5525 output.
- XT60 udgang: One 12V/10A XT60 output.
- AC-indgangsport: Located at the rear, for wall charging (100-120V, 15A Max).
- Ekstra batteriport: Located at the rear, for connecting the Pecron EP3000-48V expansion battery.
- LCD-skærm: Shows input/output power, battery percentage, and other status indicators.
- Power knap: Tænder/slukker enheden.
- AC/DC Buttons: Activate/deactivate respective outputs.
Video 2.1: En detaljeret oversigtview of the Pecron E1000LFP Portable Power Station, demonstrating its features, ports, and expandable capacity.
3. Opsætning og første brug
3.1 Udpakning og inspektion
Upon receiving your Pecron E1000LFP, carefully unpack all components and inspect for any shipping damage. The package should include:
- Pecron E1000LFP Power Station
- AC-opladerkabel
- Solar ladekabel
- Bil ladekabel
- Tilbehørstaske
- Brugermanual
3.2 Indledende opladning
It is recommended to fully charge the power station before first use to optimize battery performance and lifespan.
- Open the protective cover for the AC Input Port located at the rear of the unit.
- Connect the AC Charging Cable to the power station and then to a standard wall outlet.
- The LCD display will show charging status. The unit will be fully charged in approximately 1.3 hours.
Figure 3.1: The Pecron E1000LFP being charged via its AC input from a standard wall outlet, illustrating its fast charging capability.
4. Betjeningsvejledning
4.1 Tænd/sluk
Press and hold the main power button for a few seconds to turn the unit on or off. The LCD display will illuminate upon activation.
4.2 Brug af AC/DC-udgange
To activate the AC or DC outputs, press the corresponding AC or DC button on the front panel. The respective indicators on the LCD display will light up. Connect your devices to the appropriate ports.
Figure 4.1: The Pecron E1000LFP demonstrating its 12 output options, including AC, USB-C, USB-A, XT60, Cigar Port, and DC 5525, suitable for powering diverse devices.
Figure 4.2: The Pecron E1000LFP powering various devices like phones, laptops, drones, cameras, and projectors, highlighting its 1024Wh/1800W capacity for outdoor use.
4.3 opladningsmetoder
The Pecron E1000LFP supports multiple charging methods:
- AC vægudtag: Fastest charging method, approximately 1.3 hours.
- Solpaneler: Connect compatible solar panels (up to 600W) to the DC input port. Charging time varies based on solar intensity and panel wattage.
- Biloplader: Use the provided car charging cable to charge from your vehicle's 12V outlet.
Figure 4.3: Illustration of the multiple charging methods for the Pecron E1000LFP, including AC fast charge, 200W solar panel, 12V car, and PECRON 500W car charging.
4.4 Udvidelig kapacitet
The E1000LFP's capacity can be expanded up to 4096Wh by connecting a Pecron EP3000-48V external battery. Connect the expansion battery to the dedicated port at the rear of the main unit.
4.5 Smart App Control
Download the Pecron app from your device's app store to remotely monitor and control your power station. The app allows you to customize charging power, view input/output power, check power levels, and remotely switch DC/AC outputs.
Figure 4.4: The Pecron E1000LFP demonstrating its smart app control feature, allowing users to manage settings and monitor power from their smartphone.
4.6 UPS-funktion
The E1000LFP features an Uninterruptible Power Supply (UPS) function, providing seamless power transfer within 8-20ms in case of a power outage when connected to a wall outlet and powering devices.
5. Vedligeholdelse og pleje
5.1 Pleje af batterier
The Pecron E1000LFP uses a LiFePO4 battery, known for its longevity and safety. To maximize its lifespan:
- Undgå at aflade batteriet helt ofte.
- Store the unit in a cool, dry place, ideally with a charge level between 50-80%.
- Recharge the unit every 3-6 months if not in use to prevent deep discharge.

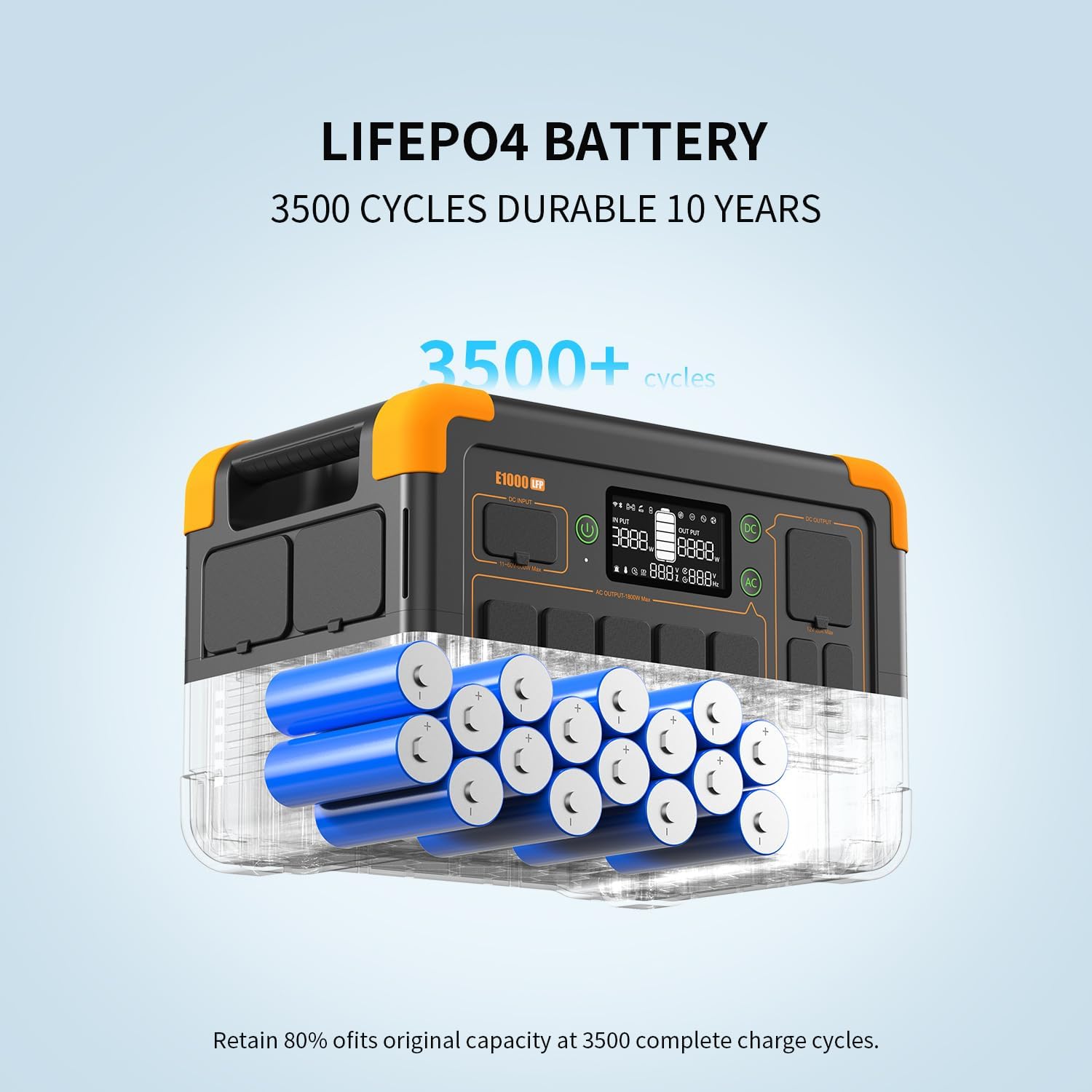

Figure 5.1: Diagram illustrating the durability of the Pecron E1000LFP's LiFePO4 battery, capable of 3500+ cycles while retaining 80% of its original capacity.
5.2 Cold Weather Operation
The E1000LFP features a battery heating module. When charging at temperatures between -20°C and 0°C, the battery will automatically activate this module to heat up above 0°C, ensuring safe and efficient charging.
Figure 5.2: The Pecron E1000LFP's battery heating feature, which allows for worry-free charging in cold environments by warming the battery to above 0 degrees Celsius.
5.3 Rengøring
Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke slibende rengøringsmidler, og enheden må ikke nedsænkes i vand.
6. Fejlfinding
If you encounter issues with your Pecron E1000LFP, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Batteriet er helt afladet; Tænd/sluk-knappen er ikke trykket længe nok ned. | Charge the unit using the AC charging cable. Press and hold the power button for 3-5 seconds. |
| Ingen AC-udgang | AC output not activated; Overload protection; Device power exceeds 1800W. | Press the AC button to activate. Reduce connected load. Check device wattage. |
| Ingen DC-udgang | DC output not activated; Overload protection. | Press the DC button to activate. Reduce connected load. |
| Langsom opladning | Brug af et lavere watttage charger (e.g., car charger vs. AC); High ambient temperature. | Use the AC charging cable for fastest charge. Ensure proper ventilation. |
| LCD-skærm virker ikke | Unit is off; Display malfunction. | Turn on the unit. If issue persists, contact customer support. |
For further assistance, please contact Pecron customer service.
7. Specifikationer
Detailed technical specifications for the Pecron E1000LFP Portable Power Station:
| Feature | Specifikation |
|---|---|
| Modelnavn | E1000LFP |
| Batteritype | LiFePO4 |
| Kapacitet | 1024Wh |
| AC udgang | 1800W (Rated), 3600W (Peak) |
| AC -indgang Voltage | 100-120V, 15A Maks |
| DC Input Voltage | 11-60V, 600W Max (Adjustable 8/20A) |
| USB-C udgang | 2 x 100W |
| USB-A-output | 2 x 18W |
| Cigarport udgang | 1 x 12V/10A |
| DC 5525 udgang | 1 x 12V/10A |
| XT60 udgang | 1 x 12V/10A |
| Dimensioner (L x B x H) | 14.9 cm x 9.4 cm x 10 cm |
| Vægt | 29 pund |
| Driftstemperatur | Optimal range for discharge and charge (with heating) |
| Livscykler | 3500+ cyklusser til 80% kapacitet |
8. Garanti og support
Pecron offers a 2+1 years worry-free warranty for the E1000LFP Portable Power Station. This includes 2 years standard warranty plus an additional 1 year upon product registration or other qualifying conditions. For technical support, warranty claims, or any inquiries, please contact Pecron customer service. Keep your proof of purchase for warranty validation.
Customer service is available 24 hours a day, 7 days a week.
