Takstar E300W multifunktionel trådløs bærbar stemme Amplivligere brugervejledning

1. Introduktion

The Takstar E300W Multifunctional Wireless Portable Voice AmpLifier er designet til at give klar og kraftfuld lyd amplification for various applications. This manual provides detailed instructions for the proper use, setup, operation, and maintenance of your E300W amplivligere.

2. Sikkerhedsoplysninger

• Udsæt ikke enheden for regn eller fugt.
• Do not disassemble the device. Refer all servicing to qualified personnel.
• Hold enheden væk fra varmekilder og direkte sollys.
• Brug kun det specificerede opladningskabel og strømadapter.
• Undgå at tabe eller udsætte enheden for kraftige stød.
• Rengør enheden med en blød, tør klud. Brug ikke flydende rengøringsmidler.

3. Pakkens indhold

Kontroller venligst pakken for at sikre, at alle varer er til stede:

• E300W stemme Amplivligere
• Headworn Microphone (Wireless)
• USB opladningskabel
• Rem

4. Produktet er slutview

Familiarize yourself with the components of your E300W amplivligere.

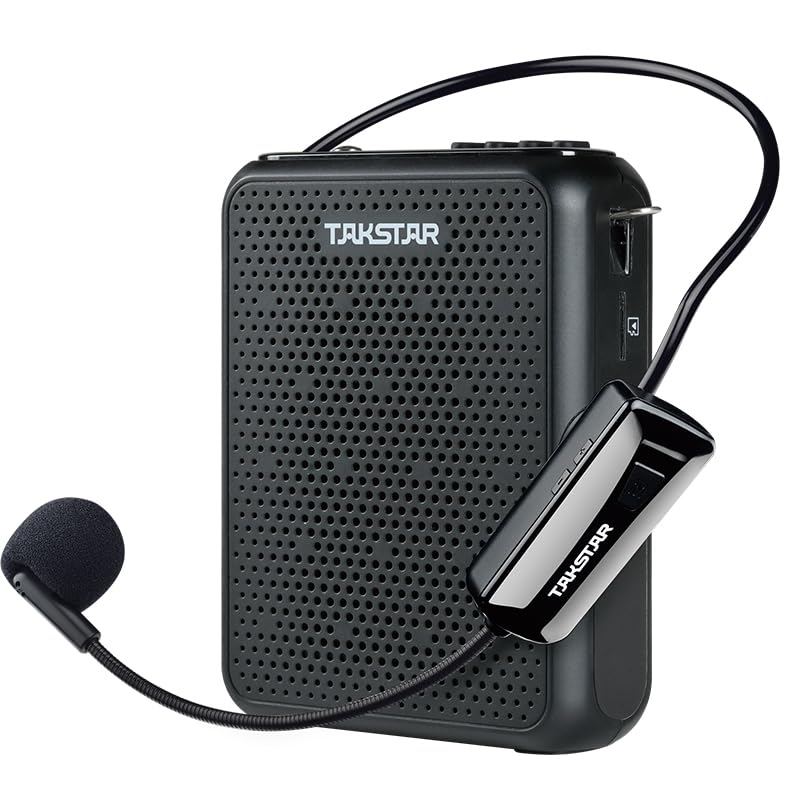

Figure 4.1: Takstar E300W Voice Amplifier with included wireless headworn microphone.

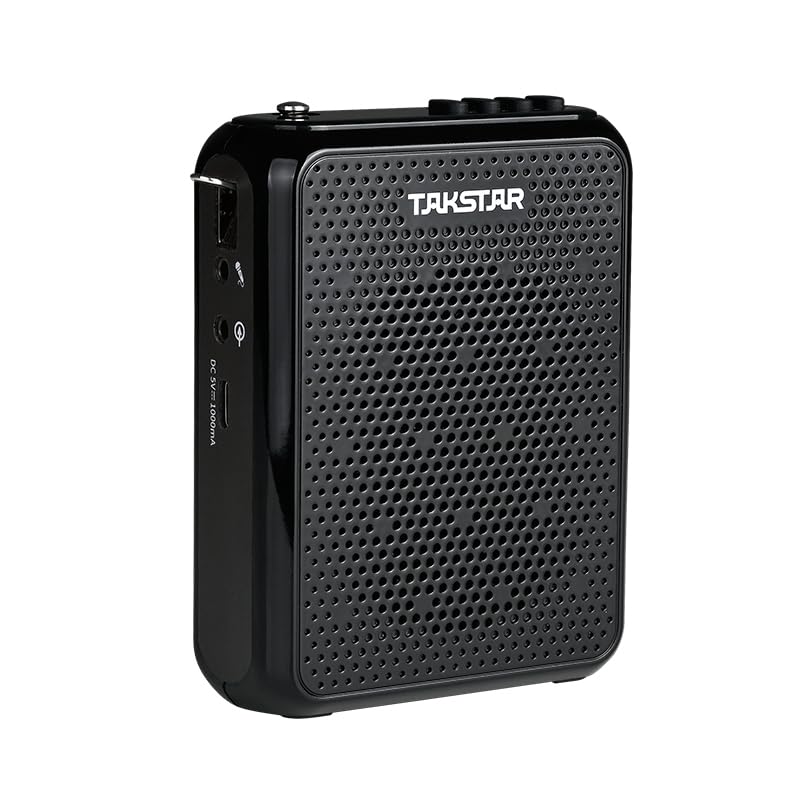

Figur 4.2: Side view of the E300W amplifier, highlighting the various ports and controls.

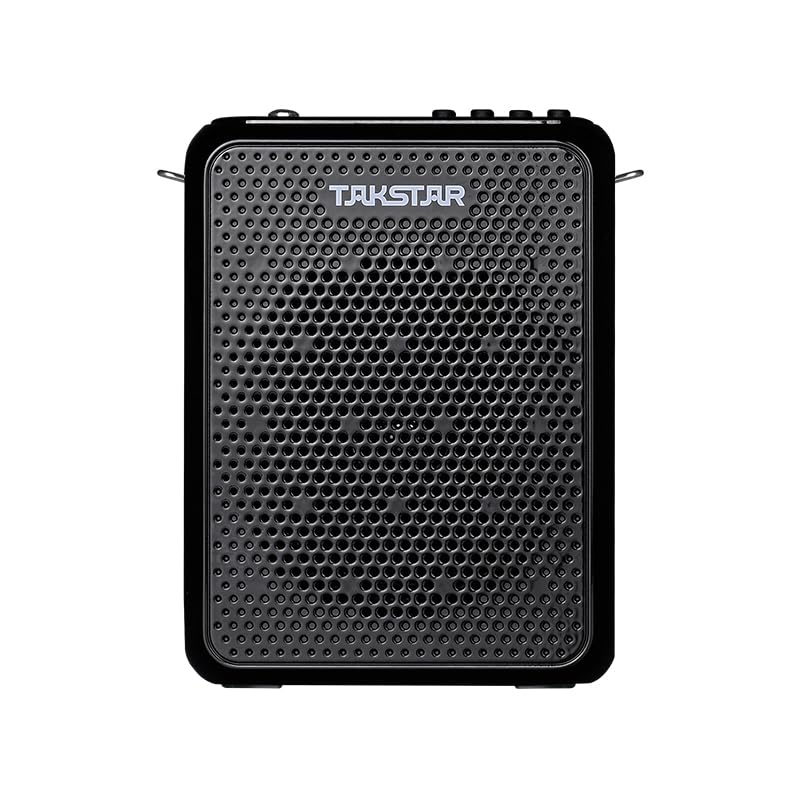

Figur 4.3: Forside view of the E300W ampløfter, showcasing the speaker grille.

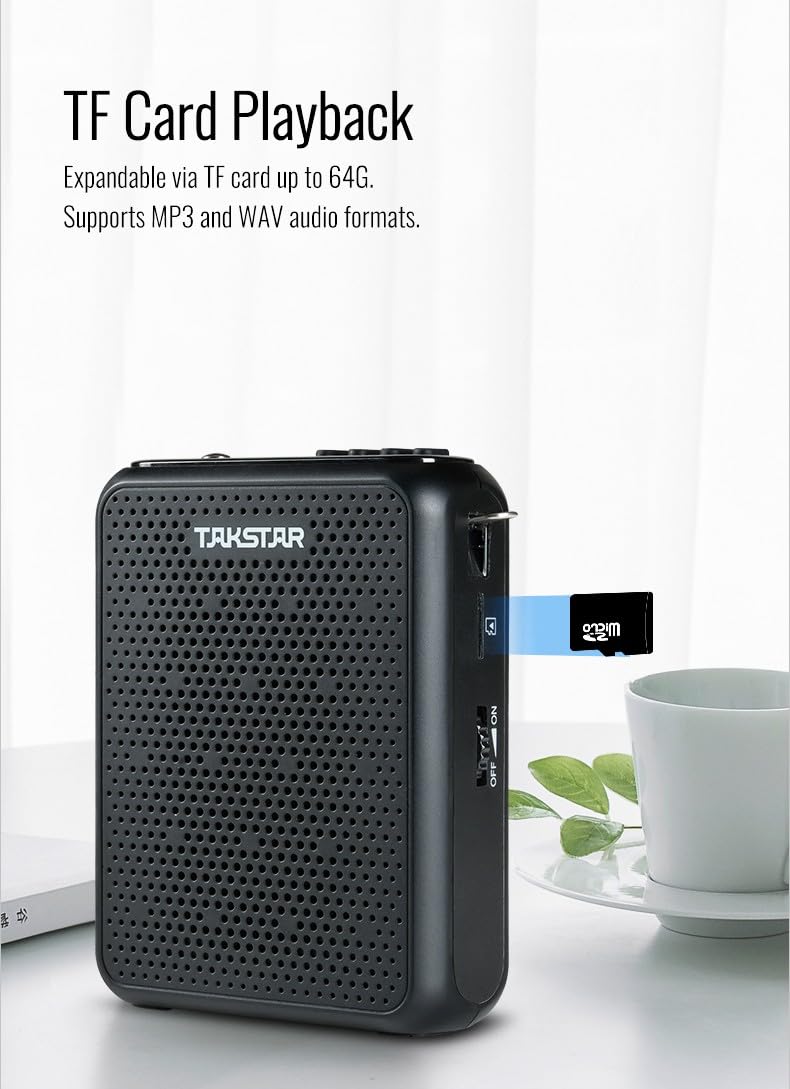

Figure 4.4: The E300W amplifier demonstrating the TF card slot for expandable memory.

4.1 Kontroller og indikatorer

• Afbryderen: Drejer amplifter tænd/sluk.
• Lydstyrkekontrol: Justerer amplifikationsniveau.
• USB opladningsport: Til opladning af amplivligere.
• TF-kortslot: For inserting a TF (microSD) card for playback and recording.
• Mode knap: Switches between different modes (UHF, FM Radio, Playback).
• Afspil/pause knap: Styrer lydafspilning.
• Næste/Forrige spor-knapper: Navigates through audio files.
• Skærm: Shows current mode, frequency, and battery status.

5. Opsætning

5.1 Opladning af Amplivligere

1. Connect the USB charging cable to the amplifier's charging port.
2. Tilslut den anden ende af USB-kablet til en kompatibel USB-strømadapter (medfølger ikke) eller en computers USB-port.
3. Opladningsindikatoren lyser. Når den er fuldt opladet, kan indikatoren skifte farve eller slukke.

5.2 Charging the Wireless Microphone Headset

The wireless microphone headset also has a built-in rechargeable battery. Charge it using its dedicated charging port and cable if provided, or as instructed in its separate manual if applicable.

5.3 Parring af den trådløse mikrofon

1. Turn on the E300W amplivligere.
2. Turn on the wireless microphone headset.
3. De amplifier and microphone should automatically pair. If not, refer to the microphone's specific pairing instructions, usually involving a pairing button on both devices.
4. Ensure the microphone is within the effective transmission range (up to 40 meters in an interference-free environment).

6. Betjeningsvejledning

6.1 Stemme Amplifikation

1. Sørg for amplifier and wireless microphone are charged and paired.
2. Wear the headworn microphone comfortably. Position the microphone close to your mouth for optimal sound pickup.
3. Tænd for amplifier ved hjælp af strømafbryderen.
4. Adjust the volume control to your desired amplifikationsniveau.
5. The E300W uses UHF wireless transmission for stable and clear voice amplifikation.

6.2 Portable Speaker Function (Wireless Playback)

The E300W can function as a portable speaker, allowing wireless playback from other devices.

1. Tænd for amplivligere.
2. Press the Mode button to switch to the wireless playback mode (e.g., Bluetooth or specific wireless input).
3. On your mobile phone, computer, or PAD, search for and connect to the E300W amplifier in its Bluetooth or wireless settings.
4. Once connected, you can play music or audio files from your device through the E300W.

6.3 TF Card Playback and Recording

De amplifier supports TF (microSD) cards up to 64GB and MP3/WAV audio formats.

1. Insert a TF card into the designated slot on the amplivligere.
2. For Playback: De amplifier will automatically detect audio files (MP3, WAV) on the card. Use the Play/Pause and Next/Previous buttons to control playback.
3. Til optagelse: Specific recording instructions may vary. Typically, there is a dedicated record button or a mode that enables recording. Ensure the TF card has sufficient free space.

6.4 FM-radiotilstand

The E300W includes an FM radio function.

1. Tænd for amplivligere.
2. Tryk på Mode-knappen for at skifte til FM-radiotilstand.
3. To search for channels, press and hold the Play/Pause button (or specific scan button if available). The amplifier will automatically search and save more than 50 radio channels.
4. Use the Next/Previous buttons to navigate between saved radio stations.

6.5 Multiple Microphone Connections (UHF Setting)

When in UHF setting, the E300W can connect simultaneously with multiple HM-200W wireless microphone headsets. It offers a wide range of 40 frequencies for this purpose.

• Ensure all HM-200W microphones are set to different frequencies within the available 40 channels to avoid interference.
• Refer to the HM-200W microphone manual for specific frequency setting instructions.

7. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre overfladen ampBrug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Når enheden ikke er i brug i længere perioder, skal den opbevares et køligt og tørt sted.
• Batteripleje: For at forlænge batteriets levetid bør du undgå at aflade batteriet helt ofte. Oplad enheden regelmæssigt, selvom den ikke er i brug.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

For garantioplysninger og teknisk support henvises til den officielle Takstar webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Fabrikant: E300W

Importør: Takstar
