Negrari FB9002K Hvid PVC-harpiks gulvenhed til vaskerum Brugsanvisning

1. Introduktion

This manual provides detailed instructions for the assembly, operation, and maintenance of your Negrari FB9002K White PVC Resin Laundry Room Floor Unit. Please read these instructions carefully before beginning assembly or use to ensure proper installation and safe operation. This unit is designed for storage in laundry rooms and other indoor or outdoor environments where moisture resistance is beneficial.

Billede 1.1: Forside view of the Negrari FB9002K Laundry Room Floor Unit with doors closed.

2. Sikkerhedsoplysninger

• Always follow assembly instructions precisely. Incorrect assembly can lead to instability and potential injury.
• Ensure all screws and fasteners are securely tightened. Periodically check and re-tighten if necessary.
• Do not overload the shelves. Refer to the specifications for weight limits.
• Hold små dele og monteringsværktøj utilgængeligt for børn under montering.
• Place the unit on a level, stable surface to prevent tipping.
• This unit is moisture resistant but not waterproof. Avoid prolonged submersion or direct exposure to heavy water streams.

3. Pakkens indhold

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact Negrari customer support.

Billede 3.1: Eksploderet view of all components and hardware included in the package.

Komponenter:

• A1, A2: Side Panels (2 pcs)
• B: Upper Back Panel (1 pc)
• C: Top Panel (1 pc)
• D: Top Cover (1 pc)
• E: Shelf (1 pc)
• F: Base Panel (1 pc)
• G1, G2: Doors (2 pcs)
• H: Lower Back Panel (1 pc)

Hardware:

• I: Handles (2 pcs)
• L: Adjustable Feet (4 pcs)
• M: Door Hinges (4 pcs)
• N: Screws (e.g., for handles, 6 pcs)
• O: Dowels (e.g., for shelf supports, 6 pcs)

4. Monteringsvejledning

A Phillips head screwdriver is required for assembly. Follow the steps below in sequence.

Image 4.1: Assembly Steps 1 and 2.

1. Step 1: Prepare Doors and Base
   Attach the handles (I) to the doors (G1, G2) using the provided screws (N). Then, attach the adjustable feet (L) to the base panel (F) by inserting them into the designated holes.
2. Step 2: Assemble Side Panels and Base
   Connect the side panels (A1, A2) to the base panel (F) and the lower back panel (H). Ensure the panels are aligned correctly and secure them with the appropriate fasteners. The diagram indicates a 'STOP' point for the lower back panel (H) to ensure correct positioning.

Image 4.2: Assembly Steps 3 through 9.

3. Step 3: Insert Upper Back Panel
   Slide the upper back panel (B) into the grooves at the top rear of the side panels. Ensure it is fully seated.
4. Step 4: Secure Lower Back Panel
   Push the lower back panel (H) down until it clicks into place with the side panels and base.
5. Trin 5: Installer toppanelet
   Place the top panel (C) onto the assembled frame, ensuring it aligns with the edges.
6. Trin 6: Installer hylde
   Insert the shelf supports (O) into the desired holes on the side panels. Then, place the shelf (E) onto these supports.
7. Step 7: Attach Doors
   Attach the door hinges (M) to the doors (G1, G2) and then secure the doors to the side panels of the main unit. Ensure the doors open and close smoothly.
8. Step 8: Adjust and Verify
   Check the alignment of the doors and adjust the hinges if necessary to ensure an even gap. Verify that the unit is stable and all connections are secure.
9. Step 9: Place Top Cover
   Finally, place the top cover (D) onto the unit. This piece typically rests on top without requiring fasteners.

Image 4.3: The assembled unit with both doors open, revealing the interior shelf.

5. Betjeningsvejledning

The Negrari FB9002K unit is designed for straightforward use.

• Åbning/lukning af døre: Use the chrome handles to open and close the hinged doors. Ensure they close completely to protect contents.
• Hyldebrug: The interior shelf provides organized storage for laundry essentials, cleaning supplies, or other items.
• Justerbare fødder: The unit features adjustable feet (L) to help level the cabinet on uneven surfaces. Rotate the feet to raise or lower each corner until the unit is stable.

Image 5.1: The unit with one door open, demonstrating interior storage capacity.

6. Vedligeholdelse

To ensure the longevity and appearance of your Negrari FB9002K unit, follow these simple maintenance guidelines:

• Rensning: Tør overflader af med en blød, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the PVC finish.
• Fugtighed: While moisture resistant, promptly wipe away any standing water to prevent potential long-term damage or discoloration.
• Hardware: Periodically check all screws and fasteners for tightness. Re-tighten if they have loosened over time.
• Dørhængsler: If doors become stiff or squeaky, a small amount of silicone-based lubricant can be applied to the hinges.

7. Fejlfinding

Her er løsninger på almindelige problemer, du kan støde på:

• Enheden er vaklende:
  Ensure the unit is placed on a level surface. Adjust the individual feet (L) by rotating them until the unit is stable and level. Check that all assembly screws are tightened.
• Doors Do Not Align:
  Adjust the door hinges (M). Most hinges allow for minor adjustments (up/down, left/right, in/out) using a screwdriver. Refer to the hinge manufacturer's instructions if specific adjustments are unclear. Ensure the unit itself is level.
• Vanskeligheder med at åbne/lukke døre:
  Check for any obstructions inside the cabinet. Ensure hinges are properly installed and not bent. Apply a small amount of lubricant to the hinges if they are stiff.

8. Specifikationer

Image 8.1: Technical drawing showing detailed dimensions of the unit.

9. Garanti og support

For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Negrari products are manufactured in Italy.

For further assistance or inquiries, you may contact Negrari directly:

• Fabrikant: Negrari srl
• Adresse: Via dei liutai, 1 - 41013 Castelfranco Emilia (MO) - ITALY
• Webwebsted: www.negrari.it
• E-mail: info@negrari.it
• Telefon: +39 059 928 343

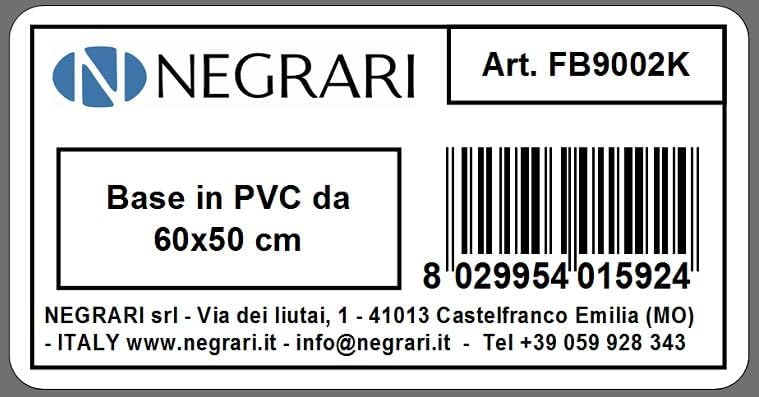

Image 9.1: Product label showing manufacturer details and model number.
