ACEZUK M06 Jumpstarter med luftkompressor Brugermanual

Produkt overview

The ACEZUK M06 is a versatile and powerful portable device designed to provide emergency jump-starting capabilities for vehicles, inflate tires, and serve as a portable power bank. It combines an 8000A peak current jump starter with a 150PSI air compressor, ensuring you are prepared for various roadside emergencies.

Billede: Overview of the ACEZUK M06 unit highlighting its multi-functional capabilities including jump starting, air inflation, and power bank features.

• Powerful Jump Starter: Features an 8000A peak current, capable of starting all gas engines and up to 12.0L diesel engines, even in extreme temperatures.
• Integrated Air Compressor: Built-in 150PSI air compressor with a digital pressure gauge, auto-shutoff, and 4 customizable modes (Car, Motorcycle, Bike, Ball) for precise tire inflation.
• Bærbar Power Bank: Equipped with dual 5V/3.0A USB ports to charge smartphones, tablets, and other electronic devices.
• Multi-mode LED Light: Includes an ultra-bright LED flashlight with three modes: steady, strobe, and SOS for emergencies or nighttime use.
• Avancerede sikkerhedsfunktioner: Incorporates spark-proof technology, reverse polarity protection, and overcharge prevention for safe operation.
• Holdbart design: Rugged and weather-resistant construction designed to withstand drops, dust, and varying temperatures.

Pakkens indhold

Upon opening your ACEZUK M06 package, please verify that all the following items are included:

• 1x ACEZUK M06 Jump Starter with Air Compressor
• 1x Smarte jumperkabler
• 1x luftpumpeslange
• 4x Gas Nozzles (various adapters for different inflatables)
• 1x Type-C ladekabel
• 1x brugermanual
• 1x Bærbar EVA-bæretaske

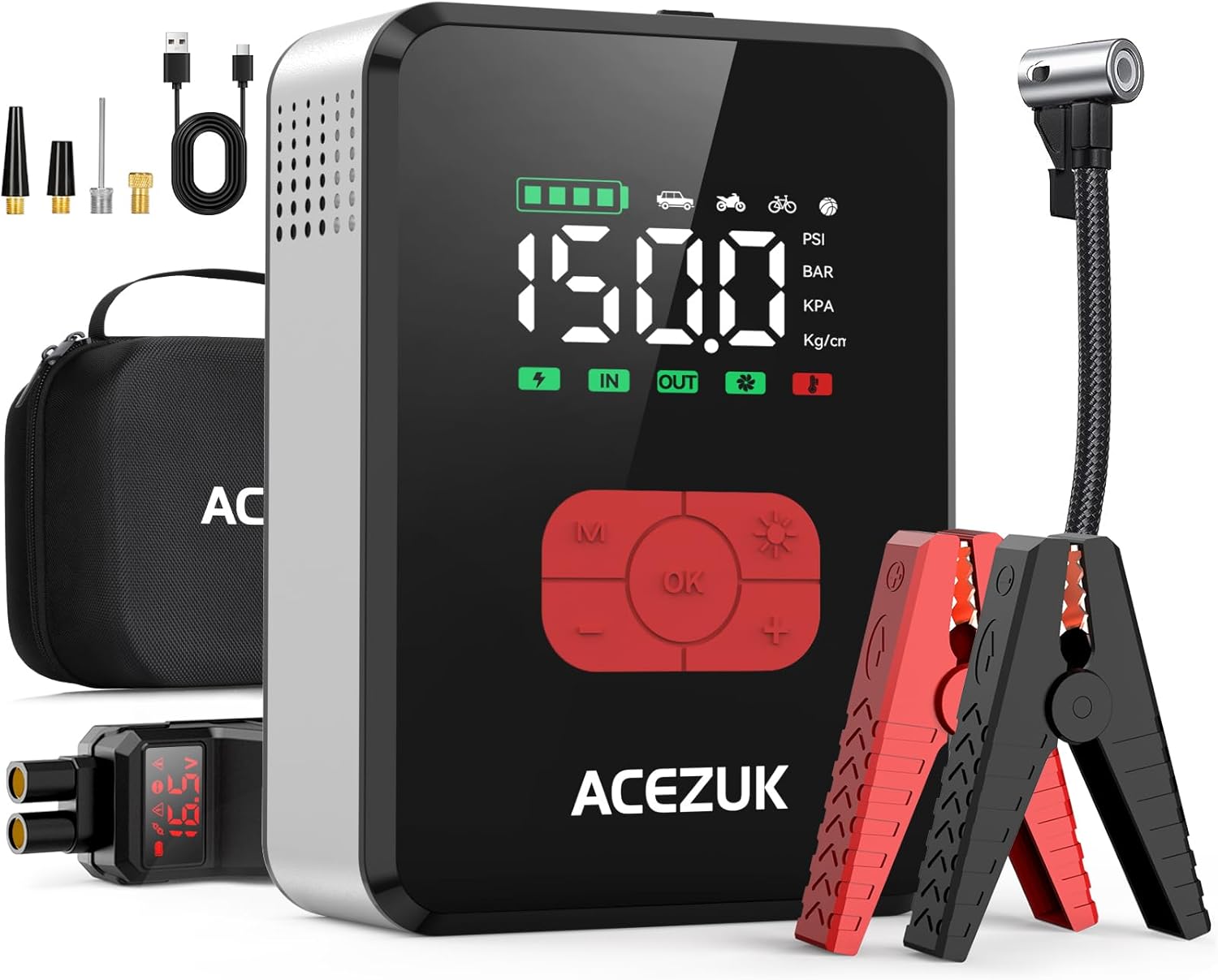

Image: The ACEZUK M06 unit, smart jumper cables, air hose, various nozzles, charging cable, and carrying case.

Opsætning og opladning

Before first use, it is recommended to fully charge your ACEZUK M06 unit. A full charge ensures optimal performance and readiness for emergencies.

Opladning af enheden

1. Locate the Type-C input port on the ACEZUK M06 unit.
2. Connect the provided Type-C charging cable to the unit.
3. Connect the other end of the Type-C cable to a suitable USB power adapter (not included) or a powered USB port.
4. The LCD screen will display the charging status and battery level. Charge until the battery indicator shows full.

Note: For best results, charge the unit every 3-6 months even if not in use to maintain battery health.

Betjeningsvejledning

Forståelse af kontrolpanelet

Billede: Detaljeret view of the ACEZUK M06 control panel, showing the OK button, M button, LED light button, and +/- buttons with their respective functions.

• OK knap: Short press to turn on the jump starter; long press (at least 3 seconds) to start inflation; short press again to turn off the jump starter.
• M knap: Short press to change the inflation mode (Car, Motorcycle, Bike, and Ball).
• LED lys knap: Press the OK button to turn on the light mode (at least 3 seconds), and short press to switch between 3 modes (Steady, Strobe, SOS).
• +, - Buttons: Adjust the preset air pressure value. Short press to increase or decrease; long press for 3 seconds to switch to fast increase or decrease.

Hopstart af dit køretøj

Follow these steps carefully to safely jump start your vehicle:

1. Ensure the ACEZUK M06 unit is sufficiently charged.
2. Insert the smart jump cable connector fully into the jump starter's output port.
3. Tilslut rød (+) clamp til den positive (+) pol på dit køretøjs batteri.
4. Tilslut sort (-) clamp til den negative (-) pol på dit køretøjs batteri.
5. Once connected, the smart cable indicator light will turn green, indicating it's ready to start.
6. Start din bils motor.
7. Once the engine starts, immediately remove the black (-) clamp, derefter den røde (+) clamp from the car battery.
8. Disconnect the smart jump cable from the jump starter unit.

Image: Visual guide demonstrating the four steps to jump start a car: insert cable, connect clamps, start engine, remove clamps.

Safety Note: Do not touch the red and black clamps together. Do not attempt to jump start if the smart cable indicator light is red or flashing.

Brug af luftkompressoren (dækpumpen)

The built-in air compressor can inflate tires and other inflatables up to 150 PSI.

1. Assemble the air pump hose by screwing it into the inflation port on the ACEZUK M06 unit.
2. Attach the appropriate nozzle to the air pump hose if inflating items other than standard car/bike tires.
3. Connect the air pump hose securely to the tire valve or inflatable item.
4. Short press the 'M' button to select the desired inflation mode (Car, Motorcycle, Bike, Ball) or Manual mode. The display will show the recommended pressure range for the selected mode.
5. Use the '+' and '-' buttons to set your desired target pressure (PSI, BAR, KPA, or Kg/cm²).
6. Long press the 'OK' button (at least 3 seconds) to start the inflation. The compressor will automatically stop once the preset pressure is reached.
7. Disconnect the air pump hose from the tire valve/item and then from the unit.

Image: Visual steps for inflating: assemble tube, connect to tire, adjust mode/pressure, press power button.

Image: Diagram showing various inflation modes (Car, Motorcycle, Bike, Ball, Manual) and their typical PSI ranges.

Bruges som en bærbar powerbank

The ACEZUK M06 can charge your electronic devices via its USB output ports.

1. Connect your device's USB charging cable to one of the 5V/3.0A USB output ports on the ACEZUK M06.
2. Enheden vil automatisk begynde at oplade din enhed.
3. Monitor your device's charging status. Disconnect when charging is complete.

Image: A person using the ACEZUK M06 to charge a mobile phone in an outdoor setting, demonstrating its power bank functionality.

Brug af LED-lys

Det integrerede LED-lys giver belysning til forskellige situationer.

1. Long press the 'OK' button (at least 3 seconds) to turn on the LED light.
2. Short press the 'OK' button to cycle through the light modes: Steady, Strobe, and SOS.
3. Long press the 'OK' button again to turn off the LED light.

Billede: Eksamples of LED light usage, including for night repairs, outdoor emergencies, reading, and camping.

Opretholdelse

Proper maintenance ensures the longevity and reliable performance of your ACEZUK M06 unit.

• Almindelig opladning: To maintain battery health, fully charge the unit at least once every 3-6 months, even if it has not been used.
• Opbevaring: Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its portable EVA carrying case to protect it from dust and physical damage.
• Rensning: Use a soft, dry cloth to clean the exterior of the unit. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are free of dust and debris.
• Kabelinspektion: Periodically inspect the smart jumper cables and air pump hose for any signs of wear, damage, or corrosion. Replace if necessary.

Fejlfinding

If you encounter issues with your ACEZUK M06, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact ACEZUK customer service for further assistance.

Specifikationer

Garanti og support

ACEZUK is committed to providing high-quality products and excellent customer service.

• Garanti: Your ACEZUK M06 unit comes with a 2-YEAR FREE Warranty from the date of purchase. This warranty covers manufacturing defects and ensures reliable operation under normal use.
• Teknisk support: We offer Lifetime Technical Support for all our products. If you have any questions regarding setup, operation, or troubleshooting, our technical team is available to assist you.
• Kundeservice: For any inquiries, concerns, or warranty claims, please contact our 7/24 Customer Service team.

Please refer to the contact information provided on the product packaging or the official ACEZUK webwebsted for direkte supportkanaler.
