1. Vigtige sikkerhedsoplysninger
Please read all instructions carefully before operating the vehicle. Failure to do so may result in damage to the product or personal injury. This product is not a toy and is intended for users aged 14 years and up.
- Always operate the vehicle in a safe, open area away from people, pets, and obstacles.
- Må ikke anvendes i nærheden af offentlige veje, vand eller højvolumenertage elledninger.
- Ensure all batteries are correctly installed and charged according to manufacturer guidelines.
- Efterlad aldrig opladningsbatterier uden opsyn.
- Opbevar små dele utilgængeligt for børn.
- Avoid exposing the vehicle to extreme temperatures or moisture.
- Regularly inspect the vehicle for any loose screws or damaged components before and after use.
2. Pakkens indhold
Følgende varer er inkluderet i din produktpakke:
- Amewi Mercedes-Benz Unimog 4WD 1:10 RC Vehicle (Model 22682)
- 10-channel 2.4GHz Remote Control
- Attachments (specific details not provided, refer to product packaging)
- Instruktionsmanual (dette dokument)
Image 2.1: The Amewi Mercedes-Benz Unimog 4WD 1:10 RC Vehicle, front three-quarter view, visasing its orange cab and detailed design.
3. Nødvendigt tilbehør (medfølger ikke)
To operate your RC vehicle, you will need the following items, which are not supplied with the product:
- Drive Battery: 2-3S LiPo battery with XT60 connection (maximum dimensions: 142 x 31 x 45 mm).
- Compatible Charger: For the LiPo drive battery.
- Remote Control Batteries: 4x 1.5V AA batteries.
4. Opsætning
4.1. Installation af fjernbetjeningsbatterier
- Find batterirummet på bagsiden af fjernbetjeningen.
- Åbn batterirummets dæksel.
- Insert 4x 1.5V AA batteries, ensuring correct polarity (+/-).
- Luk batterirummets dæksel forsvarligt.
Image 4.1: The 10-channel 2.4GHz remote control for the Amewi Unimog, featuring a steering wheel and trigger design.
4.2. Installing Vehicle Drive Battery
- Tilt the driver's cab forward to access the battery compartment. The cab is designed to fold forward via a mechanism behind it.
- Connect your charged 2-3S LiPo battery (with XT60 connector) to the vehicle's ESC (Electronic Speed Controller).
- Carefully place the battery into the compartment, ensuring it fits within the maximum dimensions (142 x 31 x 45 mm).
- Secure the battery if necessary and return the driver's cab to its original position.
Billede 4.2: Interiør view of the Unimog with the driver's side door open, showing the detailed cabin and providing a hint of the tiltable cab mechanism for battery access.
Billede 4.3: Nærbillede view of the vehicle's chassis, showing the motor and drivetrain components, and the area where the battery would be connected.
4.3. Indledende kontrol
- Ensure the remote control is powered on before turning on the vehicle.
- Bekræft, at alle forbindelser er sikre.
- Check for any obstructions to the wheels or steering mechanism.
5. Betjeningsvejledning
Your Amewi Unimog is equipped with advanced features for realistic operation. Familiarize yourself with the remote control functions before driving.
5.1. Fjernbetjeningsfunktioner
The 10-channel 2.4GHz remote control allows precise command over various vehicle functions:
- Rat: Styrer venstre og højre styring.
- Gashåndtag: Controls forward and reverse movement, and braking.
- Channel Switches/Buttons: Used to activate specific functions such as:
- Vinschbetjening: Controls the functional front-mounted winch.
- LED belysningssystem: Toggles headlights, taillights, and other integrated LEDs.
- Lydmodul: Activates realistic engine sounds and other effects.
- 2-trins gearkasse: Shifts between low and high gears for different terrains and speeds.
- Differentialespærre: Engages/disengages differential locks for improved traction on challenging surfaces.
Image 5.1: Close-up of the front bumper and functional winch, which can be operated via the remote control.
5.2. Kørsel af køretøjet
- Place the vehicle on a flat, open surface.
- Turn on the remote control, then turn on the vehicle's power switch (located under the tiltable cab).
- Allow the remote control and vehicle to establish a connection.
- Use the throttle trigger for acceleration and braking. Pull for forward, push for reverse.
- Brug rattet til at styre retningen.
- Experiment with the 2-speed transmission and differential locks to adapt to different terrains. Low gear and locked differentials are ideal for crawling and overcoming obstacles.
- Activate the winch, lights, and sound module as desired for enhanced realism and functionality.
Billede 5.2: Side view of the Amewi Unimog, highlighting its robust chassis, large tires, and detailed bodywork.
Billede 5.3: Nærbillede view of the portal axle and suspension system, demonstrating the increased ground clearance and robust design for off-road performance.
6. Vedligeholdelse
Regular maintenance will ensure the longevity and optimal performance of your Amewi Unimog.
- Rensning: After each use, especially in dirty or dusty conditions, clean the vehicle with a soft brush or compressed air. Avoid using water directly on electronic components.
- Inspektion: Periodically check all screws, nuts, and bolts for tightness. Inspect the drivetrain, suspension, and steering components for wear or damage.
- Smøring: Apply appropriate RC-grade lubricant to moving metal parts, such as universal joints and gears, as needed.
- Batteripleje: Always disconnect and remove the drive battery after use. Store LiPo batteries in a safe, cool, dry place, and follow all LiPo battery safety guidelines.
- Opbevaring: When not in use, store the vehicle in a dry, cool environment away from direct sunlight.
Billede 6.1: Underside view of the Unimog chassis, revealing the robust metal frame, drivetrain, and suspension components for inspection and maintenance.
Billede 6.2: Detaljeret view of the metal cardan shafts and gearboxes, critical components for the vehicle's 4WD system, requiring periodic inspection.
7. Fejlfinding
If you encounter issues with your Amewi Unimog, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køretøjet reagerer ikke på fjernbetjeningen. |
|
|
| Loss of control or erratic behavior. |
|
|
| Køretøjet bevæger sig langsomt eller mangler kraft. |
|
|
8. Specifikationer
Detailed technical specifications for the Amewi Mercedes-Benz Unimog 4WD 1:10 RC Vehicle (Model 22682):
| Feature | Detalje |
|---|---|
| Modelnummer | 22682 |
| Skala | 1: 10 skala |
| Length (including winch) | 525 mm |
| Bredde | 225 mm |
| Højde | 300 mm |
| Vægt | 5650 g (5.65 kg) |
| Akselafstand | 300 mm |
| Track Width Front | 185 mm |
| Track Width Rear | 180 mm |
| Frihøjde | 50 mm |
| Front Wheels (Outer Diameter/Width) | 110/40 mm |
| Rear Wheels (Outer Diameter/Width) | 110/40 mm |
| Fælg diameter | 54 mm |
| Gearkasse | 2-speed metal |
| Forside Damper | 65 mm |
| Bag Damper | 65 mm |
| Bremse | Electronic, including mountain brake |
| ESC (Controller) | Hobbywing WP1060 |
| Motor | 540 brushed crawler motor |
| Drive System | Cardan metal drive system |
| Styreservo | Standard servo 35 kg metal gearbox |
| Hovedmateriale | Metal chassis components, high-strength ABS plastic cab |
| Battery Compartment Dimensions | 142 x 31 x 45 mm |
| Batterianbefaling | LiPo 2-3S with XT60 connection |
| Maksimal hastighed | Approx. 30 km/h (in second gear with 3S LiPo) |
| Fjernbetjening | 10 channel, 2.4 GHz |
| Rækkevidde | Ca. 150 m |
| Anbefalet alder | 14 år og opefter |
| Montering påkrævet | No (ARTR - Almost Ready-To-Run) |

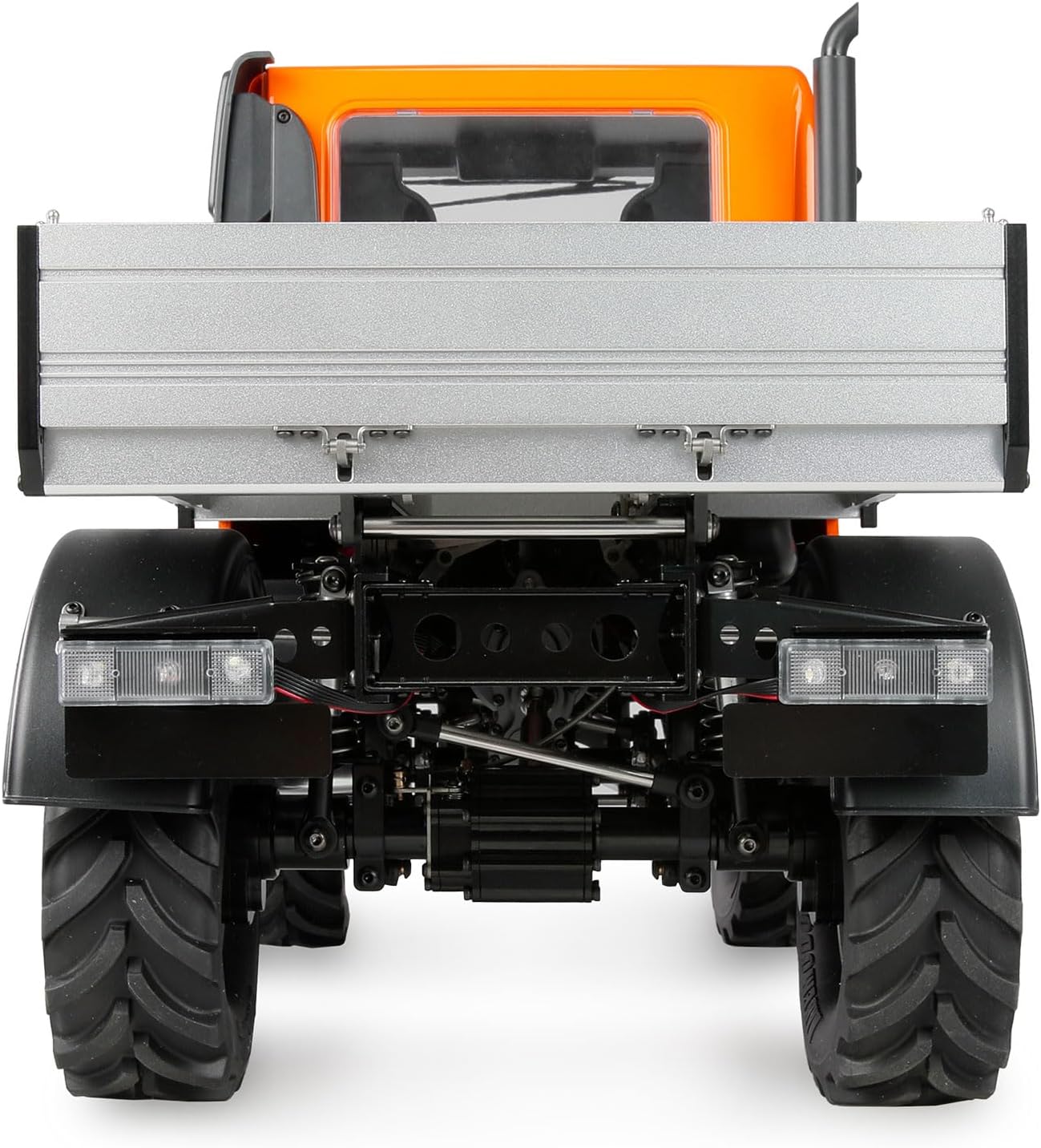

Billede 8.1: Bagside view of the Amewi Unimog, showing the detailed cargo bed and taillights.
Billede 8.2: Forside view of the Amewi Unimog, highlighting the Mercedes-Benz logo, headlights, and front bumper with winch.
9. Garanti og support
Dette produkt er dækket af en standard producentgaranti mod materiale- og fabrikationsfejl. Gem venligst din købsbevis til garantikrav.
For technical support, spare parts, or warranty inquiries, please contact your retailer or the manufacturer directly. Refer to the product packaging or manufacturer's webwebsted for specifikke kontaktoplysninger.
