MOUNTUP MU0057-L Full Motion TV-vægbeslag Brugsanvisning

1. Introduktion

This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of your MOUNTUP MU0057-L Full Motion TV Wall Mount. Please read all instructions carefully before installation to ensure correct setup and to prevent damage or injury. Keep this manual for future reference.

The MOUNTUP MU0057-L is designed to securely mount most 42-75 inch flat or curved screen televisions weighing up to 99 lbs (45 kg). It features a 30-inch extension arm, +/-90° swivel, +5°/-10° tilt, and +/-3° leveling for optimal viewfleksibilitet.

2. Sikkerhedsoplysninger

WARNING: Failure to read and follow these instructions may result in serious personal injury, property damage, or voiding of warranty.

• Vægt kapacitet: Overskrid ikke den maksimale vægtkapacitet på 45 kg. Denne montering er kun beregnet til brug med de angivne maksimale vægte. Brug med produkter, der er tungere end de angivne maksimale vægte, kan resultere i ustabilitet og forårsage personskade.
• TV størrelse: This mount is compatible with TVs from 42 to 75 inches.
• VESA-kompatibilitet: Ensure your TV's VESA pattern (mounting hole spacing) is within the range of 150x100mm to 600x400mm.
• Vægtype: This mount is designed for installation on solid concrete/brick walls or single wood studs. MÅ IKKE installeres i gipsvæg alene.
• Professionel installation: If you have any doubts about your ability to safely install this mount, consult a qualified professional.
• Komponentkontrol: Before installation, verify that all components are present and undamaged. Do not use damaged or defective parts.
• Værktøjer: Brug passende værktøjer til installation.

3. Pakkens indhold

Please check the package to ensure all parts are included and undamaged. If any parts are missing or damaged, contact MOUNTUP customer service.

• Vægplademontering
• Tv-beslag (2)
• Monteringssæt (forskellige skruer, skiver, afstandsstykker, ankre)
• Boble niveau
• Boreskabelon
• Instruktionsmanual

4. Specifikationer

Note: The TV plate is offset approximately 8.5 inches (215mm) from the wall plate center. Consider this when positioning your TV on the wall.

Image: TV Plate Offset Diagram

5. Installationsvejledning

5.1 Kontrol før installation

1. Bekræft tv-kompatibilitet: Check your TV's size, weight, and VESA mounting pattern. The VESA pattern refers to the four mounting holes on the back of your TV.


Image: Available VESA Patterns and TV Mounting Holes

2. Identificer vægtype: Determine if your wall is solid concrete/brick or a single wood stud.


Image: Diverse Wall Compatibility

3. Check TV Ports: Ensure the mount will not block any necessary ports on your TV.


Image: Ensure Mount Won't Block Ports

5.2 Trin-for-trin installation

The installation process involves three main steps:

1. Mount Brackets to TV: Attach the TV brackets to the back of your television using the appropriate screws, washers, and spacers from the hardware kit. Ensure they are securely fastened.
2. Installer vægplade: Using the provided drilling template and bubble level, mark and drill pilot holes in your wall. Secure the wall plate assembly to the wall with the appropriate anchors and lag bolts.
3. Hæng TV'et på vægpladen: Carefully lift your TV with the attached brackets and hook them onto the wall plate. Secure the TV to the wall plate using the safety screws or locking mechanisms.

Image: Easy & Quick 3-Step Installation Overview

6. Betjening og justeringer

6.1 Udvidelse og tilbagetrækning

The mount allows your TV to extend up to 30 inches from the wall and retract to approximately 3 inches, providing flexibility for various viewing positions and saving space when not in use.

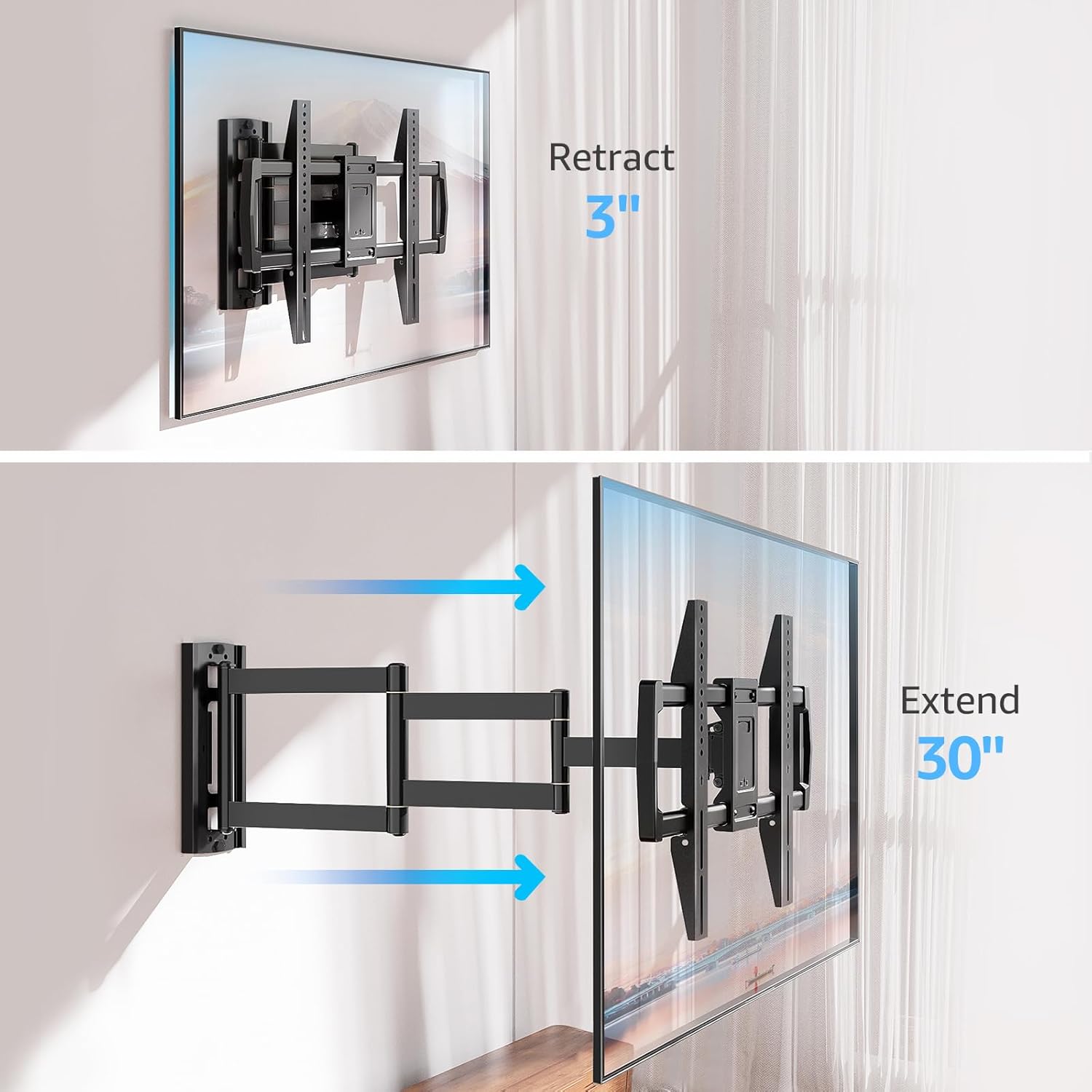

Image: Mount Extension and Retraction

6.2 Drejejustering

The articulating arm allows for a smooth +/-90° swivel, enabling you to adjust the TV's angle to suit different viewing areas within a room, including corner mounting scenarios.

Image: Wide Swivel Range for Corner Mounting

6.3 Tiltjustering

Adjust the TV's vertical angle with a +5°/-10° tilt range. This feature helps reduce glare from lights or windows and provides a comfortable viewvinkel.

6.4 Leveling Adjustment

After installation, you can make minor horizontal adjustments of +/-3° to ensure the TV is perfectly level.

Image: Level and Tilt Adjustments

7. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer levetiden og sikker drift af dit TV-vægbeslag.

• Rensning: Tør holderen af ​​med en blød, tør klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
• Fastgørelseskontrol: Kontrollér regelmæssigt alle skruer og bolte for at sikre, at de forbliver stramme og sikre. Spænd dem igen om nødvendigt.
• Bevægelsestjek: Test the mount's full range of motion (extension, retraction, swivel, tilt) occasionally to ensure smooth operation.

8. Fejlfinding

Hvis du støder på problemer under eller efter installationen, kan du se følgende almindelige problemer og løsninger:

• TV'et er ikke i vater: Use the +/-3° post-installation leveling feature to adjust the TV's horizontal position.
• Beslaget føles løst: Re-check all wall and TV fasteners to ensure they are securely tightened. Do not overtighten.
• Difficulty moving the arm: The mount's joints may be stiff initially. Apply gentle force. If persistent, ensure no cables are snagged.
• TV not fitting VESA pattern: Double-check your TV's VESA pattern against the mount's specifications (150x100mm to 600x400mm). If incompatible, the mount cannot be used.

9. Garanti og support

MOUNTUP is dedicated to providing quality products and customer satisfaction. While specific warranty details are not provided in this document, MOUNTUP offers comprehensive support.

If you have any questions, require assistance with installation, or need to report a missing/damaged part, please contact MOUNTUP customer service. Experts are available 7 days a week to provide support and advanced technology solutions.

For more information or to contact support, please visit the official MOUNTUP store or webwebsted.
