Cisco Catalyst 8200L Router C8200L-1N-4T Brugermanual

1. Introduktion

This manual provides essential instructions for the installation, operation, and maintenance of your Cisco Catalyst 8200L Router, model C8200L-1N-4T. This device is designed for secure, high-performance networking in enterprise and small office environments. Please read this manual thoroughly before using the product to ensure proper setup and functionality.

2. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Cisco Catalyst 8200L Router (C8200L-1N-4T)
• Strømledning
• (Additional accessories may vary based on specific renewed package contents)

3. Fysisk overview

Familiarize yourself with the ports and indicators on your router.

Figur 3.1: For- og bagpanel overview
This image displays the front and rear panels of the Cisco Catalyst 8200L Router. The front panel includes status LEDs, a console port, a USB port, and four 1 Gigabit Ethernet WAN ports. The rear panel features the power input and cooling vents. A Network Interface Module (NIM) slot is visible, allowing for expansion with additional network interfaces.

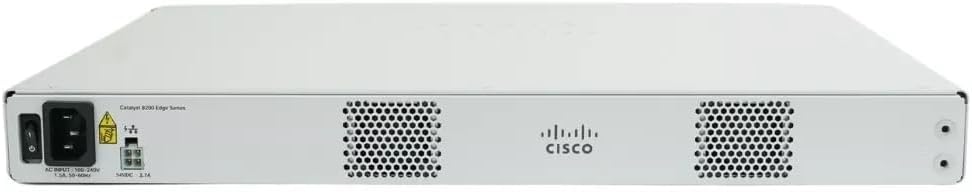

Figure 3.2: Rear Panel Power Input
This image focuses on the rear panel of the router, specifically showing the AC power input connector and the grounding screw. Proper connection of the power cord and grounding is essential for safe operation.

3.1 Frontpanel

• Status LED'er: Indicate power, system status, and port activity.
• Konsolport: Til lokal administration og indledende konfiguration ved hjælp af en seriel forbindelse.
• USB-port: Til softwareopgraderinger eller sikkerhedskopiering/gendannelse af konfiguration.
• 4x 1G WAN Ports: Four Gigabit Ethernet ports for Wide Area Network connectivity.
• NIM Slot: Network Interface Module slot for optional expansion cards.

3.2 Bagpanel

• AC strømindgang: Stik til netledningen.
• Jordingsskrue: For connecting an earth ground.
• Køleventiler: Sørg for korrekt luftstrøm for at aflede varmen.

4. Opsætning og installation

Follow these steps to properly install your Cisco Catalyst 8200L Router.

1. Pak routeren ud: Carefully remove the router and all accessories from the packaging. Inspect for any physical damage.
2. Montering (valgfrit): The router can be placed on a flat surface or rack-mounted using appropriate rack-mount kits (sold separately). Ensure adequate ventilation around the device.
3. Connect Grounding (Recommended): For enhanced safety, connect a grounding wire from the grounding screw on the rear panel to a suitable earth ground.
4. Connect WAN Ports: Connect your Wide Area Network (WAN) cables to the designated 1G WAN ports on the front panel.
5. Tilslut strøm: Insert the power cord into the AC power input on the rear panel and then plug the other end into a grounded electrical outlet.
6. Tænd: The router will automatically power on. Observe the status LEDs on the front panel. The System LED should turn green once the router has successfully booted.
7. Indledende konfiguration: Connect a computer to the console port using a console cable (not included) and a terminal emulation program (e.g., PuTTY, Tera Term) to perform initial configuration. Refer to Cisco IOS documentation for detailed configuration steps.

5. Betjening af routeren

Once installed, the router operates based on its configured settings. Management is typically performed via the Cisco IOS Command Line Interface (CLI) or a web-based graphical user interface (GUI) if configured.

5.1 Grundlæggende betjening

• Power Cycle: To restart the router, disconnect the power cord, wait 10 seconds, and then reconnect it. Avoid frequent power cycling.
• Statusovervågning: Regularly check the front panel LEDs for operational status. Green indicates normal operation, while amber or red may indicate an issue.

5.2 Configuration Access

Access the router for configuration using one of the following methods:

• Konsolport: Direct serial connection for initial setup and troubleshooting.
• Telnet/SSH: Remote access over the network (requires prior configuration).
• Web GUI: If enabled, access via a web browser (f.eks. http://192.168.1.1 or configured IP address).

For detailed configuration commands and procedures, refer to the official Cisco IOS documentation for the Catalyst 8200L series.

6. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your router.

• Rensning: Keep the router clean and free from dust. Use a soft, dry cloth. Do not use liquid cleaners. Ensure cooling vents are unobstructed.
• Firmwareopdateringer: Tjek regelmæssigt Cisco-supporten website for the latest IOS software updates. Applying updates can improve performance, security, and add new features.
• Miljøforhold: Operate the router within recommended temperature and humidity ranges to prevent overheating and component damage.
• Sikkerhedskopiering af konfiguration: Periodically back up your router's configuration to an external device (e.g., USB drive, TFTP server) to facilitate quick recovery in case of issues.

7. Fejlfinding

Dette afsnit indeholder løsninger på almindelige problemer, du kan støde på.

7.1 Strømproblemer

• Ingen strøm/LED'er slukket:
  • Ensure the power cord is securely connected to both the router and the electrical outlet.
  • Kontroller, at stikkontakten fungerer ved at tilslutte en anden enhed.
  • Tjek for eventuelle udløste afbrydere.

7.2 Problemer med netværksforbindelse

• Ingen internetadgang:
  • Check the status of the WAN port LEDs. They should indicate link activity.
  • Verify that your Internet Service Provider (ISP) connection is active.
  • Confirm router configuration for WAN settings (IP address, gateway, DNS).
  • Perform a power cycle of the router and any connected modems.
• Cannot Access Router Management:
  • Ensure your computer is on the same network segment as the router's management interface.
  • Verify the router's IP address and your computer's network settings.
  • Try accessing via the console port for direct troubleshooting.

7.3 Systemydelse

• Langsom ydeevne:
  • Check CPU and memory utilization via CLI commands.
  • Ensure adequate cooling and ventilation.
  • Review network traffic patterns for potential bottlenecks.

For more advanced troubleshooting, consult the Cisco support documentation or contact technical support.

8. Specifikationer

9. Garanti og support

As a renewed product, the warranty terms may differ from new products. Please refer to the specific warranty information provided by the seller (e.g., Amazon Renewed program) at the time of purchase.

For technical support related to Cisco IOS software or hardware functionality, please visit the official Cisco Support website or contact your authorized Cisco partner. For issues related to the renewed status or purchase, contact the seller directly.

• Cisco-support: www.cisco.com/c/en/us/support/index.html
• Amazon fornyet support: Refer to your Amazon order details for specific return and support policies for renewed products.
