SIMATE S2 Electric Scooter User Manual

1. Introduktion

Thank you for choosing the SIMATE S2 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new scooter. Please read it thoroughly before first use and keep it for future reference. Proper use and maintenance will ensure a long and enjoyable experience.

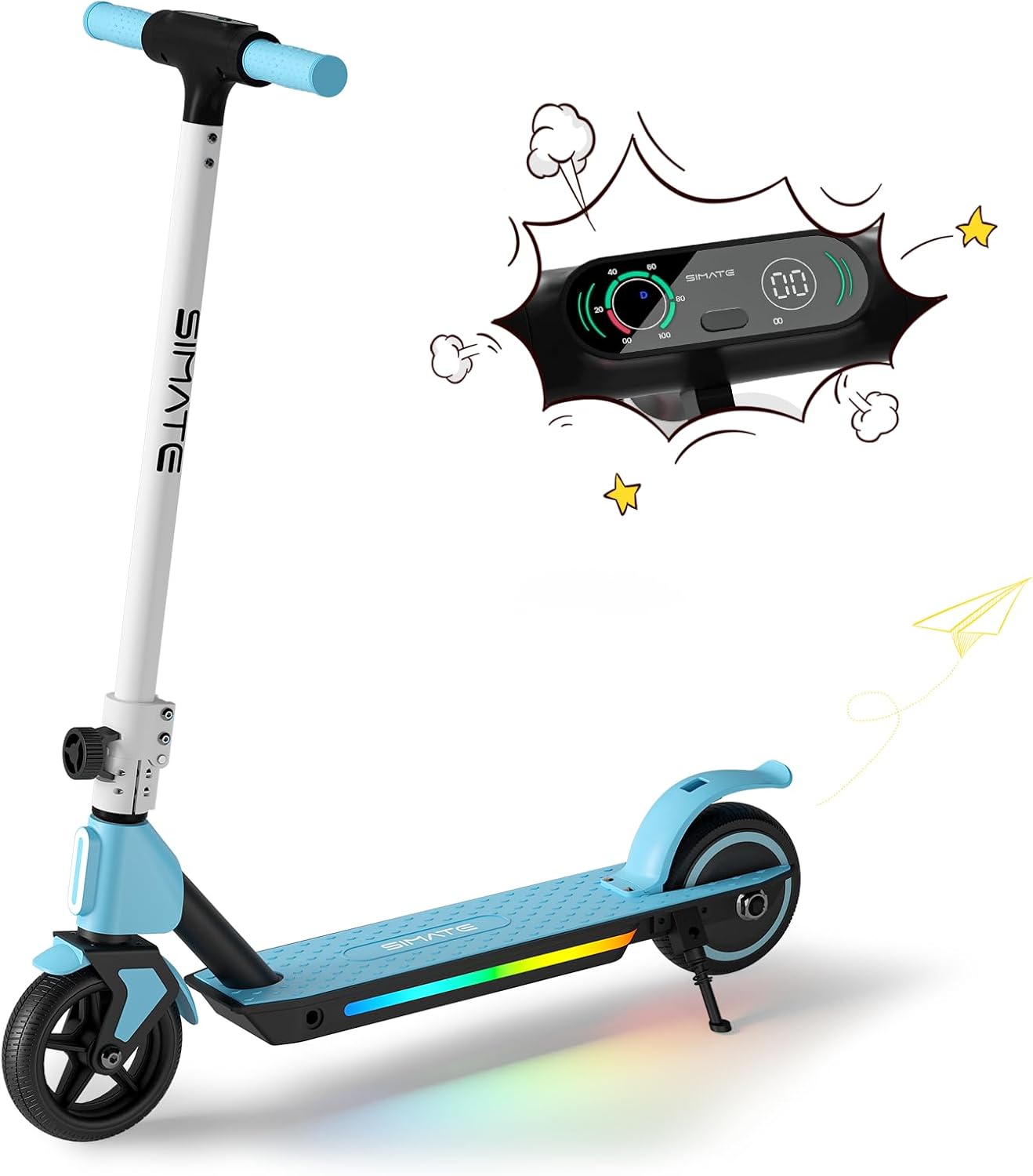

Figure 1: SIMATE S2 Electric Scooter (Blue)

The SIMATE S2 Electric Scooter features a sleek design with an integrated LED display and colorful lights on the deck. It is designed for easy learning and use, making it an ideal choice for young riders.

2. Sikkerhedsoplysninger

WARNING: Always wear a helmet and appropriate safety gear when riding. Adult supervision is recommended for young riders.

• Do not ride in wet conditions, on uneven surfaces, or near traffic.
• Sørg for, at alle bolte og fastgørelseselementer er spændt før hver tur.
• Familiarize yourself with both the electronic brake and foot brake.
• Scooteren er designet til kun én bruger.
• The motor will not engage until the riding speed reaches 2 mph for safety.

3. Komponenter overview

The SIMATE S2 Electric Scooter consists of several key components:

• Styr: Adjustable height for comfortable riding.
• LED digitalt display: Shows speed, speed gear, and battery capacity.
• Elektronisk gashåndtag: Styrer accelerationen.
• Elektronisk bremse: Lever on the handlebar for quick stopping.
• Fodbremse: Rear fender brake for additional stopping power.
• Dæk: Non-slip surface with colorful LED lights.
• Hjul: Solid anti-puncture rubber tires for smooth riding.
• Foldemekanisme: Giver mulighed for nem opbevaring og transport.

Figure 2: Handlebar and Display Features

The intuitive LED display provides real-time information about your ride, enhancing safety and control.

Figure 3: Dual Brake System

The scooter is equipped with both an electronic brake and a foot brake for reliable stopping power in various conditions.

4. Opsætning

Follow these steps to set up your SIMATE S2 Electric Scooter:

1. Pakker ud: Fjern forsigtigt alle komponenter fra emballagen.
2. Udfold: Release the folding mechanism and raise the handlebar stem until it locks into place. Ensure it is securely latched.
3. Juster styrets højde: Løsn quick-release clamp on the handlebar stem. Adjust the handlebar to a comfortable height for the rider, ensuring the rider can maintain a slight bend in their elbows while holding the grips. Tighten the clamp sikkert.
4. Indledende opkrævning: Before first use, fully charge the scooter's battery. Connect the charger to the charging port and plug it into a power outlet. The indicator light on the charger will change when fully charged.

Figur 4: Sammenklappeligt design for nem opbevaring

The scooter's foldable design makes it easy to store and transport, fitting conveniently into car trunks.

5. Betjeningsvejledning

To operate your SIMATE S2 Electric Scooter:

1. Tænd: Press and hold the power button on the LED display to turn on the scooter.
2. Kick-Start Assist: For safety, the motor will only engage after the scooter reaches a speed of 2 mph (3.2 km/h). Place one foot on the deck and use the other foot to push off the ground, similar to a traditional kick scooter.
3. Fremskynde: Once moving, gently press the electronic throttle with your thumb to accelerate.
4. Bremsning: To slow down or stop, release the throttle and use either the electronic brake lever on the handlebar or press down on the rear foot brake. Use both brakes simultaneously for quicker stops.
5. LED lys: The colorful LED lights on the deck and front light activate automatically when the scooter is powered on, enhancing visibility and style.
6. Sluk: Press and hold the power button to turn off the scooter when you are finished riding.

Figure 5: Large-Sized LED Digital Display

The clear LED display provides essential riding information at a glance, including current speed and battery level.

Figure 6: Front and Pedal Lights

The integrated lighting system enhances visibility and adds a fun element to the ride, especially in low-light conditions.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din scooters lange levetid og sikre drift:

• Rensning: Tør scooteren af med reklameamp cloth after each use. Do not use harsh chemicals or abrasive cleaners. Avoid direct water spray to prevent damage to electronic components.
• Batteripleje: Charge the battery fully after each ride. If storing for an extended period, charge the battery every 30-60 days to maintain its health. Do not overcharge or completely drain the battery.
• Dæk: The scooter is equipped with solid anti-puncture rubber tires, requiring minimal maintenance. Periodically check for debris or damage.
• Bremser: Regularly check the functionality of both the electronic and foot brakes. Ensure they respond promptly and effectively.
• Fastgørelsesmidler: Periodically inspect all screws, bolts, and connections to ensure they are tight and secure.

Figure 7: Anti-Puncture Tire and Non-Slip Pedal

The durable solid tires and non-slip deck are designed for low maintenance and enhanced safety.

7. Fejlfinding

Almindelige problemer og deres løsninger:

8. Specifikationer

Figur 8: Vigtigste produktspecifikationer

A summary of the SIMATE S2 Electric Scooter's performance and physical characteristics.

9. Garanti og support

The SIMATE S2 Electric Scooter comes with a limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

For technical support, replacement parts, or any inquiries not covered in this manual, please contact SIMATE customer service:

• Online support: Besøg SIMATE-butik på Amazon.
• Fabrikant: Jinhua Smart Electric Technology Co., Ltd
