MEGA MOTION HY-A03

MEGA MOTION Hoverboard brugermanual

Model: HY-A03

1. Introduktion

Welcome to the world of MEGA MOTION! This manual provides essential information for the safe and optimal operation of your new 6.5-inch Two-Wheel Self Balancing Electric Scooter. Please read this manual thoroughly before first use to ensure proper handling, maintenance, and to prevent injury or damage.

Your MEGA MOTION Hoverboard is designed for fun and efficient personal transportation, featuring a robust design, intelligent balancing system, Bluetooth speaker, and vibrant LED lights.

2. Sikkerhedsoplysninger

WARNING: Riding a hoverboard can be dangerous. Always wear appropriate safety gear, including a helmet, knee pads, and elbow pads. Adult supervision is recommended for children.

  • Brug altid hjelm og beskyttelsesudstyr (knæbeskyttere, albuebeskyttere, håndledsbeskyttere) når du kører.
  • Rid ikke under påvirkning af alkohol eller stoffer.
  • Sørg for, at hoverboardet er fuldt opladet før hver brug.
  • Overskrid ikke den maksimale vægtkapacitet på 100 kg.
  • Avoid riding on wet, slippery, or uneven surfaces.
  • Be aware of your surroundings and other people/obstacles.
  • Do not make sudden turns or rapid accelerations/decelerations.
  • Do not attempt stunts or jumps.
  • Keep fingers and all body parts clear of moving parts.
  • Store the hoverboard in a cool, dry place away from direct sunlight and extreme temperatures.
Two children wearing helmets and protective gear, riding MEGA MOTION hoverboards outdoors.

Image: Children demonstrating safe riding practices with helmets and protective gear.

3. Hvad er der i æsken

Upon opening your MEGA MOTION Hoverboard package, you should find the following items:

  • 1 x MEGA MOTION Hoverboard
  • 1 x oplader
  • 1 x Brugsanvisning (dette dokument)

4. Produktet er slutview og funktioner

The MEGA MOTION Hoverboard is a 6.5-inch self-balancing electric scooter designed for stability and enjoyment. Key features include:

  • Holdbar konstruktion: Made from high-quality ABS+PC material with 6.5-inch aluminum alloy wheels.
  • Non-slip Pedals: Unique non-slip pedal design for enhanced grip and safety.
  • Intelligent beskyttelsessystem: Features anti-shake, anti-fall, and anti-tilt mechanisms.
  • Lyse LED-forlygter: Provides improved visibility and safety during night riding.
  • Dobbeltmotorer: Ensures full power and stable performance.
  • Bluetooth-højttaler: Connect your smartphone to play music while riding.
  • Sikkerhedsfunktioner: Built-in battery overload protection, intelligent fault detection, low battery reminder, intelligent weight sensing, balance assist, explosion-proof tires, and overspeed warning.
A blue MEGA MOTION hoverboard with glowing LED wheels and lights, shown in motion.

Billede: Forside view of the MEGA MOTION Hoverboard, highlighting its LED lights and sleek design.

Diagram showing the dimensions and key components of the MEGA MOTION hoverboard, including fender, 6.5-inch double hub motors wheels, and non-slip foot pad.

Image: Product information diagram detailing the hoverboard's dimensions and main parts.

Nærbillede internt view of the MEGA MOTION hoverboard's dual motor intelligent drive system, showing gears and electrical components. Indicates 15-degree climbing capacity and max speed of less than 15 km/h.

Image: Illustration of the dual motor intelligent drive system, highlighting its power and climbing capacity.

5. Opsætning

5.1 Opladning af hoverboardet

Before first use, fully charge your hoverboard. The charging time is approximately 2-3 hours.

  1. Sørg for, at hoverboardet er slukket.
  2. Tilslut opladeren til en stikkontakt.
  3. Plug the charging cable into the charging port on the hoverboard.
  4. Indikatorlampen på opladeren skifter (f.eks. fra rød til grøn), når opladningen er færdig.
  5. Afbryd opladeren, når den er fuldt opladet.
Diagram illustrating the large capacity battery with stable output in the MEGA MOTION hoverboard. Shows engine safety control, built-in battery overload protection, 2-3 hour charging time, and 100KG max weight capacity.

Image: Battery and charging information, showing key specifications.

6. Betjeningsvejledning

6.1 First Ride and Balancing

The MEGA MOTION Hoverboard is designed for ease of learning, controlled by your center of gravity. Users can typically master the hoverboard in minutes.

  1. Placer hoverboardet på en flad, jævn overflade.
  2. Step onto one footpad, ensuring the hoverboard is stable.
  3. Træd hurtigt over på den anden fodpude med din anden fod.
  4. Stand upright and relax. Use slight shifts in your body weight to control movement.
  5. Lean slightly forward to move forward, and lean backward to slow down or move backward.
  6. For at dreje skal du trykke mere på fodpuden på den side, du vil dreje væk fra.
  7. For at stige af, skal du træde af med én fod ad gangen og sørge for, at hoverboardet forbliver stabilt.

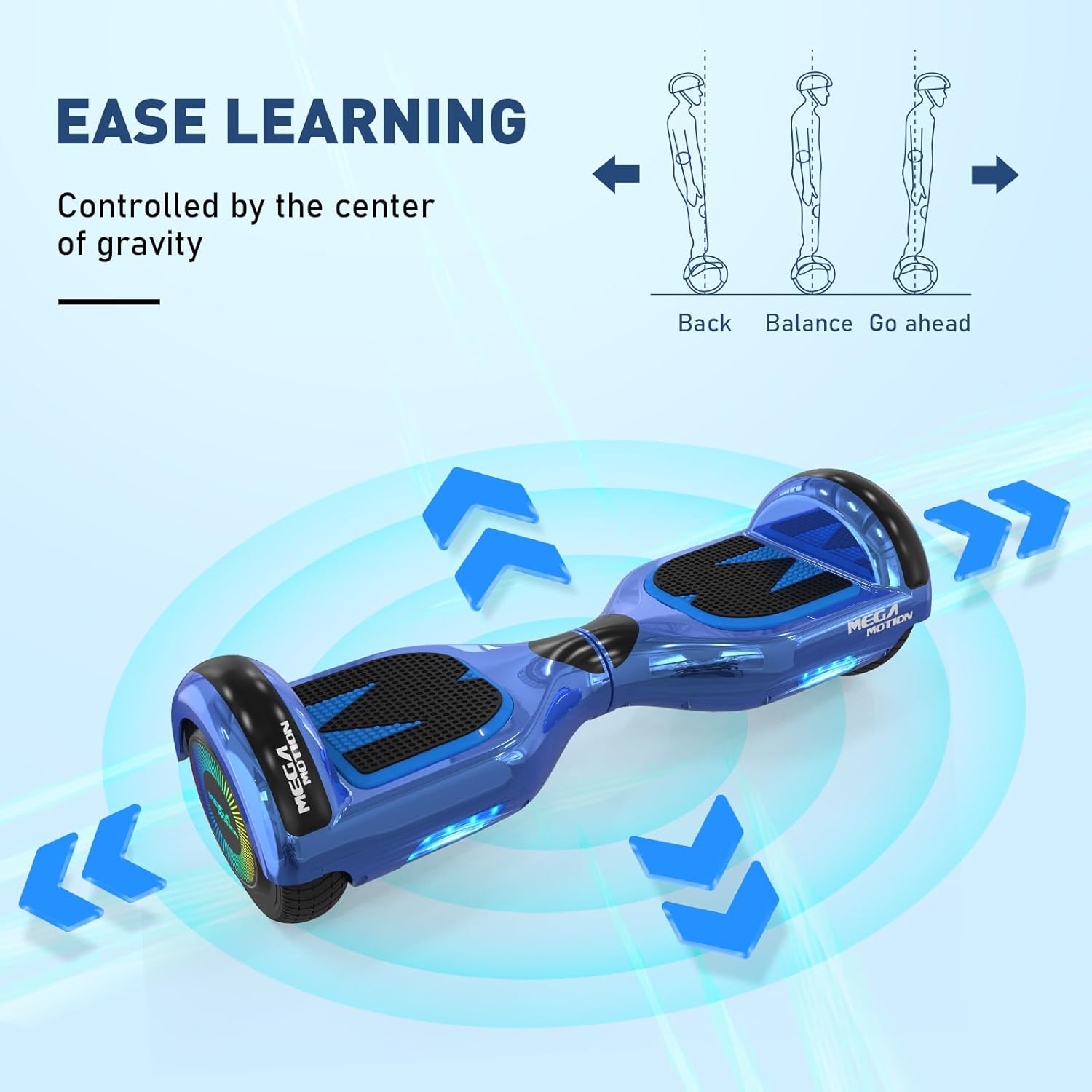

Diagram illustrating 'Ease Learning' for the MEGA MOTION hoverboard, showing how movement is controlled by shifting the center of gravity (back, balance, go ahead).

Image: Visual guide on how to control the hoverboard by shifting your center of gravity.

6.2 Bluetooth Speaker Functionality

Your hoverboard is equipped with a built-in Bluetooth speaker, allowing you to enjoy music while riding.

  1. Sørg for, at hoverboardet er tændt.
  2. Aktiver Bluetooth på din smartphone eller anden kompatibel enhed.
  3. Søg efter available Bluetooth devices and select the hoverboard (usually named 'Bluetooth' or similar).
  4. Once paired, you can play audio through the hoverboard's speaker.
A blue MEGA MOTION hoverboard with musical notes floating around it, and a smartphone displaying a music player interface, indicating Bluetooth speaker functionality.

Image: The hoverboard's integrated Bluetooth speaker feature.

6.3 Riding on Various Surfaces

The hoverboard is suitable for various road surfaces, but optimal performance and safety are achieved on smooth, flat ground.

A MEGA MOTION hoverboard superimposed over three different road surfaces: a paved path, an asphalt road, and a grassy area, indicating its suitability for various terrains.

Image: The hoverboard's adaptability to different road surfaces.

7. Vedligeholdelse

Proper maintenance will extend the life of your MEGA MOTION Hoverboard.

  • Rensning: Brug en blød, damp cloth to wipe down the hoverboard. Do not use harsh chemicals or abrasive cleaners. Do not wash with water directly.
  • Opbevaring: Store the hoverboard in a cool, dry place when not in use. Avoid direct sunlight and extreme temperatures.
  • Batteripleje: To avoid affecting battery life, charge the hoverboard at least once a month, even if it is not used for long periods of time.
  • Dæk inspektion: Regularly check the tires for wear and tear.
  • Generel inspektion: Before each use, check the status of the hoverboard for any loose parts or damage.

8. Fejlfinding

If you encounter issues with your hoverboard, refer to the following common problems and solutions:

ProblemMulig årsagLøsning
Hoverboard tænder ikkeLavt batteri; Tænd/sluk-knappen er ikke trykket korrekt indCharge the hoverboard; Press and hold the power button firmly.
Hoverboard shaking uncontrollablyCalibration issue; Faulty sensorRecalibrate the hoverboard (refer to manufacturer's specific calibration steps, usually involves powering off, placing on level ground, and holding power button); If issue persists, contact support.
Bluetooth forbinder ikkeBluetooth not enabled; Device too far; InterferenceEnsure Bluetooth is on for both devices; Move closer to the hoverboard; Try pairing in a different location.
Kort batterilevetidBattery not fully charged; Old battery; Improper charging habitsEnsure full charge; Follow monthly charging recommendation; Contact support if battery life significantly degrades.
Usædvanlige lyde under driftLøse komponenter; Indvendig skadeStop straks med at bruge og kontakt kundesupport.

9. Specifikationer

SpecifikationDetalje
ModelnummerHY-A03
Hjulstørrelse6.5 tommer
Indlæser rækkevidde20-100 kg
Max hastighed<15 km/h (Based on factory test)
Opladningstid2-3 timer
BatteritypeLithiumpolymer (1 påkrævet)
Materiale TypeABS+PC, Aluminum Alloy, Non-slip material
Produktdimensioner58.5 x 19 x 17 cm
Varens vægt6.83 kg
Særlige funktionerLight Up Wheel, LED Light, Non-Slip Deck, Built-In Bluetooth speaker, Long Battery Life

10. Garanti og support

For any questions during purchase or use, please contact MEGA MOTION customer support. Our team is dedicated to providing professional answers and assistance.

Se venligst din købsdokumentation eller sælgers webwebstedet for specifikke garantivilkår og kontaktoplysninger.
