1. Vigtige sikkerhedsoplysninger
Please read and understand all instructions before using this heater. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Professionel installation påkrævet: This heater must be hardwired to a single-phase 240V AC connection by a licensed electrician in accordance with all national and local electrical codes. A power cord is not included.
- Elektriske krav: The GH15K Smart requires an 80 AMP or larger circuit breaker and 4 AWG or larger copper wire, rated at 167°F (75°C) or higher. Use copper wire ONLY.
- Frirum: Maintain minimum distances from walls, ceiling, and floor as specified in the installation section to prevent fire hazards.
- Overophedningsbeskyttelse: The heater is equipped with an automatic shut-off feature to prevent overheating. If activated, allow the unit to cool before restarting.
- ETL opført: This product is ETL-listed for safe use, ensuring it meets recognized safety standards.
- Do not use this appliance outdoors or in areas with flammable substances.
2. Pakkens indhold
Kontroller, at alle varer er til stede og ubeskadigede, når du åbner pakken.
- 1 x TURBRO GH15K Smart 15,000W Electric Garage Heater
- 1 x fjernbetjening
- Mounting Hardware (Lag bolts, expansion bolts)
- Brugermanual
3. Specifikationer
| Mærke | TURBRO |
| Modelnummer | GH15K Smart |
| Strømudgang | 15,000 W / 51,194 BTU |
| Voltage | 240 volt (AC) |
| Ampslette | 80 Amps (requires 80 AMP or larger circuit breaker) |
| Varmedækning | 1,600-2,500 kvadratfod |
| Temperaturområde | 45-95°F |
| Timer indstillinger | 1-12 timer |
| Monteringstype | Ceiling Mount / Wall Mount |
| Produktdimensioner | 21.8" D x 20.5" B x 23.4" H |
| Varens vægt | 47.4 pund |
| Særlige funktioner | Adjustable Temperature, Fast Heating, On/Off Timer, Remote Control, Wi-Fi Enabled |
The GH15K Smart is designed to provide efficient heating for large areas, distributing warmth rapidly with its integrated fan. Its smart features allow for convenient control and customizable heating.
Image: This diagram illustrates the heating coverage capabilities of various TURBRO garage heater models, including the GH15K Smart, which covers 1,600-2,500 sq. ft.
4. Installation
4.1 Montering af varmelegemet
The TURBRO GH15K Smart heater can be mounted on a ceiling or wall. The adjustable mounting angles and louvers allow for precise direction of heated air. Ensure the mounting structure can reliably support the weight of the heater.

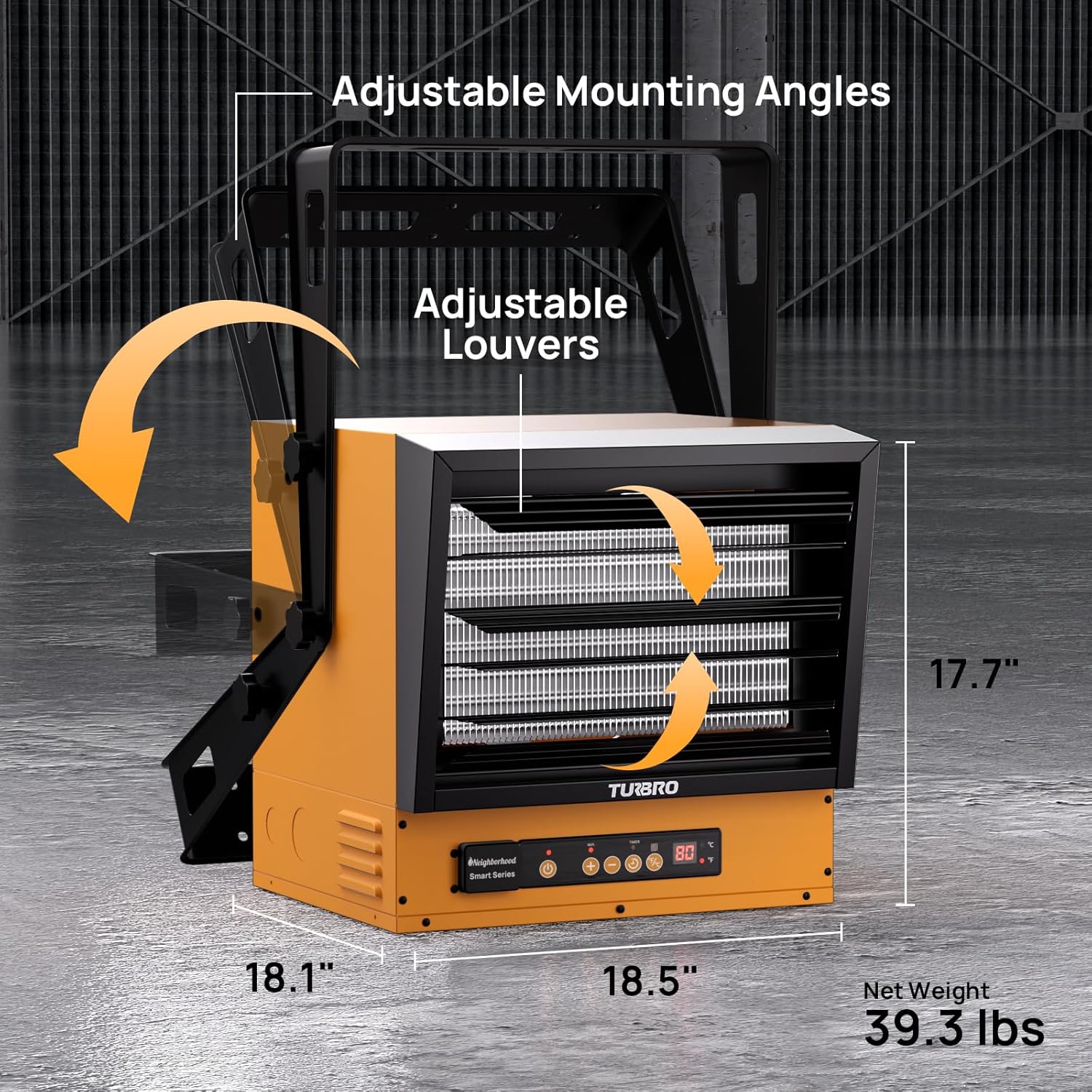

Image: This image highlights the adjustable mounting angles and louvers on the TURBRO GH15K Smart heater, allowing users to direct heat effectively.
4.2 Elektriske ledninger
ADVARSEL: Electrical installation must be performed by a licensed electrician in accordance with all national and local electrical codes. Failure to do so may result in fire, electric shock, or serious injury.
- The heater requires a single-phase 240V AC connection.
- A power cord is NOT included.
- Connect to an 80 AMP eller større afbryder.
- Use 4 AWG or larger copper wire, rated at 167°F (75°C) or higher.
- Ensure all wires are securely tightened.
Image: This diagram illustrates the hardwired installation process for the GH15K Smart heater, detailing connections to a circuit breaker panel and specifying wire gauges and types.
5. Betjeningsvejledning
5.1 Control Panel and Remote Operation
The heater can be operated directly from its integrated control panel or using the included remote control. The control panel features buttons for power, temperature adjustment, and timer settings.
Image: This image displays the heater's control panel with its buttons and the handheld remote control, offering multiple ways to manage settings.
5.2 WiFi App Control
For enhanced convenience, the GH15K Smart heater is WiFi-enabled, allowing you to control it remotely via a dedicated smartphone application. This feature provides flexibility to adjust settings from anywhere within your home's WiFi range.
Image: This image shows the smartphone app interface for the TURBRO GH15K Smart heater, demonstrating remote control capabilities for temperature and timer settings.
5.3 Temperatur- og timerindstillinger
The heater offers a wide temperature range from 45°F to 95°F, allowing you to set your desired comfort level. The extended timer options, from 1 to 12 hours, provide flexibility for scheduled operation and energy efficiency.
Image: This graphic highlights the enhanced timer and temperature setting options available on the TURBRO Smart Series heaters, including the GH15K Smart.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din varmeovn. Afbryd altid strømmen, før du udfører nogen form for vedligeholdelse.
- Rensning: Rengør jævnligt varmelegemets yderside med en blød, tør klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Luftindtag/-udløb: Ensure the air intake and outlet grilles are free from dust and debris. Use a vacuum cleaner with a brush attachment to gently clean these areas.
- Interne komponenter: Internal cleaning should only be performed by qualified service personnel.
7. Fejlfinding
If your heater is not operating correctly, consult the following common issues before contacting support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Varmeapparatet tænder ikke | No power, circuit breaker tripped, incorrect wiring. | Check power supply, reset circuit breaker, verify wiring connections (consult electrician). |
| Heater stops unexpectedly | Overheat protection activated, timer expired. | Allow unit to cool down, check for obstructions, verify timer settings. |
| Utilstrækkelig opvarmning | Temperature setting too low, large area, poor insulation. | Increase temperature setting, ensure proper insulation, consider additional heat circulation. |
8. Garanti og support
The TURBRO GH15K Smart Electric Garage Heater comes with a 1 års begrænset garanti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
For warranty claims, technical support, or general inquiries, please contact TURBRO customer service. Keep your proof of purchase for warranty validation.
Besøg embedsmanden TURBRO Store for mere information og produktregistrering.
