Indledning
Thank you for choosing the TORRAS MiniMag Power Bank. This ultra-slim, 10,000mAh magnetic wireless portable charger is designed to provide efficient and convenient power for your compatible devices. Please read this manual carefully to ensure proper use and maintenance of your power bank.

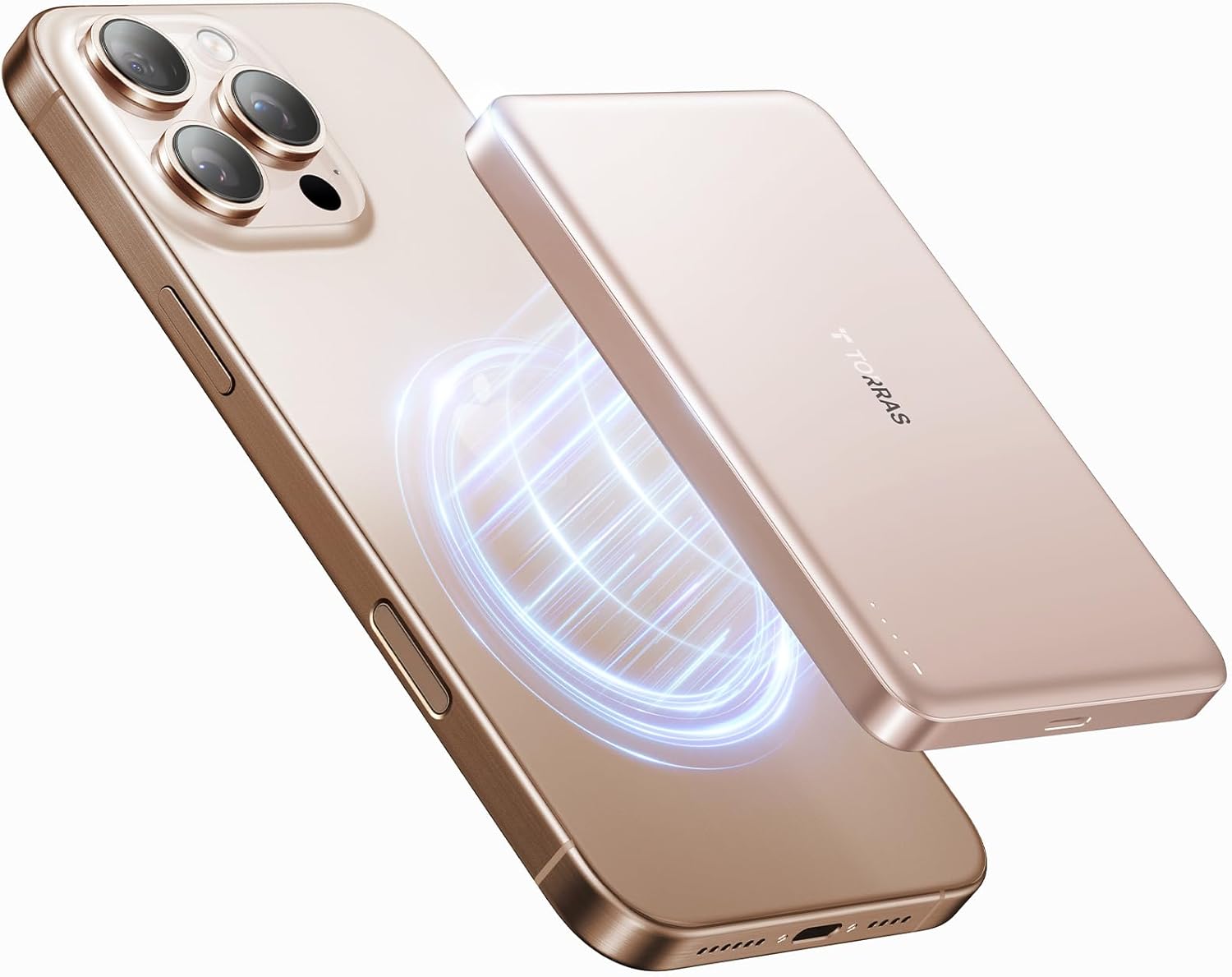

Figure 1: TORRAS MiniMag Power Bank in use with a smartphone.
Hvad er der i æsken
- 10,000mAh magnetisk powerbank
- USB-C ladekabel
- Brugermanual
Nøglefunktioner
- Ultra-Thin and High Capacity: På trods af sin slanke profile (0.5 inches) and light weight (6.4 ounces), the power bank offers a 10,000mAh capacity, providing ample power til daglig brug.
- Magnetic Functionality: Features powerful magnetic attraction for secure attachment and wireless charging, compatible with Mag-safe technology for iPhone 12/13/14/15/16 series.
- Super hurtig opladning: Supports 22.5W wired fast charging via USB-C and 15W wireless fast charging (7.5W for iPhone), ensuring quick power replenishment for your devices.
- Long-Lasting Durability & Full Protection: Built with high-quality lithium-polymer battery cells, designed for over 500 charge cycles and equipped with advanced safety features like NTC temperature control and overcharge protection.
Figure 2: Compact and lightweight design for easy portability.
Figure 3: Secure magnetic attachment for convenient charging.
Figure 4: Enhanced charging efficiency with NTC Temperature Control Chip.
Figure 5: Mac-grade heat dissipation material for safe operation.
Opsætning
Opladning af Power Bank
Before first use, fully charge your TORRAS MiniMag Power Bank. Use the provided USB-C cable and a compatible power adapter (not included) to charge the power bank.
- Tilslut den ene ende af USB-C-kablet til powerbankens USB-C-port.
- Connect the other end of the USB-C cable to a USB-C power adapter (minimum 5V=1A/5W recommended).
- The indicator lights on the power bank will illuminate to show the charging progress. All four lights will be solid when fully charged.
Figure 6: Charging the power bank via USB-C.
Betjeningsvejledning
Wireless Charging (Mag-safe Compatible)
- Ensure your iPhone (12 series or newer) or Mag-safe compatible case is clean and free of debris.
- Align the TORRAS MiniMag Power Bank with the Mag-safe area on the back of your iPhone. The magnets will snap it into place.
- Charging will typically begin automatically. If not, press the power button once to initiate charging.
Kablet opladning (USB-C)
- Tilslut den ene ende af USB-C-kablet til powerbankens USB-C-port.
- Tilslut den anden ende af USB-C-kablet til din enheds opladningsport.
- Opladningen begynder automatisk.
Kontrol af batteriniveau
Press the power button once to check the remaining battery level indicated by the four LED lights:
- Four lights: 75-100%
- Three lights: 50-75%
- Two lights: 25-50%
- One light: 0-25%
Low-Current Mode (for small devices like earbuds)
To activate low-current mode, press and hold the power button for 2 seconds. This mode is suitable for charging low-power devices. To exit low-current mode, press and hold the power button for another 2 seconds.
Opretholdelse
- Hold powerbanken væk fra ekstreme temperaturer, direkte sollys og væsker.
- Rengør overfladen med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende materialer.
- Opbevares på et køligt, tørt sted, når det ikke er i brug i længere perioder.
- Undgå at tabe eller udsætte powerbanken for kraftige stød.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Powerbanken oplader ikke enheden. | Low power bank battery; incorrect connection; device not compatible. | Charge the power bank; ensure cables are securely connected; verify device compatibility. |
| Langsom opladning. | Using a non-fast charging adapter/cable; device in heavy use; high ambient temperature. | Use a fast charging adapter/cable; reduce device usage during charging; ensure proper ventilation. |
| Blue light flashing rapidly (2 times per second). | Foreign object detected between charger and phone. | Remove any foreign objects (e.g., metal, plastic film) from the charging surface and try again. |
| Power bank not charging itself. | Faulty cable or adapter; power bank port issue. | Try a different USB-C cable and power adapter. If the issue persists, contact customer support. |
Specifikationer
| Modelnummer: | PB4A |
| Batterikapacitet: | 10,000 mAh |
| Nominel kapacitet: | 6,000 mAh |
| Produktdimensioner: | 4.01 x 2.5 x 0.5 tommer |
| Varens vægt: | 6.4 ounce |
| Max input: | 18W (5V/3A) |
| Max Output (Wireless): | 15W (7.5W for iPhone) |
| Max Output (Wired): | 22.5W |
| Magnetisk kraft: | 15 Newton |
| Materiale: | Magnesium aluminiumslegering |
| Farve: | Ørken Titanium |
| Batterier: | 1 Lithium Ion batteri påkrævet (medfølger) |
Garanti og support
The TORRAS MiniMag Power Bank comes with an 18-month warranty and lifetime professional support. For any issues or inquiries, please contact TORRAS customer service. The product has FCC, UL, TUV, DOE, CEC, UN, and RoHS certifications.
For support, please visit the official TORRAS webwebstedet eller kontakt deres kundeservicekanaler.
