ROCAM Vækkeurradio med Bluetooth-højttaler og USB-opladning, model 1025pro brugermanual

1. Produktet er slutview

The ROCAM 1025pro is a versatile alarm clock radio designed for modern living spaces. It integrates an FM radio, Bluetooth speaker, and night light, along with convenient charging ports and essential alarm functions.

Billede 1.1: Forside view of the ROCAM 1025pro Alarm Clock Radio, displaying the time and various icons.

Nøglefunktioner:

• Kompakt design: Stylish and modern fabric design suitable for any room.
• Klar digital skærm: Large, easy-to-read numbers with adjustable brightness (5 levels).
• FM-radio: Auto-scan and save up to 20 preset stations (87.5MHz to 108.0MHz).
• Bluetooth-højttaler: Seamless pairing for audio streaming with 16 volume settings.
• Dobbelte alarmtilstande: Wake up to a classic beep or your favorite radio station.
• Natlys: Integrated warm night light function.
• Opladningsporte: USB and Type-C ports for device charging.
• Batteri-sikkerhedskopi: Maintains time and settings during power outages (requires plug-in for full function).
• Brugervenlig kontrol: Intuitive buttons and rotary knobs for easy operation, including DST mode.

Image 1.2: The ROCAM 1025pro highlighting its 3-in-1 functionality: Alarm Clock, FM Radio, and Bluetooth Speaker, shown on a bedside table.

2. Pakkens indhold

Tjek venligst pakken for følgende varer:

• ROCAM 1025pro Alarm Clock Radio
• DC 5V/2A strømadapter
• 60" USB-DC Power Cable (Type-C interface)
• CR2032 Button Battery (pre-installed for backup)
• Brugervejledning (dette dokument)

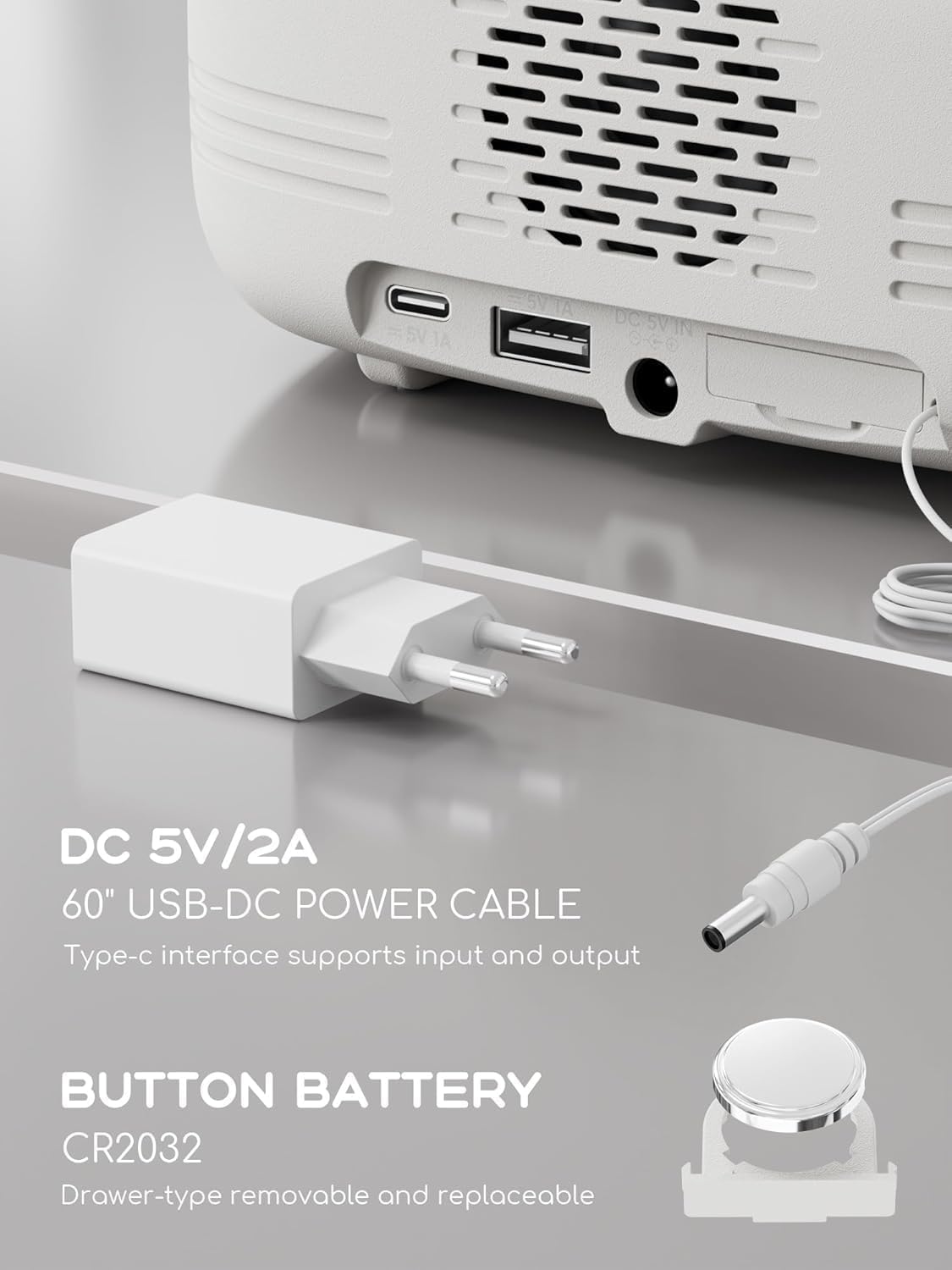

Billede 2.1: Bagside view of the ROCAM 1025pro showing the DC 5V/2A power input, USB-A, and Type-C ports, alongside the power adapter and CR2032 button battery.

3. Opsætning

3.1 Strømtilslutning

1. Connect the provided USB-DC power cable to the DC 5V IN port on the back of the alarm clock.
2. Sæt strømadapteren i en almindelig stikkontakt.
3. Displayet lyser op, hvilket indikerer, at enheden er tændt.

Note: The CR2032 button battery is pre-installed and provides backup power for time and settings during power outages. The clock requires continuous plug-in power for full functionality.

3.2 Indstilling af starttidspunkt

Upon first power-on or after a prolonged power disconnection without battery backup, you may need to set the time.

1. Press and hold the "Time/12-24" button (usually located on the top panel) until the hour digits flash.
2. Rotate the "Time/Volume" knob (typically on the right side) to adjust the hour.
3. Press the "Time/12-24" button again to switch to minute adjustment.
4. Rotate the "Time/Volume" knob to adjust the minutes.
5. Press the "Time/12-24" button once more to confirm the time.
6. To switch between 12-hour and 24-hour format, briefly press the "Time/12-24" button when the time is displayed.

4. Betjeningsvejledning

4.1 Alarmindstilling

The device supports two independent alarms.

1. Press the "Alarm" button (usually on the top panel) to select Alarm 1 or Alarm 2. The corresponding alarm icon will flash.
2. Press and hold the "Alarm" button until the hour digits flash.
3. Rotate the "Time/Volume" knob to adjust the alarm hour.
4. Press the "Alarm" button again to switch to minute adjustment.
5. Rotate the "Time/Volume" knob to adjust the alarm minutes.
6. Press the "Alarm" button again to select the alarm source (Buzzer or FM Radio).
7. Rotate the "Time/Volume" knob to choose. If FM Radio is selected, the last tuned station will be used.
8. Press the "Alarm" button once more to confirm and activate the alarm. The alarm icon will remain lit.
9. To deactivate an alarm, press the "Alarm" button until the alarm icon disappears.

Image 4.1: The ROCAM 1025pro displaying an alarm icon, indicating an active alarm setting.

4.2 Snooze -funktion

When the alarm sounds, press the "SNOOZE/LIGHT" button to activate the snooze function. The alarm will pause for approximately 9 minutes and then sound again.

4.3 Skærmdæmper

To adjust the display brightness, repeatedly press the "SNOOZE/LIGHT" button when the alarm is not sounding. There are 5 levels of brightness, from very bright to off.

4.4 FM-radiofunktion

1. Press the "Power/Mode" button to switch to FM Radio mode. The frequency will be displayed.
2. Automatisk scanning: Press and hold the "Scan" knob (usually on the right side) to automatically scan and save available FM stations. Up to 20 stations can be stored.
3. Manuel indstilling: Briefly rotate the "Scan" knob to manually tune the frequency.
4. Forudindstillede stationer: Press the "Preset/Pair" button to cycle through saved preset stations.
5. Lydstyrkejustering: Rotate the "Time/Volume" knob to adjust the radio volume (16 levels).

Image 4.2: The ROCAM 1025pro displaying an FM radio frequency, indicating FM radio mode is active.

4.5 Bluetooth-højttalerparring

1. Press the "Power/Mode" button to switch to Bluetooth mode. The Bluetooth icon will flash, indicating it's ready for pairing.
2. On your mobile device, enable Bluetooth and search for "ROCAM 1025pro" (or similar name).
3. Select the device to pair. Once connected, the Bluetooth icon on the clock display will stop flashing and remain solid.
4. You can now stream audio from your device to the alarm clock.
5. Lydstyrkejustering: Rotate the "Time/Volume" knob to adjust the Bluetooth audio volume (16 levels).

Billede 4.3: En eksploderet view of the ROCAM 1025pro, showing the internal speaker components and highlighting its Bluetooth capabilities.

4.6 Natlysfunktion

The device features a warm night light. To activate or deactivate it, locate the dedicated night light button (if available, otherwise it might be integrated with the SNOOZE/LIGHT button or a separate touch area). The image suggests a touch-sensitive bar below the display.

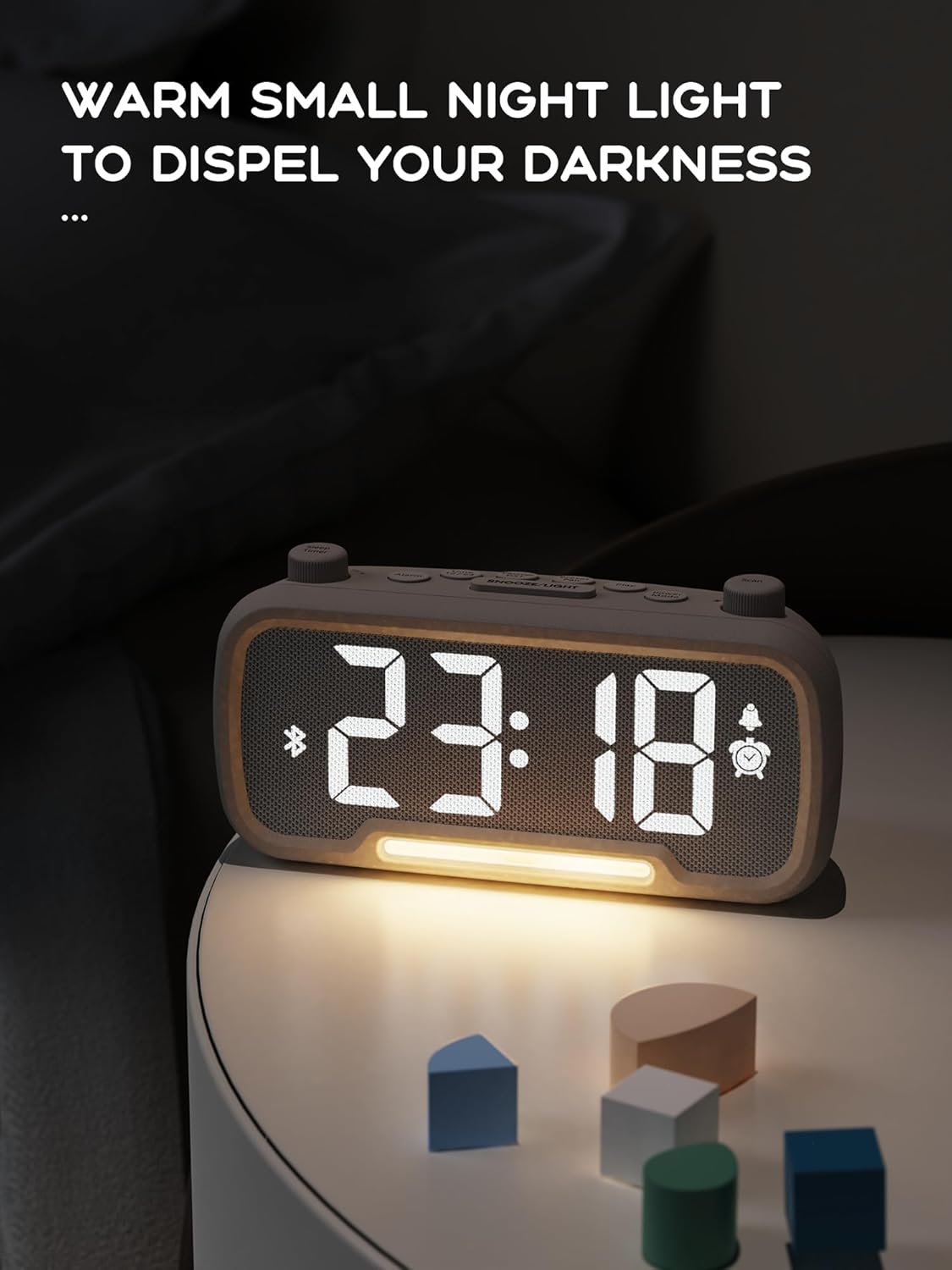

Image 4.4: The ROCAM 1025pro with its warm night light illuminated, providing ambient lighting in a dark room.

4.7 USB and Type-C Charging Ports

The alarm clock is equipped with a standard USB-A port and a Type-C port on the back for charging external devices.

• Connect your device's charging cable to the appropriate USB-A or Type-C port.
• Ensure the alarm clock is powered on and connected to a wall outlet for charging functionality.

4.8 Sommertid (DST)

To enable or disable Daylight Saving Time, briefly press the "DST" button (if available, or a combination of buttons as per specific model design). This will adjust the time by one hour forward or backward.

5. Vedligeholdelse

5.1 Rengøring

• Frakobl strømadapteren før rengøring.
• Brug en blød, tør klud til at aftørre enhedens ydre.
• Do not use liquid cleaners, aerosols, or abrasive materials, as these may damage the surface.

5.2 Udskiftning af batteri (CR2032)

The CR2032 button battery provides backup for time and settings. If the time and settings are lost during a brief power outage, the battery may need replacement.

1. Locate the battery compartment on the back or bottom of the unit. It is typically a drawer-type compartment.
2. Open the compartment using a small screwdriver or by sliding the tray out.
3. Fjern det gamle CR2032-batteri.
4. Indsæt et nyt CR2032-batteri med den positive (+) side opad.
5. Luk batterirummet forsvarligt.
6. Bortskaf det gamle batteri forsvarligt i henhold til lokale regler.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

ROCAM products are designed for reliability and performance. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or the official ROCAM webwebsted.

Gem venligst dit købsbevis for garantikrav.
