1. Produktet er slutview
The Bonacell 60V 9Ah Flexvolt Battery is a high-capacity lithium-ion replacement battery designed for compatibility with a wide range of Dewalt 20V and 60V cordless power tools. This battery provides extended runtime and consistent power output for demanding applications.
Image: Two Bonacell 60V 9Ah Flexvolt batteries, showcasing their design and 20V/60V dual voltage evne.
Key features include a 9000mAh capacity for long-lasting performance, no memory effect, and low self-discharge. The integrated 3-LED power indicator allows for easy monitoring of remaining charge levels. The battery is constructed with an APS+PC case for durability and features a precise interface design for secure connection to tools and chargers.
Billede: Nærbillede view highlighting the battery's premium APS+PC case, precise interface design, and the 3-LED power indicator displaying charge levels.
2. Specifikationer
| Kapacitet | 9000mAh (9.0Ah) |
| Voltage | 20V/60V (Flexvolt) |
| Batteritype | Lithium-ion |
| Modelnummer | A |
| Dimensioner (L x B x H) | 3.7 x 3.7 x 5.6 tommer |
| Vægt | 4.44 pund |
| Kompatibilitet | Dewalt 20V/60V cordless tools (e.g., DCB609, DCB606, DCB612, DCB206, DCB205, DCB204, DCB203, DCB201, DCB180) and original/fast chargers (e.g., DCB115, DCB118, DCB104, DCB107, DCB112). |
Image: Visual representation of the 9000mAh Lithium Battery and its compatibility with a charger and power tool.
3. Sikkerhedsoplysninger
Always observe the following safety precautions when handling, charging, or using the Bonacell Flexvolt battery:
- Nedsænk ikke batteriet i vand eller andre væsker.
- Do not store or use the battery in extreme temperatures (above 104°F / 40°C or below 32°F / 0°C).
- Kortslut ikke batteripolerne.
- Do not disassemble, crush, or incinerate the battery.
- Hold batteriet væk fra børn og kæledyr.
- Use only compatible chargers specified for Dewalt 20V/60V Flexvolt batteries.
- If the battery shows signs of damage, leakage, or overheating, discontinue use immediately and dispose of it properly.
- Undgå at tabe batteriet eller udsætte det for kraftige stød.
The Bonacell battery incorporates multiple safety protection features, including:
- Over-bindtage Beskyttelse: Prevents charging beyond safe voltage niveauer.
- Overstrømsbeskyttelse: Beskytter mod for højt strømforbrug.
- Overophedningsbeskyttelse: Monitors temperature to prevent overheating during use or charging.
- Kortslutningsbeskyttelse: Afbryder automatisk strømmen i tilfælde af kortslutning.
- Beskyttelse mod overafladning: Prevents the battery from being discharged too deeply, preserving battery life.
- Overopladningsbeskyttelse: Sørger for, at batteriet ikke overoplades.

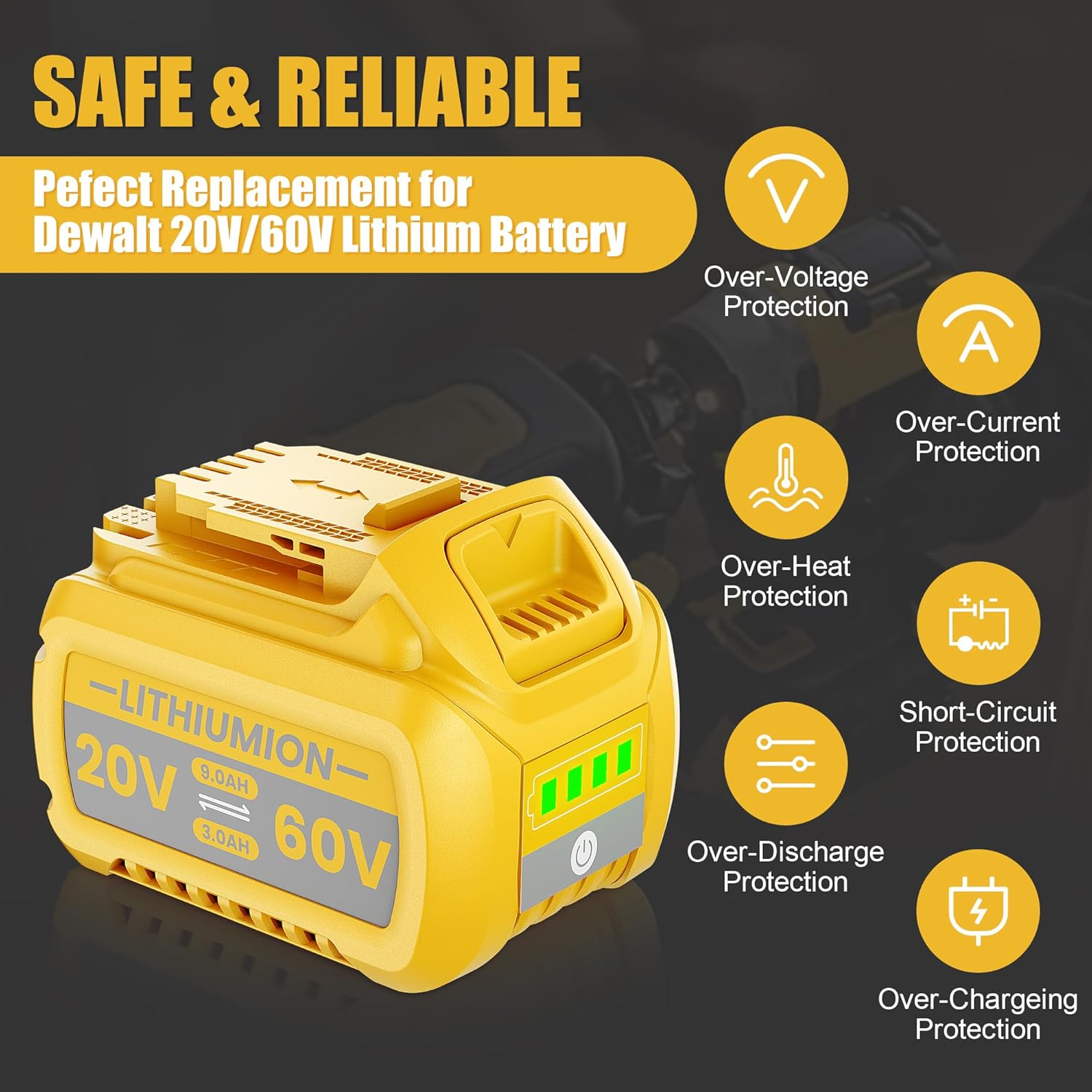

Image: A Bonacell battery surrounded by icons representing its multiple safety features, such as over-voltage, over-current, over-heat, short-circuit, over-discharge, and over-charge protection.
4. Opsætning og installation
Installing the Bonacell Flexvolt battery into your compatible Dewalt power tool is a straightforward process.
- Ensure the power tool is turned off and disconnected from any power source.
- Align the battery with the battery slot on your Dewalt tool. The battery is designed for a precise fit.
- Slide the battery firmly into the tool until it clicks securely into place. A click indicates proper installation.
- To remove the battery, press the battery release button(s) on the tool and slide the battery out.
Image: A two-part diagram illustrating the ease of installation: top shows the battery sliding into a drill, bottom shows the battery connected to a charger.
5. Betjeningsvejledning
5.1 Opladning af batteriet
Before first use, fully charge the battery. Use only compatible Dewalt 20V/60V battery chargers.
- Tilslut opladeren til en stikkontakt.
- Slide the Bonacell battery onto the charger until it clicks into place.
- Opladerens indikatorlamper viser opladningsstatus. Se opladerens manual for specifikke lysmønstre.
- Når det er fuldt opladet, skal du fjerne batteriet fra opladeren.
The 3-LED indicator on the battery provides a visual representation of the remaining charge:
- 3 grønne lysdioder: 75% - 100% opladning
- 2 grønne lysdioder: 50% - 75% opladning
- 1 grøn LED: 25% - 50% opladning
- 1 Flashing Green LED: 0% - 25% opladning (genoplades snart)
5.2 Using the Battery with Power Tools
Once installed, the battery powers your compatible Dewalt 20V or 60V cordless tools. The Flexvolt technology automatically adjusts the voltage output based on the tool's requirements.
- Sørg for, at batteriet er fuldt opladet for optimal ydeevne.
- Operate your power tool according to its specific user manual.
- Monitor the battery's LED indicator during prolonged use to anticipate when a recharge is needed.
- For heavy-duty applications, the 9.0Ah capacity provides extended runtime compared to lower capacity batteries.
Image: A Bonacell battery shown alongside various Dewalt 20V/60V cordless power tools, including a circular saw, blower, drill, grinder, and reciprocating saw, illustrating its wide compatibility.
6. Vedligeholdelse
Proper maintenance extends the life and performance of your Bonacell Flexvolt battery.
- Rensning: Keep the battery terminals clean and free of dust and debris. Use a dry, soft cloth to wipe the battery. Do not use solvents or abrasive cleaners.
- Opbevaring:
- Store batteries in a cool, dry place, away from direct sunlight and moisture.
- For long-term storage, it is recommended to store the battery at approximately 50% charge to optimize battery health.
- Avoid storing batteries in extreme temperatures.
- Opladningscyklusser: While lithium-ion batteries do not suffer from memory effect, regular charging and discharging within their operational limits contribute to longevity.
- Inspektion: Periodically inspect the battery for any signs of physical damage, cracks, or swelling. If any damage is observed, discontinue use.
Image: A comparative graph illustrating the superior capacity retention of Bonacell batteries over multiple charge cycles compared to other batteries, emphasizing long duration and good safety performance.
7. Fejlfinding
This section addresses common issues you might encounter with your Bonacell Flexvolt battery.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Batteriet oplades ikke. |
|
|
| Værktøjet fungerer ikke med batteri. |
|
|
| Battery overheating during use/charging. |
|
|
If you experience issues not covered here, or if solutions do not resolve the problem, please contact Bonacell customer support.
8. Garanti og support
Bonacell stands behind the quality of its products. If you are not satisfied with your purchase for any reason, please contact us. Our primary goal is customer satisfaction, and we are committed to resolving any issues you may encounter.
For support inquiries, please refer to the contact information provided with your purchase or visit the official Bonacell store on Amazon:
