XIWBSY T08-FR Projektor Brugermanual

Indledning

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your XIWBSY T08-FR Projector. Please read this manual thoroughly before using the projector to ensure proper function and to maximize your viewoplevelse. Gem denne vejledning til fremtidig reference.

Image: The XIWBSY T08-FR Projector displaying a high-definition image, highlighting its 4K support, 180° rotation, 30000 Lumen brightness, and Android 12 operating system.

Produkt overview

Nøglefunktioner

• 180° drejelig stativ: Features an innovative, detachable stand allowing projection from various angles (wall, table, ceiling, outdoor).
• Android 12 OS: Integrated operating system providing access to over 8,000 applications, including Netflix, YouTube, Prime Video, and Hulu.
• WiFi Mirroring: Supports screen mirroring for iOS and Android devices.
• High Definition Display: Native 1080P resolution, 4K supported, 30000 Lumen brightness, 20000:1 contrast ratio, and HDR10+ for enhanced image quality.
• Stor projektionsstørrelse: Up to 300 inches with 50% to 100% zoom function.
• Immersive Audio: Equipped with dual 15W stereo speakers for 360° 3D stereo Hi-Fi audio. Can connect to external Bluetooth speakers.
• Avanceret forbindelse: Dual-band 5G+2.4G WiFi and Bluetooth 5.2 for stable and fast connections.
• Office Suite: Integrated software for viewing PPT, Excel, and Word documents.
• Alsidig montering: Supports 360° image flip for front, rear, and ceiling projection.

Image: This visual highlights the projector's advanced 8-layer lens system, 30000 Lumen brightness, 50000-hour lamp life, and superior contrast, contributing to its high-definition image quality.

Komponenter og porte

Familiarize yourself with the projector's components and connection ports.

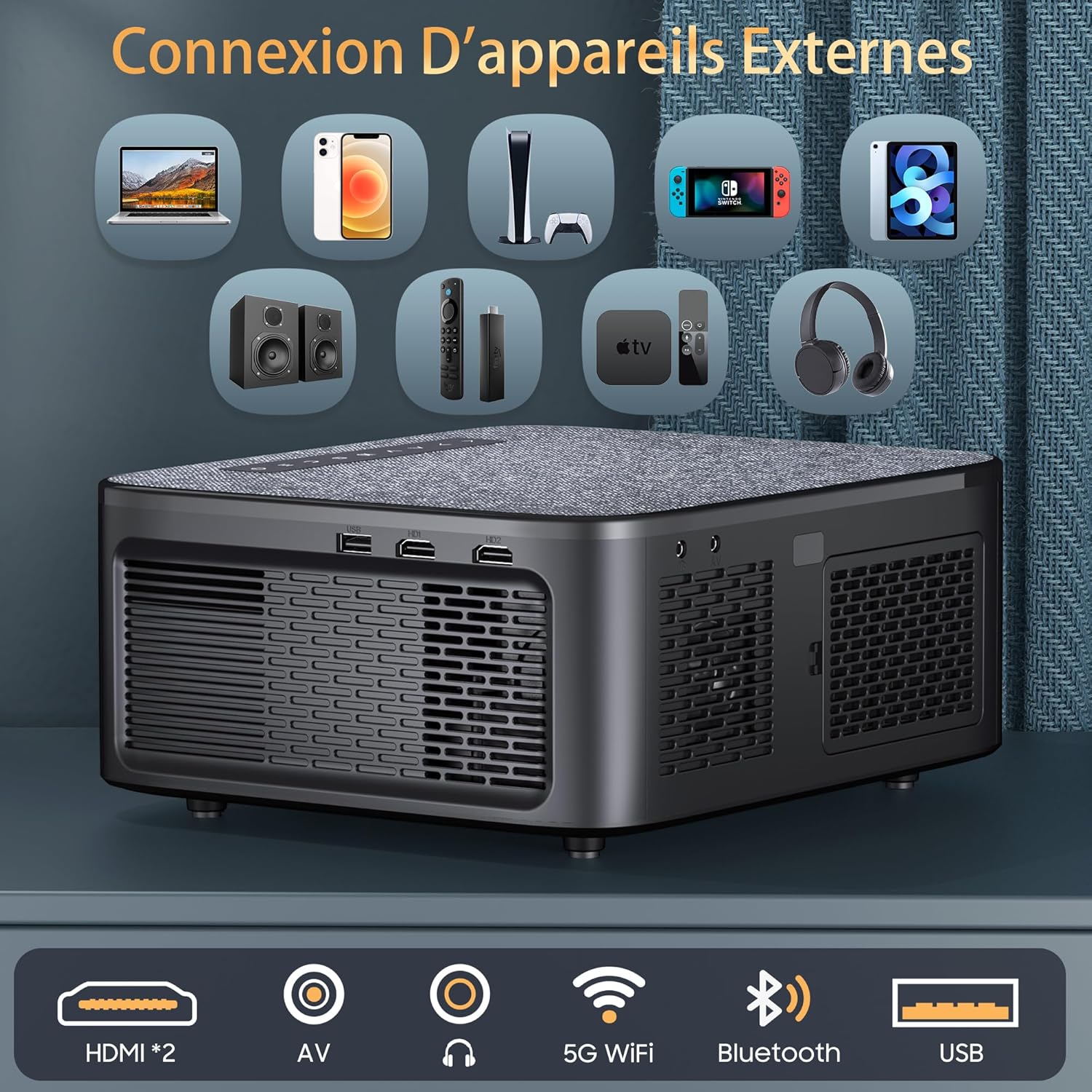

Image: Rear panel of the projector, illustrating the available connectivity options including two HDMI ports, AV input, audio output, 5G WiFi, Bluetooth, and USB port.

• HDMI-porte (x2): For connecting devices such as laptops, game consoles, and streaming sticks.
• USB-port: Til tilslutning af USB-drev for at afspille medier files.
• AV-indgang: For connecting older devices with composite video and stereo audio output.
• Lydudgang: Til tilslutning af eksterne lydsystemer eller hovedtelefoner.
• Strømindgang: Til tilslutning af strømadapteren.
• Fokusring: Manual adjustment for image clarity.
• Keystone-korrektion: Manual or automatic adjustment for image shape.

Opsætning

1. Fysisk placering

Place the projector on a stable, flat surface or mount it using a compatible ceiling mount. Ensure adequate ventilation around the projector.

Image: The projector positioned on a bedside table, utilizing its 180-degree rotatable stand to project an image onto the ceiling, demonstrating flexible viewing vinkler.

• The 180° rotatable and detachable stand allows for flexible projection angles, including walls, tables, and ceilings.
• For ceiling mounting, the projector supports 360° image flip.

2. Strømtilslutning

1. Tilslut strømadapteren til projektorens strømindgang.
2. Sæt strømadapteren i en stikkontakt.
3. Tryk på tænd/sluk-knappen på projektoren eller fjernbetjeningen for at tænde den.

3. Indledende konfiguration

1. Upon first power-on, follow the on-screen prompts to select your preferred language.
2. Connect to a Wi-Fi network: Navigate to Settings > Network > Wi-Fi and select your network. Enter the password if required.

Betjeningsvejledning

1. Grundlæggende betjening

• Tænd/sluk: Tryk på tænd / sluk -knappen på projektoren eller fjernbetjeningen.
• Fokusjustering: Drej fokusringen på projektorlinsen, indtil billedet er klart.
• Keystone-korrektion: Use the remote control or on-screen menu to adjust the image shape (4D/4P keystone correction, auto-vertical correction up to ±50°).

Image: Visual representation of the projector's keystone correction capabilities, including 4D/4P correction, auto-vertical adjustment, and zoom function, showing how the image can be adjusted for various screen sizes and angles.

2. Inputkilder

• HDMI: Connect your device (laptop, game console, etc.) to an HDMI port. Select the corresponding HDMI input from the projector's source menu.
• USB: Insert a USB drive into the USB port. The projector will typically prompt you to open the media player.
• AV: Connect devices using an AV cable. Select AV input from the source menu.

3. Trådløs forbindelse

• Wi-Fi (5G+2.4G): For internet access and streaming. Configure in Settings > Network > Wi-Fi.
• Bluetooth 5.2: For connecting external audio devices (headphones, speakers). Go to Indstillinger > Bluetooth, enable Bluetooth, and pair with your device. Note: Bluetooth only supports audio transmission, not video.

Image: The projector showcasing its Bluetooth 5.2 bidirectional connectivity for external audio devices and its internal dual Hi-Fi speakers, emphasizing sound quality.

4. Smart Features (Android 12 & Apps)

The projector runs on Android 12, providing access to a variety of applications.

Image: A projected display showing the Android 12 interface with various streaming and utility applications such as YouTube, Netflix, Hulu, and Aptoide, indicating the projector's smart capabilities.

• Adgang til apps: From the home screen, navigate to the desired application (e.g., Netflix, YouTube).
• Skærmspejling: To mirror your smartphone screen, activate the WiFi mirroring function on the projector and connect your iOS/Android device. Note: Due to HDCP copyright protection, some protected content may not have sound or image during screen mirroring.
• Office Suite: Use the integrated office suite to open and view PPT, Excel, and Word documents directly.

Image: The projector wirelessly mirroring content from a smartphone, illustrating its 5G+2.4G dual-band WiFi capability for stable and fast screen sharing across Android, iOS, and Windows devices.

5. Projektionsindstillinger

• Zoom: Adjust the projection size from 50% to 100% via the menu settings.
• Aspektforhold: Supports 4:3 and 16:9 aspect ratios. Adjust in the display settings.
• Billedflip: For different mounting orientations (front, rear, ceiling), adjust the image flip setting in the menu.

Opretholdelse

1. Rensning

• Linse: Brug en blød, fnugfri klud, der er specielt designet til optiske linser. Brug ikke slibende rengøringsmidler.
• Ydre: Wipe the projector's exterior with a soft, dry cloth. Avoid using liquid cleaners directly on the device.
• Ventilation: Sørg for, at ventilationsåbningerne er fri for støv og forhindringer for at forhindre overophedning.

2. Opbevaring

When not in use, store the projector in a cool, dry place, away from direct sunlight and extreme temperatures. Use the lens cap to protect the lens from dust and scratches.

Fejlfinding

• Ingen strøm:
  • Check if the power cable is securely connected to the projector and the power outlet.
  • Sørg for, at stikkontakten fungerer.
• Intet billede:
  • Verify that the correct input source (HDMI, USB, AV) is selected.
  • Kontroller forbindelseskablerne mellem projektoren og kildeenheden.
  • Sørg for, at kildeenheden er tændt og udsender et signal.
• Sløret billede:
  • Juster fokusringen på projektorlinsen.
  • Ensure the projection surface is flat and the projector is at an optimal distance.
  • Juster keystone-korrektion, hvis billedet er forvrænget.
• Ingen lyd:
  • Skru op for lydstyrken på projektoren og kildeenheden.
  • Check if external speakers are properly connected or paired via Bluetooth.
  • Ensure the audio output setting is correct in the projector's menu.
  • Note: Some copyrighted content mirrored from smartphones may not transmit audio due to HDCP.
• Problemer med Wi-Fi-forbindelse:
  • Sørg for, at Wi-Fi-adgangskoden er indtastet korrekt.
  • Restart the projector and your Wi-Fi router.
  • Move the projector closer to the Wi-Fi router to improve signal strength.

Specifikationer

Garanti og support

For any questions or assistance, our customer service team is available 24 hours a day, 7 days a week. Please do not hesitate to contact us at:

support01@lthjm.com

Se venligst din købsdokumentation for specifikke garantivilkår.
