WORKPROX 7.2V batteridrevet gødnings- og frøspreder brugermanual

1. Introduktion

Thank you for choosing the WORKPROX 7.2V Battery Powered Fertilizer & Seed Spreader. This versatile tool is designed for efficient and precise application of various granular materials, including fertilizers, grass seeds, salt, de-icer, and earth food. With its adjustable settings and powerful motor, it simplifies lawn care and material spreading tasks. Please read this manual thoroughly before operation to ensure safe and effective use of your spreader.

WORKPROX 7.2V Battery Powered Fertilizer and Seed Spreader, showing its green and grey body with seeds being dispersed.

Figure 1: The WORKPROX 7.2V Battery Powered Fertilizer & Seed Spreader in operation, demonstrating its compact design and material dispersion.

2. Vigtige sikkerhedsinstruktioner

Overhold altid følgende sikkerhedsforanstaltninger for at mindske risikoen for personskade eller beskadigelse:

Læs manualen: Familiarize yourself with all instructions and warnings before operating the spreader.
Personligt beskyttelsesudstyr (PPE): Always wear appropriate safety glasses, gloves, and a dust mask when handling granular materials and operating the spreader.
Hold området ryddet: Ensure children, pets, and bystanders are kept at a safe distance from the operating area.
Ikke vandtæt: Denne enhed er IKKE VANDTÆT. Do not expose the spreader to rain, moisture, or immerse it in water. Water contact with the battery and motor can cause damage or electric shock.
Korrekt opbevaring: Store the spreader in a cool, dry, and well-ventilated place, away from moisture and direct sunlight.
Batteripleje: Charge the battery periodically (every 3-6 months) to prevent damage and extend its lifespan, even when not in use.
Materiale kompatibilitet: Use only dry, granular materials. Do not use liquids or sticky substances.
Undgå forhindringer: Be aware of potential obstructions that could cause clogging or damage to the dispersion wheel.
Sluk: Always turn off the power before cleaning, adjusting, or performing any maintenance.

3. Produktkomponenter

Familiarize yourself with the different parts of your WORKPROX spreader:

Diagram of WORKPROX spreader with labeled parts: Handle, Trigger, Material Flowrate Adjustment Knob, Charger LED Indicator, Socket for Charge Plug, Hopper, Dispersion Wheel, Speed Adjustment Knob, USB Type-C Cable, Throw Width Adjustment Lever.

Figure 2: Labeled diagram of the WORKPROX spreader components.

Håndtag: Ergonomic grip for comfortable carrying and operation.
Udløser: Activates the motor and dispersion wheel.
Material Flowrate Adjustment Knob: Controls the rate at which material flows from the hopper (8 levels).
Oplader LED-indikator: Viser opladningsstatus.
Socket for Charge Plug: USB Type-C port for charging the internal battery.
Beholder: Large capacity container for holding granular materials.
Dispersion Wheel: Rotates to spread materials evenly.
Hastighedsjusteringsknap: Controls the rotation speed of the dispersion wheel (6 speeds).
USB Type-C kabel: Included for charging the device.
Throw Width Adjustment Lever: Adjusts the angle and width of material dispersion (6 angles, max 127°).

4. Opsætning og opladning

4.1 Indledende opsætning

Upon unboxing, inspect the spreader for any signs of damage. Ensure all components listed in Section 3 are present.

4.2 Opladning af batteriet

The spreader is powered by a built-in 7.2V DC, 2.0Ah Lithium-ion battery. For optimal performance and battery longevity, fully charge the spreader before its first use.

Locate the USB Type-C charging port (Socket for Charge Plug) on the spreader.
Connect the provided USB Type-C cable to the spreader's charging port.
Connect the other end of the USB cable to a USB power adapter (a 30W or higher adapter is recommended, not included).
The Charger LED Indicator will illuminate to show charging status.
A full charge typically takes 2-4 hours, depending on the power supply output current. The LED indicator will change or turn off when charging is complete.

Note: To extend battery life, recharge the device at least once every 3-6 months, even if not in regular use.

Diagram showing the internal high-capacity battery of the WORKPROX spreader with a note to charge every 3-6 months.

Figure 3: Illustration of the high-capacity battery and charging recommendation.

5. Betjening

5.1 Fyldning af tragten

Ensure the spreader is turned off before filling. The hopper has a 2.5L capacity.

Hold the spreader upright and steady.
Carefully pour your desired granular material (fertilizer, seeds, salt, etc.) into the hopper. Do not overfill.
Ensure the material is dry and free of clumps to prevent clogging.

Image showing a person filling the 2.5L large capacity hopper of the WORKPROX spreader with granular material.

Figure 4: Filling the 2.5L large capacity hopper.

5.2 Adjusting Material Flowrate (8-Level Settings)

The Material Flowrate Adjustment Knob allows you to control the amount of material dispensed. There are 8 settings:

Niveau 1-3: Ideal for fine grass seeds and very light applications.
Niveau 4-6: Suitable for moderate fertilizers and general spreading.
Niveau 7-8: Best for heavy rock salts, de-icers, or coarse materials.

Rotate the knob to select the desired level based on the material type and desired coverage.

Image showing the 8-level spreader settings knob and examples of use for garden, snow-covered roads, field, and animal feed.

Figure 5: The 8-level material flowrate adjustment settings.

5.3 Adjusting Seeding Angle (Throw Width)

The Throw Width Adjustment Lever allows you to modify the spread pattern and distance. There are 6 seeding angles, with a maximum adjustable angle of 127°.

Move the lever to adjust the angle. A wider angle will cover a larger area.
Experiment with different settings to achieve the desired coverage for your specific application.

Image illustrating the 6-level seeding angle adjustment with a maximum adjustable seeding angle of 127 degrees.

Figure 6: Adjusting the 6-level seeding angle for precise spreading.

5.4 Adjusting Motor Speed (6 Speeds)

The Speed Adjustment Knob controls the rotation speed of the dispersion wheel, ranging from 900 to 2200 rpm/min. Higher speeds generally result in a wider and more forceful spread.

Rotate the knob to select one of the 6 available speeds.
Use lower speeds for more controlled, localized spreading and higher speeds for broader coverage.

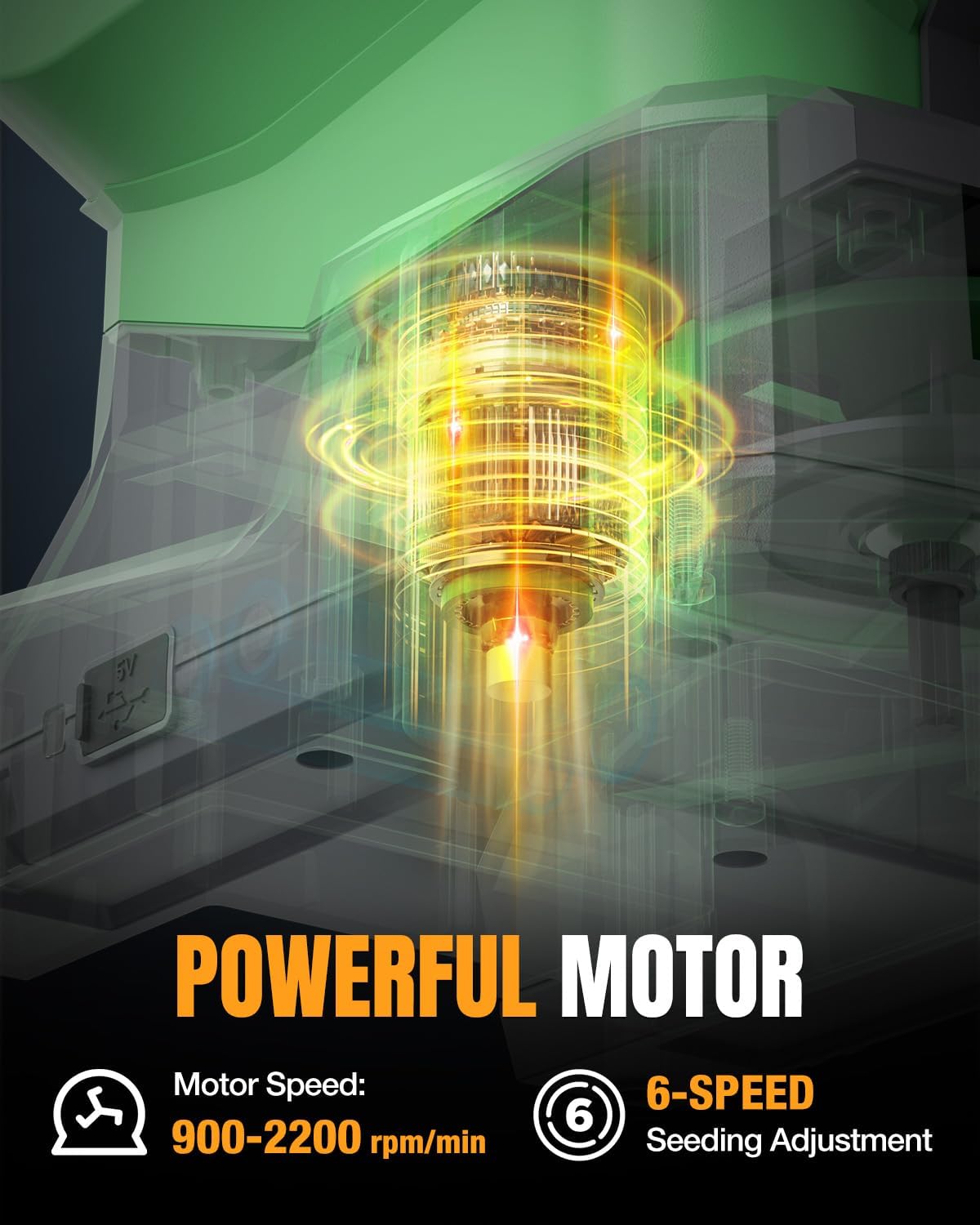

Image showing the powerful motor of the WORKPROX spreader with motor speed range of 900-2200 rpm/min and 6-speed seeding adjustment.

Figure 7: Powerful motor with adjustable speed settings.

5.5 Spreading Operation

Once the hopper is filled and settings are adjusted, hold the spreader firmly by the handle.
Position yourself over the area you wish to spread.
Press and hold the Trigger to activate the dispersion wheel.
Walk at a steady pace, moving the spreader evenly over the area to ensure consistent coverage.
Release the Trigger to stop the dispersion.

The spreader can cover up to 3,767.36 sq. ft. for fertilizers and 6,458.34 sq. ft. for grass seed on a single fill, depending on material and settings.

6. Vedligeholdelse og opbevaring

6.1 Rengøring

Regular cleaning ensures optimal performance and extends the life of your spreader.

After each use, turn off the power.
Empty any remaining material from the hopper.
Use a dry cloth or a soft brush to remove any residue from the hopper, dispersion wheel, and exterior.
VIGTIG: Do not use water or cleaning solutions directly on the spreader, especially near the battery and motor compartments, as the device is not waterproof.

6.2 Opbevaring

When not in use, store the spreader in a cool, dry, and well-ventilated place, away from direct sunlight and moisture. Consider using a dust cover to protect the device.

Remember to charge the battery periodically (every 3-6 months) even during storage to maintain its health.

7. Fejlfinding

Her er løsninger på almindelige problemer, du kan støde på:

Problem	Mulig årsag	Løsning
Spreader not turning on / No power.	Batteriet er afladet.	Charge the battery fully using the provided USB cable and a suitable power adapter.
Material not dispensing or dispensing slowly.	Clogging under the dispersion wheel. Material is wet or clumpy. Flowrate setting is too low.	Turn off the power. Use a tool to carefully remove any stuck seeds or fertilizer from under the dispersion wheel. Ensure material is dry and free of clumps. Increase the Material Flowrate Adjustment Knob setting. Set speed and seeding angle to maximum temporarily to clear minor blockages.
Uneven spreading pattern.	Incorrect seeding angle or speed setting. Inconsistent walking speed.	Adjust the Throw Width Adjustment Lever and Speed Adjustment Knob to optimize spread. Maintain a consistent walking pace during operation.
Batteriets levetid er kortere end forventet.	Battery not fully charged. Battery degradation due to infrequent charging.	Sørg for, at batteriet er fuldt opladet før brug. Charge the battery every 3-6 months, even when not in use, to preserve its lifespan.

8. Specifikationer

Technical specifications for the WORKPROX 7.2V Battery Powered Fertilizer & Seed Spreader:

Image showing product details: Capacity, Battery, Motor Speed, Charging Time, Max Spreading Width, Charging Voltage, Max Adjustable Seeding Angle, Weight.

Figur 8: Detaljerede produktspecifikationer.

Feature	Detalje
Kapacitet	2.5 L
Batteri	Lithium-ion, 7.2V DC, 2.0Ah
Motorhastighed	900-2200 omdr./min.
Opladningstid	2-4 hours (depending on Power Supply output Current)
Max Spreading Width	5 m
Opladning Voltage	5V DC
Max Adjustable Seeding Angle	127°
Vægt	2.62 lb (1.19 kg)

9. Garanti og kundesupport

WORKPRO is committed to providing high-quality products and excellent customer service. For any questions, concerns, or technical assistance regarding your WORKPROX Battery Powered Fertilizer & Seed Spreader, please contact our customer support team.

We offer 24-hour customer support service to assist you. Please refer to your product packaging or the WORKPRO official webhjemmeside for de seneste kontaktoplysninger.
