Indledning
Tak for købetasing the LEMEGA CR8 Portable DAB+/FM Radio with Bluetooth 5.3. This manual provides essential information to help you set up, operate, and maintain your device. Please read it thoroughly before use and keep it for future reference.
Sikkerhedsoplysninger
For at sikre sikker drift og forhindre skader, bedes du overholde følgende sikkerhedsforanstaltninger:
- Udsæt ikke enheden for regn, fugt eller ekstreme temperaturer.
- Undgå at placere enheden i nærheden af varmekilder eller i direkte sollys.
- Åbn ikke c'enasing; overlad al service til kvalificeret personale.
- Use only the provided power adapter or a compatible 5V USB-C power source.
- Hold enheden væk fra stærke magnetiske felter.
Pakkens indhold
Kontroller venligst, at alle varer er til stede:
- LEMEGA CR8 Radio Unit
- Strømadapter
- Hurtig startvejledning
- Brugervejledning (dette dokument)
Produkt overview
The LEMEGA CR8 is a versatile portable radio offering DAB+, FM, and Bluetooth connectivity. It features a full-color 2.4-inch display and intuitive controls.
Billede: Forside view of the LEMEGA CR8 radio, showcasing its design and available color options.
Kontrol og visning
Billede: Detaljeret view of the LEMEGA CR8's 2.4-inch color display and control buttons, including Presets, Info, Alarm, Sleep, Menu, Back, Play/Pause, Mode, and two rotary knobs for volume/selection and tuning/navigation.
- Vise: 2.4-inch full-color LCD for station information, artist artwork, and menu navigation.
- Forudindstillinger-knap: Access and save favorite radio stations.
- Info knap: View detailed information about the current broadcast.
- Alarmknap: Indstil og administrer alarmer.
- Sleep knap: Activate the sleep timer function.
- Menu-knap: Adgang til systemindstillinger og -valgmuligheder.
- Tilbage knap: Gå tilbage til den forrige menu eller skærm.
- Afspil/pause knap: Control audio playback in Bluetooth mode.
- Mode knap: Switch between DAB+, FM, and Bluetooth modes.
- Left Rotary Knob (Power/Volume/Select): Rotate to adjust volume; press to power on/off or confirm selections.
- Right Rotary Knob (Tuning/Navigation): Rotate to tune stations or navigate menus; press for specific functions.
- Teleskopantenne: For optimal radiomodtagelse.
- USB-C-port: Til strømforsyning.
- 3.5 mm lydstik: Til tilslutning af hovedtelefoner eller eksterne lydenheder.
Opsætning
1. Strømtilslutning
Connect the provided power adapter to the USB-C port on the back of the radio and plug it into a wall outlet. The radio can also be powered by 4 AA batteries (not included) for portable use.
2. Battery Installation (Optional)
For portable operation, open the battery compartment on the back of the unit and insert 4 AA batteries, ensuring correct polarity. Close the compartment securely.
Image: The LEMEGA CR8 radio positioned outdoors on a wooden table, illustrating its portability and battery life feature.
3. Antenneforlænger
Extend the telescopic antenna fully for optimal DAB+ and FM radio reception.
4. Første opstart
Press and hold the left rotary knob (Power/Volume) to turn on the radio. The display will light up, and the radio will typically start in DAB+ mode, performing an automatic scan for stations.
Betjeningsvejledning
Tænd/sluk
- For at tænde: Press and hold the left rotary knob.
- To Power Off/Standby: Press and hold the left rotary knob again. The display will show the clock in standby mode.
Valg af tilstand
Tryk på Mode button repeatedly to cycle through available modes: DAB+, FM, and Bluetooth.
DAB+ Radio Mode
Image: The LEMEGA CR8 radio displaying a DAB+ station, showing the station logo and current time.
- First Use/Scan: Upon first power-on in DAB+ mode, the radio will automatically perform a full scan for available stations.
- Manuel scanning: To perform a scan manually, press the Menu button, navigate to "Scan" or "Full Scan" using the right rotary knob, and press the left rotary knob to confirm.
- Valg af stationer: Rotate the right rotary knob to browse the list of available stations. Press the left rotary knob to select a station.
- Gem forudindstillinger: For at gemme en station som forudindstilling skal du trykke på og holde Forudindstillinger button. Use the right rotary knob to select a preset number (1-10) and press the left rotary knob to confirm.
- Genkaldelse af forudindstillinger: Tryk på Forudindstillinger button briefly, then use the right rotary knob to select your desired preset and press the left rotary knob.
FM-radiotilstand
- Switch to FM: Tryk på Mode button until "FM Radio" is displayed.
- Automatisk scanning: Press and hold the right rotary knob to automatically scan for and save available FM stations.
- Manuel indstilling: Rotate the right rotary knob to manually tune to a specific frequency.
- Gem forudindstillinger: Similar to DAB+ mode, press and hold the Forudindstillinger button, select a number, and confirm.
- Genkaldelse af forudindstillinger: Tryk på Forudindstillinger button briefly, select the preset, and confirm.
Bluetooth-tilstand

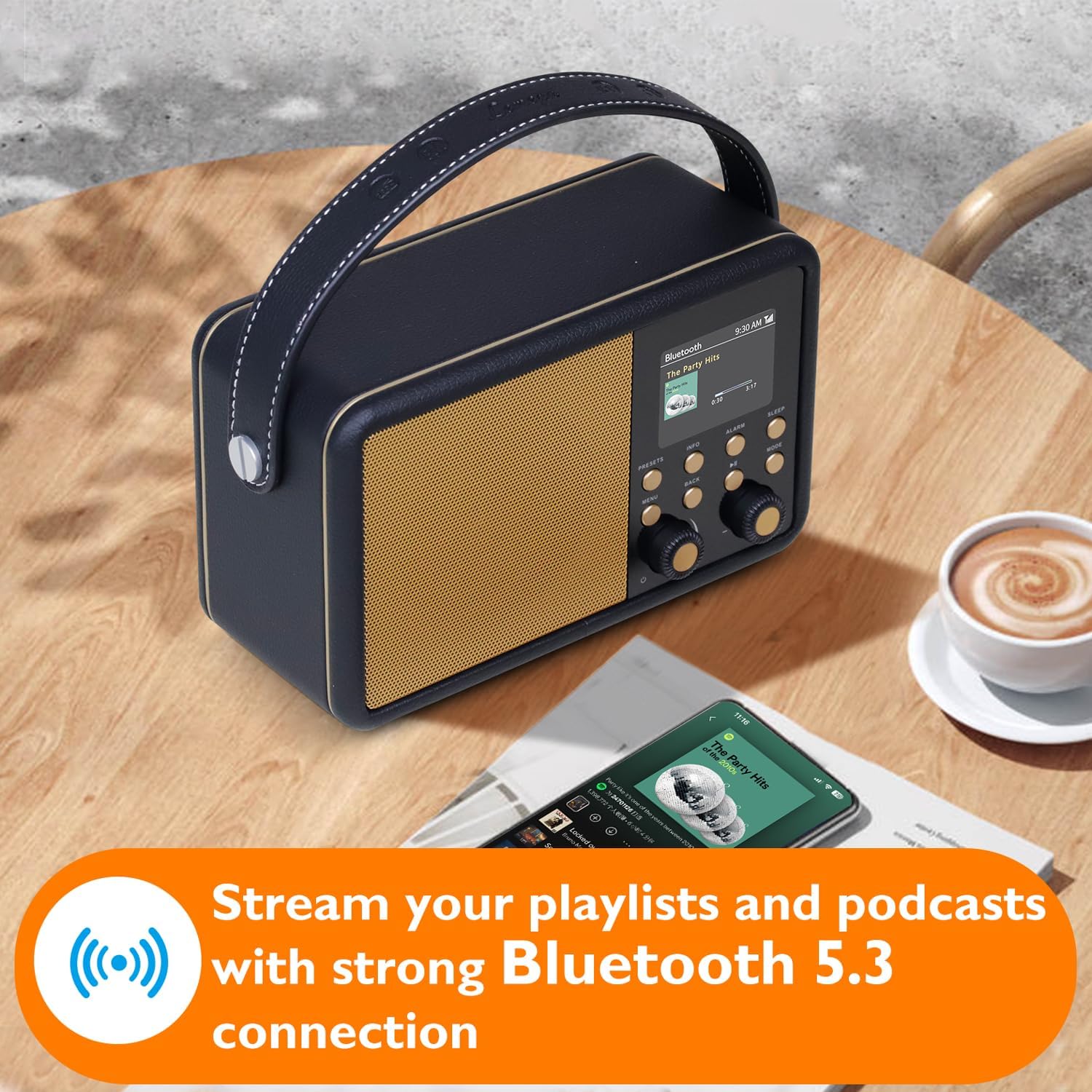

Image: The LEMEGA CR8 radio wirelessly connected to a smartphone via Bluetooth, indicating its streaming capabilities.
- Switch to Bluetooth: Tryk på Mode button until "Bluetooth Audio" is displayed. The radio will enter pairing mode, indicated by a flashing Bluetooth icon.
- Parring: On your smartphone, tablet, or other Bluetooth device, enable Bluetooth and search for "LEMEGA CR8" in the list of available devices. Select it to pair.
- Afspilning: Once paired, you can stream audio from your device to the LEMEGA CR8. Use the Afspil/pause button on the radio or your connected device to control playback.
Alarm funktion
Tryk på Alarm button to set or manage alarms. Follow the on-screen prompts to set alarm time, source (DAB+/FM/Buzzer), and volume.
Sleep Timer
Tryk på Sove button repeatedly to cycle through sleep timer options (e.g., 15, 30, 45, 60 minutes, Off). The radio will automatically turn off after the selected duration.
Systemindstillinger
Tryk på Menu button to access system settings. Use the right rotary knob to navigate and the left rotary knob to select. Options may include:
- Tid / dato: Set time and date manually or synchronize with DAB+/FM broadcast.
- Baggrundsbelysning: Juster skærmens lysstyrke og timeout.
- Equalizer: Customize audio settings (e.g., Bass, Treble, or preset EQ modes).
- Sprog: Vælg displaysprog.
- Gendan fabriksindstillinger: Nulstil alle indstillinger til standard.
Opretholdelse
- Rensning: Tør radioen af med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: If storing for an extended period, remove batteries (if installed) and store in a cool, dry place.
- Antennepleje: Handle the telescopic antenna gently to prevent bending or breakage.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Strømadapteren er ikke tilsluttet; batterierne er opbrugt eller er isat forkert. | Check power adapter connection; replace or correctly insert batteries. |
| Dårlig radiomodtagelse | Antenne ikke strakt ud; område med svagt signal; interferens. | Extend antenna fully; reposition the radio; move away from electronic devices. Perform a full scan. |
| Bluetooth forbinder ikke | Radioen er ikke i Bluetooth-tilstand; enheden er ikke i parringstilstand; den er allerede forbundet til en anden enhed. | Ensure radio is in Bluetooth mode; put your device in pairing mode; disconnect from other devices. |
| Ingen lyd | Volume too low; mute activated; incorrect mode. | Increase volume; check if muted; ensure correct mode (DAB+/FM/Bluetooth). |
Specifikationer
| Mærke | LEMEGA |
| Model | CR8 |
| Fabrikant | HuiZhou LEMEDIA Technology Co.,Ltd |
| Hardware-interface | 3.5 mm Audio, Bluetooth 5.3, USB-C |
| Tuner-teknologi | DAB+, UKW (FM) |
| Kompatible enheder | Headphones, Laptop, Smartphone, Tablet |
| Særlige funktioner | Transportabel |
| Display Type | Farve LCD |
| Strømkilde | Wired (USB-C), Battery (4x AA, not included) |
| Understøttede radiobånd | DAB, UKW (FM) |
| Produktdimensioner | 21 x 10 x 13 cm (8.27 x 3.94 x 5.12 tommer) |
| Produktets vægt | 1.26 kg (2.78 lbs) |
Garanti og support
LEMEGA products are designed and manufactured to the highest quality standards. For warranty information, please refer to the specific terms provided at the point of purchase or contact your retailer. This product is eligible for a 60-day free return period from the date of purchase.
For further assistance or technical support, please visit the official LEMEGA store or contact their customer service. You can find more information at: LEMEGA-butik på Amazon.
