1. Introduktion
This manual provides essential information for the assembly, operation, and maintenance of your Orange Factory Criss Cross Chair No Wheel. Please read these instructions carefully before assembly and use to ensure proper function and longevity of your chair.

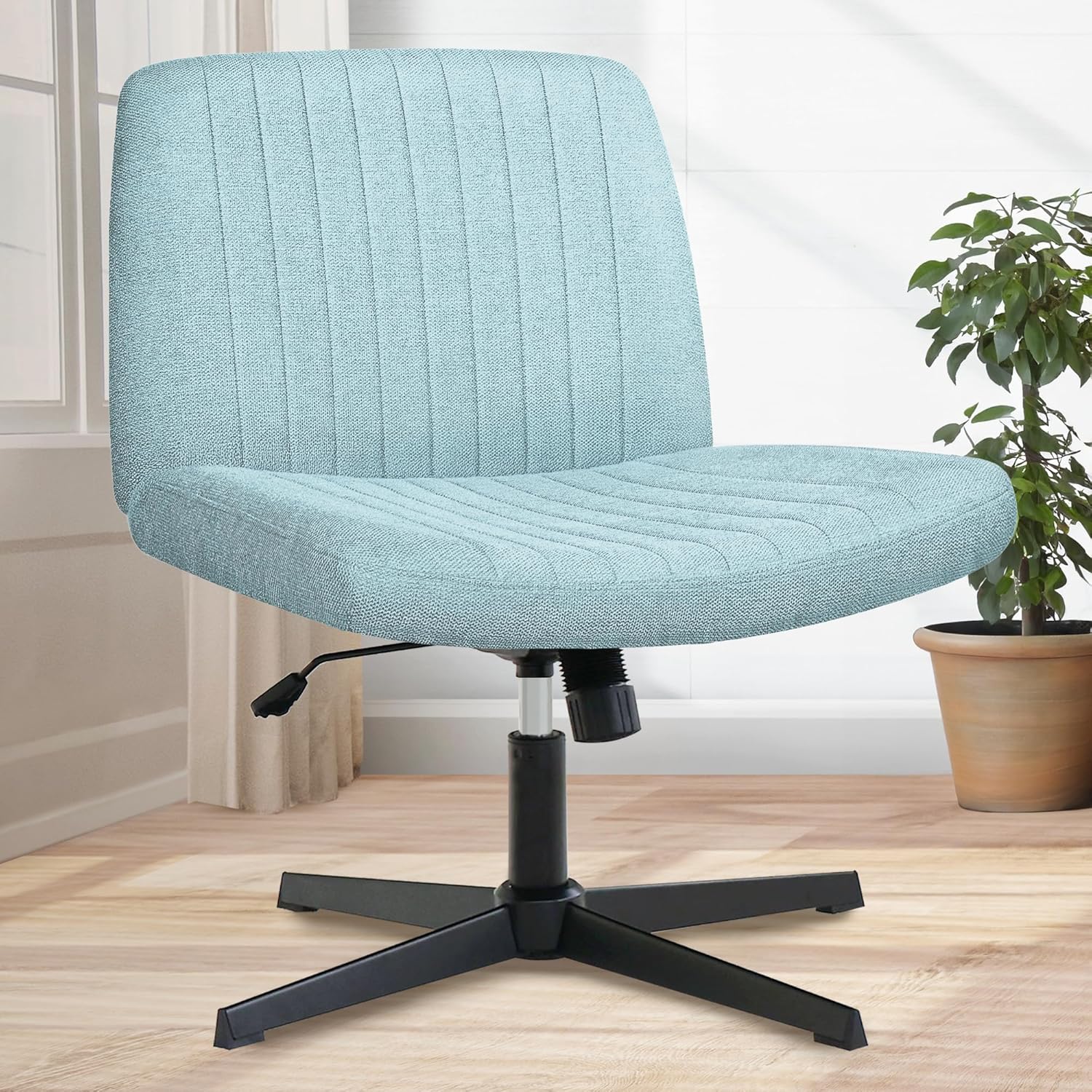

Image 1.1: The Orange Factory Criss Cross Chair No Wheel, featuring a mint-colored fabric seat and backrest, with a black four-star base.
2. Sikkerhedsoplysninger
Vigtige sikkerhedsinstruktioner:
- Saml altid stolen i henhold til de medfølgende instruktioner.
- Sørg for, at alle dele er forsvarligt fastgjort før brug.
- Overskrid ikke den anbefalede maksimale vægt på 136 kg.
- Keep the chair away from heat sources and sharp objects to prevent damage to the fabric.
- Denne stol er kun beregnet til indendørs brug.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før monteringen påbegyndes. Hvis der mangler eller er beskadigede dele, bedes du kontakte kundesupport.
- Seat Cushion with Backrest (1)
- Chair Base (1)
- Gasløftecylinder (1)
- Gasliftdæksel (1)
- Assembly Hardware (Screws, Washers, Allen Wrench) (1 set)
4. Monteringsvejledning
Follow these steps carefully to assemble your chair. It is recommended to assemble on a soft, clean surface to prevent scratches.
- Attach the Gas Lift to the Base: Insert the wider end of the gas lift cylinder into the center hole of the chair base. Place the gas lift cover over the gas lift cylinder.
Image 4.1: Illustration of the sturdy metal base with anti-slip pads and the certified gas lift cylinder, indicating its BIFMA compliance and 300 lbs weight capacity.
- Fastgør sædet til gasliften: Carefully align the center mechanism on the underside of the seat cushion with the top of the gas lift cylinder. Press down firmly until the seat is securely seated on the gas lift.
- Secure the Backrest: Attach the backrest to the seat using the provided screws and allen wrench. Ensure all screws are tightened evenly and securely.
- Endelig kontrol: Once assembled, gently test the chair for stability and ensure all connections are firm before regular use.
5. Betjeningsvejledning
Your Orange Factory Criss Cross Chair No Wheel offers several adjustable features for personalized comfort.
- Højdejustering: To adjust the chair height, locate the lever under the right side of the seat.
- To raise the seat: While seated, lift the lever and slightly lift your weight off the seat. The seat will rise. Release the lever at the desired height.
- To lower the seat: While seated, lift the lever and apply pressure to the seat. The seat will lower. Release the lever at the desired height.
Image 5.1: Visual representation of the chair's armless design, height adjustment mechanism, and 360-degree swivel capability.
- 360° drejning: The chair is designed to swivel 360 degrees, allowing for easy movement and access to different areas without needing to reposition the entire chair.
- Kontrol af vippespænding: The chair features a rocking mode with adjustable tilt tension.
- To adjust tilt tension: Locate the round knob under the front-center of the seat. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).
- To engage/disengage rocking: The same lever used for height adjustment can also lock/unlock the rocking function. Push the lever inwards to lock the chair in an upright position, and pull it outwards to allow rocking.
Image 5.2: Illustration of the chair's rocking mode, transitioning from an upright 90-degree working posture to a relaxed 120-degree recline, with a detail of the tilt tension adjustment knob.
6. Vedligeholdelse
Regelmæssig vedligeholdelse vil bidrage til at bevare din stols udseende og funktionalitet.
- Rengøring af stof: For general cleaning, use a soft brush or vacuum cleaner to remove dust and loose debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner according to its instructions, testing on an inconspicuous area first.
- Ramme og base: Wipe metal parts with a soft, damp klæde. Undgå slibende rengøringsmidler.
- Periodiske kontroller: Kontrollér regelmæssigt alle skruer og bolte for at sikre, at de forbliver stramme. Efterspænd om nødvendigt.
- Undgå direkte sollys: Langvarig udsættelse for direkte sollys kan forårsage falmning af stoffet.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Stolen kan ikke justeres i højden. | Gasløft ikke aktiveret eller defekt. | Sørg for, at højdejusteringshåndtaget er trukket helt ud. Hvis problemet fortsætter, skal gasliften muligvis udskiftes. |
| Stolen føles vaklende. | Løse skruer eller forkert montering. | Check all assembly screws and tighten them securely. Ensure the gas lift is properly seated in the base and seat mechanism. |
| Difficulty reclining or rocking. | Tilt tension too high or rocking mechanism locked. | Turn the tilt tension knob counter-clockwise to loosen. Ensure the rocking lever is pulled outwards to unlock the rocking function. |
8. Specifikationer
| Mærke: | Orange fabrik |
| Modelnavn: | Criss Cross-stol |
| Varemodelnummer: | Criss Cross Chair - No Wheel |
| Farve: | Mynte |
| Størrelse: | Ingen hjul |
| Produktdimensioner: | 20" D x 25.5" B x 34" H |
| Sædedybde: | 19.5 tommer |
| Maksimal vægtanbefaling: | 300 pund (136 kg) |
| Fyldmateriale: | Svamp |
| Særlige funktioner: | Adjustable Height, Cushion Back, Ergonomic, Swivel, Tilt Tension Control |
| Armstil: | armless |
| Indendørs/udendørs brug: | Indendørs |

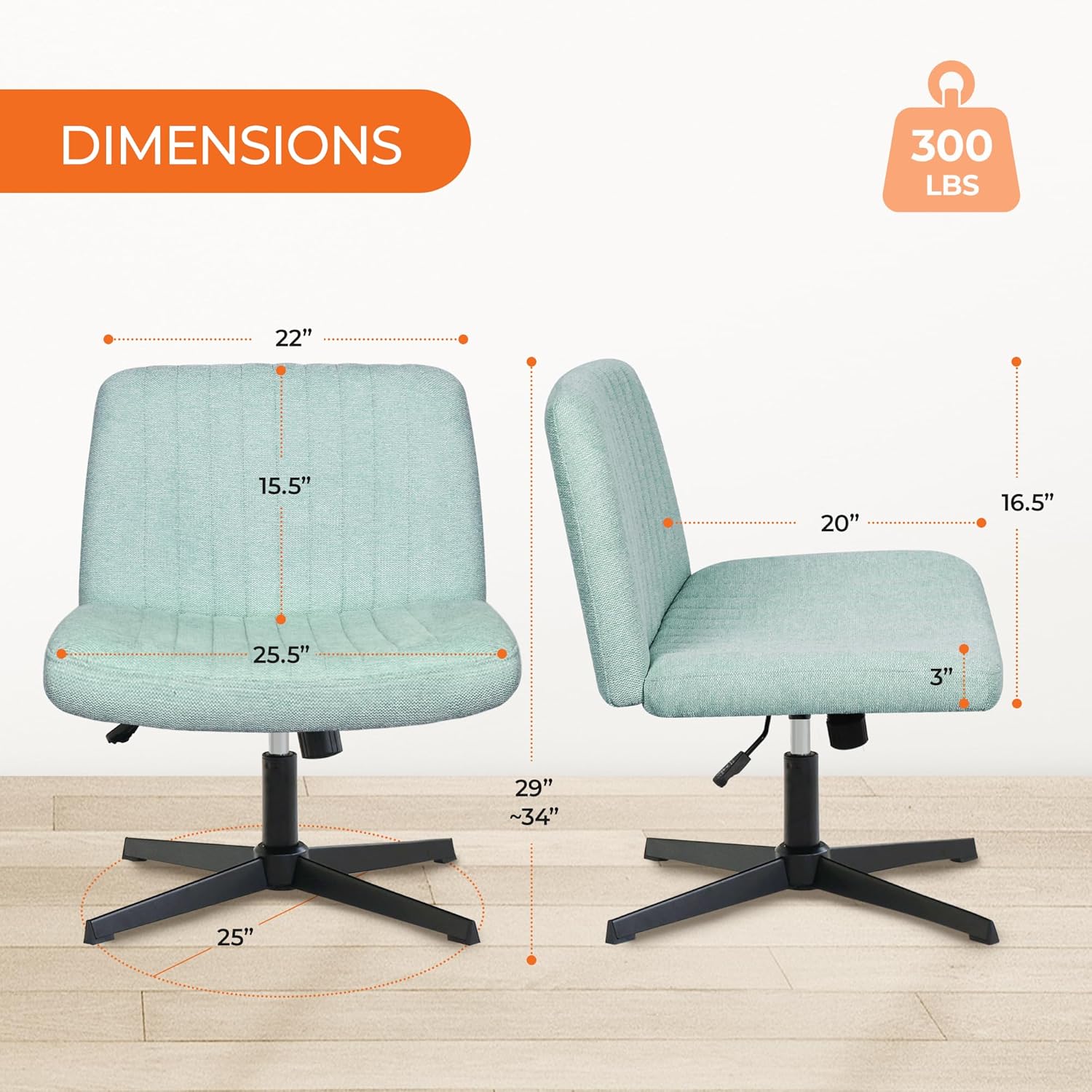

Image 8.1: Detailed dimensions of the chair, including seat width (25.5"), seat depth (20"), backrest height (15.5"), and adjustable height range (29"-34").
9. Garanti og support
Orange Factory stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Orange Factory website. For customer support, assistance with assembly, or to report missing/damaged parts, please contact our customer service team through the contact information provided on our webwebstedet eller din købsdokumentation.
