1. Introduktion
Welcome to the user manual for your Fafrees F20 Mate E-Bike Tricycle. This manual provides essential information for the safe and efficient operation, maintenance, and care of your electric tricycle. Please read this manual thoroughly before your first ride and keep it for future reference.

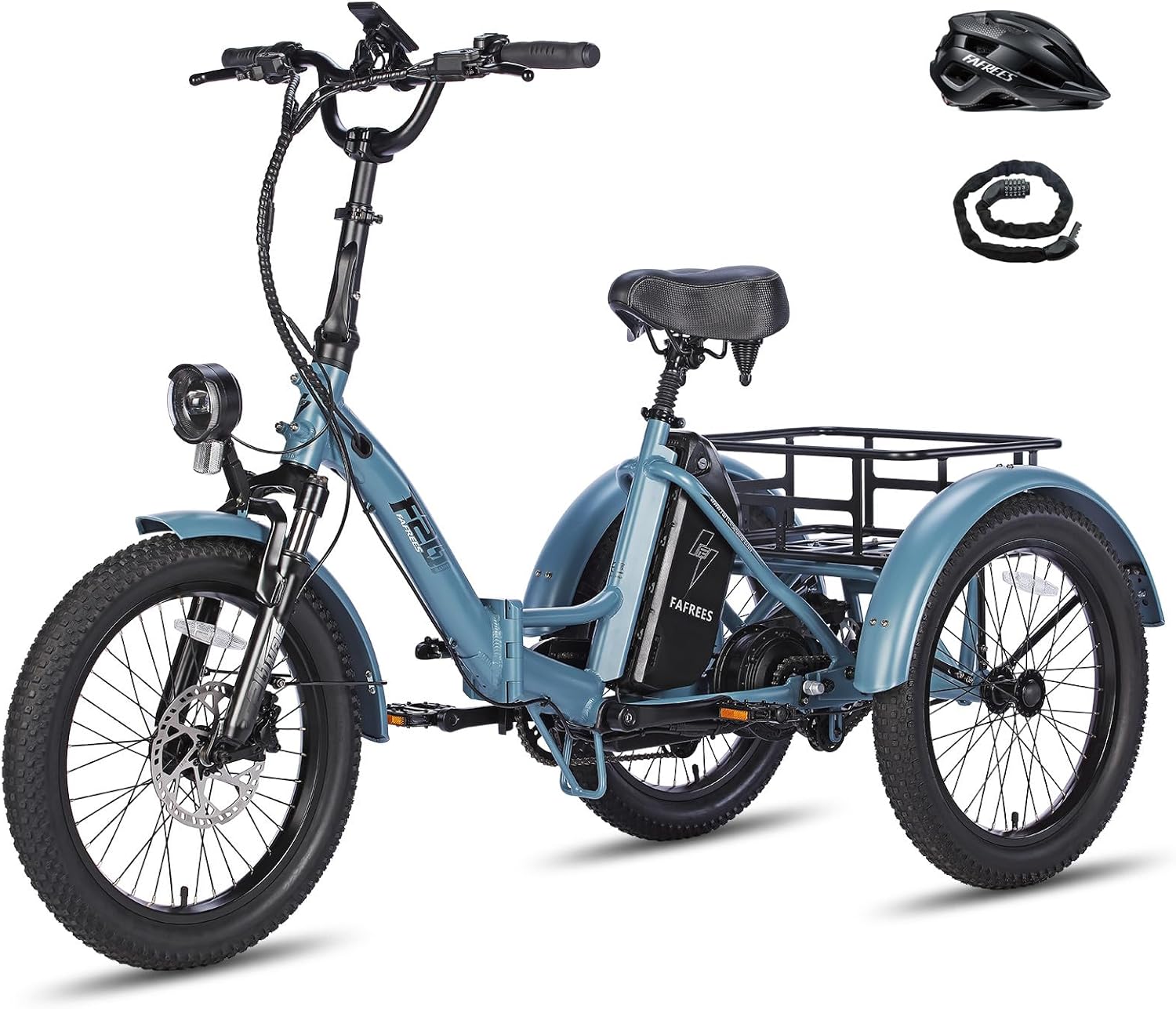

Figure 1.1: Fafrees F20 Mate E-Bike Tricycle (Blue)
The Fafrees F20 Mate is a 20-inch folding electric tricycle designed for adults, featuring a 48V/18.2Ah removable battery, rear rack, and robust construction suitable for various terrains. Its design prioritizes stability, comfort, and utility, making it ideal for commuting, errands, or leisurely rides.
2. Sikkerhedsoplysninger
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Perform a pre-ride inspection before each use.
2.1 Vægtkapacitet
- Max ryttervægt: 150 kg (330 lbs)
- Max Front Basket Weight: 20 kg (44 lbs)
- Max Rear Basket Weight: 45 kg (99 lbs)
- Total Payload Capacity (Rider + Cargo): Never exceed 180 kg (397 lbs)
Exceeding these weight limits can compromise the tricycle's stability, braking performance, and structural integrity, leading to potential injury or damage.
2.2 Sikkerhedsfunktioner
- Integrated Front and Rear Brake Lights: Enhance visibility, especially at night.
- reflektorer: Located on both rear fenders for added safety in low-light conditions.
- Hydraulic Parking Brakes: Ensure the tricycle remains stationary when parked.
Figure 2.1: Integrated Safety Lights
3. Produktet er slutview og komponenter
The Fafrees F20 Mate is engineered with several key features for performance and comfort:
- Rear Hub Motor with Speed Differential: Provides powerful electric assistance and allows independent wheel rotation for improved handling and reduced tire wear. Capable of ascending 15° slopes with 65N·m torque.
- 48V 18.2Ah Removable Lithium-ion Battery: Offers extended range and convenient charging.
- LCD farveskærm: High-definition display showing speed, battery level, mileage, and gear. Includes 5 speed levels, walk assistance, and cruise control.
- Hydraulic Parking Brakes: Front and rear hydraulic brakes with 180mm/2.3mm thick pads for precise stopping power.
- Double Suspension: Rear shock tube and front suspension work together to absorb shocks and vibrations, enhancing ride comfort.
- 20*3.0 Fat Tires: Designed for superior grip and stability on various terrains, including gravel, sand, snow, and uneven surfaces.
- Step-thru Foldable Frame: Low step-through design for easy mounting and dismounting, with a convenient folding mechanism for storage and transport.
- Kraftig design: Robust build with options for front and expanded rear baskets for carrying heavy loads.
Figure 3.1: Fafrees F20 Mate in a natural setting
4. Opsætning
4.1 Udpakning og første montering
Your Fafrees F20 Mate tricycle comes partially assembled. Carefully remove all packaging materials. Refer to the included assembly guide for detailed instructions on attaching the handlebars, pedals, and any accessories. Ensure all bolts and fasteners are securely tightened before your first ride.
4.2 Batteriopladning
Oplad batteriet helt inden første brug. Batteriet kan tages ud, så det er nemt at oplade indendørs.
- Find opladningsporten på batteriet.
- Connect the provided charger to the battery and then to a standard power outlet.
- The charging indicator on the charger will show the charging status.
- En fuld opladning tager typisk 6-7 timer. Overoplade ikke batteriet.
- Når den er fuldt opladet, skal du frakoble opladeren.
Figure 4.1: Removable Battery for Charging
5. Betjeningsvejledning
5.1 Tænd/sluk
To power on the tricycle, press and hold the power button on the LCD display. To power off, press and hold the power button again.
5.2 LCD-farveskærm
The high-definition LCD display provides real-time information and control over your ride:
- Hastighed: Nuværende kørehastighed.
- Batteri: Remaining battery charge level.
- Kilometertal: Rejsedistance og samlet kilometertæller.
- Gear/Speed Level: Adjust between 5 levels of pedal assistance.
- Walk Assistance Mode: Provides low-speed assistance for walking alongside the tricycle.
- Cruise Control Function: Maintains a set speed without continuous throttle input.
Figure 5.1: LCD Color Display
5.3 Riding Modes and Range
The F20 Mate offers two primary riding modes:
- Pedal-assist tilstand: The motor provides assistance as you pedal. Range: Up to 110 km (68 miles) on a single charge.
- Ren elektrisk tilstand: The motor powers the tricycle without pedaling (throttle-only). Range: Up to 75 km (46 miles) on a single charge.
Maximum speed is electronically limited to 25 KM/H (15.5 MPH) in accordance with regulations.
5.4 Bremsesystem
The tricycle is equipped with front and rear hydraulic brakes for reliable stopping power. The two parking brake levers allow you to lock the brakes, ensuring the tricycle remains stationary when parked or loading/unloading cargo.
Figure 5.2: Hydraulic Parking Brake System
5.5 Foldemekanisme
The F20 Mate features a foldable frame for easy storage and transport. Follow the specific folding instructions provided in the separate assembly guide to ensure proper and safe folding and unfolding.
Figure 5.3: Folding Points
6. Vedligeholdelse
Regular maintenance ensures the longevity and safe operation of your Fafrees F20 Mate tricycle.
6.1 Pleje af batterier
- Oplad batteriet regelmæssigt, selvom det ikke er i brug, for at bevare dets sundhedstilstand.
- Opbevar batteriet et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- Undgå at aflade batteriet helt ofte.
6.2 Dæk
Regularly check tire pressure and inflate to the recommended PSI (indicated on the tire sidewall) to ensure optimal performance and prevent punctures. Inspect tires for wear and tear.
Figure 6.1: 20*3.0 Fat Tires
6.3 bremser
Check brake pads for wear and ensure brake levers operate smoothly. If braking performance degrades, have the system inspected by a qualified technician.
6.4 Rengøring
Rengør trehjulet cykel med adamp cloth and mild detergent. Avoid high-pressure washing, especially near electrical components. Dry thoroughly after cleaning.
6.5 Ophængning
The double suspension system (rear shock tube and front suspension) helps mitigate shocks. Keep suspension components clean and free of debris. Do not attempt to disassemble suspension components unless you are a qualified technician.
Figure 6.2: Double Suspension System
7. Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på. Ved problemer, der ikke er nævnt her, bedes du kontakte kundesupport.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Trehjulet cykel tændes ikke | Battery not charged or not properly seated; Power button not pressed correctly. | Ensure battery is fully charged and securely installed. Press and hold the power button firmly. |
| Motoren hjælper ikke | Low battery; Pedal-assist level set to zero; Loose electrical connection. | Charge battery. Increase pedal-assist level on the display. Check all visible electrical connections. |
| Bremserne føles svage | Worn brake pads; Air in hydraulic line; Misaligned calipers. | Inspect brake pads for wear and replace if necessary. Consult a professional for hydraulic system bleeding or caliper adjustment. |
| Usædvanlige lyde under kørslen | Loose components; Debris in drivetrain; Worn bearings. | Check all bolts and fasteners for tightness. Inspect drivetrain for foreign objects. If noise persists, seek professional inspection. |
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Model | F20 MATE |
| Mærke | Fafrees |
| Type cykel | Elektrisk trehjulet cykel |
| Aldersinterval | Voksen |
| Farve | Blå |
| Hjulstørrelse | 20 tommer |
| Dækstørrelse | 20*3.0 Inches (Fat Tires) |
| Rammemateriale | Aluminium |
| Rammestørrelse | 16 tommer |
| Antal hastigheder | 1 |
| Strømkilde | Elektrisk Motor |
| Batteri | 48V 18.2Ah Lithium-ion (Removable) |
| Opladningstid | 6-7 timer |
| Max hastighed | 25 km/t |
| Range (Pedal-Assist) | Op til 110 km |
| Range (Pure Electric) | Op til 75 km |
| Bremse type | Hydrauliske skivebremser |
| Ophængstype | Front and Rear (Double Suspension) |
| Produktdimensioner | 174 x 74 x 116 cm |
| Varens vægt | 40 kg |
| Funktioner | Digital Display, Taillight, Basket, Foldable, Headlight |
| Inkluderede komponenter | 1 x Fafrees F20 Mate e-tricycle, 1 x Battery Charger with UK adaptor, 1 x User manual, 1 x Standard Rear Rack |
9. Garanti og support
For warranty information, please refer to the warranty card included with your purchase or contact Fafrees customer support directly. Keep your proof of purchase for any warranty claims.
9.1 Kundesupport
If you have any questions, require technical assistance, or need to order replacement parts, please contact Fafrees customer support through the official website or the retailer where you purchased the product. Provide your model number (F20 MATE) and purchase date for faster service.
