Indledning
Thank you for choosing the ErGear EGESD65W Electric Standing Desk. This manual provides detailed instructions for the assembly, operation, and maintenance of your new desk. Designed for both home and office use, this adjustable standing desk promotes a healthier and more productive work environment by allowing you to effortlessly switch between sitting and standing positions. Please read this manual thoroughly before assembly and use to ensure proper function and safety.
Sikkerhedsoplysninger
- Sørg for, at alle komponenter er til stede og ubeskadigede før montering. Må ikke anvendes, hvis der mangler eller er dele i stykker.
- Keep children and pets away from the desk during operation to prevent injury from moving parts.
- Do not overload the desk. Refer to the 'Specifications' section for maximum weight capacity.
- Ensure the power cord is properly connected and routed to avoid tripping hazards or damage.
- Do not place liquids directly on the control panel or motor components.
- Only use the desk for its intended purpose as a workstation.
Pakkens indhold
Kontroller venligst, at alle følgende komponenter er inkluderet i din pakke:
- One-Piece Desktop (48x30 inch)
- Elektriske løftesøjler (ben)
- Kontrolpanel med digitalt display
- Kabelstyringsbakke
- Strømadapter og kabel
- Assembly Hardware Kit (screws, tools)
- Instruktionsmanual
Opsætning og montering
The ErGear EGESD65W features a one-piece desktop for simplified and faster installation. Follow these steps carefully:
- Udpak komponenter: Tag forsigtigt alle dele ud af emballagen, og læg dem på en ren, blød overflade for at forhindre ridser.
- Attach Lifting Columns: Secure the electric lifting columns (legs) to the underside of the one-piece desktop using the provided screws. Ensure they are aligned correctly with the pre-drilled holes.
- Installer kontrolpanel: Mount the control panel to the designated area on the front edge of the desktop.
- Tilslut kabler: Connect the motor cables from the lifting columns to the control box, and then connect the control panel cable to the control box. Finally, connect the power adapter to the control box.
- Attach Cable Management Tray: Install the cable management tray to the underside of the desktop as shown in the diagram, providing a neat solution for your power and data cables.
- Position skrivebord: Carefully flip the desk upright and place it in your desired location. Ensure there is enough clearance for height adjustments.
Betjeningsvejledning
Your ErGear standing desk is equipped with an intuitive control panel for easy height adjustment and memory presets.
Kontrolpanelets funktioner:
- Op/ned-pile (▲ / ▼): Press and hold to continuously adjust the desk height up or down. Release to stop at your desired height.
- Hukommelsesforudindstillinger (1, 2, 3, 4): Press a numbered button to move the desk to a pre-saved height. To save a height, adjust the desk to the desired position, then press the 'M' button followed by the desired number (1-4). The display will show 'S-' then the number to confirm.
- Vise: Shows the current height of the desk in inches.
Opretholdelse
Regular maintenance ensures the longevity and smooth operation of your ErGear standing desk.
- Rensning: Wipe the desktop and legs with a soft, damp klud. Undgå slibende rengøringsmidler eller barske kemikalier, der kan beskadige overfladen.
- Kabelstyring: Periodically check the cable management tray and ensure all cables are neatly organized and not pinched or tangled.
- Skruefasthed: Med tiden kan skruer løsne sig. Kontroller og spænd alle monteringsskruer med jævne mellemrum for at opretholde stabiliteten.
- Motorinspektion: Ensure the motor and lifting columns are free from obstructions. Do not attempt to lubricate or disassemble the motor components.
Fejlfinding
If you encounter any issues with your ErGear standing desk, please refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Skrivebordet bevæger sig ikke. | Power cord disconnected; Motor cable loose; Overload. | Check power connection; Ensure all cables are securely plugged in; Reduce weight on desk. |
| Skrivebordet bevæger sig ujævnt. | Uneven weight distribution; Loose screws. | Distribute weight evenly; Tighten all assembly screws. |
| Displayet viser en fejlkode. | System malfunction; Overheating. | Unplug the desk for 10 minutes, then plug back in. If error persists, contact customer support. |
| Desk makes unusual noise. | Obstruction in lifting mechanism; Loose components. | Check for obstructions under the desk; Tighten screws. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte ErGears kundesupport for yderligere assistance.
Specifikationer
Key technical details for your ErGear EGESD65W Standing Desk:
- Modelnummer: EGESD65W-US

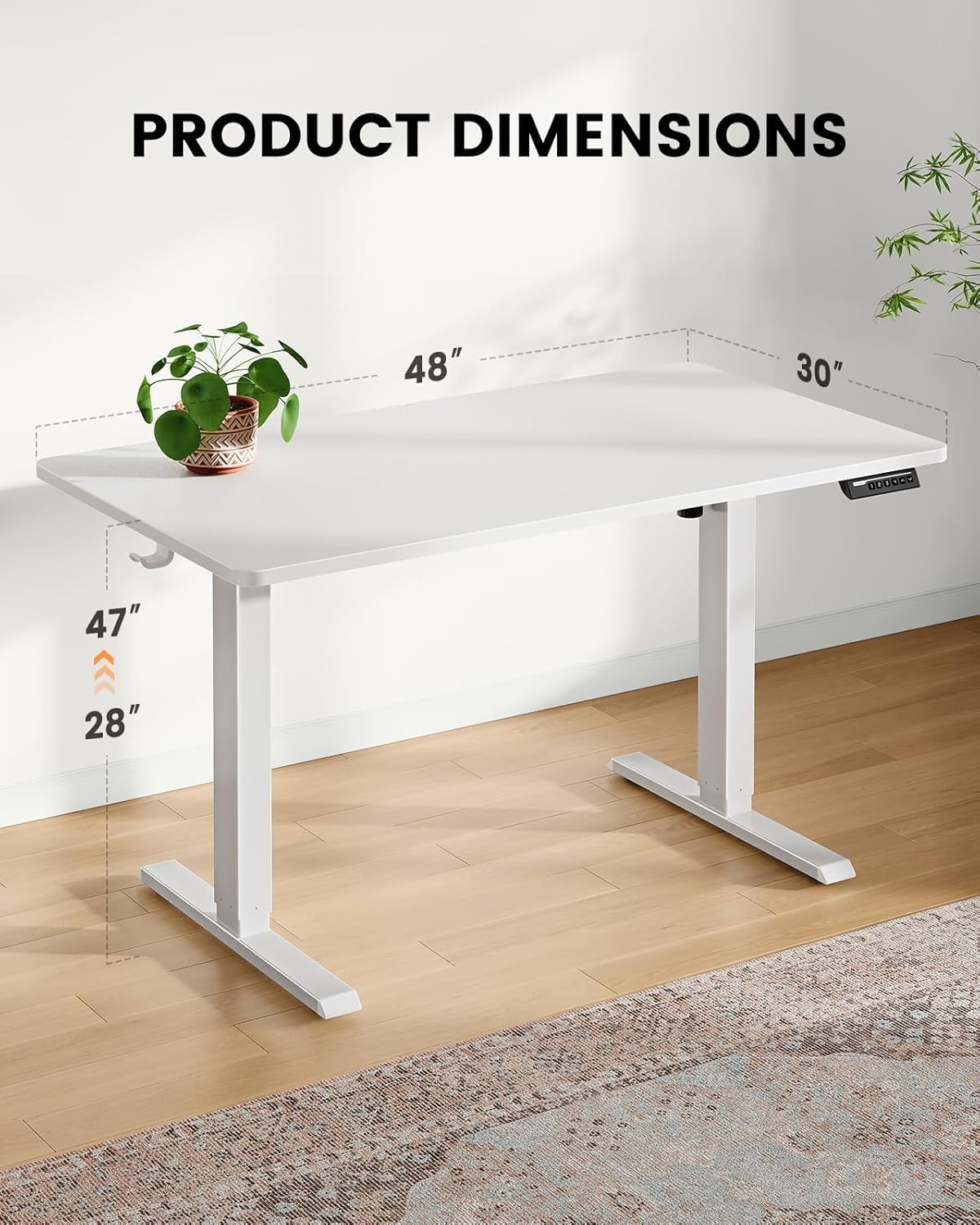

- Skrivebordsdimensioner: 48 x 30 tommer
- Justerbart højdeområde: Approximately 28 to 47 inches (71.1 cm to 119.4 cm)
- Skrivebordsmateriale: Bambus
- Benmateriale: Rustfrit stål
- Farve: Hvid
- Inkluderede komponenter: Kabelstyringsbakke
- Montering påkrævet: Ja
- Operation: Elektrisk
Garanti og support
Your ErGear EGESD65W Electric Standing Desk comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the warranty card included in your package or visit the official ErGear webwebsted.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact ErGear customer service through the contact information provided on the official ErGear website or your purchase platform. Please have your model number (EGESD65W-US) and purchase date ready when contacting support.
