TONOR TW361 4-kanals UHF trådløst mikrofonsystem brugermanual

Indledning

This manual provides detailed instructions for the setup, operation, and maintenance of your TONOR TW361 4-Channel UHF Wireless Microphone System. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

Hvad er der i æsken

Image shows the complete TONOR TW361 system, including four grey handheld microphones and one compact black receiver with a 6.35mm jack and antenna.

• 4 x håndholdte mikrofoner
• 1 x Rechargeable Receiver
• 4 x Anti-slip Rings (various colors)
• 4 x Mic Covers
• 1 x USB til Type-C ladekabel
• 1 x brugermanual

This image displays all the accessories: two microphones, the receiver, four anti-slip rings, four mic covers, a charging cable, and the user manual. The microphone dimensions are also indicated as 10.7 inches (27.2 cm).

Produkt overview

Håndholdt mikrofon

The image highlights key features of the handheld microphone: a metal shockproof mic head, a real-time battery indicator on the display, and a mute/power button. Each microphone requires 2 AA batteries (not included).

• Metal Shockproof Mic Head: Designed for durability and sound protection.
• Real-time Battery Indicator: Viser det aktuelle batteriniveau.
• Mute/Power Button: Styrer tænd/sluk og slår mikrofonen fra.
• Skærm: Shows frequency, battery status, and mute status.
• Strømkilde: Each microphone requires 2 AA batteries (not included).

Dynamisk mikrofonkapsel

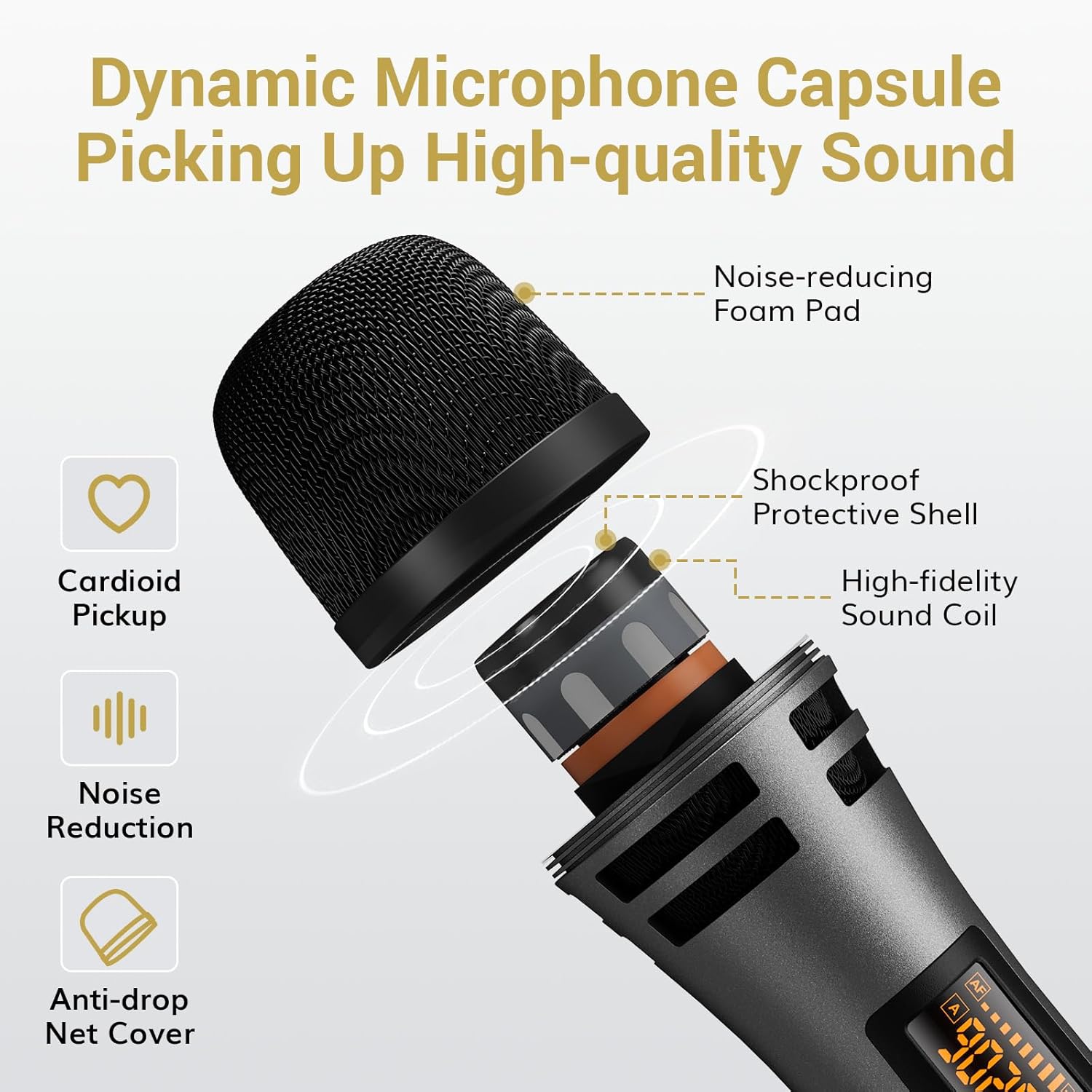

Dette billede giver en eksploderet view of the microphone head, showing its internal components: a noise-reducing foam pad, a shockproof protective shell, a high-fidelity sound coil, and an anti-drop net cover. It also indicates cardioid pickup and noise reduction features.

• Kardioid afhentningsmønster: Minimizes background noise, focusing on the sound source.
• Støjreduktion: Integrated features for clear audio.
• Komponenter: Includes noise-reducing foam pad, shockproof protective shell, high-fidelity sound coil, and anti-drop net cover.

Genopladelig modtager

The image details the receiver's features: current frequency display, battery indicator, connection indicator, disconnection indicator, USB-C charging port, antenna, power switch, charging indicator, and a 6.35mm jack. The antenna can be adjusted to 0°, 45°, or 90°.

• Skærm: Shows current frequency, battery indicator, connection, and disconnection status.
• USB-C opladningsport: For recharging the internal 1500mAh battery.
• 6.35 mm jack: For connecting to audio devices.
• Adjustable Antenna: Can be set to 0°, 45°, or 90° for optimal signal reception.
• Batterilevetid: 7-9 hours of usage time on a full charge.
• Opladningstid: Cirka 4-5 timer for fuld opladning.
• Vigtig bemærkning: Use a 5V charging head. Avoid fast charging heads (e.g., 9V, 12V) to prevent damage.

Opsætningsinstruktioner

1. Install Batteries in Microphones

Unscrew the bottom part of each microphone and insert 2 AA batteries, ensuring correct polarity. Batteries are not included.

2. Pairing the Microphones and Receiver (Plug & Play)

1. Tænd for mikrofonen.
2. Tænd for modtageren.
3. The microphone and receiver will automatically synchronize.

This image illustrates the three simple steps for pairing: 1. Turn on the microphone. 2. Turn on the receiver. 3. Plug the receiver into the speaker. A checkmark indicates successful pairing.

3. Connecting to Audio Devices

Plug the receiver's 6.35mm jack directly into the MIC IN port of your compatible audio device (e.g., karaoke machine, powered speaker, amplifier, mixer). If your device has a 3.5mm input, use the included 6.35mm to 3.5mm converter.

This image illustrates the wide compatibility of the system with devices featuring a 1/4" (6.35mm) Mic Input, including outdoor speakers, power amplifiers, sound mixer boards, DJ controllers, karaoke machines, and portable speakers. It also explicitly states that the system is not compatible with mobile phones, computers, or tablets without an additional 3.5mm interface.

Betjeningsvejledning

Adjusting Channels and Volume

The system offers 10 adjustable channels to minimize interference. Each microphone has a unique channel and frequency number. You can adjust the volume directly on the microphone.

This image shows how to adjust the microphone's channel and volume. It displays the microphone's screen changing from one frequency to another (e.g., 902.8 MHz to 903.4 MHz) and indicates the volume up (VOL+) and volume down (VOL-) buttons.

• Kanaljustering: If interference occurs, you can change the microphone's channel. Refer to the troubleshooting section for detailed steps on switching channels.
• Lydstyrkekontrol: Use the VOL+ and VOL- buttons on the microphone to adjust the output volume.
• Mute-funktion: The power button also functions as a one-touch mute button.

Charging the Receiver

The receiver has a built-in 1500mAh rechargeable battery. Use the provided USB to Type-C charging cable to charge it. A full charge takes approximately 4-5 hours and provides 7-9 hours of usage.

This image shows the receiver being charged via a USB-C cable connected to a wall adapter, indicating 7-9 hours of usage time and 4-5 hours of charging time. It also reminds that each microphone is powered by 2 AA batteries (not included).

Kompatibilitet

The TONOR TW361 system is designed for wide compatibility with various audio equipment. However, certain devices require specific connections or are not supported.

Compatible Devices (with 6.35mm MIC IN port):

• Karaoke Machines
• Powered højttalere
• Amplivførere
• Blandere
• PA systemer
• Udendørs højtalere
• DJ controllere
• Bærbare højtalere

Incompatible Devices / Special Considerations:

• Mobile Phones, Computers, Tablets: Not directly compatible. An additional 3.5mm interface converter is needed (not included).
• Bluetooth: The system does not support Bluetooth connectivity.
• TV/Soundbar: Requires an intermediary audio device for connection.

This image provides important tips for better usage and connectivity, visually indicating that output devices require XLR and 6.35mm inputs, an adapter is needed for mobile/laptop connections, Bluetooth is not supported, and a TV/Soundbar requires an intermediary audio device.

Opretholdelse

• Store the microphones and receiver in a dry, cool place when not in use.
• Clean the microphone body and receiver with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Sørg for, at modtageren er fuldt opladet før hver brug for at opnå optimal ydeevne.
• Replace AA batteries in the microphones when the battery indicator shows low power.

Fejlfinding

Microphone Not Working / Signal Issues

If you encounter a microphone that is not working or experiencing signal issues, follow these steps:

1. Check Microphone Channels: Ensure that the microphone channels are not duplicated. If two microphones are on the same channel, they cannot be used normally. You will need to switch channels for one of them.
2. Re-pair the Microphone and Receiver: If the signal light on the receiver does not turn steady after turning on the microphone, re-pairing is necessary.

How to Switch Microphone Channels (A/B Mic)

1. Turn off the microphone with the problem.
2. Long press the power button for 10 seconds, waiting for the screen to display from "A" to "B" and then release it. This switches the channel group.
3. Each microphone has a unique channel and frequency number that can be used simultaneously.

How to Re-pair the Microphone and Receiver

1. Turn on the mic, and long press the "SET" button until the screen flashes quickly.
2. Tænd for modtageren.
3. Then click the "SET" button on the microphone once.
4. When the RF light on the receiver turns steady, the pairing is successful.

Specifikationer

Garanti og support

TONOR products are designed for reliability and performance. For warranty information, technical support, or any inquiries regarding your product, please refer to the official TONOR website or contact customer service directly. Keep your purchase receipt for warranty claims.

For yderligere hjælp, besøg TONOR Store on Amazon.
