Indledning
This manual provides detailed instructions for the safe and efficient operation of your Retevis C2 GMRS 2-Way Radio. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.
The Retevis C2 GMRS radio offers long-range communication, noise cancellation, group call functionality, and easy pairing, making it suitable for various professional and recreational uses.
Produkt overview og komponenter
Familiarize yourself with the main components and features of your Retevis C2 GMRS radio.

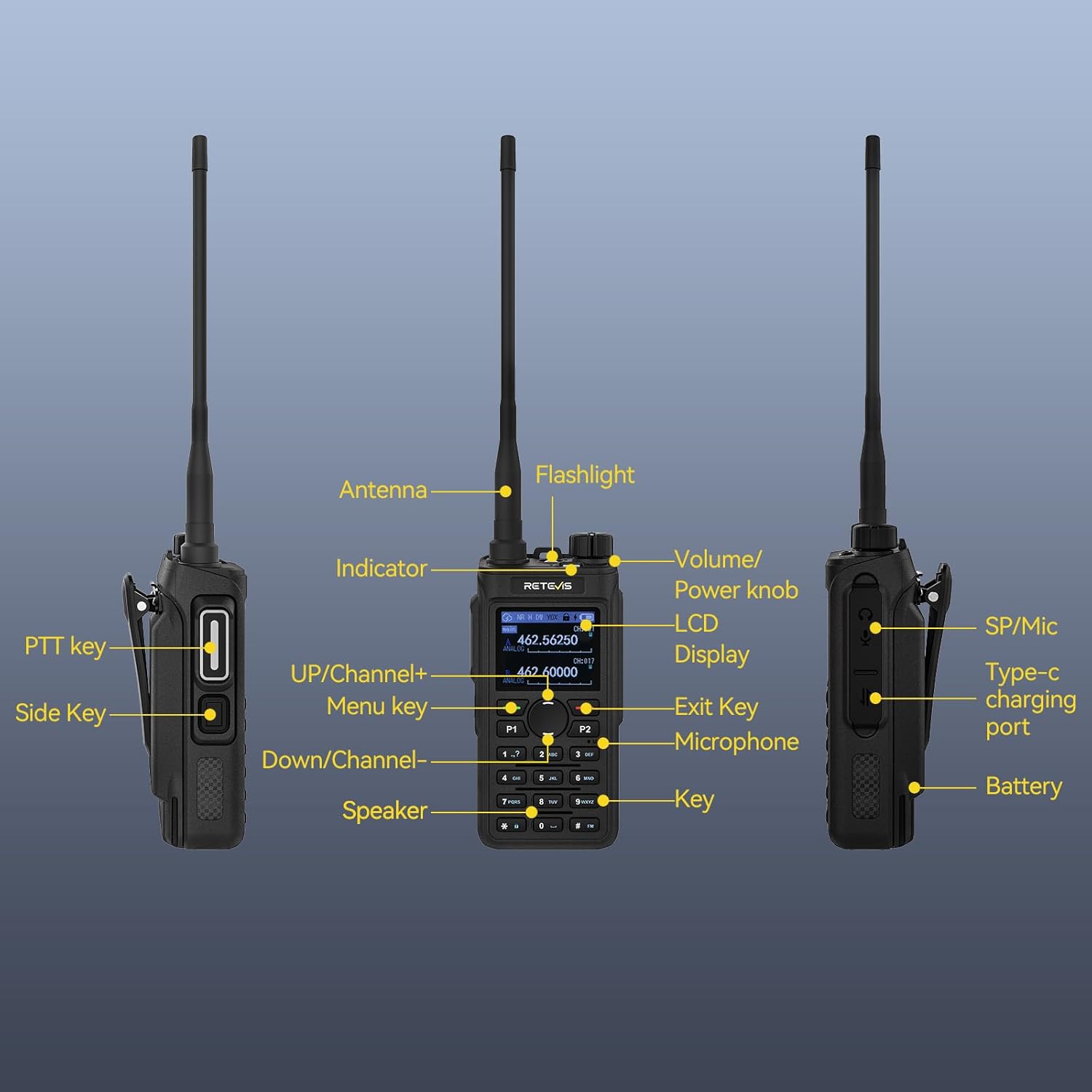

Billede: Labeled diagram of the Retevis C2 GMRS radio, highlighting its antenna, flashlight, indicator, volume/power knob, LCD display, PTT key, side keys, menu key, up/channel+, down/channel-, exit key, microphone, speaker, key, SP/Mic port, Type-C charging port, and battery.
- Antenne: Til at sende og modtage signaler.
- Lydstyrke/afbryderknap: Tænder/slukker radioen og justerer lydstyrken.
- LCD-skærm: Shows channel, battery, and other status information.
- PTT-tast (Push-to-Talk): Tryk og hold nede for at sende din stemme.
- Sidetaster: Programmable for various functions like emergency alarm or flashlight.
- Menutast: Giver adgang til radioens menuindstillinger.
- Up/Down Channel Keys: Navigates channels and menu options.
- Afslut nøgle: Afslutter menu eller aktuel funktion.
- Mikrofon: For speaking during transmission.
- Højttaler: For receiving audio.
- Type-C opladningsport: Til direkte opladning.
- SP/Mic Port: Til tilslutning af eksternt lydtilbehør.
Opsætning
Hvad er der i æsken
Billede: The package contents include the C2 walkie talkie, battery, belt clip, hand strap, Type-C charging cable, charging base, and user manual.
Your Retevis C2 GMRS radio package includes the following items:
- Retevis C2 Walkie Talkie
- Lithium Ion Battery (2000mAh)
- Bælteclips
- Håndstrop
- Type-C opladerkabel
- Opladningsbase
- Brugermanual
Installation og opladning af batteri
The radio comes with a 2000mAh Lithium Ion battery. Ensure the battery is properly installed before first use.
- Juster batteriet med bagsiden af radioen, og skub det på plads, indtil det klikker sikkert.
- To charge, place the radio in the provided charging base or connect the Type-C charging cable directly to the radio.
- The charging indicator light on the base will typically show red while charging and turn green when fully charged.
Video: Demonstration of the Retevis C2 GMRS walkie-talkie charging method using the charging base.
Billede: The radio can be charged via a Type-C cable directly or by placing it in the charging base, offering flexible power options.
Antenne vedhæftning
Skru antennen med uret ind i stikket øverst på radioen, indtil den sidder godt fast.
Betjeningsvejledning
Tænd/sluk og lydstyrkekontrol
- To power on the radio, rotate the Volume/Power knob clockwise.
- For at slukke skal du dreje knappen mod uret, indtil den klikker.
- Juster lydstyrken ved at dreje den samme knap med uret for at øge og mod uret for at sænke.
Kanalvalg
The Retevis C2 GMRS radio supports 30 channels. To change channels, use the Up/Down Channel keys or the dedicated channel selection knob if available.
Tryk og tal (PTT)
The PTT button is located on the side of the radio. Press and hold this button to transmit your voice. Release the button to listen for incoming transmissions.
Gruppeopkald
The radio supports group call functionality, allowing all members to connect instantly.
Billede: Three individuals communicating via walkie-talkies, demonstrating the one-touch group call feature where all members are connected instantly.
AI støjreduktion
The integrated AI noise reduction chip filters out ambient noise, ensuring clear communication even in noisy environments.
Billede: A split image showing the difference in sound quality before and after noise reduction, with sound waves illustrating the effect.
NOAA vejradvarsler
Stay informed about weather conditions with NOAA weather alerts. This feature is essential for outdoor activities.
Billede: The radio displaying a NOAA weather alert, with a user pressing a programmable button to activate the feature.
Emergency Alarm and Flashlight
The radio includes an emergency alarm and an LED flashlight for critical situations.
- Nødalarm: Activate the emergency alarm via a programmable side key to alert others.
- LED lommelygte: Use the built-in LED flashlight for illumination in low-light conditions.
Nøglelås
To prevent accidental changes to settings, the radio features a key lock function. Long press the designated key to activate or deactivate the key lock.
Nem parring
The Retevis C2 GMRS radio supports easy pairing with other GMRS walkie talkies without complex settings, enhancing operational efficiency.
Lang rækkevidde kommunikation
High power output provides an extensive communication range of up to 350,000 sq.ft (30,000 sq.m), ensuring reliable communication across various work positions.
Billede: A person on a bicycle communicating with another person in the distance using the Retevis C2 GMRS radio, highlighting its long-range capability.
Opretholdelse
Batteripleje
The 2000mAh battery provides approximately 17 hours of use and 100 hours of standby time. To maximize battery life, ensure regular charging and avoid fully discharging the battery frequently.
Rensning
Tør radioen af med en blød, damp klæde. Brug ikke skrappe kemikalier eller opløsningsmidler.
Vandmodstand
The device is water resistant. Avoid submerging the radio in water.
Fejlfinding
If you encounter issues with your Retevis C2 GMRS radio, consider the following basic troubleshooting steps:
- Ingen strøm: Ensure the battery is fully charged and correctly installed. Check the power knob.
- Kan ikke sende/modtage: Verify that both radios are on the same channel. Check the antenna connection. Ensure the PTT button is functioning correctly.
- Dårlig lydkvalitet: Adjust the volume. Check for obstructions between radios. Ensure the noise reduction feature is active if in a noisy environment.
- Keys Unresponsive: Check if the Key Lock feature is activated. Deactivate it by long-pressing the designated key.
For further assistance, refer to the detailed user manual included in your package or contact Retevis customer support.
Specifikationer
| Feature | Specifikation |
|---|---|
| Varens vægt | 6.6 ounces (186 gram) |
| Pakkedimensioner | 16 x 10 x 7 tommer |
| Varemodelnummer | C2 GMRS |
| Batterier | 6 Lithium Ion batterier påkrævet (medfølger) |
| Antal kanaler | 30 |
| Speciel funktion | Longer Range, Noise Reduction, Easy pairing, Group Call, 1.77-Inch Screen, 2000mAh Battery, USB-C, Emergency Alarm, LED Flashlight, NOAA |
| Frekvensområde | GMRS |
| Maksimal talerækkevidde | 594 Feet (approx. 350,000 sq.ft / 30,000 sq.m) |
| Voltage | 7.4 volt |
| Vandmodstandsniveau | Vandtæt |
| Farve | Sort |
| Fabrikant | Retevis |
Garanti & Support
Retevis provides a 2-year warranty for the radio body and a 1-year warranty for accessories. A 30-day no-reason return policy is also offered.
Beyond the warranty period, maintenance services are available, with buyers responsible for associated costs. For any inquiries or support, please contact Retevis on Amazon; responses are typically provided within 12 hours.
