Indledning
Thank you for choosing the Yaheetech Rolling Kitchen Island. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new kitchen island. Please read it thoroughly before use and retain it for future reference.
Figure 1: Yaheetech Rolling Kitchen Island, showcasing its rustic brown finish and overall structure.
Vigtige sikkerhedsoplysninger
For at sikre sikker drift og forhindre skader, bedes du følge følgende sikkerhedsretningslinjer:
- Vægt kapacitet: Do not exceed the maximum weight capacity of 88 lbs (40 kg) for the countertop and shelves. Each hook has a maximum capacity of 11 lbs (5 kg). Overloading can cause structural failure and injury.
- Stabilitet: Use caution when moving the island, especially on uneven surfaces, to prevent tipping. Ensure casters are locked when the island is stationary to maintain stability.
- Elektrisk sikkerhed: Keep electrical appliances and the power outlets away from water or excessive liquids. Always turn off the OCP (Over Current Protection) switch after using appliances connected to the integrated power outlets.
- Forsamling: Follow all assembly instructions carefully. Ensure all parts are securely fastened before use. Do not modify the product structure.
- Rensning: Disconnect any electrical appliances before cleaning. Use a damp cloth for cleaning and avoid harsh chemicals that may damage the finish.
Opsætning og montering
The Yaheetech Rolling Kitchen Island requires assembly. Please ensure all components are present before beginning. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.
Pakkeindhold:
- MDF Panels (Countertop, Shelves)
- Metalrammekomponenter
- Hjul (hjul)
- Power Outlet Unit with Cord
- Mug Holders
- Wine Glass Holders
- S-shaped Hooks
- Samlebeslag (skruer, unbrakonøgle osv.)
- Instruktionsmanual (dette dokument)
Monteringstrin:
- Udpak og verificér: Carefully unpack all components and compare them against the parts list provided in the original packaging.
- Saml ramme: Begin by connecting the metal frame components using the provided hardware. Ensure all connections are finger-tight before fully tightening.
- Fastgør hjul: Securely attach the four casters to the bottom of the metal frame. Two of the casters are lockable; position them on the same side for easier access.
- Installer hylder: Place the MDF shelves onto the designated frame supports. Secure them with the appropriate hardware.
- Mount Power Outlet: Attach the power outlet unit to the side panel as indicated in the assembly diagram. Ensure the power cord is routed safely and not pinched.
- Tilføj tilbehør: Install the mug holders, wine glass holders, and S-shaped hooks as desired on the designated rails.
- Endelig stramning: Once all components are in place, systematically tighten all screws and bolts to ensure the structure is rigid and stable. Do not overtighten.
Figure 2: Detailed dimensions of the kitchen island, useful for planning placement and assembly.
Figur 3: Nærbillede view of the 360-degree rotatable caster wheel with its locking mechanism (ON/OFF).
Betjeningsvejledning
Using the Rolling Function:
To move the kitchen island, unlock the two lockable casters by pushing the lever to the "OFF" position. Gently push the island to its desired location. Once positioned, push the levers to the "ON" position to lock the casters and prevent unintended movement.
Udnyttelse af lagerplads:
The island features a spacious countertop, two open shelves, three wine glass holders, three mug holders, and eight S-shaped hooks. Distribute weight evenly across the shelves and countertop to maintain stability. The bottom shelf is designed with slats for stable multi-layer stacking of wine bottles.

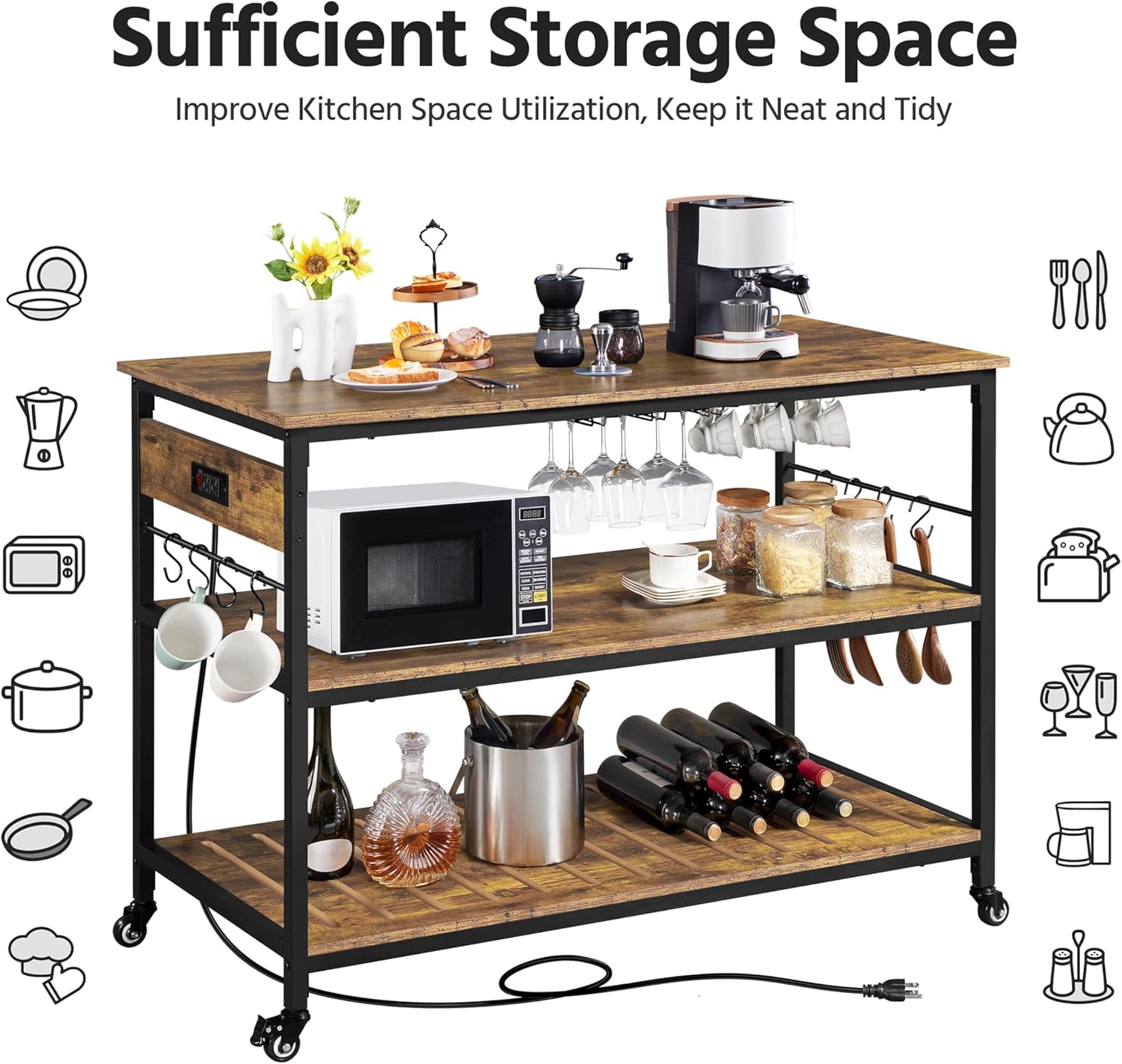

Figure 4: Illustration of the kitchen island's ample storage capacity, showing various kitchen items organized on its shelves and hooks.

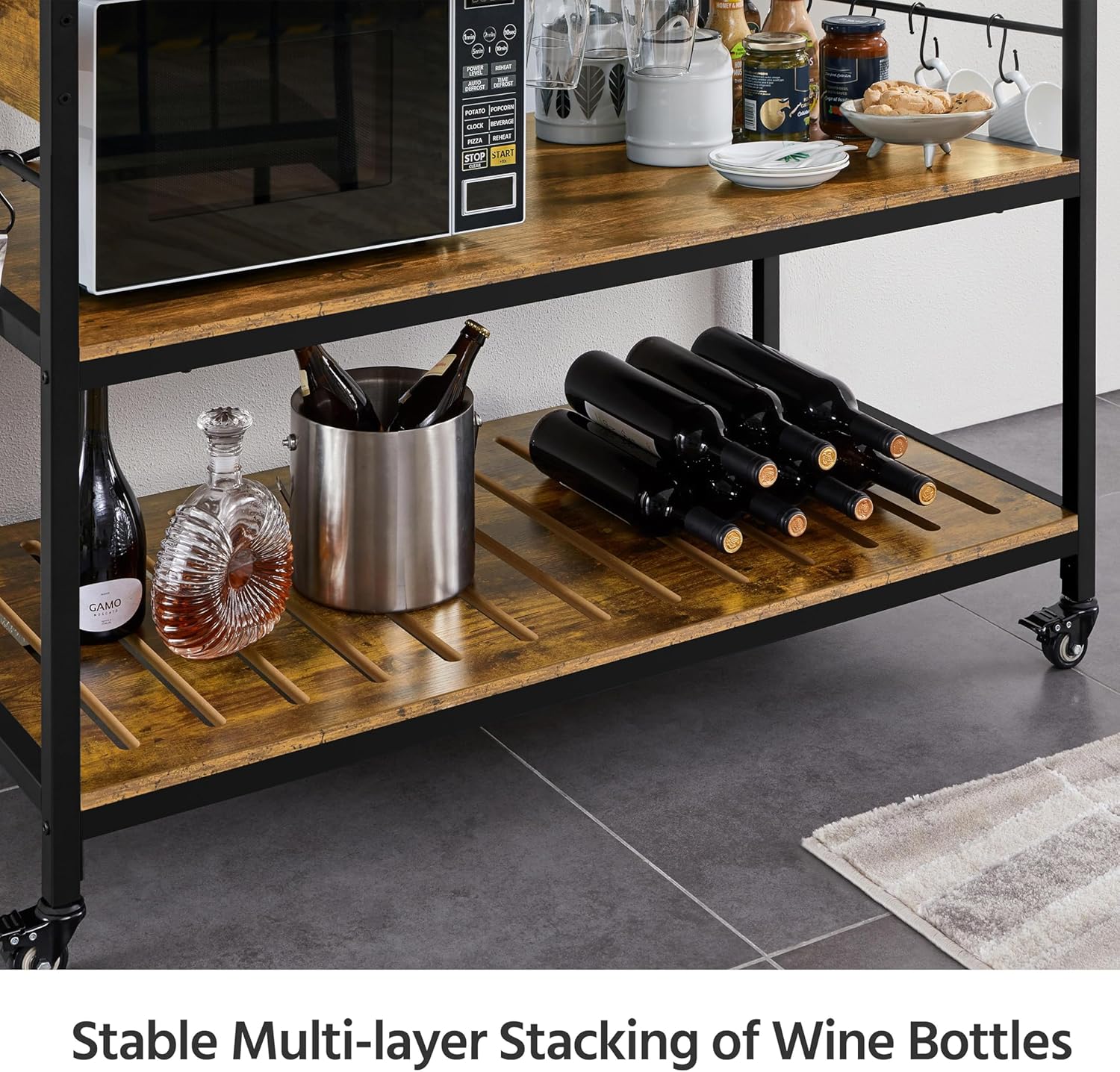

Figur 5: Detaljeret view of the slatted bottom shelf, designed for stable multi-layer stacking of wine bottles.
Brug af strømudtagene:
The kitchen island is equipped with two AC power outlets and an OCP (Over Current Protection) switch. These outlets are suitable for small kitchen appliances such as microwave ovens, coffee makers, and air fryers. To use, plug your appliance into one of the outlets. After use, always turn off the OCP switch to ensure safety and conserve energy.
Figur 6: Detaljeret view of the integrated charging station, featuring two AC outlets and an OCP switch.
Vedligeholdelse og pleje
Regular maintenance will help prolong the life and appearance of your kitchen island.
- Rensning: Tør overfladerne af med adamp cloth. For stubborn stains, a mild soap solution can be used, followed by wiping with a clean, dry cloth. Avoid abrasive cleaners or harsh chemicals that may damage the rustic brown finish or metal frame.
- Spild: Promptly wipe up any spills, especially liquids, to prevent water damage to the MDF panels.
- Hardwarekontrol: Kontrollér regelmæssigt alle skruer og bolte for at sikre, at de forbliver stramme. Spænd dem efter om nødvendigt, men overspænd dem ikke.
- Vedligeholdelse af hjul: Hold hjulene fri for snavs (hår, støv osv.) for at sikre jævn rulning.
Fejlfinding
If you encounter issues with your Yaheetech Rolling Kitchen Island, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Island is wobbly after assembly. | Løs hardware. | Check and tighten all screws and bolts. Ensure the island is on a level surface. |
| Hjulene ruller ikke jævnt. | Debris caught in wheels; casters locked. | Clear any debris from the wheels. Ensure the caster lock levers are in the "OFF" position. |
| Stikkontakterne virker ikke. | OCP switch is off; appliance issue; power cord not plugged in. | Ensure the OCP switch is in the "ON" position. Check if the appliance is working correctly in another outlet. Verify the island's power cord is securely plugged into a wall outlet. |
| Ridser på overfladen. | Skarpe genstande; slibende rengøring. | Use coasters or protective mats for hot or sharp items. Avoid dragging objects across the surface. Use only soft cloths for cleaning. |
If the problem persists or is not listed here, please contact Yaheetech customer support for assistance.
Specifikationer
| Feature | Detalje |
|---|---|
| Model | B0DHXD1MRP |
| Farve | Rustik brun |
| Materialer | CARB P2 Compliant MDF, Powder-coated Metal Frame |
| Samlede mål (L x B x H) | 47.5" x 24" x 36.5" (120.65 cm x 60.96 cm x 92.71 cm) |
| Bordplademål (L x B) | 120.65 cm x 60.96 cm (47.5" x 24") |
| Maksimal vægtkapacitet (bordplade) | 88 lb (40 kg) |
| Maksimal vægtkapacitet (hver hylde) | 88 lb (40 kg) |
| Maksimal vægtkapacitet (hver krog) | 11 lb (5 kg) |
| Stikkontakter | 2 AC-udtag med OCP-afbryder |
| Strømkabellængde | 6.5 fod (1.98 m) |
| Hjul | 4 (2 lockable, 2 non-lockable) |
| Montering påkrævet | Ja |
| Produktets vægt | 68 lbs (30.8 kg) |
Garanti og support
Kundesupport:
For any questions, concerns, or assistance with your Yaheetech Rolling Kitchen Island, please contact Yaheetech customer support. You can typically find contact information on the Yaheetech official webhjemmeside eller gennem den forhandler, hvor du købte produktet.
Please have your model number (B0DHXD1MRP) and purchase date ready when contacting support.
Garantioplysninger:
Specific warranty details may vary by region and retailer. Please refer to the warranty card included with your product or visit the official Yaheetech website for the most up-to-date warranty policy. Generally, Yaheetech products are covered against manufacturing defects for a specified period from the date of purchase.
