1. Produktet er slutview
The BN-LINK Outdoor Light Timer is a versatile and durable device designed to automate your outdoor lighting and electrical appliances. It features a built-in photocell sensor for automatic dusk-to-dawn operation, multiple countdown timer options, and a convenient remote control with a 100-foot RF range. Its weatherproof design ensures reliable performance in various outdoor conditions.
- Dusk-to-Dawn sensor: Automatically turns devices on at dusk and off at dawn based on ambient light.
- Nedtællingstimer: Set automatic shut-off after 2, 4, 6, or 8 hours.
- Fjernbetjening: Operate devices from up to 100 feet away.
- Dobbelt jordede stikkontakter: Powers two devices simultaneously.
- Vejrbestandigt design: Durable construction for outdoor use in rain or shine.
- ETL opført: Ensures safety and quality standards.
Image 1: BN-LINK Outdoor Light Timer with Remote Control. This image displays the main timer unit with its flexible power cord and plug, alongside the compact remote control. The timer unit features two grounded outlets and indicator lights for various modes.
Image 2: Key features of the BN-LINK Outdoor Remote Control Timer. Icons represent Light Sensor, Waterproof, Countdown Timer, and ETL Listed, highlighting the product's main functionalities.
2. Pakkens indhold
- 1 x BN-LINK Outdoor Light Timer (Model CP-UOLR10-2)
- 1 x Remote Control (with 1 x 12V battery included)
- 1 x brugsanvisning
3. Specifikationer
| Specifikation | Værdi |
|---|---|
| Produktdimensioner | 5 x 4.5 x 1.7 tommer; 9.59 ounce |
| Varemodelnummer | CP-UOLR10-2 |
| Batterier | 1 x 12V battery required (included for remote) |
| Driftstilstand | ON-OFF, Dusk-to-Dawn, 2H/4H/6H/8H Countdown |
| Nuværende vurdering | 15 Amps |
| Operation Voltage | 120 volt |
| Kontakttype | Normalt åben |
| Connector Type | Tilslut |
| Fabrikant | BN-LINK |
Image 3: Detailed dimensions and electrical ratings for the BN-LINK Outdoor Light Timer. This graphic provides measurements in inches and specifies maximum input voltage, frequency, line current, and output power.
4. Opsætning
- Montering af timeren:
For optimal waterproofing and performance, mount the timer vertically with the outlets facing downwards. Ensure the device is positioned at least 2 feet (approximately 60 cm) above the ground. This prevents water from accumulating in the outlets and protects the internal components. The unit includes a mounting hole for secure installation. - Tilslutning til strøm:
Plug the timer's power cord into a standard 125VAC grounded outdoor power outlet. The OFF indicator light will illuminate, indicating that the device is powered but not supplying electricity to the outlets. - Tilslutning af enheder:
Plug your outdoor lights or appliances into the two grounded outlets located at the bottom of the timer unit. - Installation af fjernbetjeningsbatteri:
The remote control comes with a pre-installed 12V battery. If replacement is needed, open the battery compartment on the back of the remote and insert a new 12V/23A alkaline battery, ensuring correct polarity. - Fjernbetjeningsparring:
Before using the remote control, it must be paired with the timer unit. Ensure no devices are connected to the outlets during pairing.- Press and hold the power button on the timer unit until the ON indicator light lights up.
- Continue holding for another 3-4 seconds until the OFF indicator light starts flashing.
- Press any button on the remote control. The ON indicator will flash quickly and then turn off, indicating successful pairing.
Image 4: Weather-resistant design and recommended mounting height. The image shows the timer mounted vertically on a wall, with a note to keep it at least 2 feet above the ground. It also illustrates warnings against full immersion and direct water streams.
Video 1: This video provides an unboxing and review of the BN-LINK Outdoor Timer, demonstrating its features, including the remote control and the manual's pairing instructions. It shows the physical unit, the remote, and the battery.
5. Betjeningsvejledning
The BN-LINK Outdoor Light Timer offers several operating modes, which can be selected using the power button on the unit or the remote control.
Driftsformer:
- OFF: Power is off to attached devices.
- PÅ: Power is on to attached devices continuously.
- Dusk-to-Dawn (Sensor Mode): Power will turn on at dusk and remain on until dawn. The photocell sensor detects ambient light levels.
- Countdown Timer Modes (2H/4H/6H/8H): Power will turn on at dusk and remain on for the selected duration (2, 4, 6, or 8 hours), then turn off.
Brug af fjernbetjeningen:
The remote control allows for convenient operation from a distance. Each button corresponds to a specific mode or action:
- PÅ: Turns the power on continuously.
- OFF: Slukker for strømmen.
- 2H / 4H / 6H / 8H: Activates the respective countdown timer mode.
- Skumring: Activates the Dusk-to-Dawn mode.
- Daggry: Deactivates the Dusk-to-Dawn mode (or turns off if currently in Dusk-to-Dawn mode).
Image 5: Illustration of the 100ft RF range remote control in an outdoor setting. A person is shown operating the timer from a distance, highlighting the convenience of the remote.

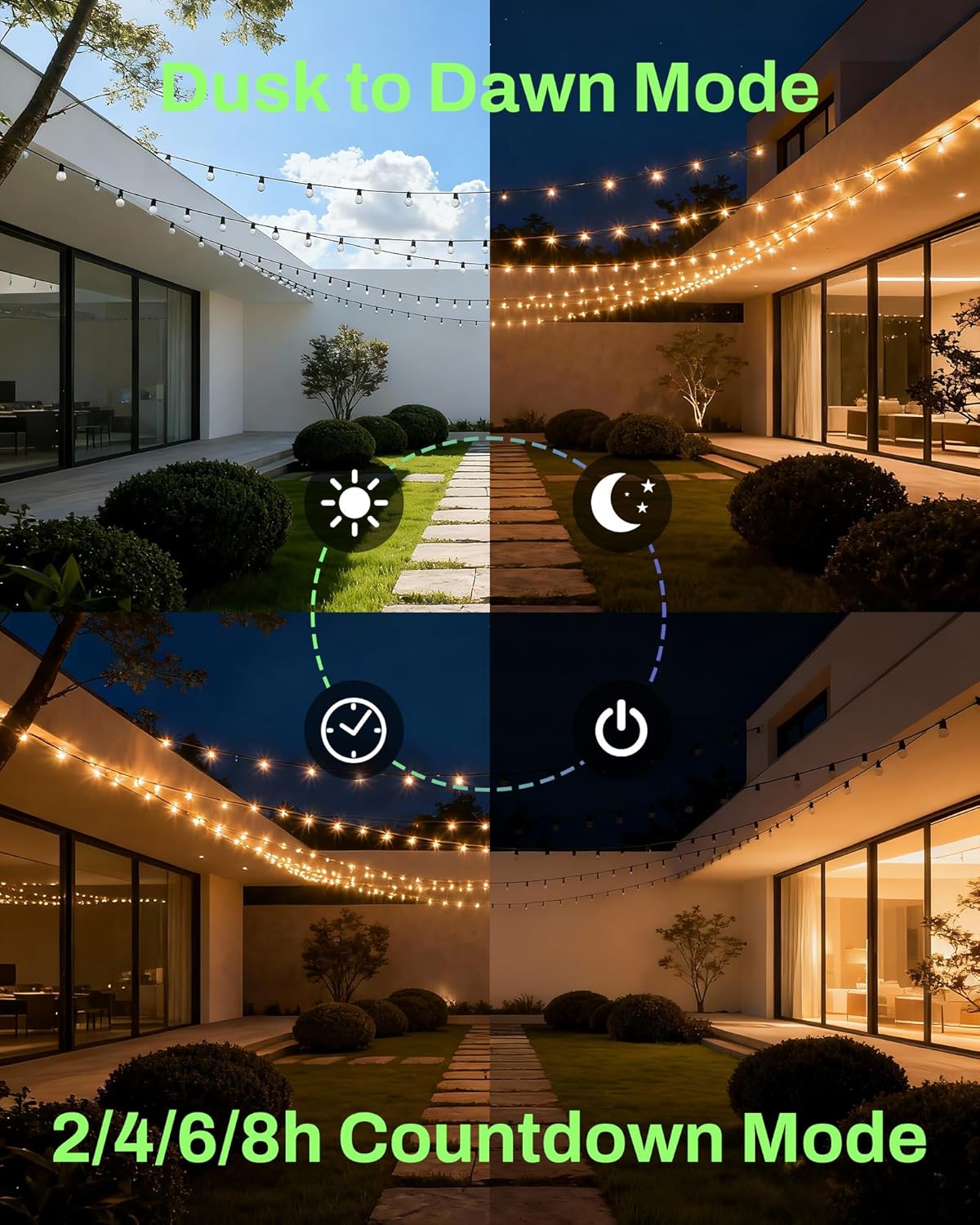

Image 6: Visual representation of the Dusk-to-Dawn and Countdown Timer modes. The image transitions from daylight to night, showing lights turning on automatically at dusk and then turning off after a set countdown period.
Video 2: An official BN-LINK video demonstrating the remote control timer's features, including its application for Christmas lights and various timing options.
6. Vedligeholdelse
- Rensning: Periodically wipe the timer unit with a soft, damp klud til at fjerne snavs og snavs. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
- Tilslutningskontrol: Regularly inspect the power cord and connected device cords for any signs of damage, fraying, or loose connections. Ensure all plugs are fully inserted into the outlets.
- Vandeksponering: While the timer is weatherproof, avoid fully immersing it in water or exposing it to direct, high-pressure water streams. Ensure the unit is mounted as recommended (vertically, 2ft above ground) to prevent water ingress.
- Fjernbetjenings batteri: Replace the 12V/23A battery in the remote control when its range or responsiveness decreases.
7. Fejlfinding
- Enheden tænder/slukker ikke:
- Sørg for, at timeren er tilsluttet en stikkontakt med strøm.
- Check if the connected device is properly plugged into the timer's outlets.
- Verify the selected operating mode (ON, Dusk-to-Dawn, or Countdown) is active.
- If in Dusk-to-Dawn mode, ensure the photocell sensor is not obstructed and is receiving adequate light.
- Fjernbetjening virker ikke:
- Kontrollér fjernbetjeningens batteri, og udskift det om nødvendigt.
- Ensure the remote is within the 100-foot operating range and there are no significant obstructions.
- Re-pair the remote control with the timer unit following the instructions in Section 4.
- Timer settings not saving after power outage:
The device will resume operation based on the last saved mode and current light conditions. If a specific setting is not saved, it may need to be re-selected.
8. Garanti og support
The BN-LINK Outdoor Light Timer is ETL Listed, ensuring it meets recognized safety standards. BN-LINK is committed to providing reliable products and customer satisfaction.
For any questions, technical support, or warranty inquiries, please contact our professional U.S.-based customer support team:
- Adresse: 17890 Castleton St, Suite 228, City of Industry, CA 91748
- U.S. Domestic Customer Support: 424-279-8074
- International Customer Support: 888-491-5507 lokalt. 101
- E-mail: support@bn-link.com
- Web: www.bn-link.com
- Arbejdstid: 9 AM - 5 PM PST, Monday - Friday
