Indledning
The TORRAS Power Bank with Built-in USB-C Cable is an ultra-slim, portable charging solution designed for fast and efficient power delivery. Featuring a 10,000mAh capacity and 22.5W fast charging capabilities, it is compatible with a wide range of USB-C devices, including iPhone 16/15, Samsung S25 Ultra, and other Android devices. Its integrated USB-C cable doubles as a convenient carrying strap, making it an ideal companion for travel and daily use. Advanced safety features and efficient cooling technology ensure reliable performance.
Hvad er der i æsken
- 10000mAh Power Bank
- USB-C ladekabel
- Brugermanual
- 18-Month Warranty + Lifetime Support
Produktegenskaber
22.5W PD hurtigopladning
This compact USB-C portable charger supports two-way fast charging with a 22.5W power bank fast charging output and 20W input. It features an integrated Type-C cable and an additional USB-C port, allowing you to charge two devices simultaneously. With a maximum output of 5V/3A, it's perfect for fast charging in an emergency.
Figure 1: Fast Charging Capabilities. The power bank can boost an iPhone 16 from 0 to 54% in 30 minutes and a Samsung S24 from 0 to 50% in 30 minutes.
Figure 2: Dual Device Charging. The power bank can charge two devices concurrently using its built-in Type-C cable and an additional USB-C port.
Durable & Portable Design
The portable charger with built-in cables serves dual purposes as both a charging cable and a carrying strap, supporting fast charging for all Type-C devices. Crafted from durable rock-climbing rope material, it protects the internal wiring. The integrated 7.09-inch USB-C cable offers convenience and can withstand over 20,000 bends, making it both durable and user-friendly. Note: This product is magnetic but does not support wireless charging.

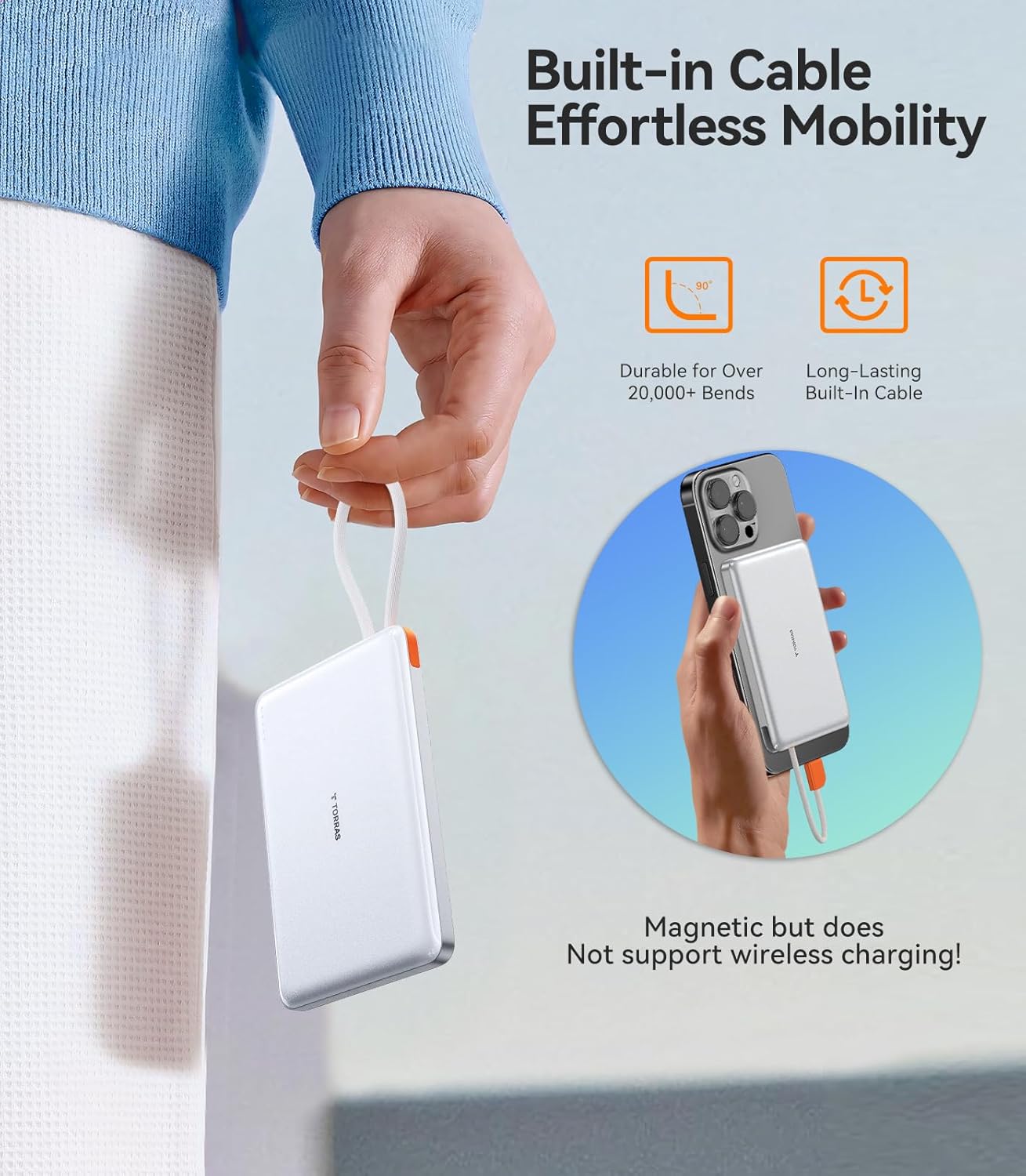

Figure 3: Built-in Cable and Portability. The integrated USB-C cable is durable and doubles as a convenient carrying strap. The power bank is magnetic for secure attachment but does not support wireless charging.
Figure 4: Compact and Lightweight Design. The power bank is ultra-slim and weighs only 4 ounces, making it easy to carry without burden.
Premium Safety & Efficient Cooling
This slim power bank has been certified by both UL and FCC, utilizing cutting-edge graphene technology for exceptional electrical and thermal conductivity. This enhances charging efficiency while reducing heat generation during the charging process. Its aviation-grade cooling shell design effectively manages heat, ensuring stable operation under heavy loads.
Figure 5: Advanced Temperature Control. Graphene material and an aero-grade cooling shell work together to maintain low temperatures during operation, protecting the battery and enhancing efficiency.
Figure 6: Authorized Safety Certifications. The power bank is certified by FCC and UL, ensuring multiple protections against over-heat, over-charge, over-voltage, og kortslutninger.
Opsætning
- Pakker ud: Tag forsigtigt powerbanken og alt tilbehør ud af emballagen.
- Indledende opkrævning: For optimal performance, fully charge the power bank before first use. Connect the included USB-C charging cable to the power bank's USB-C input port and a compatible USB wall adapter (not included). The battery indicator lights will show charging progress.
- Tjek batteriniveau: Press the power button once to check the current battery level indicated by the LED lights on the front of the device.
Betjeningsvejledning
Opladning af dine enheder
- Brug af det indbyggede USB-C-kabel:
- Gently pull out the integrated USB-C cable from its storage slot.
- Connect the USB-C connector to your compatible device (e.g., smartphone, tablet).
- Powerbanken begynder automatisk at oplade din enhed. Hvis ikke, skal du trykke én gang på tænd/sluk-knappen.
- Brug af den ekstra USB-C-port:
- Connect your device's charging cable (USB-C to USB-C) to the additional USB-C output port on the power bank.
- Tilslut den anden ende af kablet til din enhed.
- The power bank will automatically begin charging. If not, press the power button once.
- Opladning af flere enheder: You can charge two devices simultaneously by using both the built-in USB-C cable and the additional USB-C port.
Genopladning af Power Bank
- Connect the included USB-C charging cable to the power bank's USB-C input port.
- Connect the other end of the USB-C cable to a compatible USB wall adapter (20W input recommended for fast recharging).
- LED-indikatorlamperne lyser for at vise opladningsstatus. Alle fire lys lyser konstant, når den er fuldt opladet.
Opretholdelse
- Hold powerbanken væk fra ekstreme temperaturer, direkte sollys og væsker.
- Du må ikke skille enheden ad eller forsøge at reparere den selv.
- Clean the power bank with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Opbevares på et køligt, tørt sted, når det ikke er i brug i længere perioder.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Powerbanken oplader ikke enheden. | Lavt batteri i batteribanken; løs kabelforbindelse; inkompatibel enhed. | Genoplad powerbanken; sørg for, at kablerne er korrekt tilsluttet; bekræft enhedens kompatibilitet. |
| Powerbanken oplades ikke. | Defekt opladningskabel eller adapter; løs forbindelse. | Try a different USB-C cable and wall adapter; ensure connections are secure. |
| Langsom opladningshastighed. | Using a non-fast charging adapter; device not supporting fast charging; multiple devices charging. | Use a 20W PD compatible wall adapter; ensure device supports fast charging; charge one device at a time for maximum speed. |
| Power bank gets warm during use. | Normal operation during fast charging; heavy load. | This is normal due to graphene cooling technology. If it becomes excessively hot, disconnect and allow to cool. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | PB6 |
| Batterikapacitet | 10,000 mAh |
| Udgangseffekt | 22.5W (maks.) |
| Indgangseffekt | 20W (maks.) |
| Produktdimensioner | 4.33 x 2.64 x 0.59 tommer |
| Varens vægt | 4 ounce |
| Connector Type | Type-C (USB-C) |
| Farve | Glacier White |
| Særlige funktioner | Built-in Cable, Fast Charging, Heat Dissipation System, Pocket Size, Slim |
| Certificeringer | FCC, UL, TUV, DOE, CEC, UN, RoHS |
Garanti og support
The TORRAS Power Bank comes with an 18-month warranty and lifetime professional support. If you encounter any problems or require assistance, please contact TORRAS customer service. We are committed to providing a satisfactory solution for any issues you may experience.
For further assistance, please visit the official TORRAS webwebstedet eller kontakt deres kundesupportkanaler.
